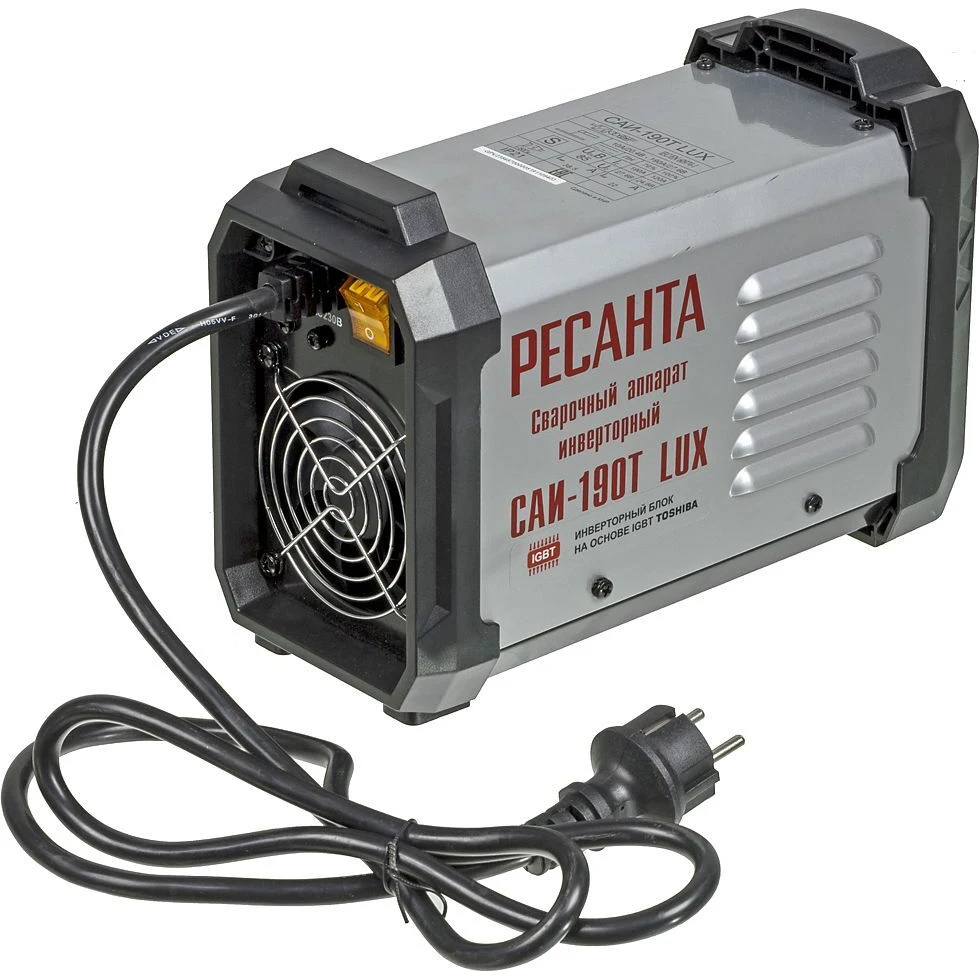

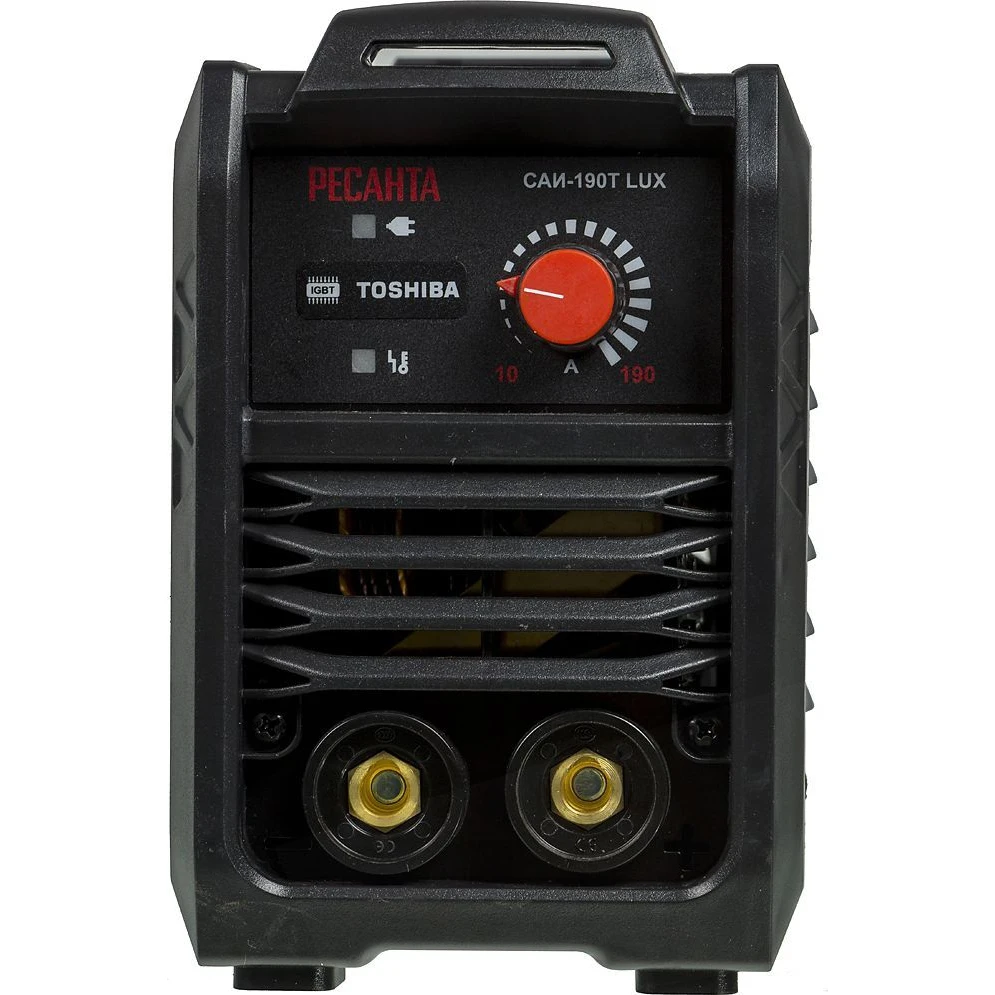

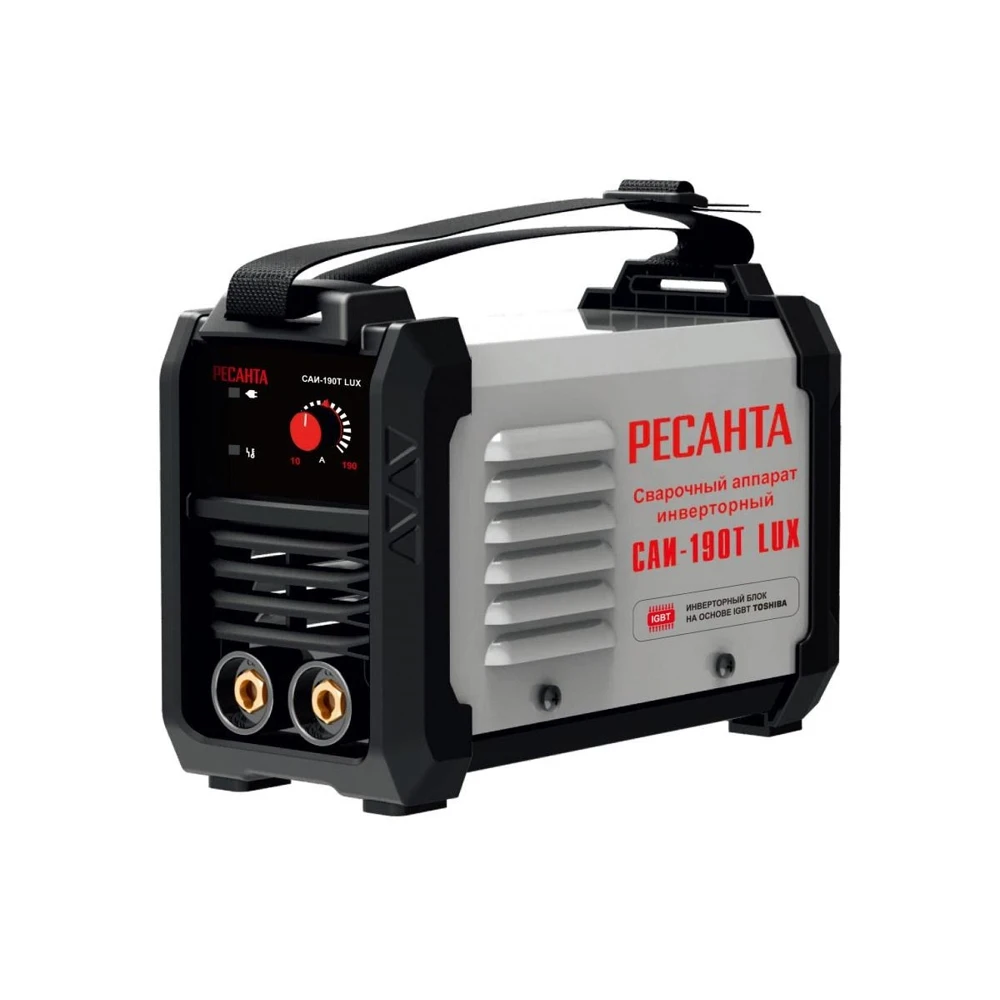

Welding machine resanta sai-190t Lux |

Welding machine resanta sai-190t Lux

Welding inverter machine resanta sai-190t Lux-designed for manual arc welding with one-piece coated electrode on a constant current and an electrode with an electric motor. This series of welding machines is designed on the basis of IGBT transistor Toshiba.

The device operates from a single-phase network 220-230 V with a frequency of 50Hz. The device is portable and universal in use. Small dimensions and light weight allow you to use the device for any repair work, where mobility is required, small power, good quality and high performance.

This series of devices is made in an ergonomic modern design.

Lux welding machines have an increased resource. With the help of these devices it is possible to perform work at low temperatures.

The principle of operation of the inverter is to convert the AC voltage of the network with a frequency of 50Hz into a constant voltage of 400 V, which is converted into a high-frequency-frequency Welding is carried out by a melting electrode.

• The power supply is the inverter based on the IGBT transistor Toshiba.

• The device has built-in protection against overheating.

• To regulate the welding current, the latitude-pulse modulation of high-frequency voltage is used.

• Function anti stick-performs automatic reduction of welding current when "pouring" the electrode.

• Hot start function for lighter arc ignition (electrode). This is an automatic short-term increase in welding current over the set value at the time of arc ignition.

• Arc force function-designed to enhance the stability of the welding arc and better metal turnover. It is carried out by increasing the welding current when reducing the length of the arc.

• Short circuit protection

• The automatic protection reliably protects the board (with input voltage).

• These welding machines have an increased resource due to Toshiba transistor.

• Unconditional warranty 5 years.

• Updated ergonomic design of the case.

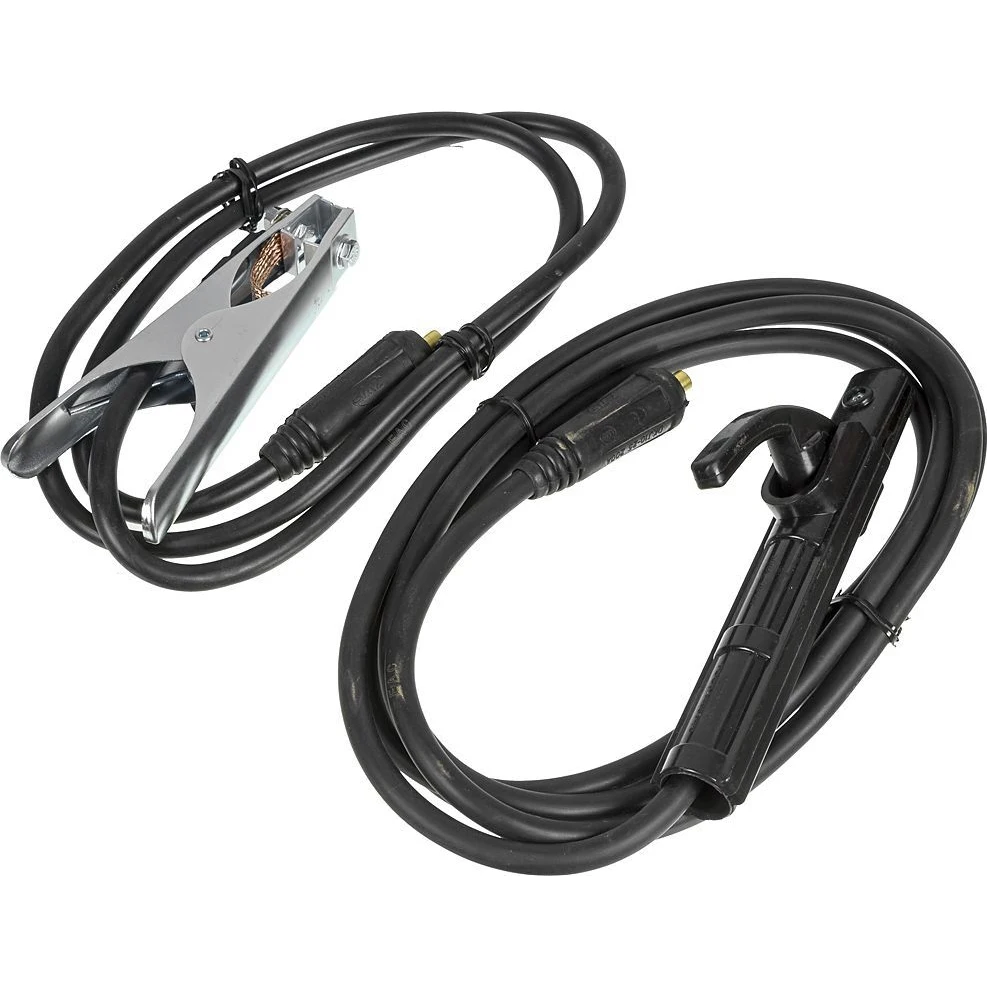

• Cable of electrode holder 3 m.

• Possibility of operation in the temperature range-20 ° to + 50 ° C

Specifications
