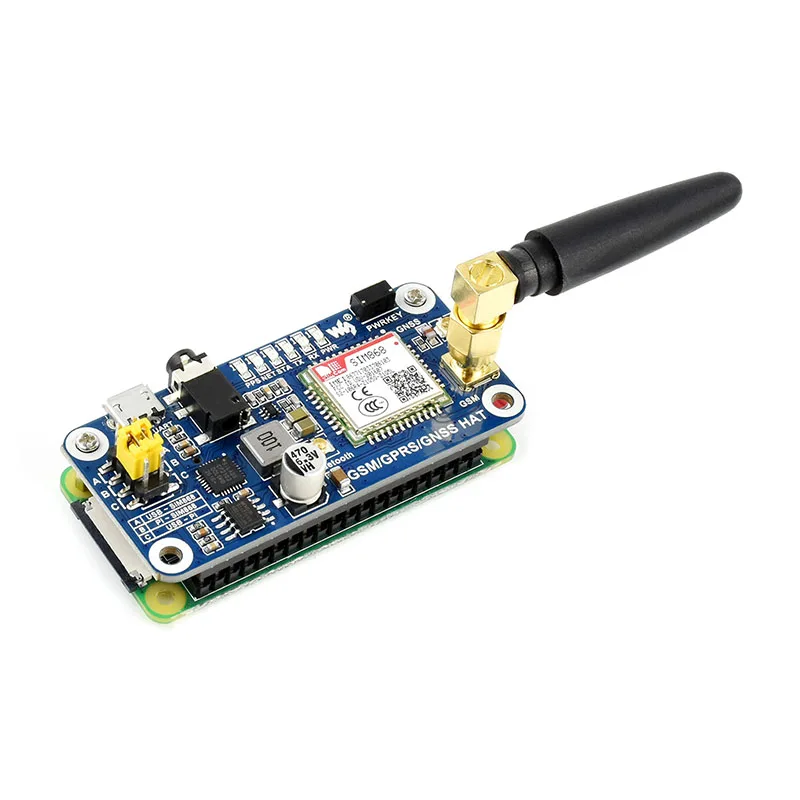

This is a Raspberry Pi expansion board with GSM (Global System for Mobile Communications), GPRS (General Packet Radio Service), GNSS (Global Navigation Satellite System) and Bluetooth (Bluetooth) functions.

Me, small size, low power consumption, and powerful! Take me, your Raspberry Pi will be able to easily implement functions such as calling, texting, wireless Internet access, global positioning, and Bluetooth data transmission.

• Based on Raspberry Pi 40pin GPIO interface, suitable for Raspberry Pi series motherboards

• Support SMS, phone, GPRS, DTMF, HTTP, FTP, MMS, mail and other functions

• Support GPS, Beidou, Glonass, LBS base station positioning, all-round positioning

• Support Bluetooth 3.0, Bluetooth data transmission can be carried out

• Onboard CP2102 USB to UART chip, convenient for serial port debugging

• 6 LED indicators on board, easy to check the running status of the module

• Onboard SIM card slot, support 1.8V and 3V SIM card

• Support RTC real-time clock, with backup battery deck

• Support automatic identification of baud rate (1200bps ~ 115200bps)

• Support AT command control (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT command set)

• Support SIM Application Toolkit: GSM 11.14 Release 99

• Provide complete supporting information manuals (Sample programs such as Raspberry/Arduino/STM32)



Product parameter

GSM/GPRS parameters

• Frequency band

GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz

Support automatic search for 4 frequency bands

Meet the GSM phase 2/2+ standard

• Transmit power

Class 4 (2W @ GSM 850/EGSM 900 MHz)

Class 1 (1W @ DCS 1800/PCS 1900 MHz)

• GPRS connection characteristics

GPRS multi-slot class 12 (default)

GPRS multi-slot class 1~12 (configurable)

• GPRS data characteristics

Uplink/downlink transmission rate: ≤85.6kbps

Support packet broadcast control channel (PBCCH)

Coding format: CS-1, CS-2, CS-3, CS-4

Support PAP protocol (password authentication protocol) for PPP connection

Support Unstructured Supplementary Data Service (USSD)

• SMS (SMS)

Support type: MT, MO, CB, Text, PDU

SMS storage device: SIM card

• Audio characteristics

Voice codec modes: Half Rate, Full Rate, Enhanced Full Rate, Adaptive Muti Rate

Support echo cancellation function

Support noise suppression function

GNSS parameters

• Receive

33 tracking channels

99 acquisition channels

GPS L1 C/A code

• Sensitivity

Tracking: -165 dBm

Cold start: -148 dBm

• First fix time

Cold start: 28s(typ.)

Hot start: <1s

Warm start: 26s

• Precision

Accurate positioning: <2.5m CEP

Bluetooth parameters

• Integrated AT command control

• Compliant with Bluetooth specification3.0 + EDR

• Support SPP, OPP, HFP/HSP and other functions

Other parameters

• Working voltage: 5V

• Working temperature: -40°C ~ 85°C

• Storage temperature: -45°C ~ 90°C

• Product size: 30.2mm x 65mm

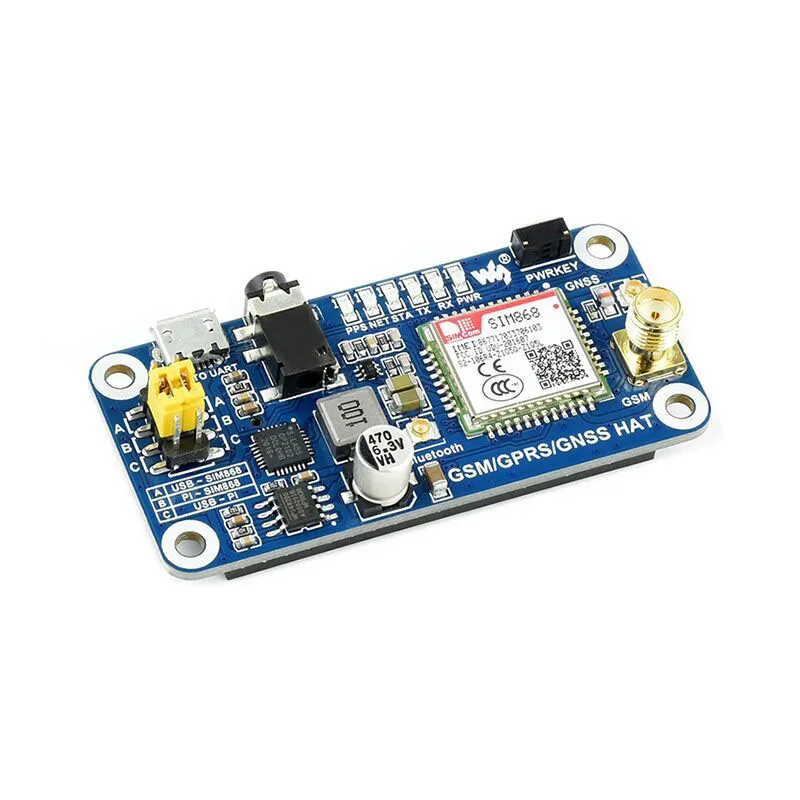

①SIM868 module

②ZMM5V1 Zener Diode

③SMF05C Transient Suppression Diode

④CP2102 USB to UART chip

⑤MP1482 power chip

⑥NDC7002N level conversion chip

⑦GNSS status indicator

⑧NET indicator

Flashes quickly when the module is just started

Slow flashing after successful GSM registration

⑨STA module work indicator

⑩SIM868 serial port transceiver indicator

⑪Power Indicator

⑫SIM868 switch button

Long press for 1 second to start SIM868

After starting, press and hold for 1 second to close SIM868

⑬Raspberry Pi GPIO interface

Easy access to Raspberry Pi

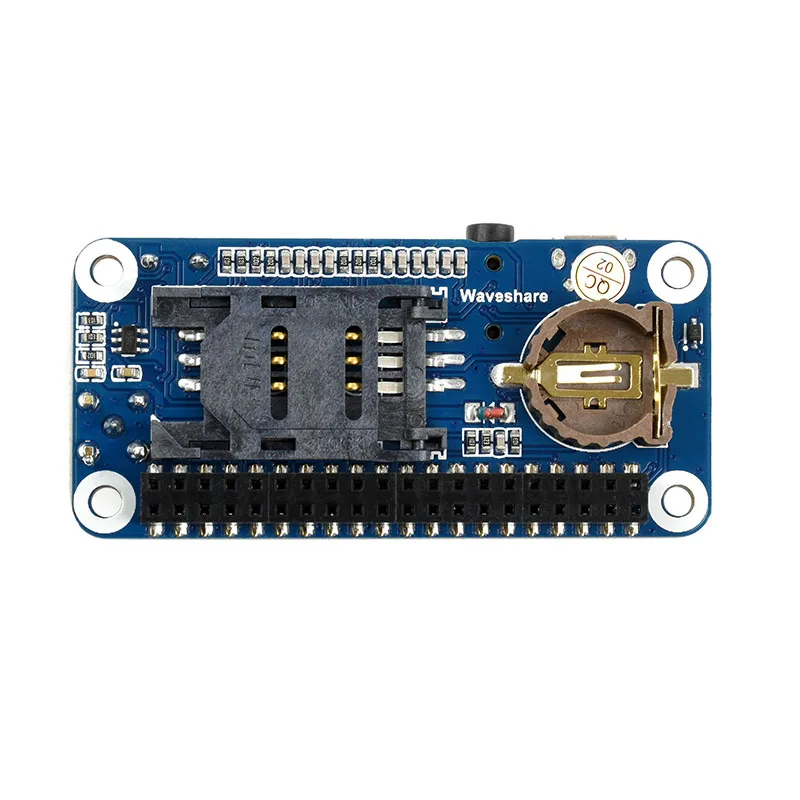

⑭SIM card slot

⑮USB TO UART interface

⑯3.5mm headphone/microphone interface

⑰GNSS antenna interface

⑱Bluetooth antenna interface

⑲GSM antenna interface

⑳CR1220 battery holder

RTC backup battery holder

21.UART selector switch

A: USB to serial port control SIM868

B: Raspberry Pi controls SIM868

C: USB to serial port to access Raspberry Pi

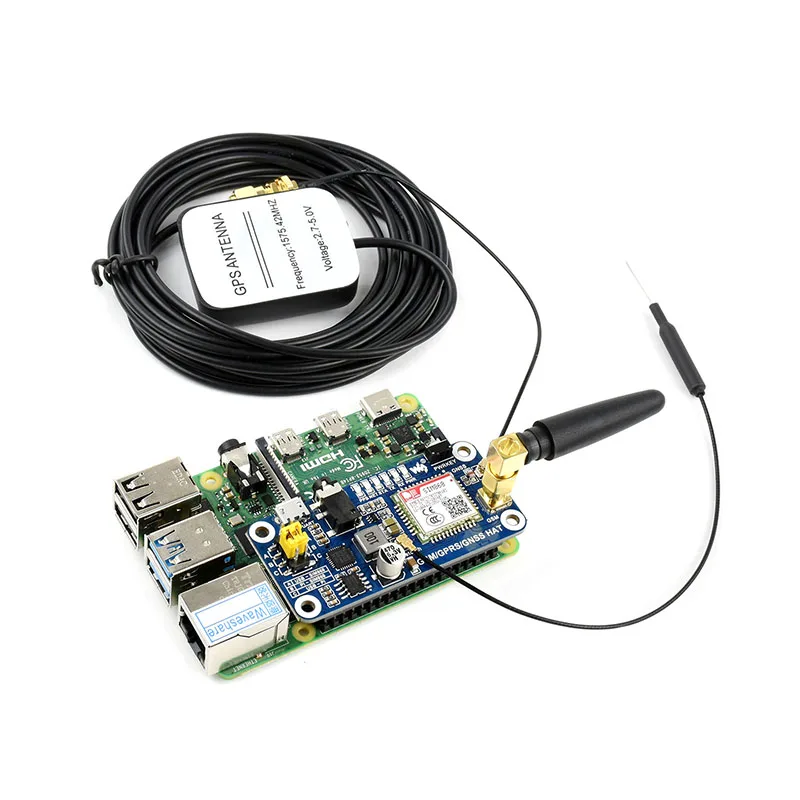

1. GSM/GPRS/GNSS HAT × 1

2. GSM antenna × 1

3. GPS External Antenna (B) × 1

4. Bluetooth antenna × 1

5. USB cable type A male port to micro male port × 1

6. RPi copper pillar package (2PCS set) ×1
