Fyscope E3 Высокочувствительная 20М SONY IMX147 USB3.0 Цифровая видеокамера USB микроскопа для темного поля и флуоресценции.

Fyscope E3 Высокочувствительная 20М SONY IMX147 USB3.0 Цифровая видеокамера USB микроскопа для темного поля и флуоресценции.

Description

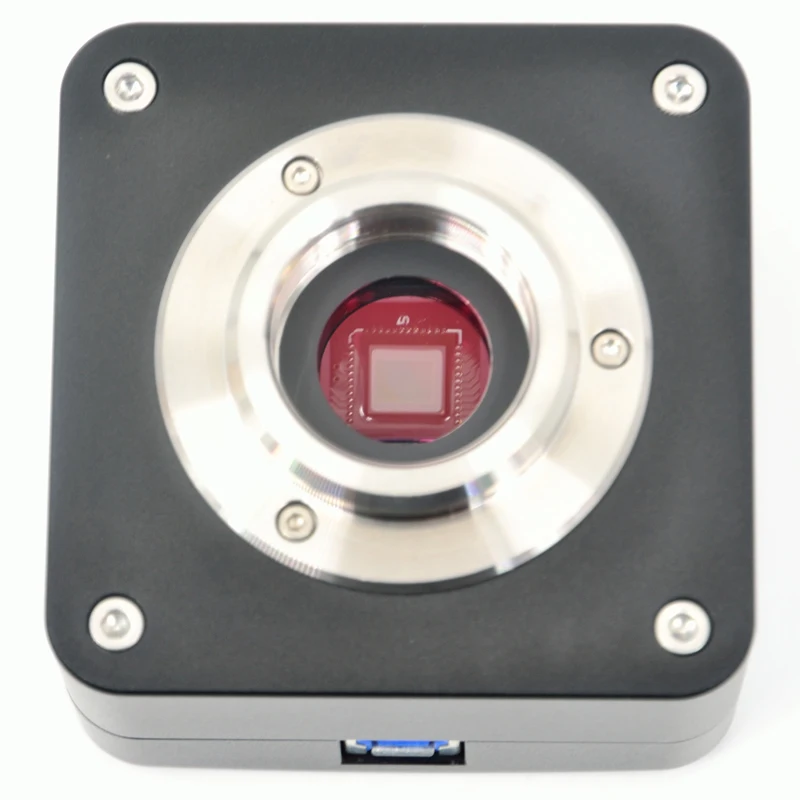

E3 High Sensitivity SONY imx147  20M USB3.0 digital video USB microscope Camera for darkfield fluorescent microscope

E3CMOS Series C-mount USB3.0 CMOS Camera：

• E3CMOS camera adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.

• E3CMOS camera use the latest Sony Exmor sensor which have the highest sensitivity and lowest noise with the help of 2 CDS(correlated double sampling) procedure. This feature guarantee that the E3CMOS camera is perfect for fluorescence microscope application, astronomy application and other dark field application, as well as the bright field application.

• E3CMOS camera’s resolutions range from 0.4M to 45M and come with the integrated CNC aluminum alloy compact housing.

• E3CMOS camera comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET,Python, Java, DirectShow, Twain, etc);

E3CMOS camera can be used to replace the traditional CCD camera to some extent sinceits unique features,  including high sensitivity, low noise, and group shutter (only some sensor has group shutter). Thanks to USB3.0, the frame rate is fastand 8bit/12bit/14bit data transfer can be available and switchable.

• SONY Exmor Back-illuminated CMOS sensor with USB3.0 interface;

• Real-time 8/12/14/16bit depth switch(depending on sensor);

• Super high sensitivity up to 130mV(IMX147);

• Ultra low noise and low power dissipation;

• With hardware resolution among 20M

• With advanced video & image processing application ToupView;

• Windows/Linux/macOS/Android multiple platform SDK;


C : Color sensor

Dimension of E3CMOS Series Camera:

The E3CMOS body, made from CNC alumnium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a
rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Packing list :

• 1X E3CMOS 3.0 USB Camera

• 1X software dish

• 1X USB cable

Warranty 1 year !

• If the camera has quality problems during the warranty period,we will provide technical support to the buyer.

• If  the camera needs to be return to China for repair we will repair it free.

• Out of warranty period, we will still provide buyers with technical support services and maintenance services
