JAKCOM CD1 Product Description

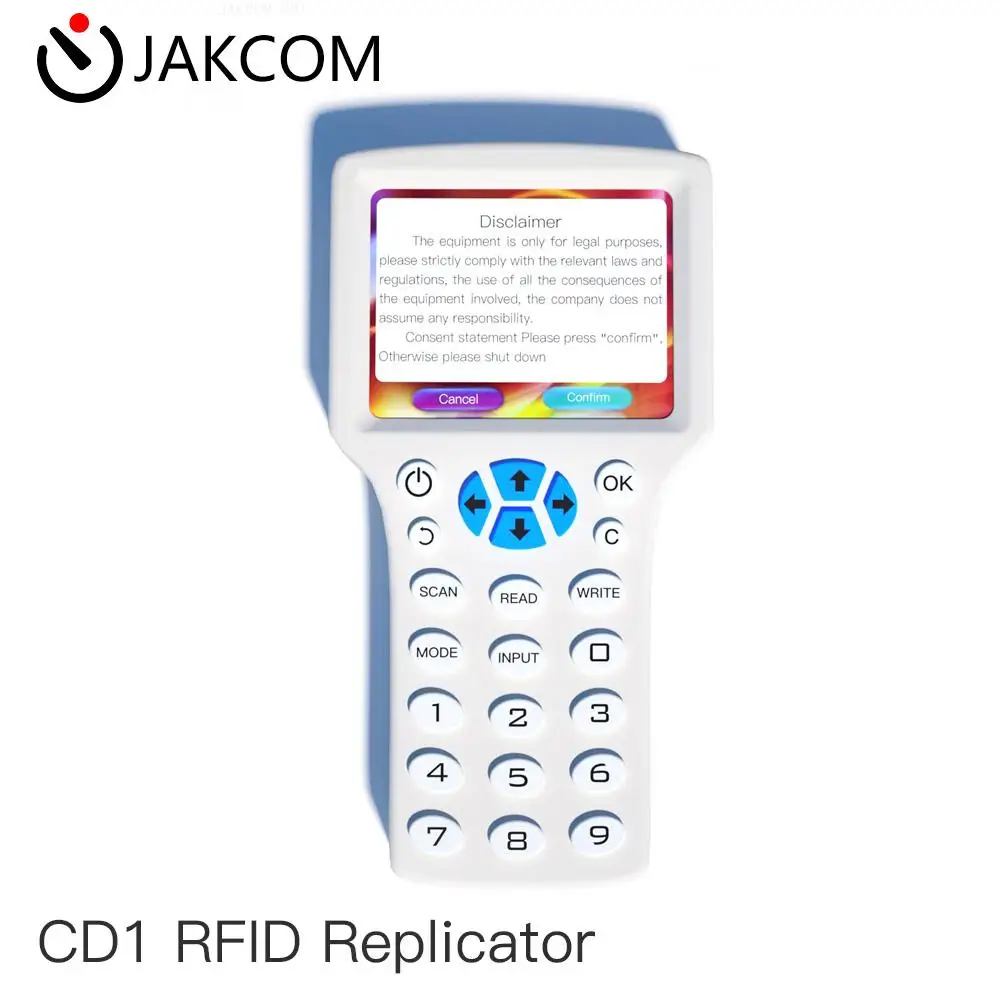

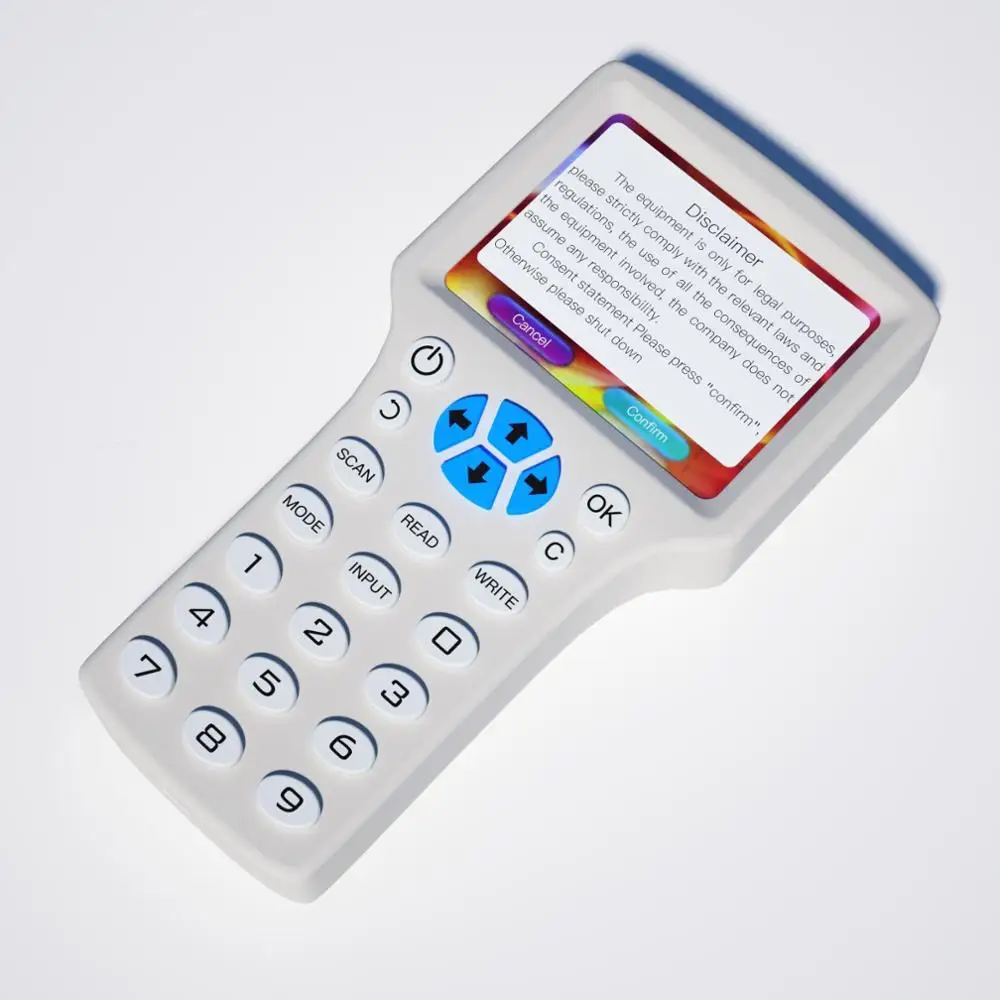

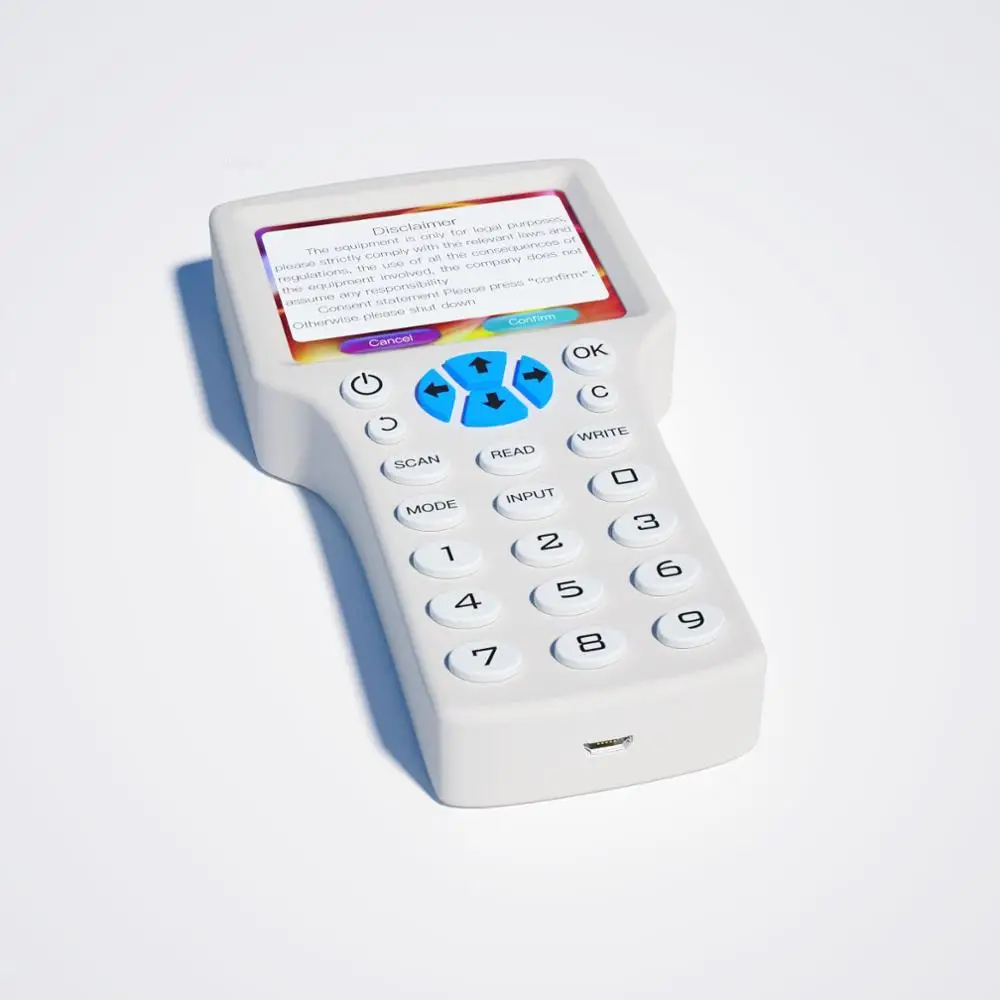

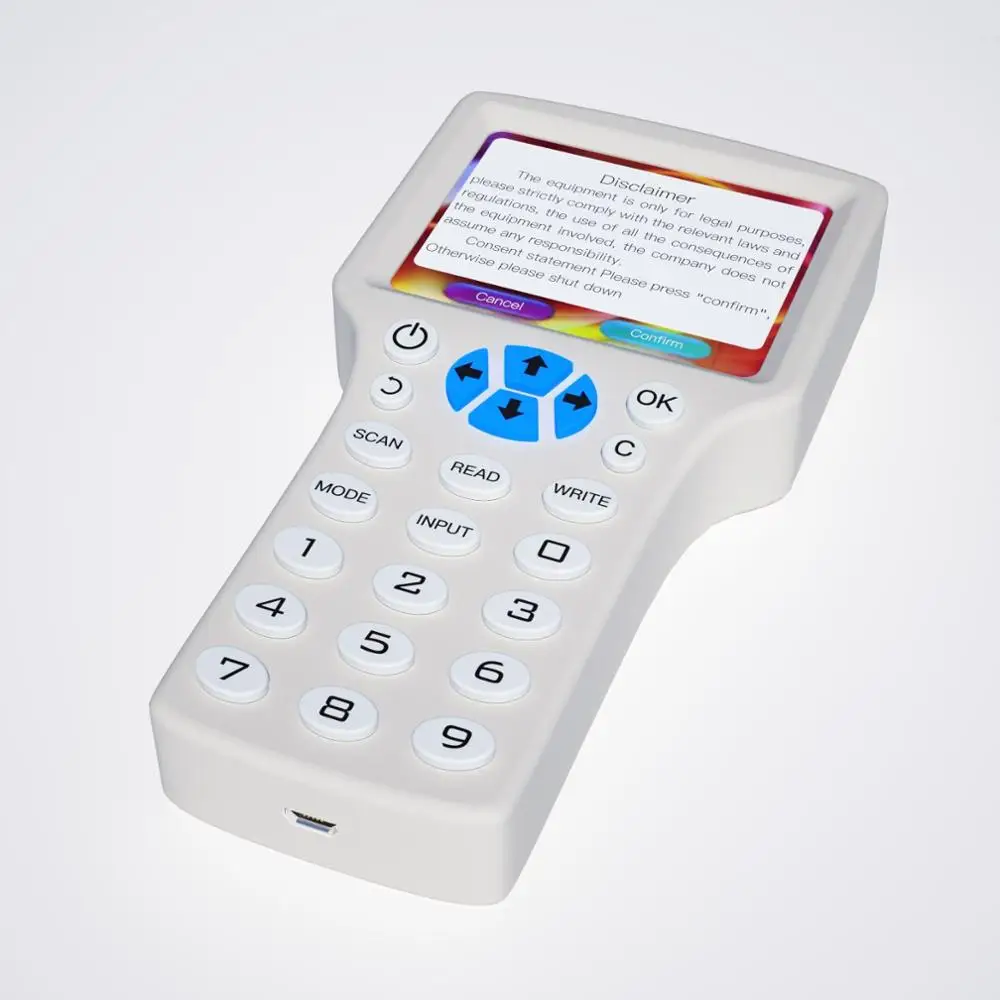

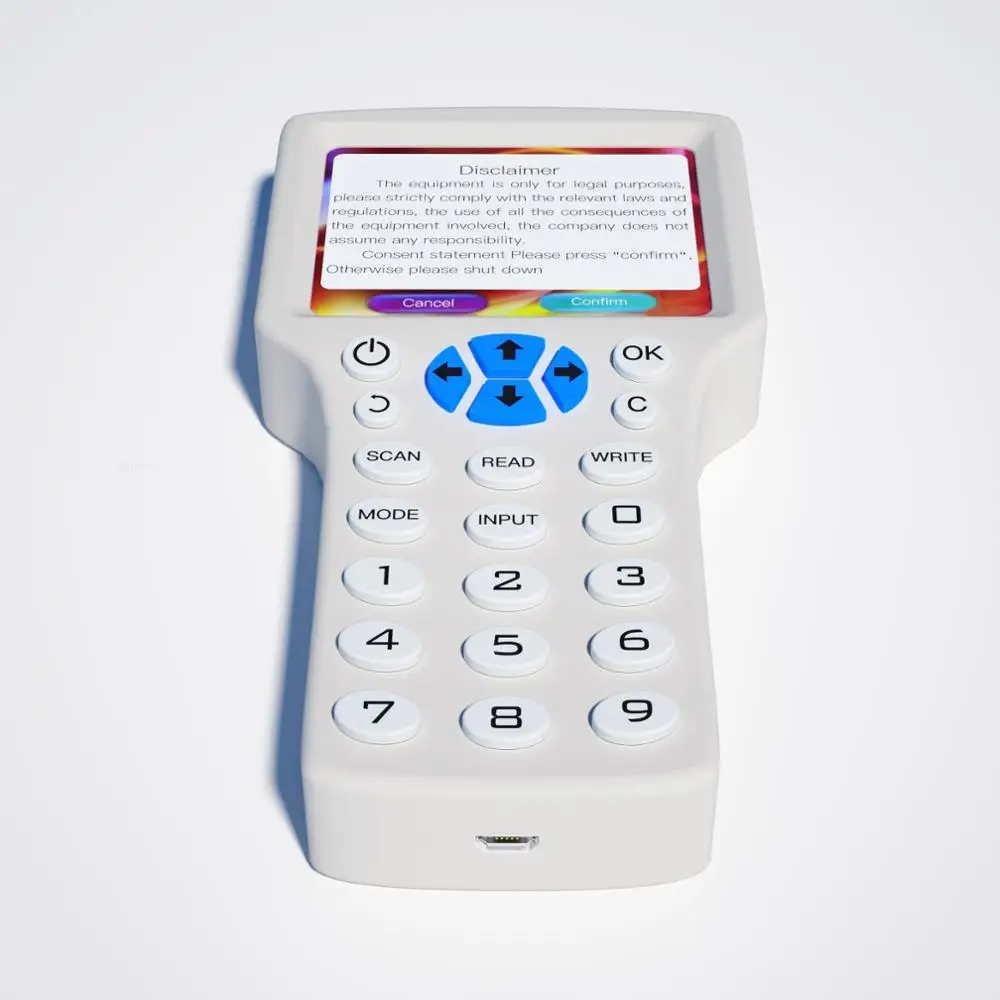

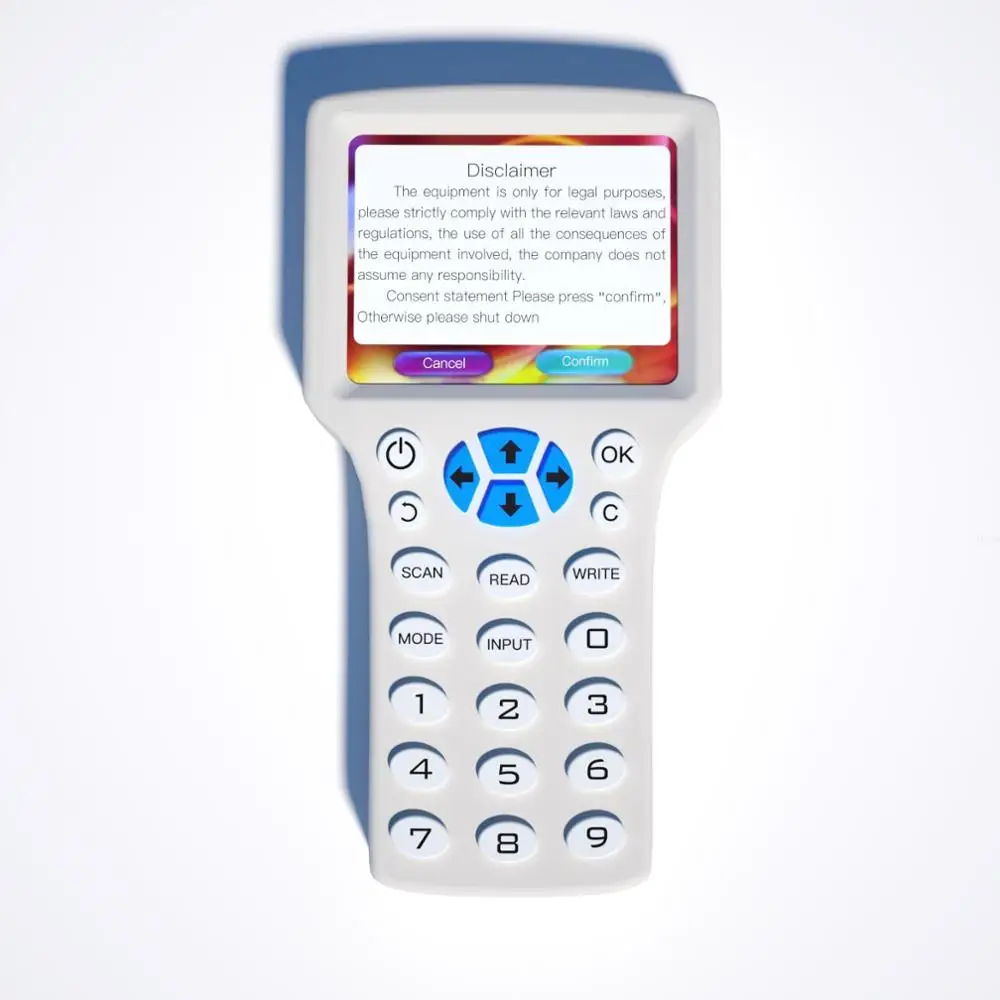

• JAKCOM CD1 RFID Replicator
  IC card | ID card | Full encryption card


• Product introduction
  JAKCOM CD1 RFID Replicator is a comprehensive RFID read-write device that can copy and edit IC and ID proximity cards

  Packing list
  Packing box x 1
  Instruction book x 1
  USB data cable x 1
  Host x 1

  Structure specification
  A. Screen
  B. Keyboard
  C. Data cable socket
  D. Battery compartment


• Ordinary card operation instructions
  1. Use the "data cable" to connect the host to the "USB power" or use four "AAA batteries" to install into the "battery compartment" (if using a battery with low power or low voltage, it may affect the read and write performance of the replicator);
  2. Click "power button" to boot;
  3. After start-up, click "OK" to enter the system;
  4. Place the source card on the behind of host;
  5. Click the "SCAN button" to automatically switch each type and frequency band, scan and read the data of source card, or manually click the "MODE button" to switch the type and frequency band, and then click the "READ button" to read;
  6. When "Read success" is prompted, it means that the reading is successful, place the target card or target device on the behind of host;
  The IC module of JAKCOM R4 smart ring corresponds to the "IC Type-A" mode, and the ID module corresponds to the "ID- 125KHZ" mode;
  7. Click "WRITE button" to start writing the data of source card to the target card or target device;
  8. When "Write success" is prompted, it means that the writing was successful, and all copy process is completed.


• Encryption card operation instructions
  If you still can not use it normally after copying successfully according to the ordinary card operation process, please follow the following process
  1. Use the usb data cable to connect windows system computer;
  2. Open the newly added "USB DISK";
  3. Copy the operational program of corresponding language and paste it into computer, or download it from web browser;
  4. Double click to open the program, and confirm that device is connected;
  5. Put the source card behind the host;
  6. Then click the "Read" button in the program;
  7. After the card reading and decoding are successful, take the original IC card and put new IC card or IC device on the behind of host;
  8. Click "Write Type-A";
  9. The IC card copy is done after card writing.

  Advanced functions
  1. Manual decoding as needed is available by selecting and editing "Using a key";
  2. IC card copy can be done without the original card through the dump file via the "Import dump" button;
  3. The card can be erased to be an empty card via the "Format" button;
  4. The UFUID card can be locked to read-only status via the "Lock UID" button;

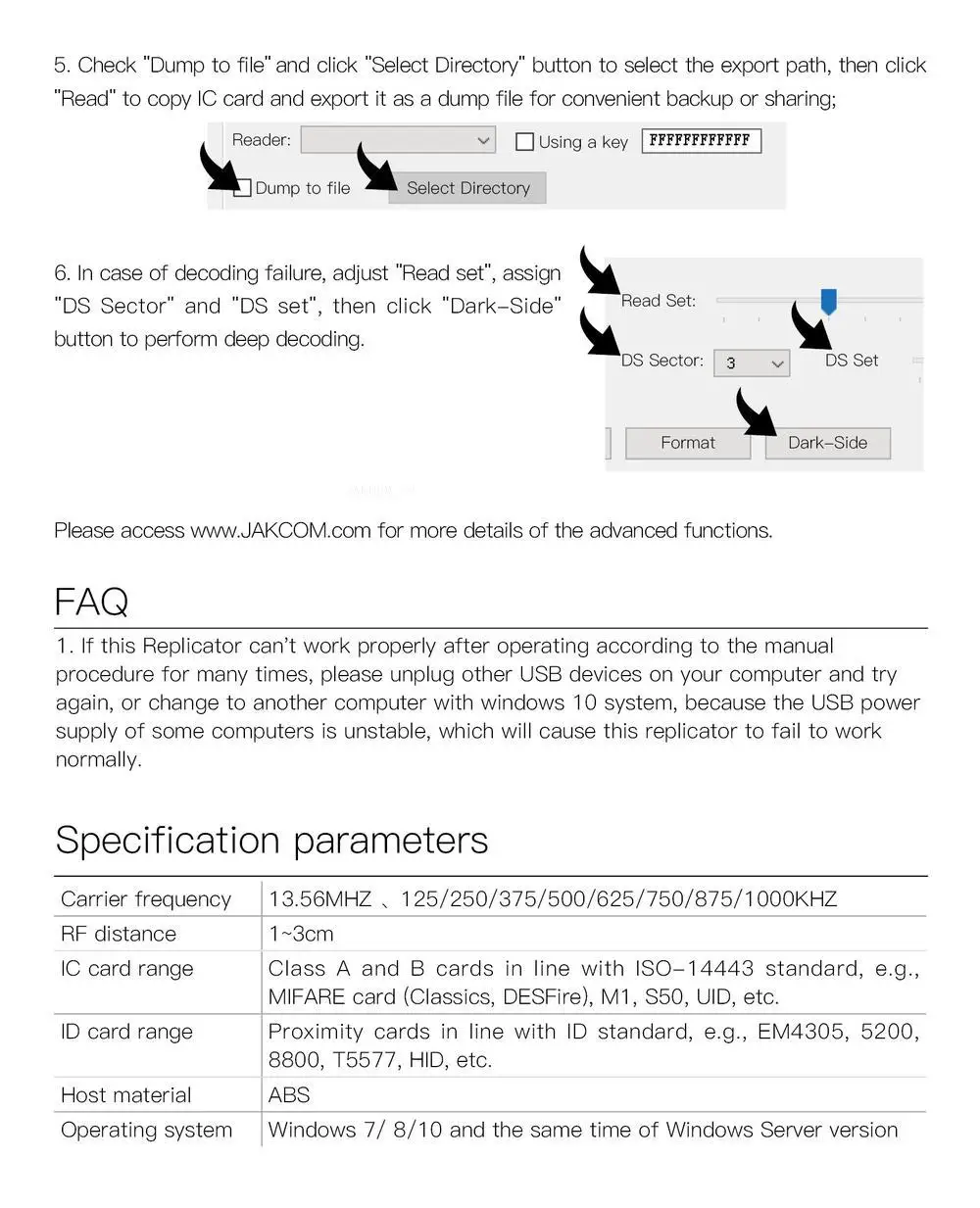

• 5. Check "Dump to file" and click "Select Directory" button to select the export path, then click "Read" to copy IC card and export it as a dump file for convenient backup or sharing;
  6. In case of decoding failure, adjust "Read set", assign "DS Sector" and "DS set", then click "Dark-Side" button to perform deep decoding;
  7. If ID card cannot work after copying, adjust the coding type to "Hexadecimal" or "Decimal 8" and recopy it again;

  FAQ:
  1. If this Replicator can't work properly after operating according to the manual procedure for many times, please unplug other USB devices on your computer and try again, or change to another computer with windows 10 system, because the USB power supply of some computers is unstable, which will cause this replicator to fail to work normally.

  Specification parameters
  Carrier frequency: 13.56MHZ 、125/250/375/500/625/750/875/1000KHZ
  RF distance: 1~3cm
  IC card range: Class A and B cards in line with ISO-14443 standard, e.g., MIFARE card (Classics, DESFire), M1, S50, UID, etc.
  ID card range: Proximity cards in line with ID standard, e.g., EM4305, 5200, 8800, T5577, HID, etc.
  Host material: ABS
  Operating system: Windows 7/ 8/10 and the same time of Windows Server version
