Описание товара

433MHz Universal Wireless Remote AC 220V 2CH rf Relay and Transmitter Garage/LED/Light/Fan/Home appliance Control switch | Обустройство433MHz Universal Wireless Remote AC 220V 2CH rf Relay and Transmitter Garage/LED/Light/Fan/Home appliance Control switch | Обустройство433MHz Universal Wireless Remote AC 220V 2CH rf Relay and Transmitter Garage/LED/Light/Fan/Home appliance Control switch | Обустройство433MHz Universal Wireless Remote AC 220V 2CH rf Relay and Transmitter Garage/LED/Light/Fan/Home appliance Control switch | Обустройство433MHz Universal Wireless Remote AC 220V 2CH rf Relay and Transmitter Garage/LED/Light/Fan/Home appliance Control switch | Обустройство433MHz Universal Wireless Remote AC 220V 2CH rf Relay and Transmitter Garage/LED/Light/Fan/Home appliance Control switch | Обустройство




Specifications:

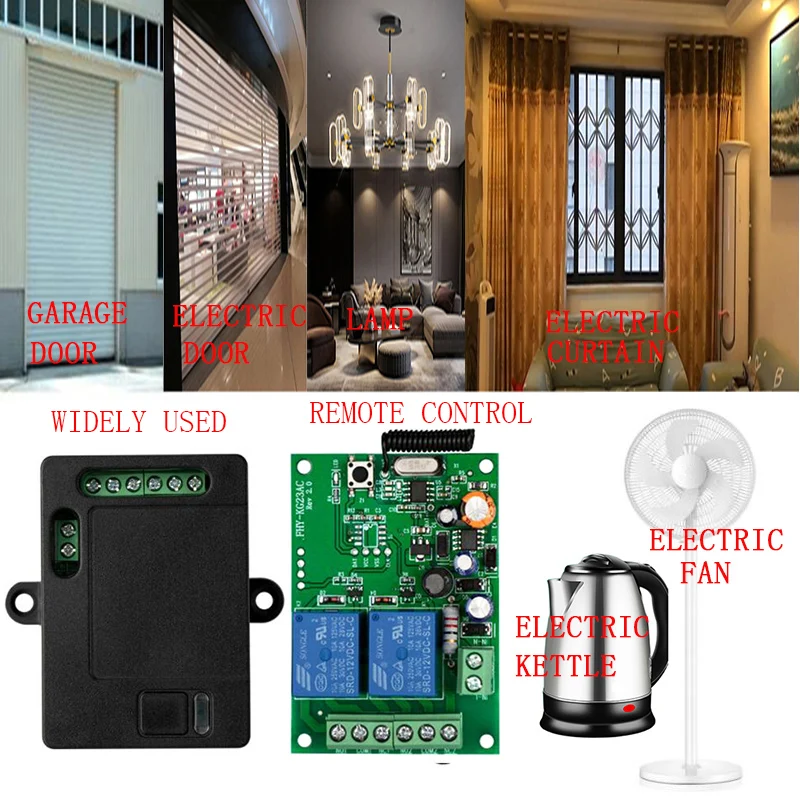

Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.

一,Relay Receiver Board Parameter

Operating voltage: AC85V-250V

Input vlotage  :  1~250V

Output vlotage  :  1~250V

Static working current: ≤7mA

Max current  :  10A

RF frequency: 433MHZ

Pin  :  NO / COM / NC

Receiving sensitivity: ≤ -105dbm

Modulation mode: ASK (amplitude modulation)

Operating temperature: -20~+70 ℃

Circuit board size: 65.5*36*16mm

Shell size: 70*41*22mm

Amount of storage remote controls  :  35 pieces

Support encoding  :  1527 Leaning code /2262 fixed code

RF Operating mode  :  ASK superheterodyne wireless reception

Receiving range  :  Open space is more than 50 meters

Remote operating mode   : Momentary Mode / Toggle Mode / Latched Mode

二,The Setting of Working Mode:

1,Set up : Momentary Mode

STEP 1

Press and release the learning button on the Receiver Switch Module board once.

Wait for a moment , the LED will turn off , indicating you entered the learning state.

STEP 2

Press button "A" on the Remote Control , the LED on the receiver board will flash on then off indicating the button was learned.

STEP 3

Press button "B" on the Remote Control, watching the LED go on and off again.

Wait 3 seconds, the LED will turn on again, indicating system is ready for use.

2,Set up :Toggle Mode

STEP 1

Press and release the learning button on the Receiver Switch Module board twice.

Wait for a moment , the LED will turn off , indicating you entered the learning state.

STEP 2

Press button "A" on the Remote Control, the LED on the receiver board will flash on then turn off , indicating the button was learned.

STEP 3

Press button "B" on the Remote Control , watching the LED go on and off again.

Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use

3,Set up : Latched Mode

STEP 1

Press the learning button on the Receiver board 3 times.

STEP 2

Press button "A" on the Remote Control,

STEP 3

Press button "B" on the Remote Control

Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use.


, Clearance method:

.Deleting Existing Remote Controls Data: Pressing the learning key button on the receiver board eight times, the LED Indicator on receiver board will flash for eight times, it means that the existing remote controls are deleted successfully.
pacote inclued:

A:

1x Transmitter(with battery)

B:

1 x Receiver(with cover)

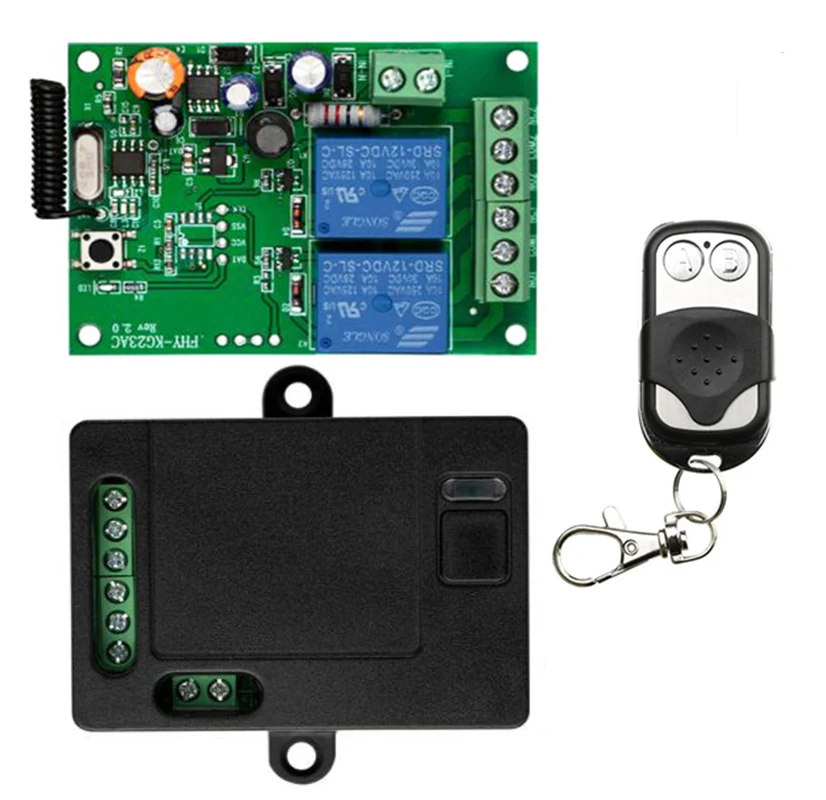

C:

1 x Receiver(with cover)

1x Transmitter(with battery)

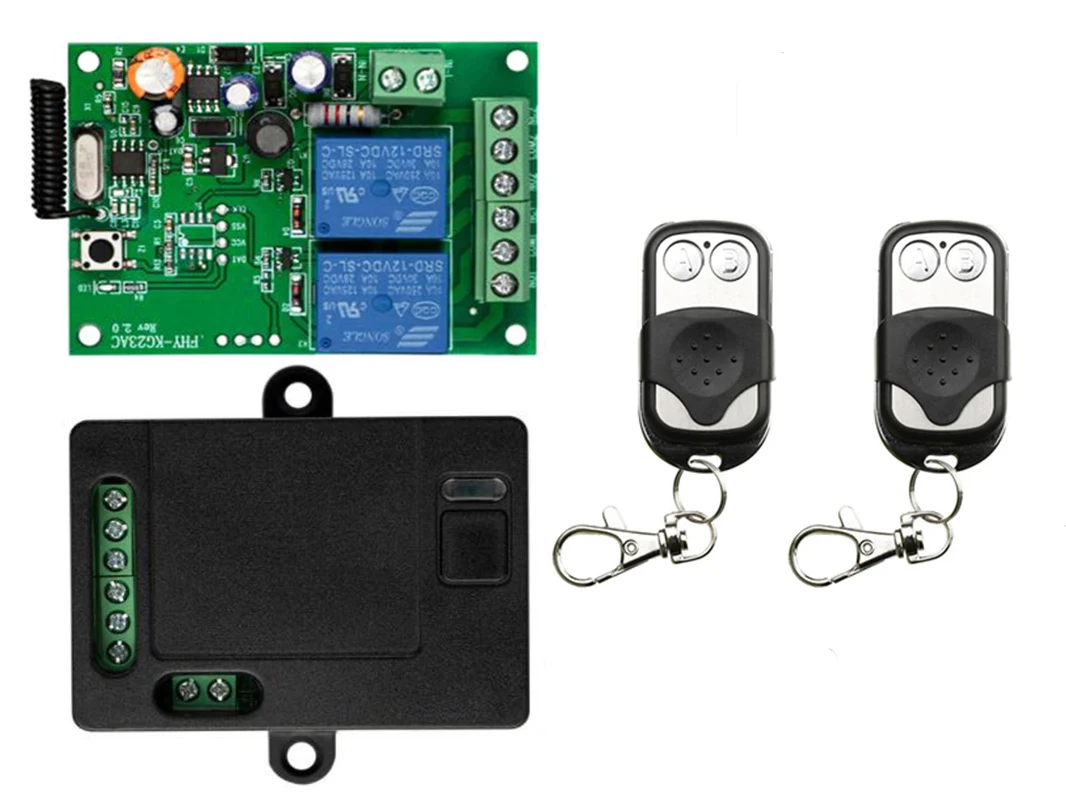

D:

1 x Receiver(with cover)2x Transmitter(with battery)

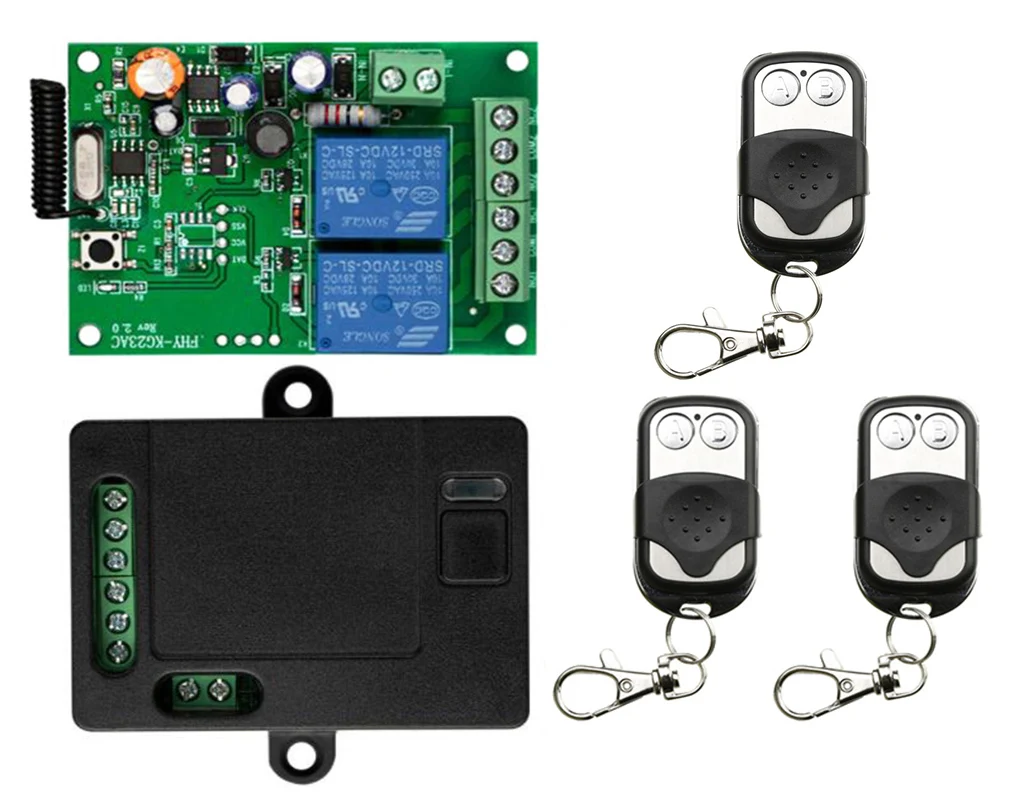

E:

1 x Receiver(with cover)3x Transmitter(with battery)

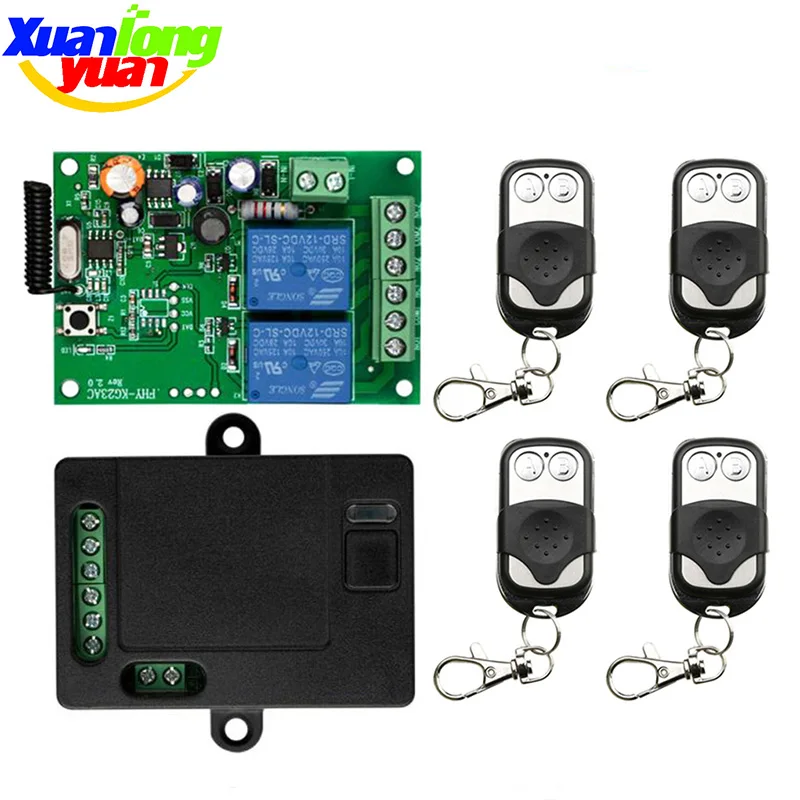

F:

1 x Receiver(with cover)4x Transmitter(with battery)
