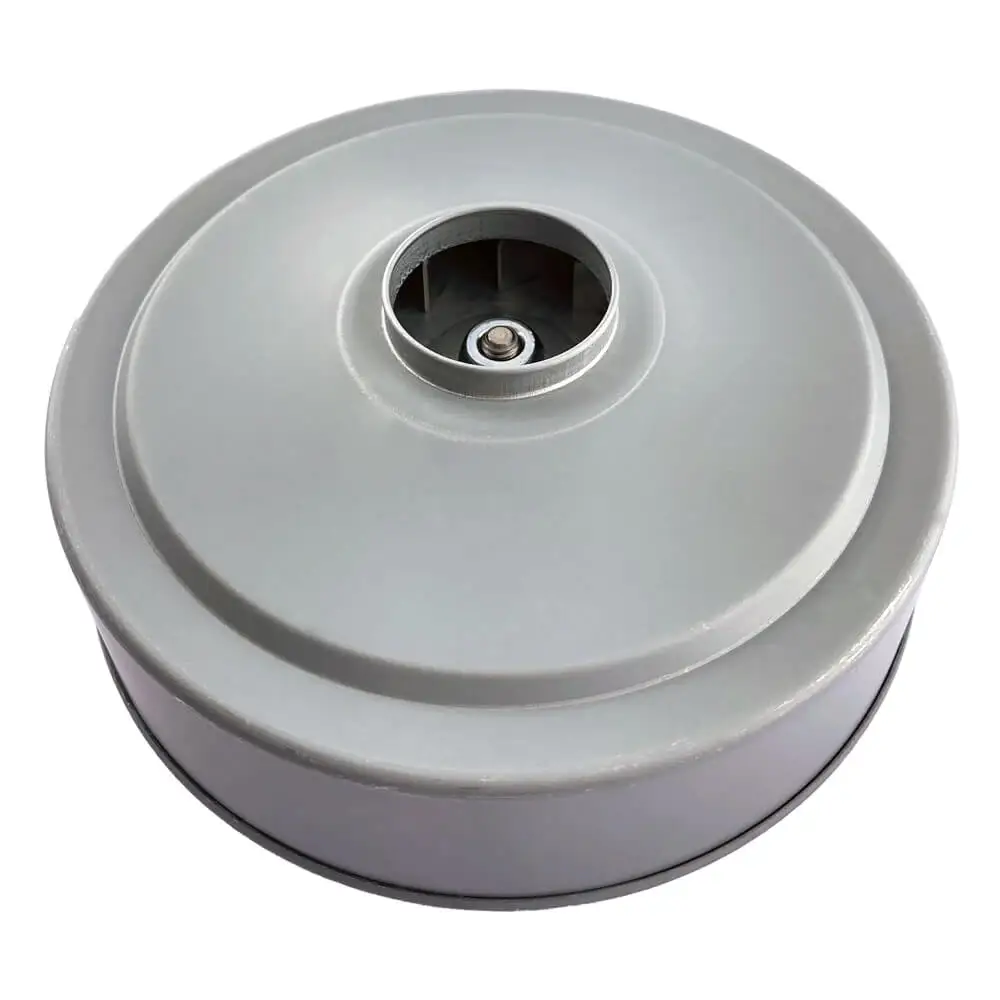

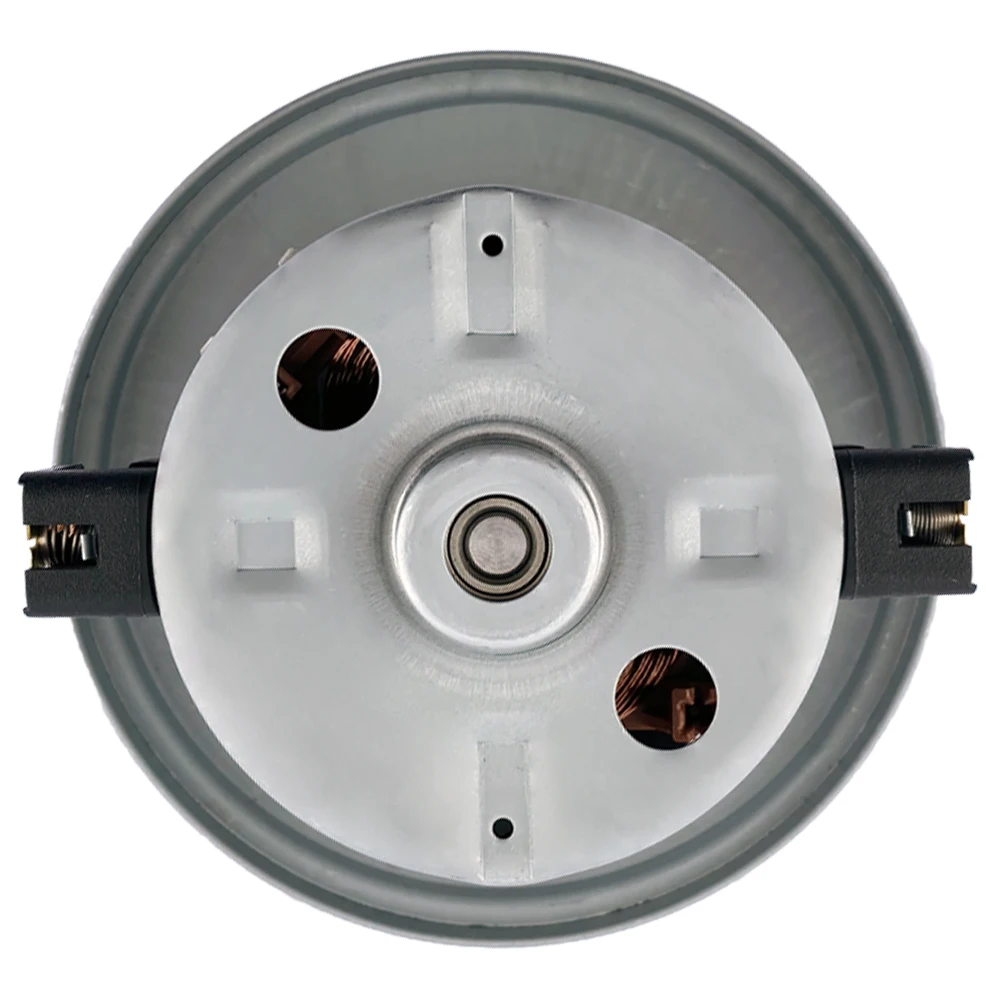

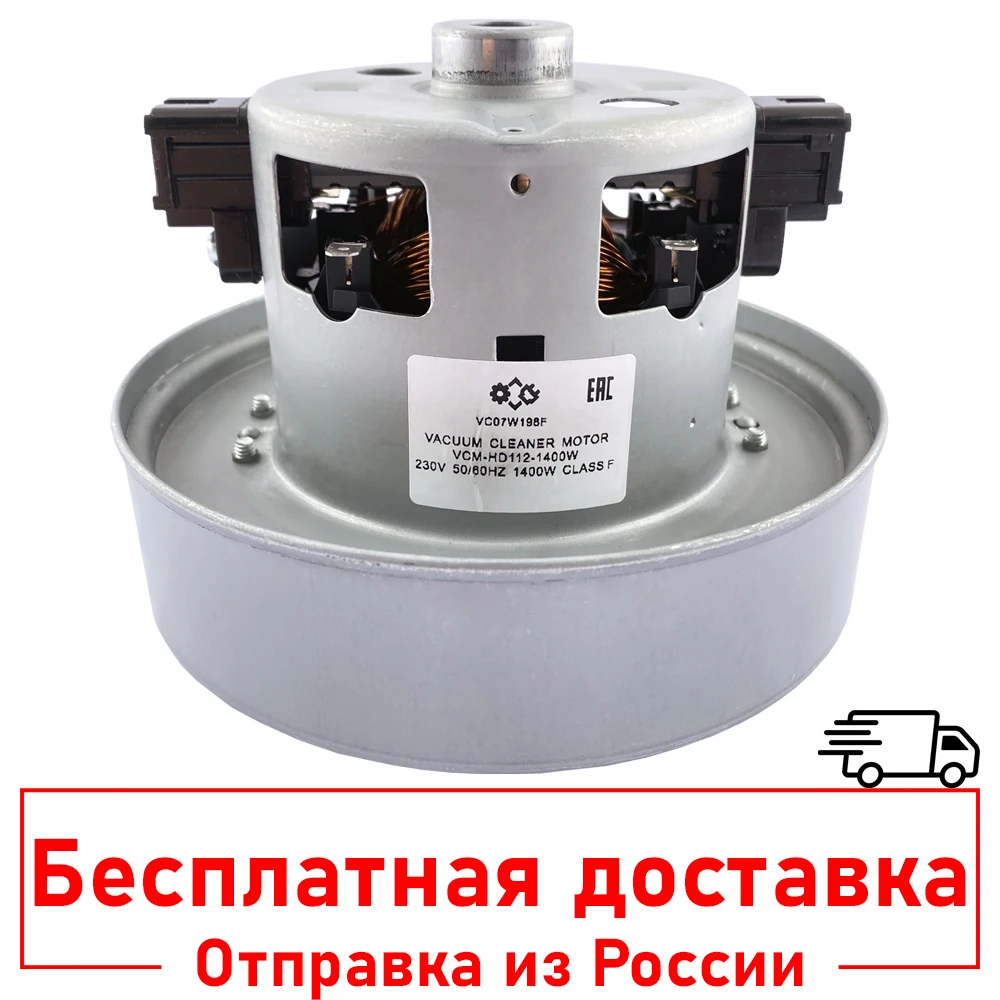

Motor for vacuum cleaner SAMSUNG 1400 -1500W H-112 D-135 VCM-K30HU VCM-K50HU VCM-K40HU VCM-K20HU DJ31-30183 DJ31-00007 DJ31-00005 DJ31-00002 DJ31-00001 VCM-K20HT-VС07W198F DJ31-00005H DJ31-00005K DJ31-00007H DJ31-00007Q

Characteristics of the motor motor for vacuum cleaner Samsung 1400W 112-h 135-d:

• Power:1400 -1500W

• Voltage:230V 50/60HZ

• Contact arrangement:Separately

• Kind of skirt:Stamped

• Installed in vacuum cleaners:Samsung

• Mounting for a thermo-sensor:There are

• Vaccum cleaner motor 1400W H112 D135

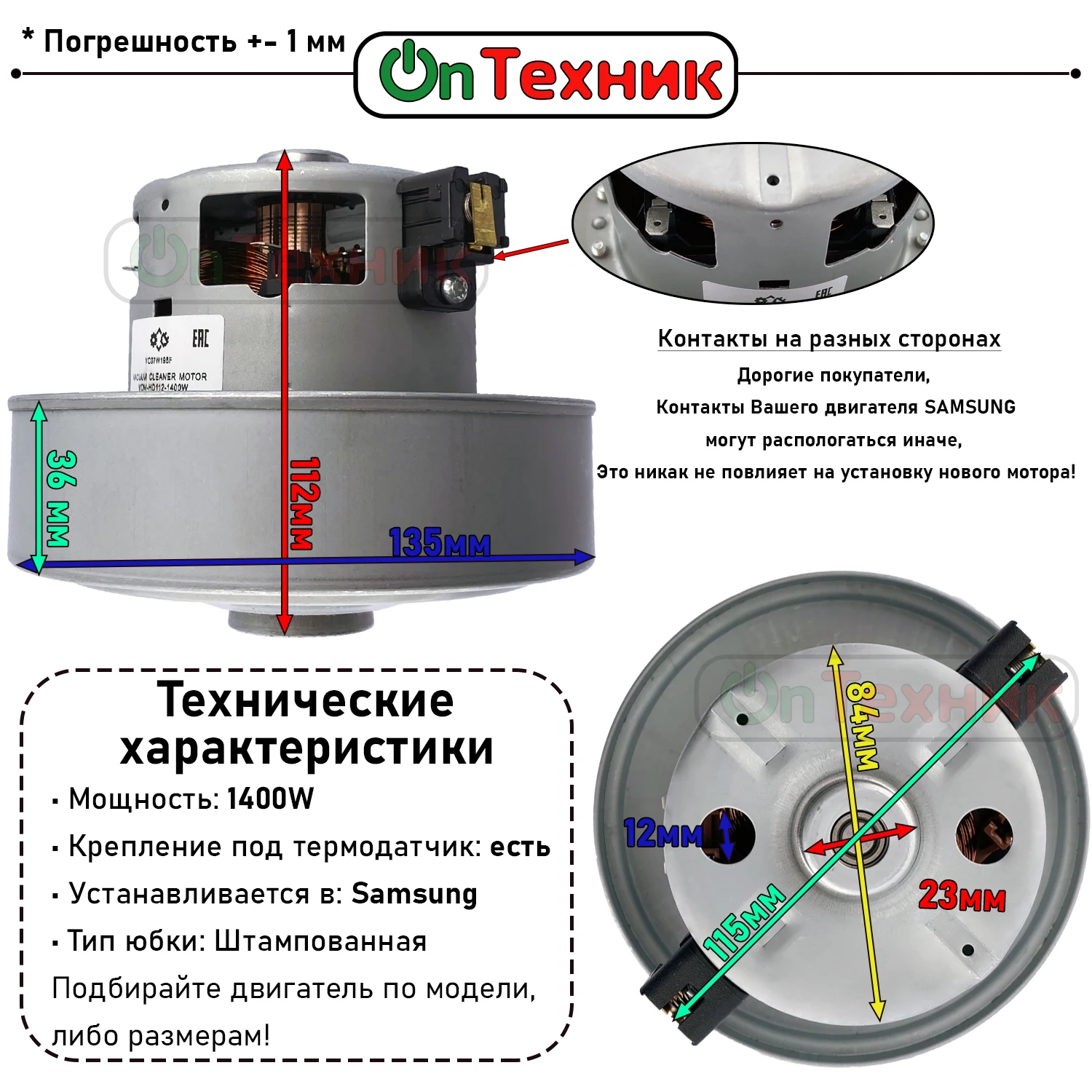

Dimensions of the electric motor for vacuum cleaners Samsung:

• Total motor height:112mm

• Diameter of motor:135mm

• Height of Impeller:36,5mm

Codes взаимозамен: VCM-K40HU, VCM-K30HU, VCM-K50HU, VCM-K20HU, VCM-K50HUAA, VCM-K50HTDV-SV, VCM-K50HTAA-SV, VCM-K50DTAA, VCM-K40HUAA-SV, VCM-K40HUAA, VCM-K40HTAA, VCM-K30HUAA-SV, VCM-K30HUAA, VCM-HD112-1700, VCM-HD112-1800, VCM-HD112-2000, VCM-HD112-1600w, VCM-HD112-1400W, VCM-04S, VCM04S, VC0765Fw, VC07224W, VC07202FQw, VC07201Fw, VC07200FQW, VAC031UN, VAC030UN, VAC005SA, VAC003SA, VAC000SA, K50HUAA, K40HUAA, k20hu, VCM-K30HUDC, K30HUAB, TXE-K30HUDD, VCM-K30HUDH, VCM-K30HUDD, VCM-K30HUDC, VCM-K20HTDD, VCM-K20HUED, VCM-K20HUEC, VCM-K20HUEB, VCM-K20HUEA, K50HUAB, VC07202W, VCM-K40HUAB
DJ31-30183K, DJ31-30183J, DJ31-30183H, DJ31-30183D, DJ31-30183C, DJ31-30183B, DJ31-30183A, DJ31-30177B, DJ31-30169D, DJ31-30169C, DJ31-30169B, DJ31-30169A, DJ31-30155A, DJ31-30147A, DJ31-30133A, DJ31-30123A, DJ31-30115A, DJ31-30004F, DJ31-30004D, DJ31-30004C, DJ31-30004B, DJ31-30001A, DJ31-00106C, DJ31-00007V, DJ31-00007S, DJ31-00007Q, DJ31-00007P, DJ31-00007N, DJ31-00007J, DJ31-00007H, DJ31-00007G, DJ31-00007F, DJ31-00007D, DJ31-00007C, DJ31-00007B, DJ31-00007A, DJ31-00005K, DJ31-00005H, DJ31-00005F, DJ31-00005E, DJ31-00005D, DJ31-00005C, DJ31-00005B, DJ31-00005A, DJ31-00003B, DJ31-00002K, DJ31-00002H, DJ31-00002E, DJ31-00002C, DJ31-00002B, DJ31-00002A, DJ31-00001H, DJ31-00001G, DJ31-00001E, DJ31-00001D, DJ31-00001C, DJ31-00001B, DJ31-00005H, 11me73, 11me69

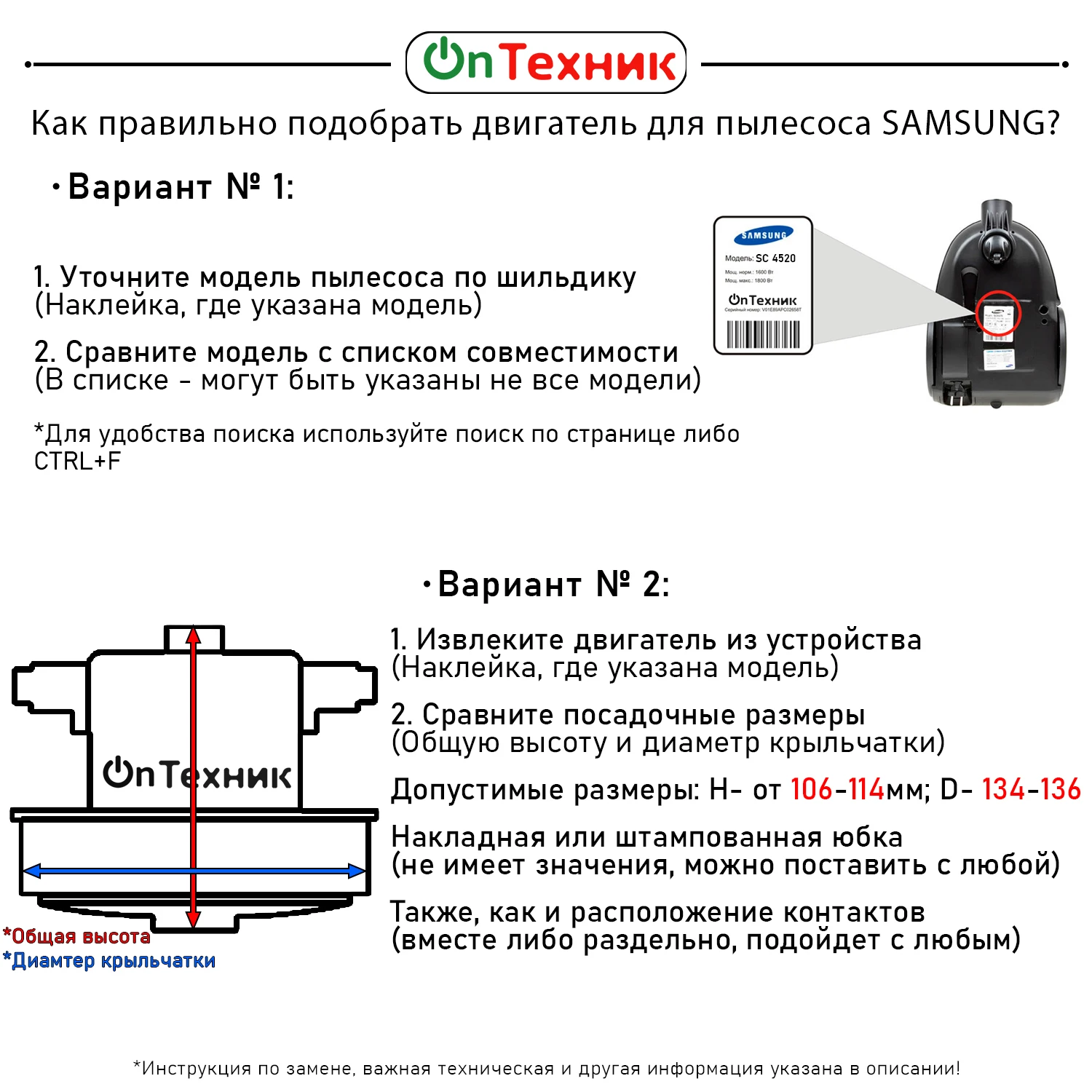

How to choose the right electric motor for the Samsung vacuum cleaner?

Option No. 1 (preferred): Selection of engine dimensions

• Remove the engine from the device.

• Compare the landing dimensions of the engine-the total height and diameter of the impeller. (Difference +-2mm is acceptable)

• An overhead or stamped skirt does not matter. As well as the location of contacts-together or separately.

• If the landing dimensions match, the engine fits your vacuum cleaner.

Option No. 2: Selection of the engine according to the model of the vacuum cleaner:

• At the bottom of the vacuum cleaner is a shildik (a sticker indicating the model and technical data).

• Compare the specified model with the compatibility list on the product card. Note that the compatibility list may not include all models. In this case, use option 2

Tips:

• How to replace the electric motor in the Samsung vacuum cleaner?

1. • After disassembling the vacuum cleaner, gently rinse the body from dust and dirt. Be careful, the water should not get on the control board and other electronic components. After thoroughly dry the body of the vacuum cleaner.

   • Remove the temperature sensor and power contacts from the old motor, reverse the new engine.

   • Collect the vacuum cleaner, install the front filter/bag (at this stage do not install the rear HEPA filter), run the vacuum cleaner in the ventilated room for 8-10 minutes.. (The appearance of an unpleasant smell is permissible, the engine's carbon brushes are lapsed)

   • Turn off the vacuum cleaner and let it cool.

   • Set rear filter

   • Your Samsung vacuum cleaner is ready to work again!

• How to extend the life of the new Samsung vacuum cleaner motor?

  • Timely make replacement of filter elements. With a contaminated front filter (instead of a filter, can stand a bag), dust particles fall on the engine manifold, which leads to its breakage. When the rear filter is contaminated, an increased resistance is created to pass the air flow, which leads to loss of power and overheating of the engine.

  • Instead of reusable bags, give preference to disposable. The reusable bag has a poor filtration rate.

  • Do not suck water and wet trash. Because the engine passes air flow through itself, water particles can cause short circuit.

  • Bulk substances consisting of very small particles, such as construction dust, cement or flour, are also not recommended to be removed by vacuum cleaner. Particles will quickly kill the filter and part of the dust can pass through the filter/bag and get into the engine.

The list of compatible models of the Samsung vacuum cleaner (not all sizes can be specified! If your model is not in the list, compare the dimensions!):

1. VCMA16BS. VC-5806V
3. VC-5915. VC-5915V
5. VC-5915VT. VC-5916
7. VC-5916V. VC-6015V
9. VC-6025V. VC-7415V
11. VC-7725H. SC4031
13. SC4034. SC4046
15. SC4047. SC4130
17. SC4131. SC4140
19. SC4141. SC4142
21. SC4325. SC4326
23. SC432A. SC4330
25. SC4331. SC4332
27. SC4335. SC4336
29. SC4520. SC452A
31. SC5120. SC5130
33. SC5135 34. SC5138
35. SC5610. SC5620
37. SC5630. SC5640
39. SC6950. SC7023
41. SC7051. SC7061
43. SC7063. SC7240
45. VC-5853 46. VC-6014
47. SC4023 48. SC6940
49. VC-7114. VC-7113

List of compatible product models (numbers)-this number is also listed on the shildik next to the model (list is not complete):
