Nema34/23 4Axis CNC controller kit 2&86*85 1&57*20 closed loop motor+MKS/XHC/ET/DDCSV3.1 Controller+Supply Power 350W60V+200W36V |

Nema34/23 4Axis CNC controller kit 2&86*85 1&57*20 closed loop motor+MKS/XHC/ET/DDCSV3.1 Controller+Supply Power 350W60V+200W36V |

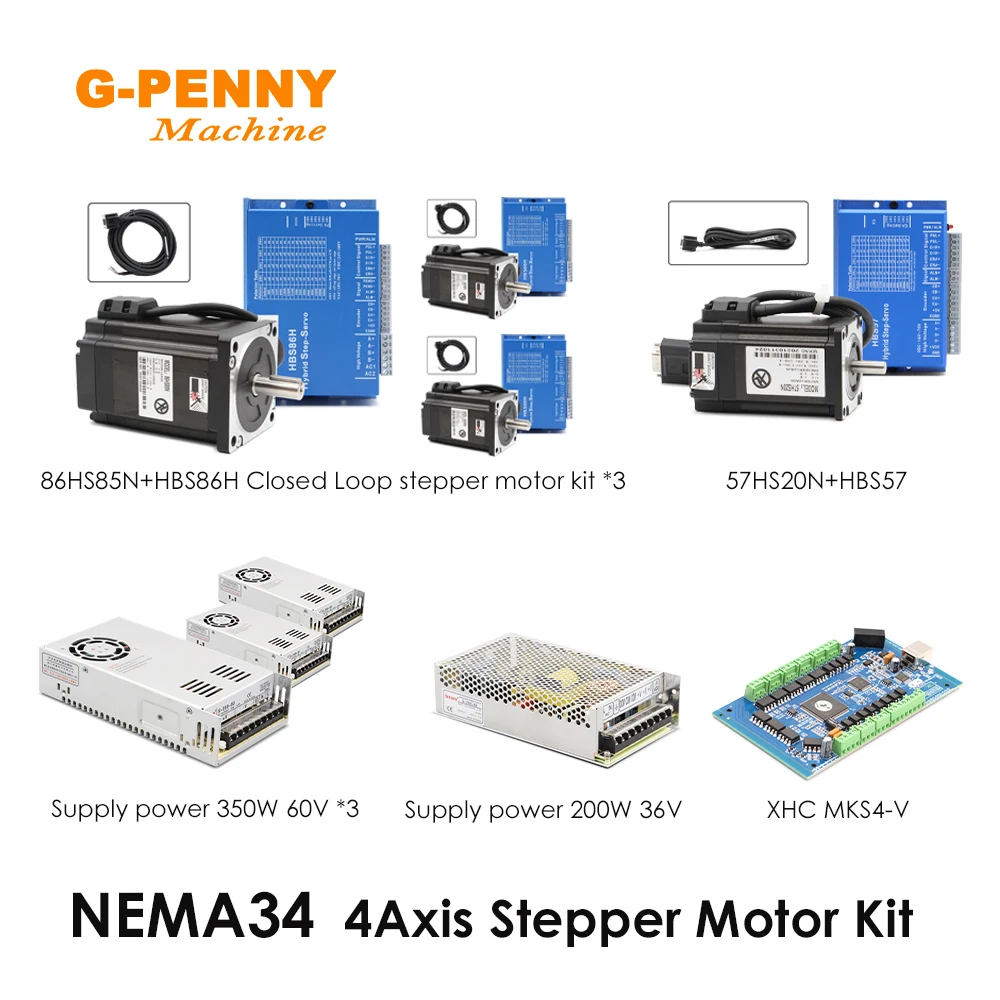

Kit 1 --- 3pcs 86HS85N+HBS86H  + 1pcs 57HS20N+HBS57 + 3pcs Supply Power 350W 60V  + 1pcs Supply Power 200W 36V (No Controller)

Kit 2 --- 3pcs 86HS85N+HBS86H  + 1pcs 57HS20N+HBS57 + 3pcs Supply Power 350W 60V  + 1pcs Supply Power 200W 36V + 1pcs Controller Card XHC MKS4-V

Kit 3 --- 3pcs 86HS85N+HBS86H  + 1pcs 57HS20N+HBS57 + 3pcs Supply Power 350W 60V  + 1pcs Supply Power 200W 36V + 1pcs Controller Card XHC USB Motion Card

Kit 4 --- 3pcs 86HS85N+HBS86H  + 1pcs 57HS20N+HBS57 + 3pcs Supply Power 350W 60V  + 1pcs Supply Power 200W 36V + 1pcs Controller Card ETHERNET Motion Card

Kit 5 --- 3pcs 86HS85N+HBS86H  + 1pcs 57HS20N+HBS57 + 3pcs Supply Power 350W 60V  + 1pcs Supply Power 200W 36V + 1pcs Controller DDCSV3.1

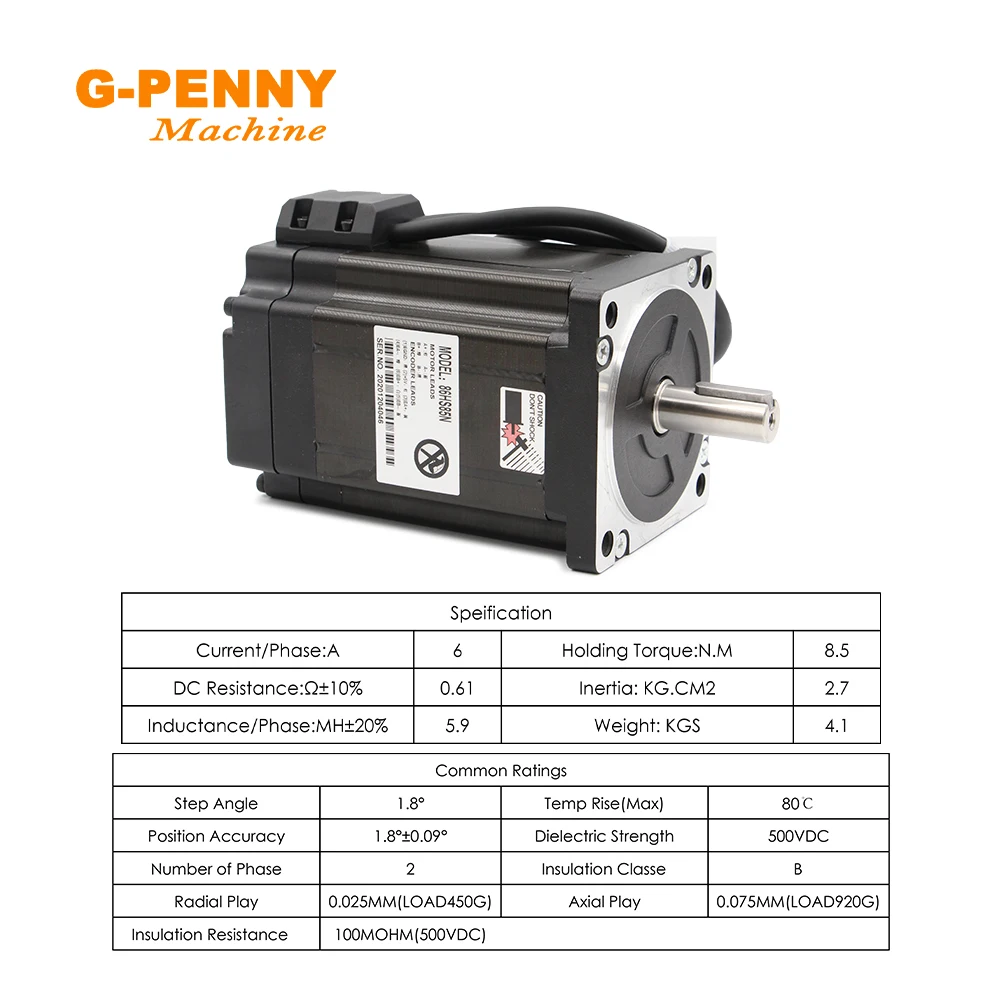

Current / Phase : 6A

Holding Torque : 8.5N.m

DC Resistance : 0.61Ω±10%

Inertia : 2.7KG.CM2

Inductance / Phase : 5.9MH±20%

Weight : 4.1KGS

Step Angle : 1.8°

Position Accuracy : 1.8°±0.09°

Temp Rise (Max) : 80℃

Dielectric Strength : 500VDC

Number of Phase : 2

Radial Play : 0.025mm (LOAD450G)

Axial Play : 0.075mm (LOAD920G)

Insulation Resistance : 100MOHM (500VDC)

Insulation Classe : B

1.Without losing step,high accuracy in positioning

2.100%rated output torque

3.Small vibration,Smooth and reliable moving at low speed

4.Compatible with1000 lines encoder

5.Over current,over voltage and over position error protection

1. No step loss, precise positioning

2. 100% rated torque drive motor

3. Variable current control technology, high current efficiency

4. Low vibration, stable operation at low speed

5. Built-in acceleration and deceleration control to improve the smoothness of start and stop

6. User can customize segmentation

7. Compatible with 1000-line and 2500-line encoders

8. Overcurrent protection, overvoltage protection, over-tolerance protection

9. Green light means running, red light means protection or offline

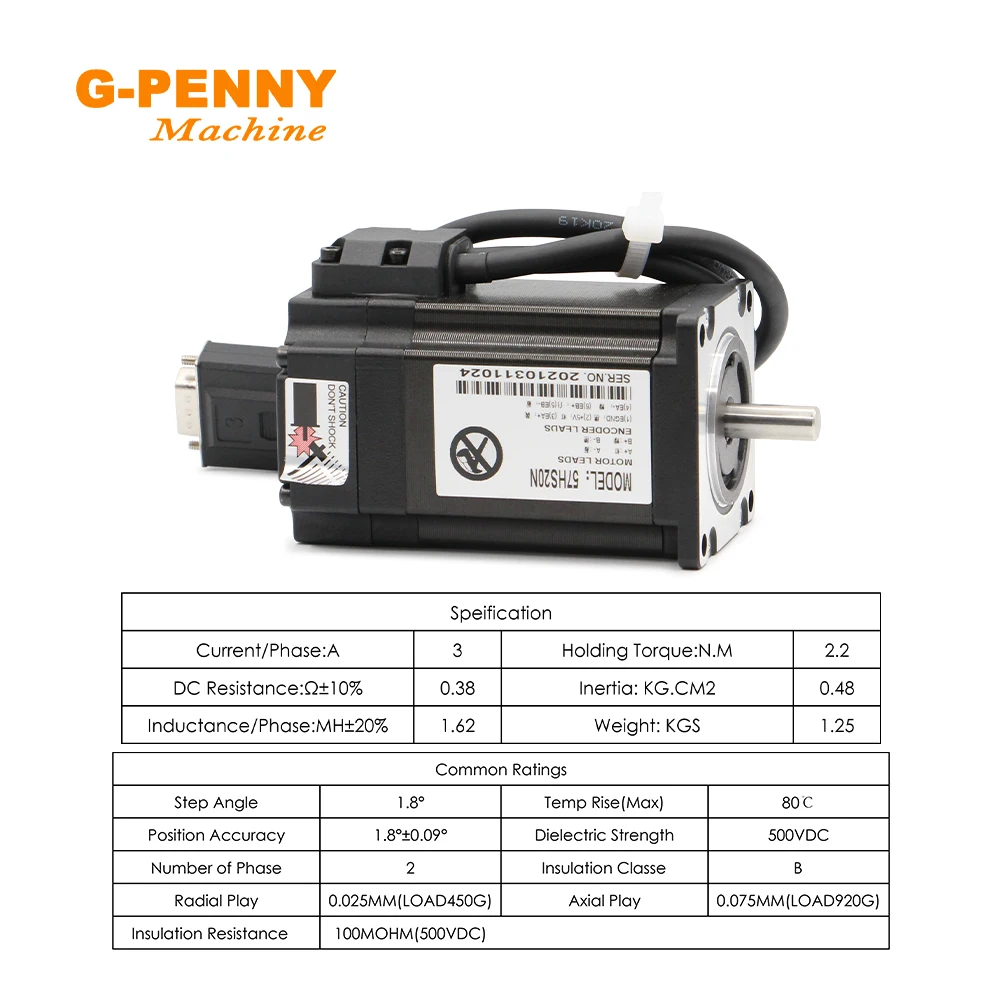

Current / Phase : 3A

Holding Torque : 2.2N.m

DC Resistance : 0.38Ω±10%

Inertia : 0.48KG.CM2

Inductance / Phase : 1.62MH±20%

Weight : 1.25KGS

Step Angle : 1.8°

Position Accuracy : 1.8°±0.09°

1.Without losing step,high accuracy in positioning

2.100%rated output torque

3.Small vibration,Smooth and reliable moving at low speed

4.Compatible with1000 lines encoder

5.Over current,over voltage and over position error protection

1. No step loss, precise positioning

2. 100% rated torque drive motor

3. Variable current control technology, high current efficiency

4. Low vibration, stable operation at low speed

5. Built-in acceleration and deceleration control to improve the smoothness of start and stop

6. User can customize segmentation

7. Compatible with 1000-line and 2500-line encoders

8. Overcurrent protection, overvoltage protection, over-tolerance protection

9. Green light means running, red light means protection or offline

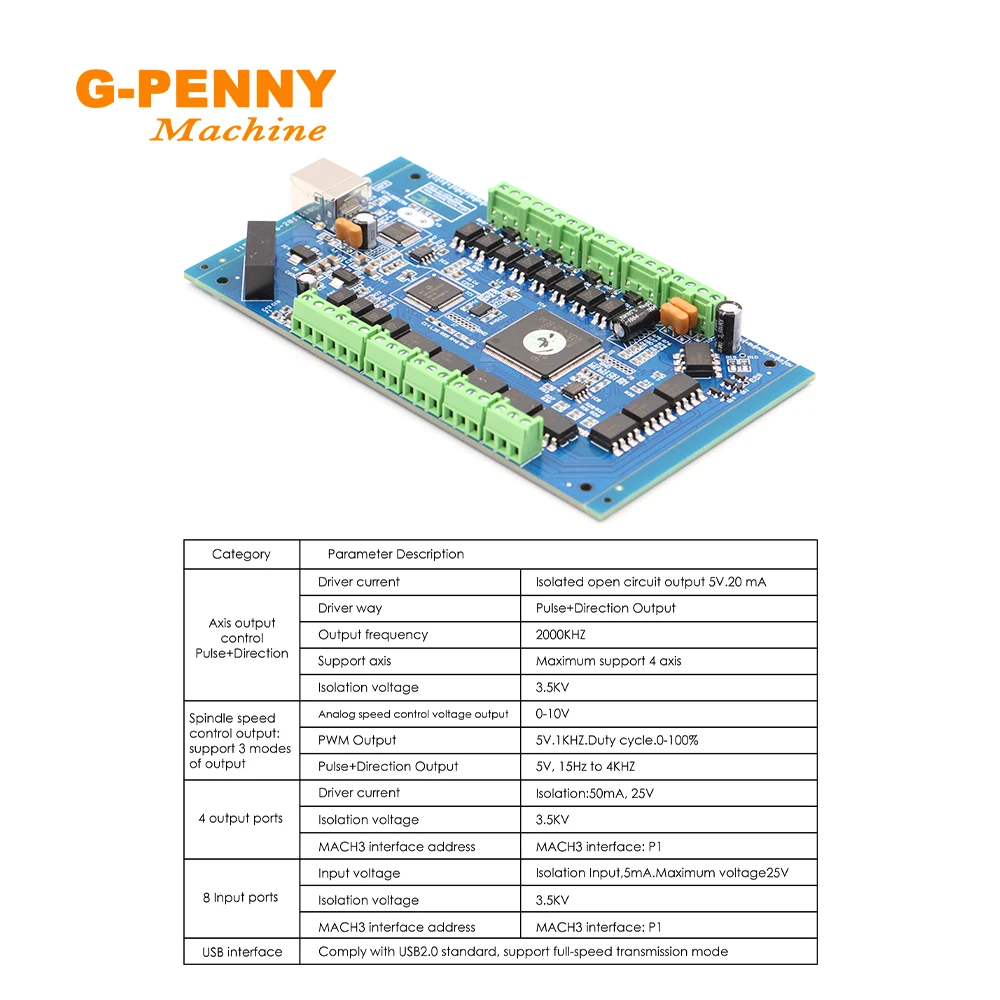

Axis output control:

Drive Current : Isolated open collector output; 5V, 20mA

Drive : Pulse + direction output

Output frequency : 2000KHZ

AxIs : 4-axis

Isolation Voltage : 3.5KV

Spindle inverter

output: 3 types of output modes:

Analog voltage output : 0—10V

PWM output : 5V,1KHZ,Duty;0-100%

Pulse+direction output : 5V,15HZ to 4KHZ

4 IO output Drive Current : Isolation:50mA, 25V

4 IO output Isolation Voltage : 3.5KV

8 IO intput Input Current : Isolated inputs, 5 mA, maximum voltage 25V

8 IO intput Isolation Voltage : 3.5KV

USB interface : Complies with USB2.0 standard

1.16 photoelectric isolated digital inputs,3 photoelectric isolated digital outputs;

2. 3.1 Version enhanced Algorithm,support soft interpolation,fixed arc interpolation bug of the old version;

3.Analog spindle control 0-10V spindle control (can be modified as PWM output);

4.3-4 axes motor Control.Differential Pulse and direction output signal,Max.500Khz per axis;

5. ARM9 main control chip,FPGA core algorithm chip;

6.5 inches TFT screen, resolution ratio: 480x272,17 operation keys;

7.The Power Supply for the controller is 24VDC, minimum Current is 0.5A;

8.The Power Supply for IO Port is 24VDC,minimum current is 0.5A;By the IO power
supply,system already supply the power for IO ports.So no need the external power supply for IO port anymore;

9.USB flash disk support for G code file input,no size limited of the G-code file ;

10.Support standard MPG;

11.Jog function for each axis (continuous, step, defined distance);Customer can define the distance;

12.Support the operation of quickly specify the running position;

13.Support for “Power Cut” recovery. Data is automatically saved;

14.Backlash compensation, Tool compensation.
