Характеристики
WSFG-06 PWM Pulse Adjustable Module Sine Ripple 4-20MA 2-10V Signal Generator With RS485 Version | Инструменты
История изменения цены
*Текущая стоимость 2 328,84 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-15-2025 | 2770.33 руб. | 2909.50 руб. | 2839.5 руб. |
| Aug-15-2025 | 2747.72 руб. | 2884.72 руб. | 2815.5 руб. |
| Jul-15-2025 | 2305.6 руб. | 2420.35 руб. | 2362.5 руб. |
| Jun-15-2025 | 2700.68 руб. | 2835.5 руб. | 2767.5 руб. |
| May-15-2025 | 2351.83 руб. | 2469.32 руб. | 2410 руб. |
| Apr-15-2025 | 2654.42 руб. | 2787.4 руб. | 2720.5 руб. |
| Mar-15-2025 | 2631.85 руб. | 2763.44 руб. | 2697 руб. |
| Feb-15-2025 | 2607.13 руб. | 2737.67 руб. | 2672 руб. |
| Jan-15-2025 | 2584.37 руб. | 2713.25 руб. | 2648.5 руб. |
Описание товара
2. Support multiple modes such as PWM Mode, Pulse Mode, Signal Source Mode, Sine Ripple Mode.
3. Voltage, frequency, duty cycle are adjustable under PWM mode.
4. Strong signal load capacity, output current up to 30mA.
5. Clear display screen, concise control panel layout.
DIY Supplies: Electrical
Display Size: 2.9 Inches & Under
Item Type: Signal Generator Module
Model: WSFG-06
Supply Voltage: 7-24V

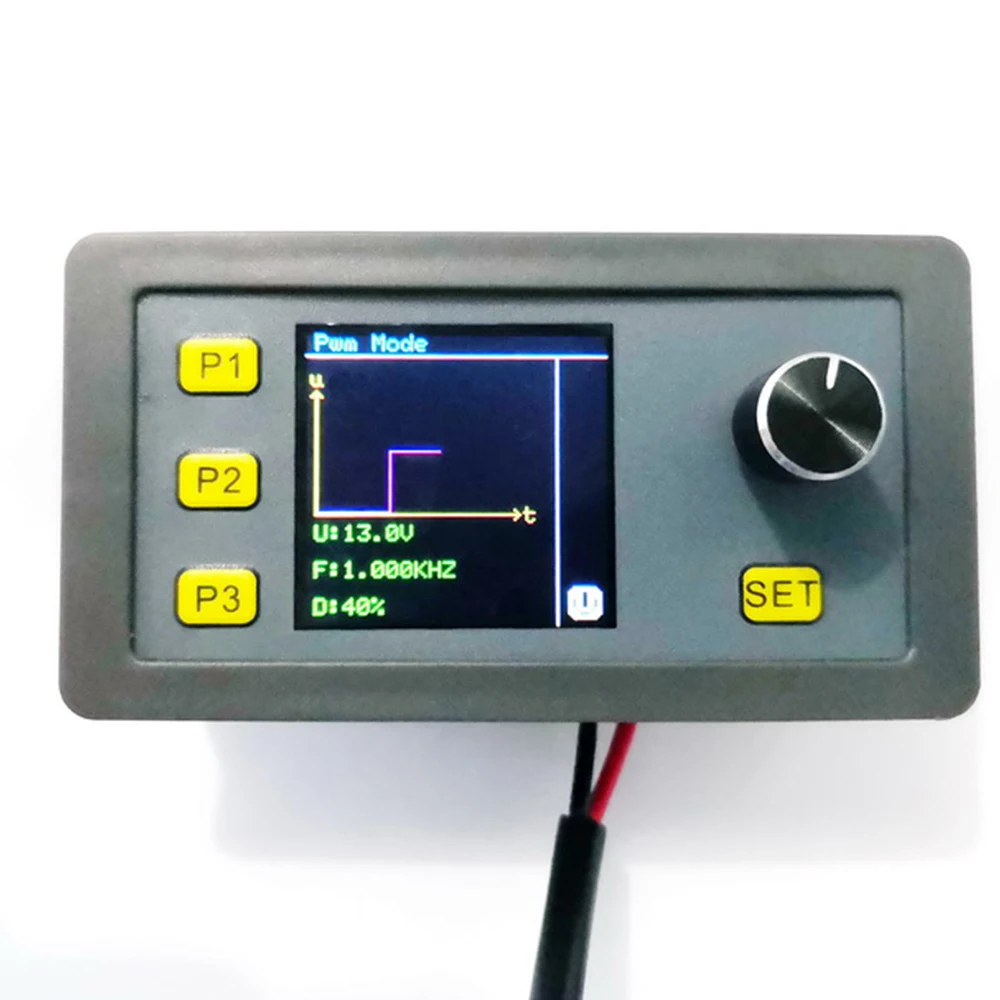

PWM Mode: Voltage, frequency, duty cycle are adjustable, accuracy up to 0.1%; voltage range: 1-24V, frequency range: 1-150KHZ, duty cycle range: 0-100%

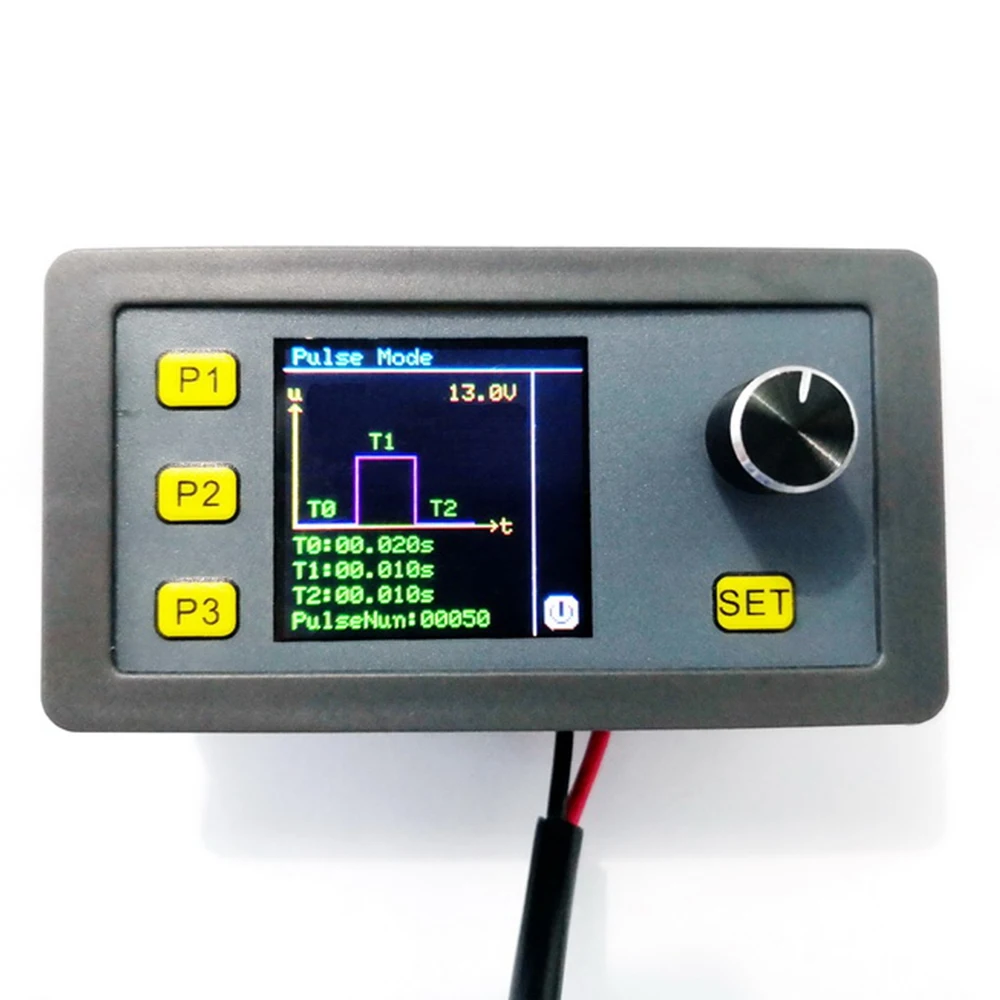

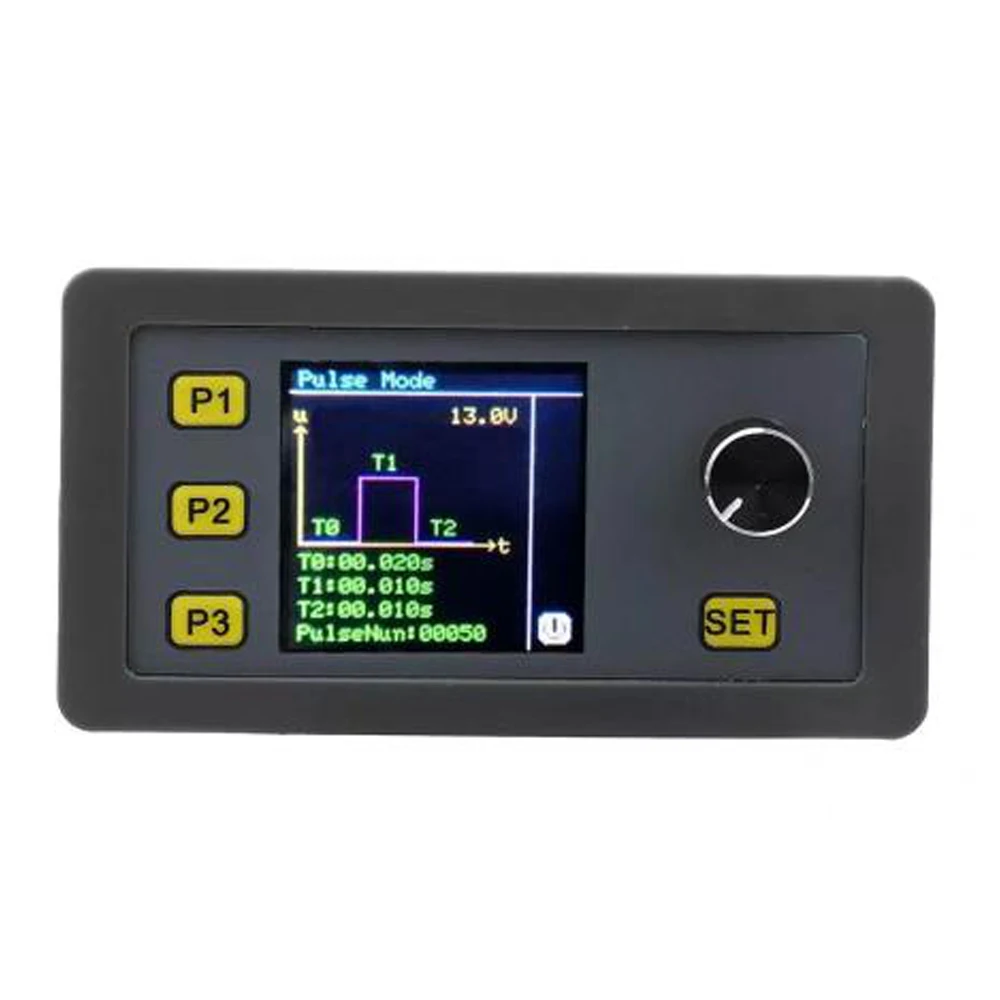

Pulse Mode: Initial delay time T0: 0-60S, high level time T1: 0-60S, low level time T2: 0-60S, pulse number PulseNun: 1-60000

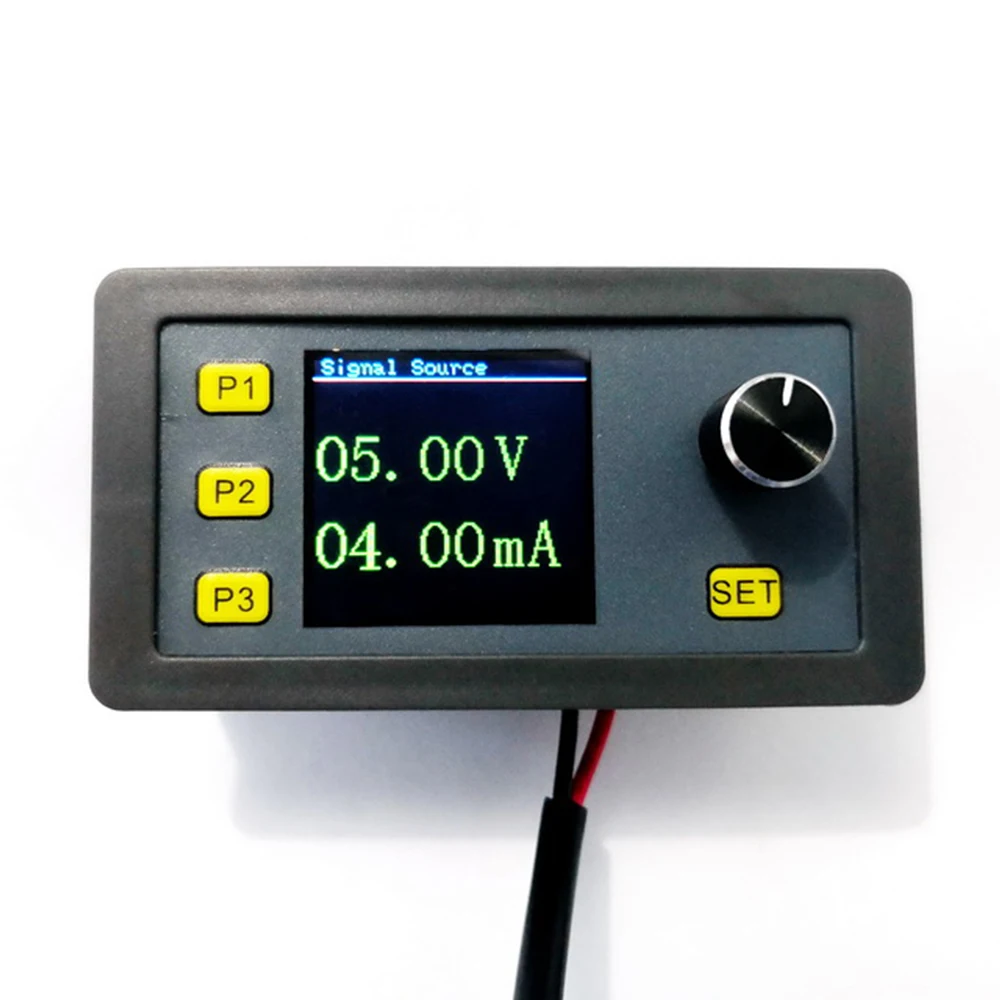

Signal Source Mode: Voltage source 2-10V, current source 4-20mA

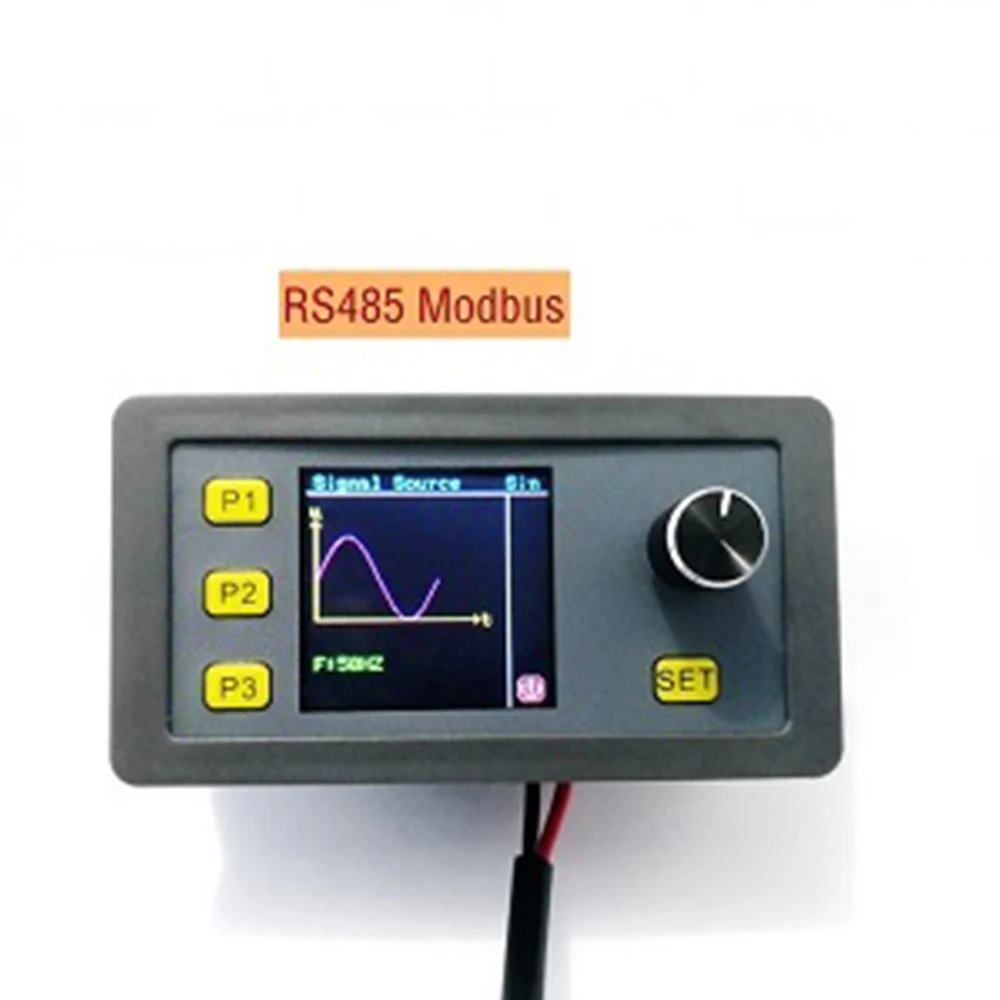

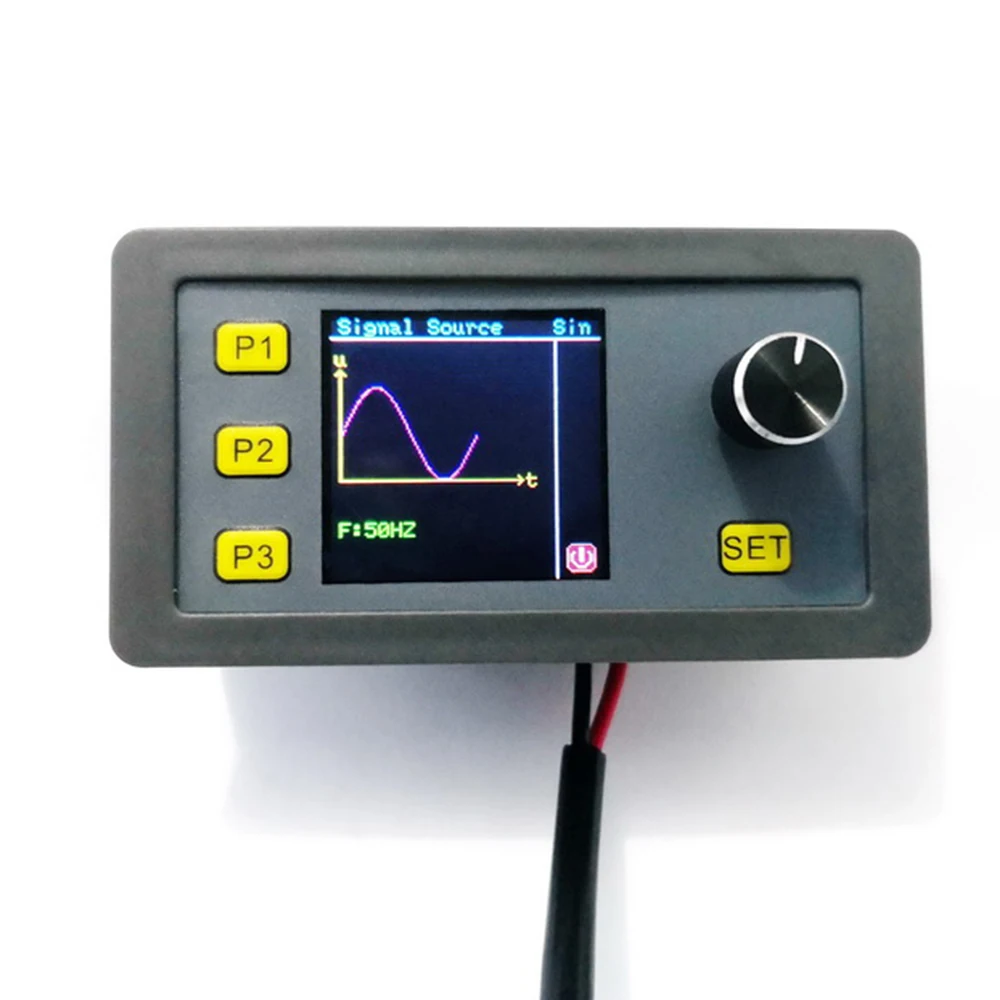

Sine Ripple Mode: 1-1000Hz
Signal Load Capacity: Output current up to 30mA (Note: This product outputs signal source, can not directly drive the high power load)
Ambient Temperature: -10-+70Celsius
colour:Grey
Material:plastic
size:76 x 39mm
Package Contents:
1 x Signal Generator Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
