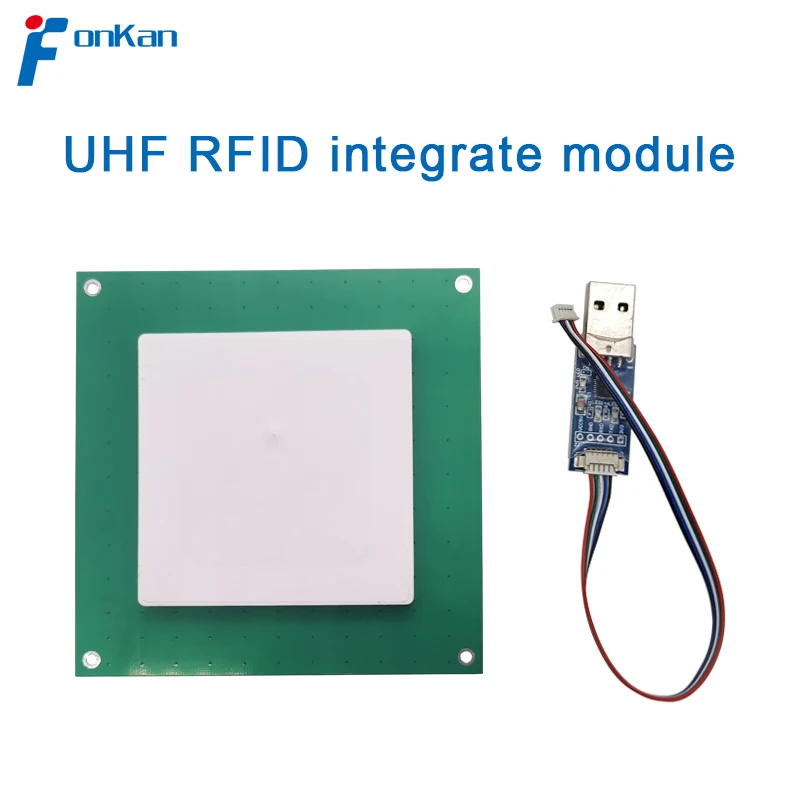

FONKAN 120*120mm UHF RFID 865-868Mhz 902-928Mhz EPC G2 6C Integrated 5.5dBi Antenna All-in-one Tag Reader Module | Безопасность и

Model

FM-512

Protocol

ISO18000-6C / EPC C1 GEN2

Frequency

865-868MHZ(EU),902-928MHZ(US)

RF Power Output

-2~25dBm

Operating time

<100mS.

Interface

TTL 232 Uart interface (3.3V )

Gain antenna

5.5dbi

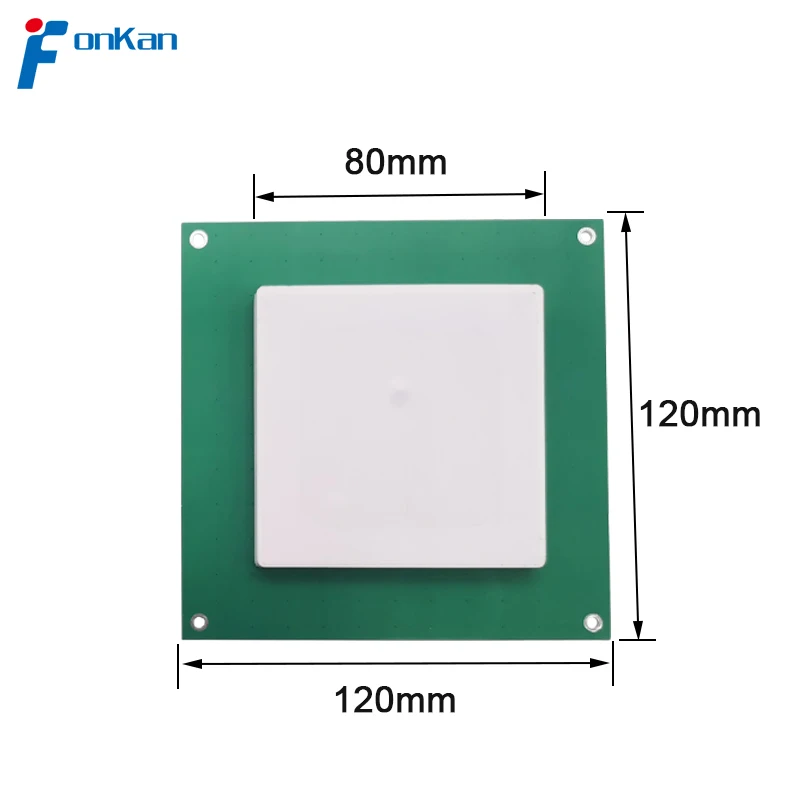

Module size

120*120mm

Communication baud rate

115200 bps(default and recommend)38400bps

Read distance

0-4M(depends on tags )

Read time

＜100ms

Output power

+/- 1dB

Output power flatness

+/- 0.2dB

Receive

< -70dBm

Standby current

<80mA(EN pin high level)

Sleeping current

<100uA(EN pin low level)

Operation current

180mA @3.5V(26dBm output, 25℃)
110mA @ 3.5V (18 dBm Output,25°C).

Heat-dissipating method

Air cooling(no need for out install cooling fin)

Tags storage

200pcs tags @ 96 bit EPC

Working temp

- 20 °C ~ + 70 °C

Storage temp

- 20 °C ~ + 85 °C

Excellent Tags reading performance

◆Tags recognition is sensitive and stable.

◆Stable recognition distance 0-4m (depends on tags).

◆Multi-tags recognition performance.

◆Tag recognition speed: >50/sec.

Completely solve the problem of fever

◆Needn't to connect any external heat sink.

◆Long-term load work does not generate heat at room temperature.

◆Continuous current<200mA@3.5V(26dbm output)

◆Peak pulse current <260mA

Excellent stability

◆24 hours * 365 days work without crashing.

◆The performance is less affected by the outer shell, electromagnetic environment and other external influences.

◆Wide temperature design, extremely low temperature drift coefficient

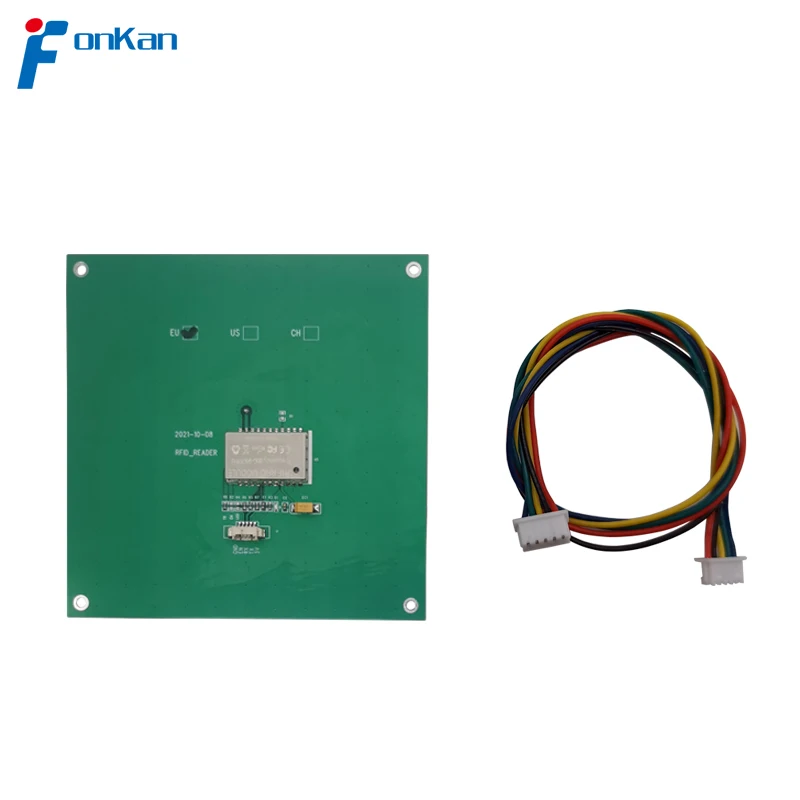

Pin

Definition

Descrption

1

GND

Ground

2

EN

RF module enable power
High(Active),Low(power down)

3

RX

Date input,TTL level

4

TX

Date output,TTL level

5

5V

DC3.5V-5V
