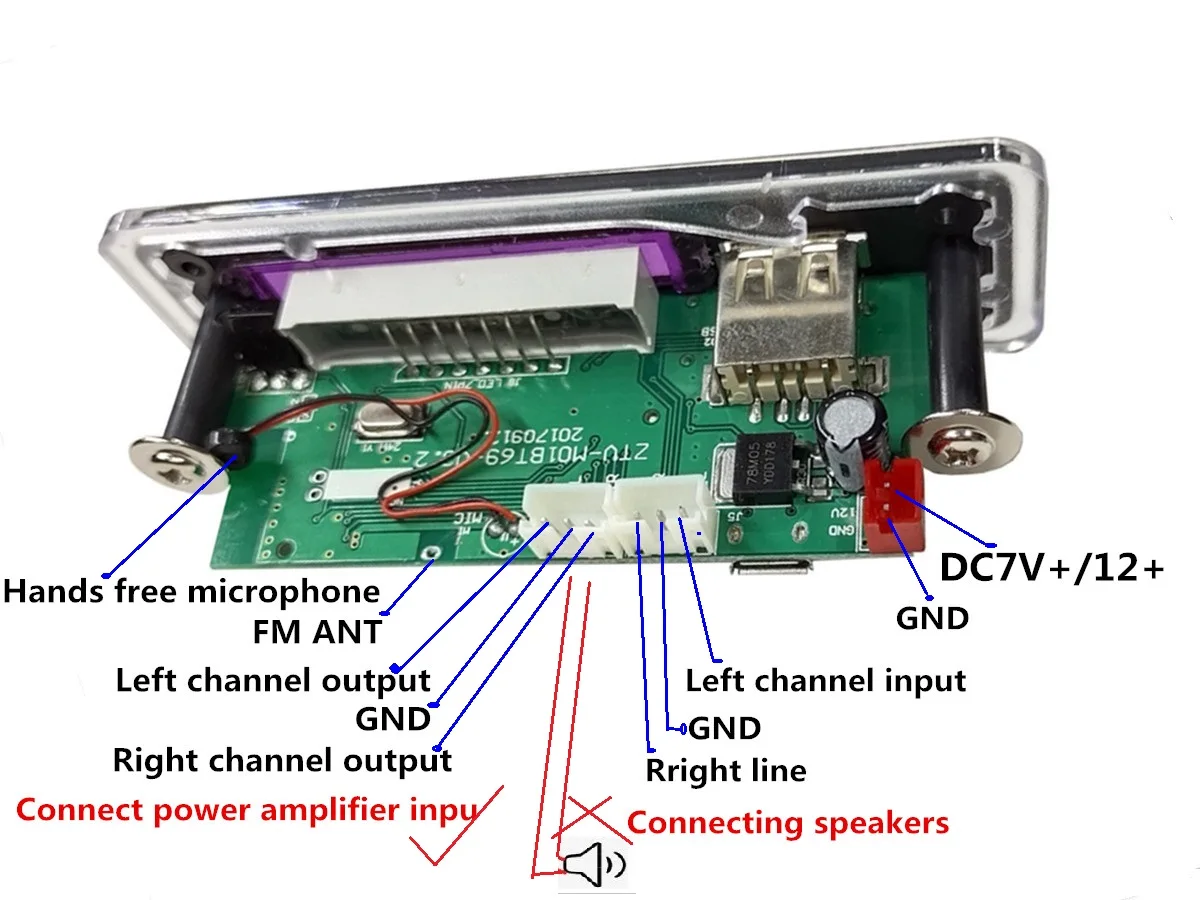

This connection does not have a power amplifier and cannot be connected directly to the speakers. It can only be used by reinstalling the power amplifier. For more information, refer to the picture and the related instructions and notes below the picture

Specific connection mode (such as picture);

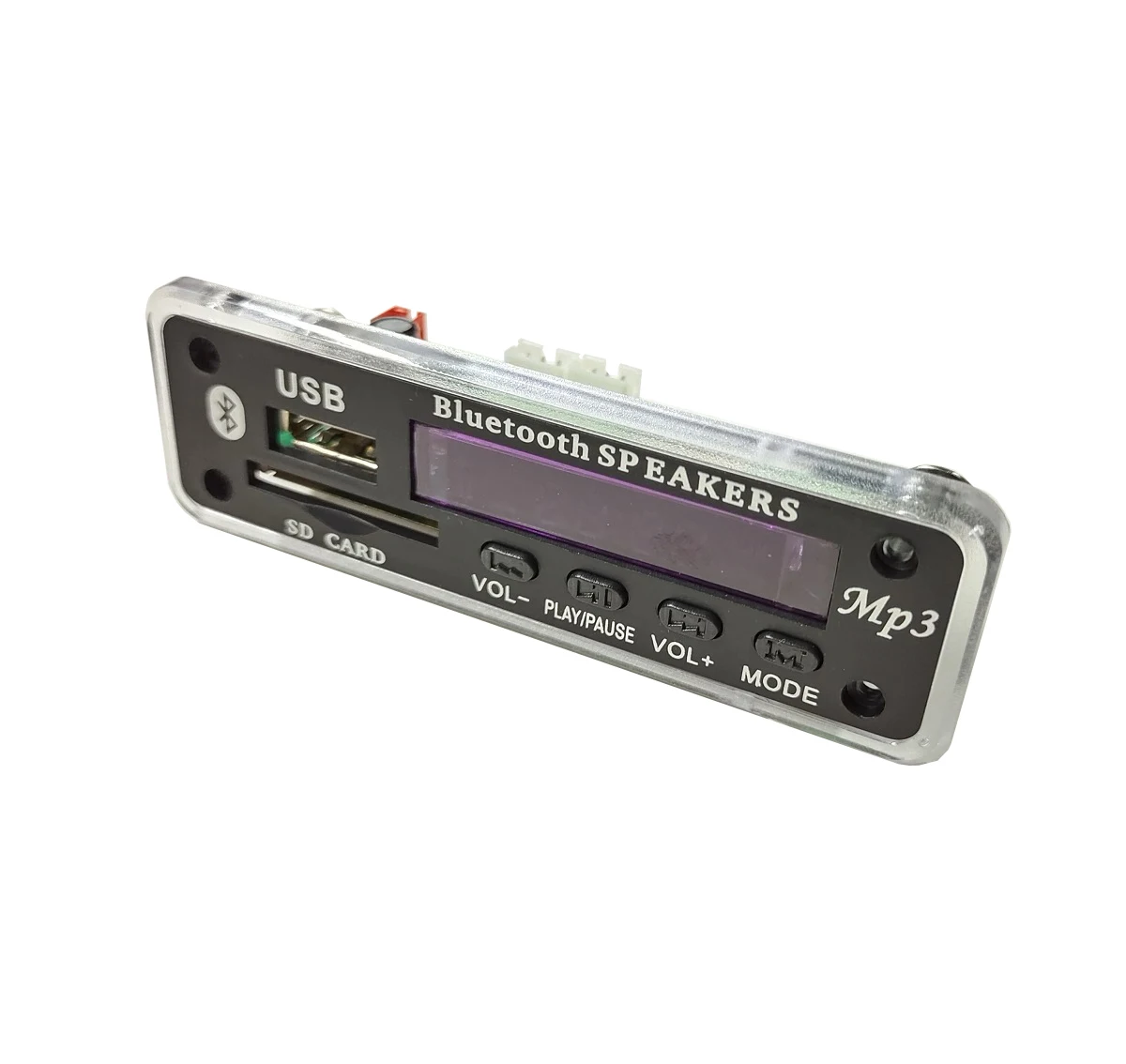

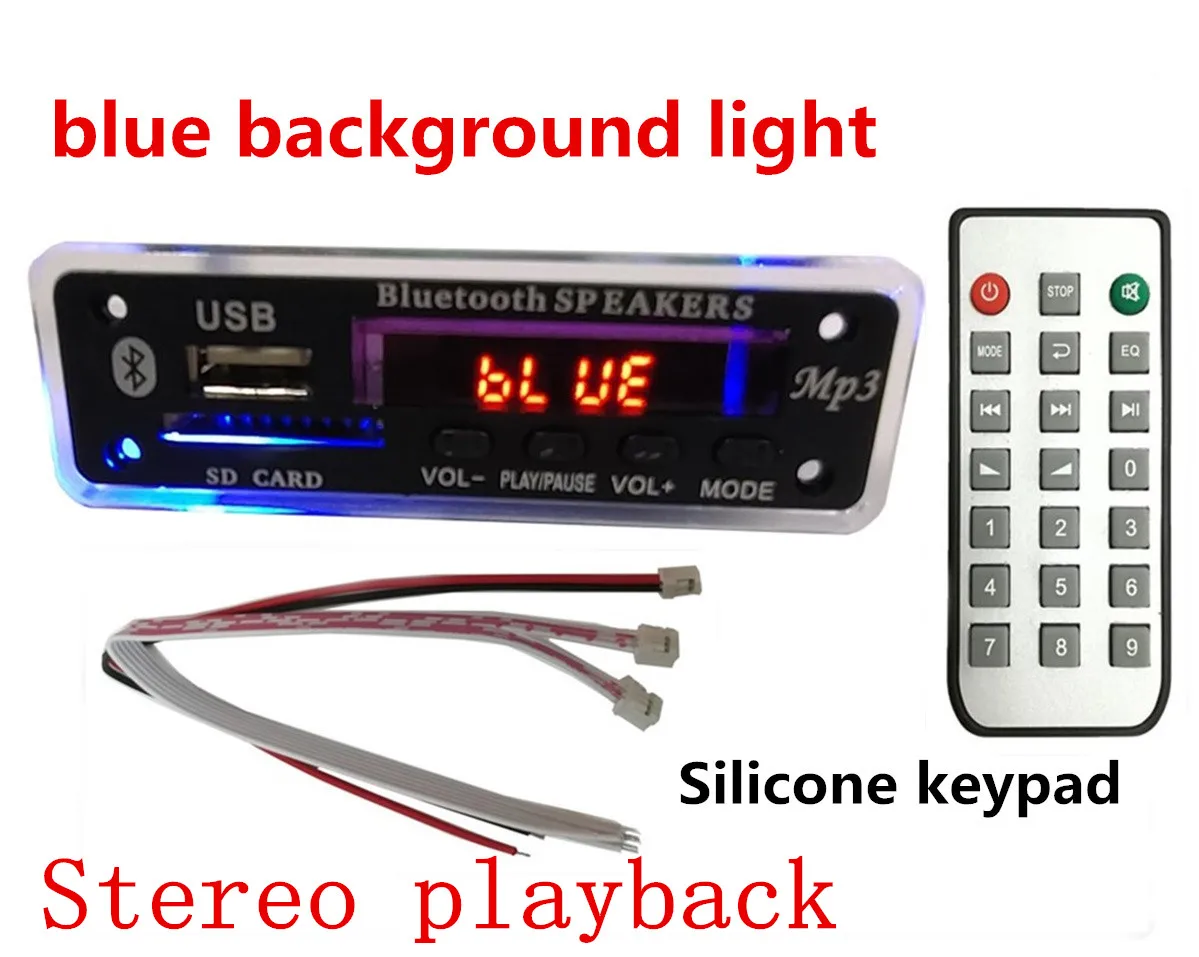

Multifunction: blue background light; This product supports hands-free telephone answering function and mobile application control player (application software needs to be installed)., The effect is more moving. 3P auxiliary input; USB / SD can play MP3 losslessly; APE / WAV and wma / FLAC can also support folder selection and playback; FM radio; Auxiliary stereo Bluetooth. DIY speakers and the best accessories for retrofitting audio / cars

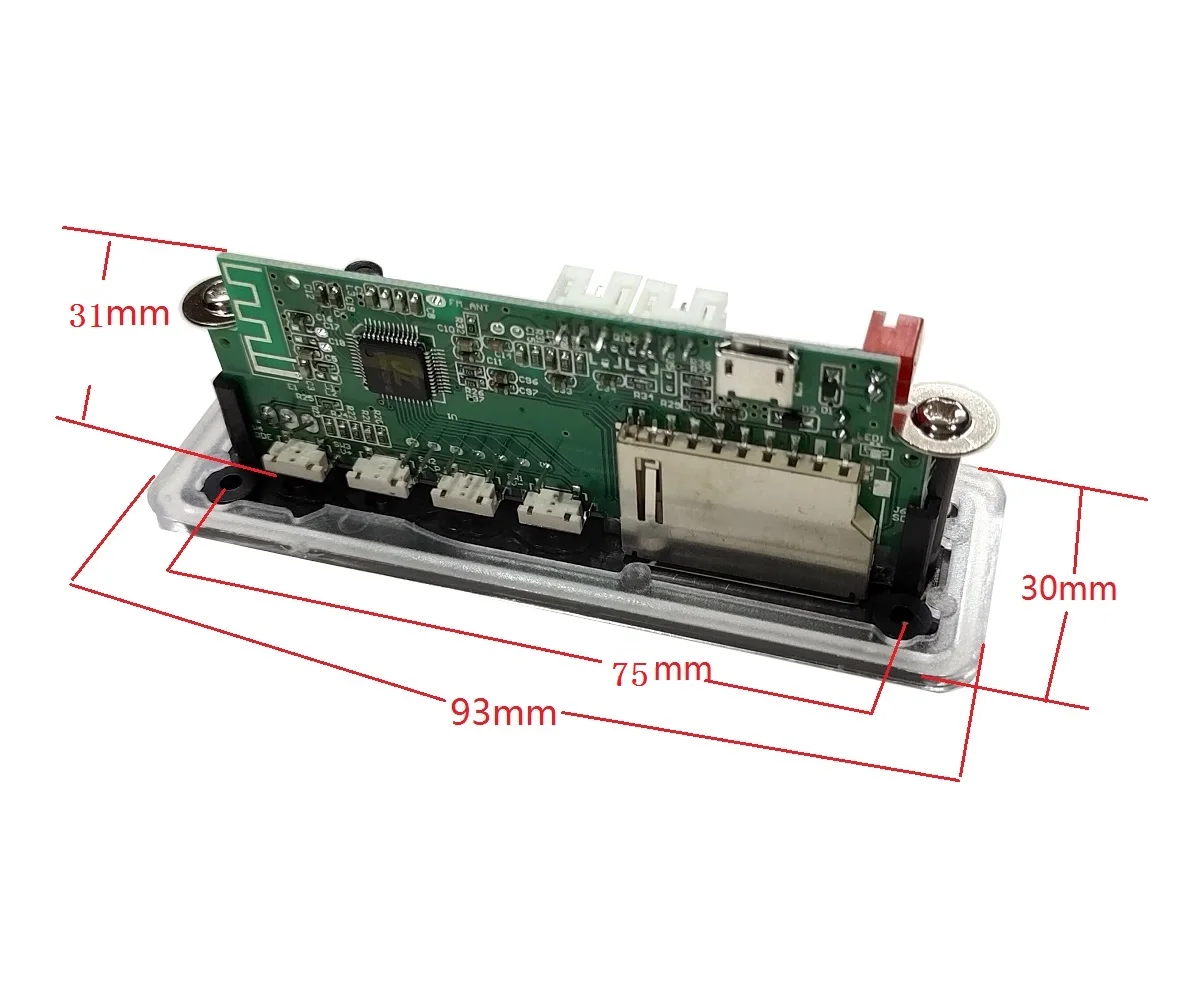

Panel length 93mm * height 30mm * depth 31mm;

Installation opening: 83 * 23 * 31 (depth) mm, and screw positions with a diameter of 6mm are reserved at the upper and lower corners of both ends; Panel screw hole spacing: 75 * 16mm;

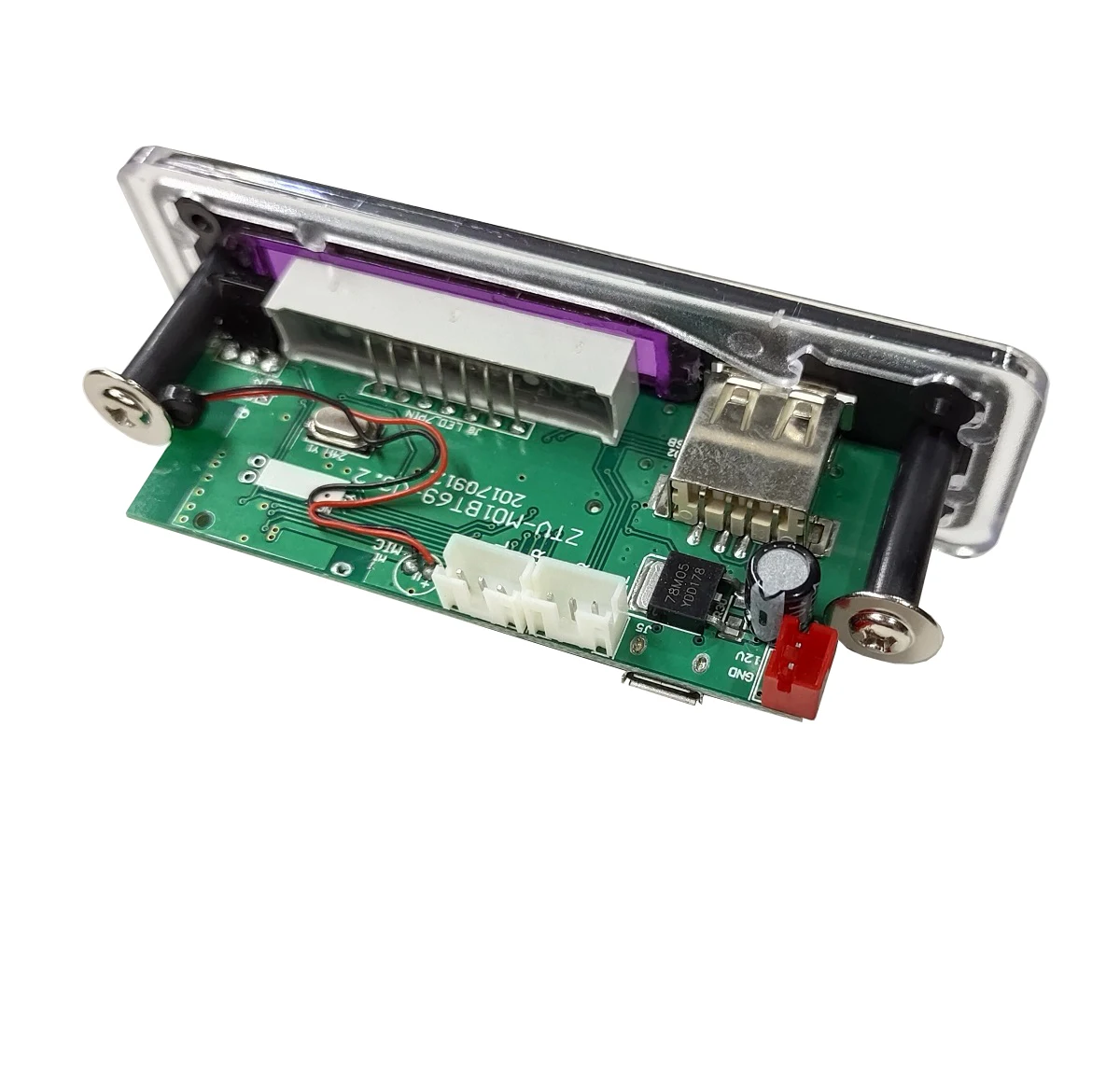

Power input, do not connect two at the same time. 12V is the red seat DC 7v-12v. 5V is a mini USB connected from the back of the motherboard. DC 4v-5v cannot be higher than 5V and can be used directly (Mini USB mic0 plug-in is convenient and practical, and novices can do it by themselves, as shown in the figure).

Current 800ma-1a; Do not connect any AC voltage value; Please understand the precautions at the bottom of the picture before buying

USB sound card function (double head USB cable with data transmission function). Insert the USB plug into the computer and the USB plug into the USB module. "PC" will appear in MP3 module; At this time, the computer playing music can be transmitted to the module through the audio output of the module. You can also copy the music from the computer directly to the SD card on the module, or delete the music from the card, - operation method: insert the module into the SD card, and then open my computer on the computer. There will be computer systems such as removable hard disk or USB flash memory, and different prompts will be different)

Module functions:

*Support BT and hands-free calls (when you hear the "beep" sound and phone number, press the pause key to answer the call) callback: in Bluetooth mode, double-click the "pause" key to call back the last phone number,

*Support to select the folder to play (remote control operation) -. DJ music / background music / children's songs can be classified into different folders on the card / USB flash disk; Folder playback: long press "previous song" or "next song", F001, F002,... Cycle mode:

In the playback state, press the "arrow" or "RPT" symbol key or long press the "playback" key: random (RAN) / single loop (one) / folder loop (fol) / full loop (all);

If (fol) under the current folder is selected, only the complete loop is played in that folder.

*Support switching between 2.0 USB (fat) / SD card / BT / FM / aux.

*Support mp3 format music. MP3 songs 32-320kbps, lossless APE / FLAC / wma / WAV 1411kbps or lower, ordinary dual channel (DTS format music cannot be played)

*Support 2.0 USB (fat system) / card switching, previous song, next song, volume adjustment, equalizer, play / pause, stop, single repeat, mute, shutdown and direct selection of songs.

*It supports BT previous song, next song, volume adjustment, play / pause and mute.

*Support memory function: (pull out the USB flash disk or TF card first in the playback state; cut off the power for about 3 seconds, remember and play the breakpoint when restarting);
