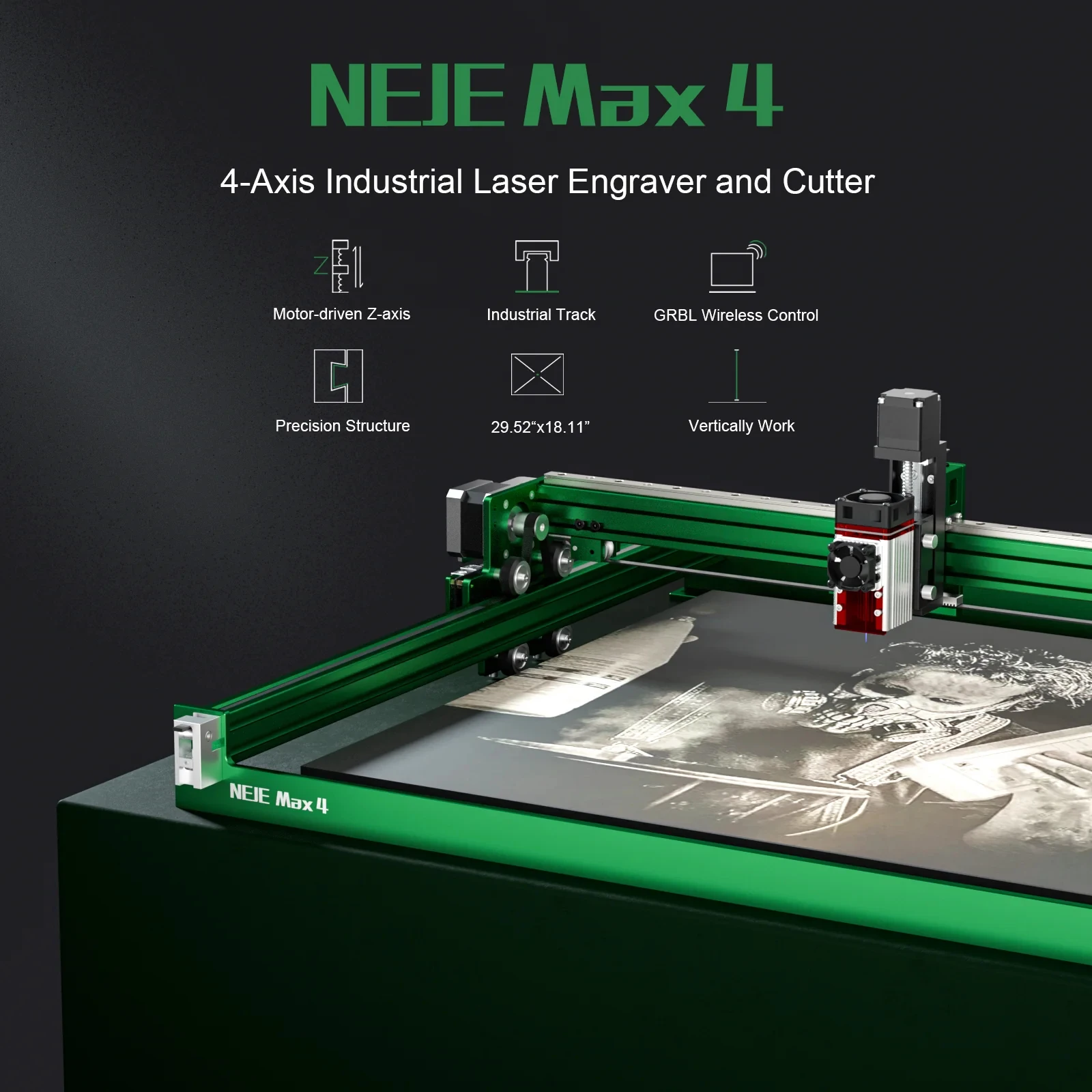

Neje Макс 4 A40640/E40 CNC Деревянный лазерный гравировальный станок резак для резки и гравировки светорезки LaserGRBL App Control.

Neje Макс 4 A40640/E40 CNC Деревянный лазерный гравировальный станок резак для резки и гравировки светорезки LaserGRBL App Control.

Brand NameNoneModel NumberNEJE MAX 4OriginMainland ChinaConditionNewCertificationCECertificationFCCIs Smart DeviceYESCNC or NotCNCMeasurement unitpiece/piecesEach pack1

Unavailable in

5,0

All stars

• Anonymous user

  Size: 2S MAX A40640   Ships From: China

  31 May 2022·Show original

  Everything works fine

  Show more
• Alexandr A.

  Color: NEJE 3 MAX A40640   Ships From: Russian Federation

  24 October 2022
  Show more
• Aleksey D.

  Color: NEJE 3 MAX A40640   Ships From: Russian Federation

  13 April 2022
  Show more

Description

NEJE MAX 4 E40 LASER ENGRAVER

Optical Power: Pulse 11W+, CW 10W+

Frame Size (L – W – H): 970x582x60mm

Working Area( X – Y): 750 x 460mm, Extends to 750x1030mm

Drive Accuracy: XY-axis repeat positioning accuracy 0.01mm, Z axis 0.001mm

Number of Controllable Axes: X,Y,Z,A four axes

Input Voltage: 12V / 24V, Match according to module voltage

Limit Switch: Yes, both XYZ

Max Move Speed: 750mm/s

GRBL Offline Control： Yes

M7,M8,Door Extension： Yes

App control： Yes

MEMS： Yes

NEJE Software OTA Upgrade: Yes

Vertical Carving: Yes(90°)

Systems Support: Win 7/Win 8/Win 10, Android, iOS, ipadOS, macOS

File Format Supports: .GC/SVG/DXF/JPG/JPEG/PNG/BMP/TIF/etc.

NEJE E40 Laser Module

Optical Power: Pulse 11W+, CW 10W+

Interface: 4pin PH2.0 + ( 2pin DC12v extra power)

Drive: NEJE Smart Quiet Drive, Built-in static elimination technology

Surge Protection: YES

Smart Feedback: YES

Temperature control: 45℃

Air pump: 0.5-1.5mpa clean air

Protective window lens: Yes ( withstand 1000℃ )

Focus: 0.06x0.06mm

Focus method: fixed ( 3mm from the radiator)

Wavelength: 450nm

Weight: 280g

Module Size: 40x48x130 mm

Input: DC 12V 4A

NEJE MAX 4 A40640 LASER ENGRAVER

Frame Size (L - W - H): 970x582x60mm

Working Area( X - Y): 750 x 460mm, Extends to 750x1030mm

Drive Accuracy: XY-axis repeat positioning accuracy 0.01mm, Z axis 0.001mm

Number of Controllable Axes: X,Y,Z,A four axes

Input Voltage: 12V / 24V, Match according to module voltage

Limit Switch: Yes, both XYZ

Max Move Speed: 750mm/s

GRBL Offline Control： Yes

M7,M8,Door Extension： Yes

App control： Yes

MEMS： Yes

NEJE Software OTA Upgrade: Yes

Vertical Carving: Yes(90°)

Systems Support: Win 7/Win 8/Win 10, Android, iOS, ipadOS, macOS

File Format Supports: .GC/SVG/DXF/JPG/JPEG/PNG/BMP/TIF/etc.

NEJE A40640 Laser Module

Optical Power: Pulse 12W+, CW 11W

Focus Size: 0.04x0.06mm

Input: 12V 4A +

Interface: 4pin PH2.0 + ( 2pin DC12v extra power)

Weight: 204g

Number of Diodes: 2

PWM Input: VPP(3.3-12V), Recomend 1KHz,

Quiet Design: Drive the built-in control ic, judge the working state and adjust the fan work

Adapter Pluga: 5.5 2.1 port

Working Voltage: DC 12V

TTL&PWM Modulation: YES. Compatible with Both TTL & PWM Modulation

Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

FEATURRE

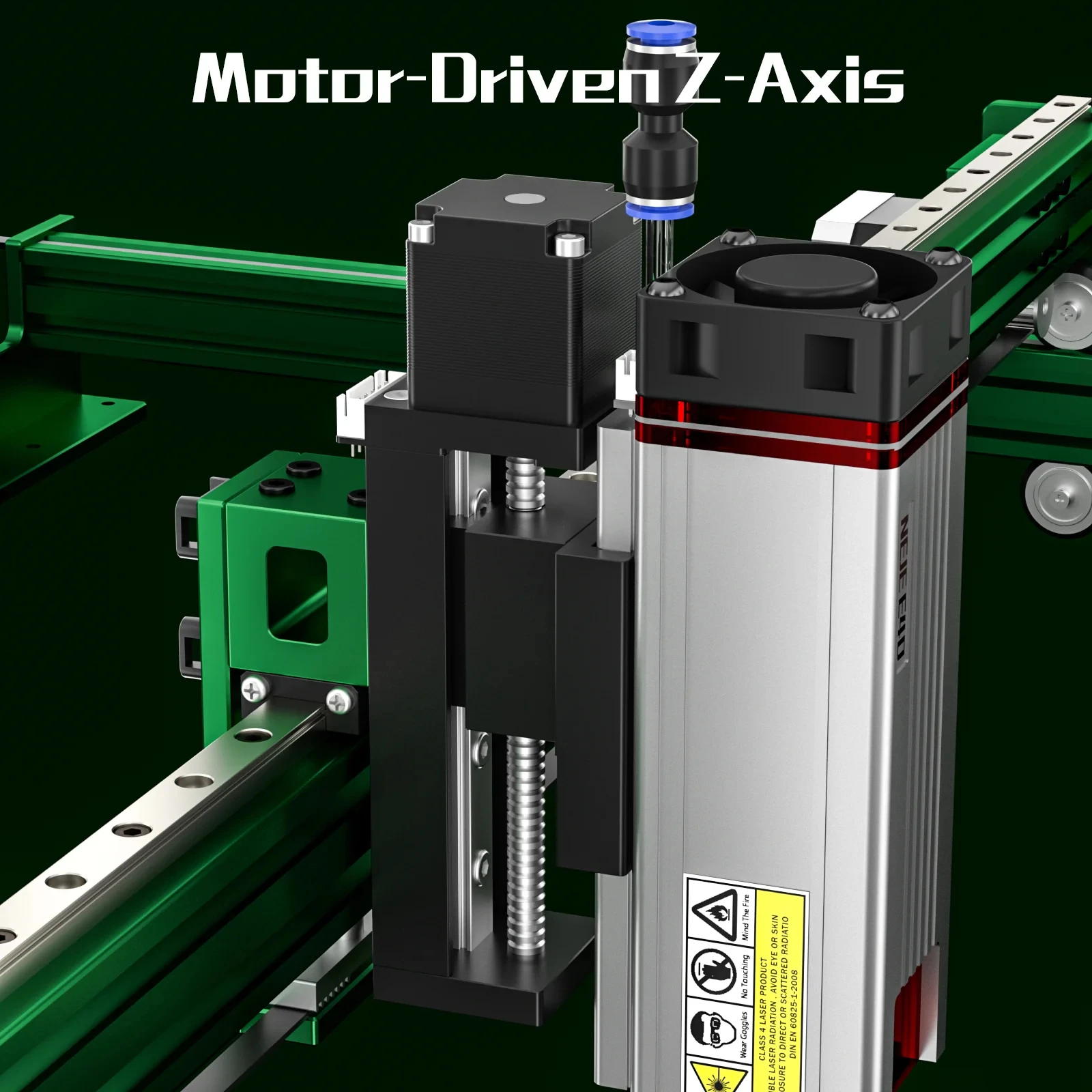

New Electric Z-Axis：The NEJE 4 Max laser engraver is fully upgraded.Electric Z-axis with high precision is added, which can load up to 1kg and travel 45mm. It realize high-precision repositioning with the accuracy of 0.001 mm. In the lightburn software, the focus distance of each layer can be set automatically, and the thicker material can be cut efficiently through the control of the Z-axis. Meanwhile, we will send a drawing pen as a freebie, which is suitable for novice to practice.

High Precision Laser Module: E40 is a high-power dual beam fixed focus high-precision module. E40 module has extremely small incisions when cutting MDF boards, leather, acrylic, fabric, cardboard and other high-density materials less than 4mm, and the minimum gap between incisions is less than 0.06mm. The incision in XY direction tends to be uniform. Therefore, you will get a more even effect when drawing lines,At the same time, it can carve stainless steel, stone, glass, ceramics and other high-resolution materials with high-precision rendering capability, and the imaging effect is meticulous and accurate

Industrial Track: The upgraded NEJE 4 Max laser engraver for wood and metal is equipped with an industrial-grade maintainable track.The service life is up to 20,000 hours. Through reasonable design and precise processing technology, the precision of the frame is improved, and the mechanical precision reaches 0.01 mm. The machine adopts a higher hardness alloy frame, which effectively eliminates the vibration of the equipment and improves the stability of the machine.

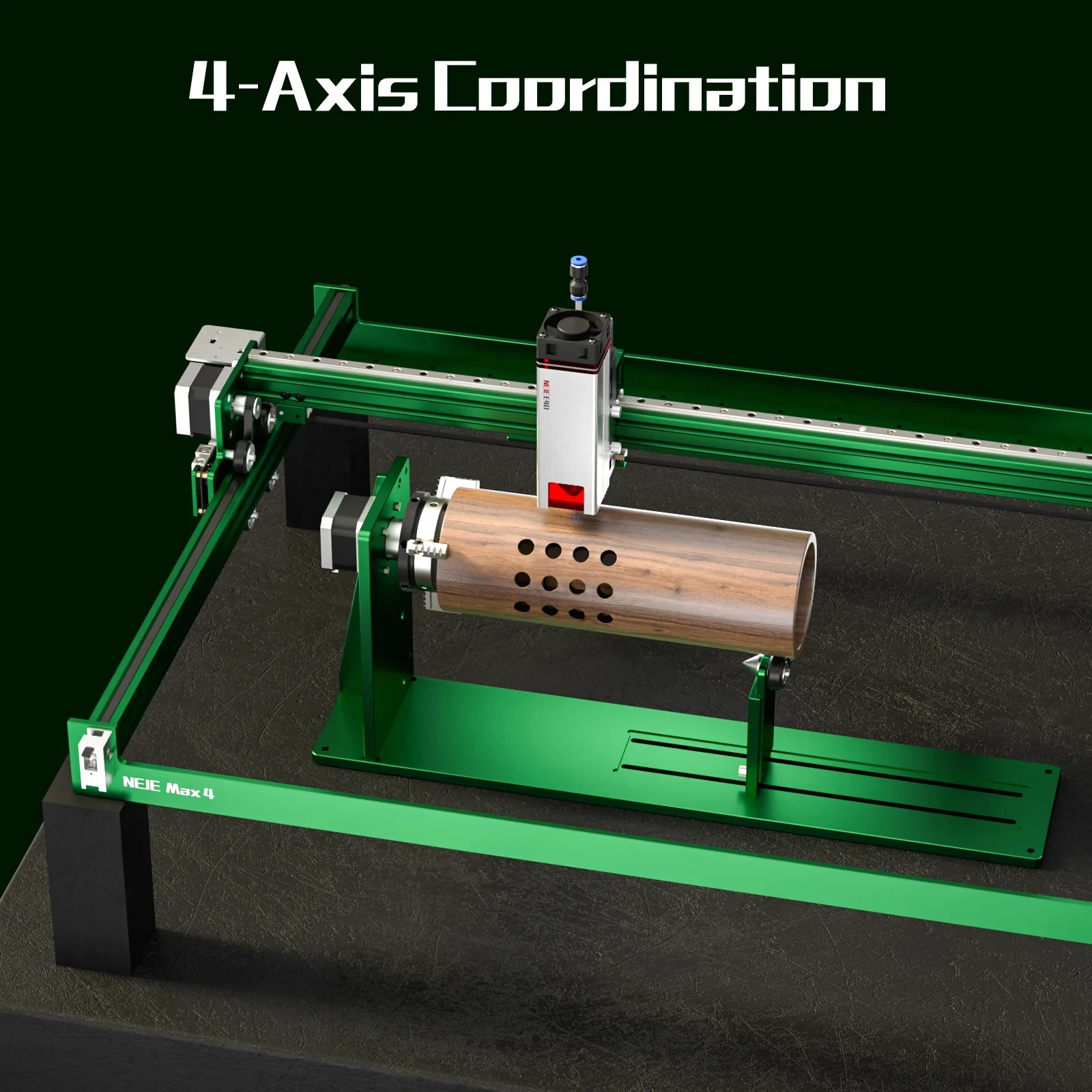

Four-Axis Control System: NEJE Max 4 is the first laser engraving machine on the market that can realize 4-axis collaborating. Through the collaborating of X-axis, Y-axis, Z-axis, and A-axis, it can automatically complete more precise processes. Through expandable functions, the machine can automatically complete M7, M8 auto smoke discharging, air assist, door safety functions and visual positioning functions, and perfectly integrated with various extended functions of lightburn.

750 (X) * 460 (Y) * 45 (Z) mm working area, Y-axis track can be extended to 1030mm, in 3-dimensional space, it can support simultaneous processing of various items with different thicknesses. Compared with the ordinary 400x400mm frame, the work efficiency increases by 400%.

You can transmit Lightburn working files and control the device wirelessly.NEJE uses the combination of built-in virtual instruction mode and Bluetooth technology to transmit and control professional multi-layer gc files wirelessly through NEJE. NEJE retains the "One Key Start" function, eliminates the backward sd card mode, and allows the device to work without occupying your computer.

The drawing pen is included in the package. It can draw images, which can let children and beginners experience the fun of CNC. It can also draw paths with the drawing pen, and preprocess advertising materials that cannot be processed by laser wavelength.

The processing speed is 24000 mm/min,it’s faster than 400 mm frame’s peak speed. The combination of Max 4 and NEJE high-performance module makes the efficiency reach an excellent state. With NEJE A40640 high resolution and high pulse energy module, it only takes 10 minutes to draw 300x300 mm works, and the painting performance of exquisite art works is delicate and unexpected

The repeated positioning accuracy of Y and Z axes reaches 0.001mm, XYZ axis includes automatic reset, and the repeated positioning accuracy after reset can also reach 0.01-0.001mm. The X axis adopts industrial linear track, and the Y axis adopts NEJE special design diamond tool to cut linear track, which has a longer lifespan and precision.

The new Max 4 machine has industrial-grade structural accuracy. All parts are calibrated by high-precision industrial master machine, linear track correction, and the installation direction of each plane is precisely matched, making the operation of the module more accurate and stable.

The machine has anti-jitter design, so there is no ripple in such a large area of lightweight equipment. NEJE can effectively eliminate the jitter of precision drawing by customizing alloy materials with different hardness and matching reasonable shock absorption design.

The new built-in anti-static design will make the equipment more stable and reliable

It is compatible with all 12V and 24V modules of NEJE (only E80 is 24V module at present) to realize the application of different materials and different process requirements

Support Wireless Offline Work: NEJE 4 Max supports wireless offline work. You can create everything you want in Lightburn and use NEJE software to operate the machine wirelessly. Offline work distance within 10 meters is available.Without computer's restrictions, you can operate the machine anytime and anywhere. NEJE provides a 2-year warranty for products sold. If you have any questions, please check our support website, where you can get professional technical support in time.
