5,8G FPV 48CH 25 мВт передатчик VTX-CAM с 600TVL 120-градусной камерой AIO и Комплектом монитора 4,3 / 7 дюймов или приемником очков.

5 8G FPV 48CH 25 мВт передатчик VTX-CAM с 600TVL 120-градусной камерой AIO и Комплектом монитора 4 3 / 7 дюймов или приемником очков.

Description

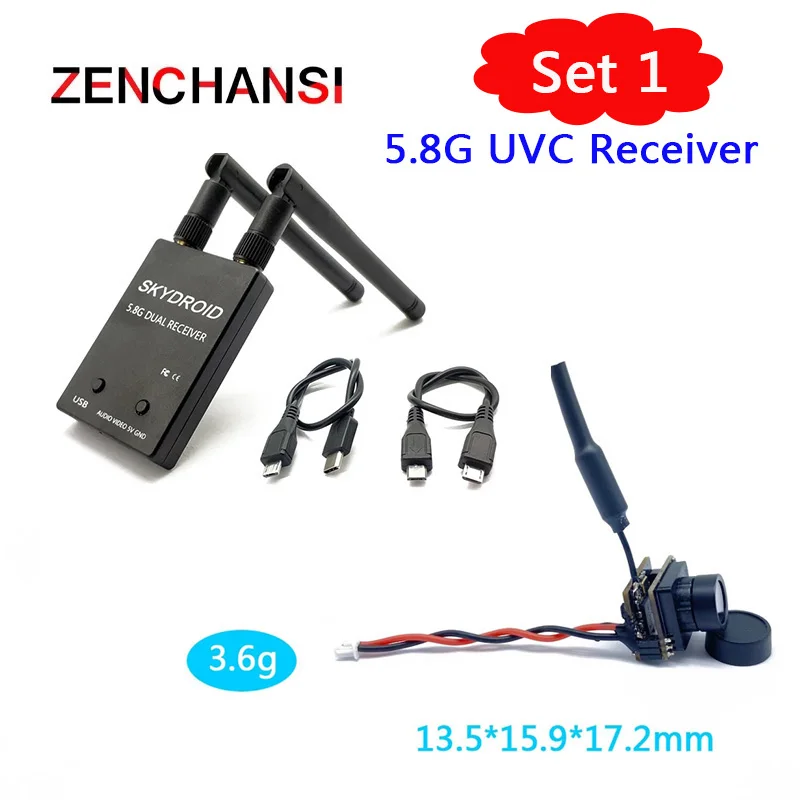

The UVC receiver needs to meet the following conditions:

1: Android phone
2: The phone supports OTG function
3: Qualcomm full range of CPUs can support
4: Kirin 950CPU and higher CPU
5: MediaTek X20CPU and higher CPU
6: Apple phone is not supported

APP Download: http://files.banggood.com/2016/11/fuav.2.0.apk

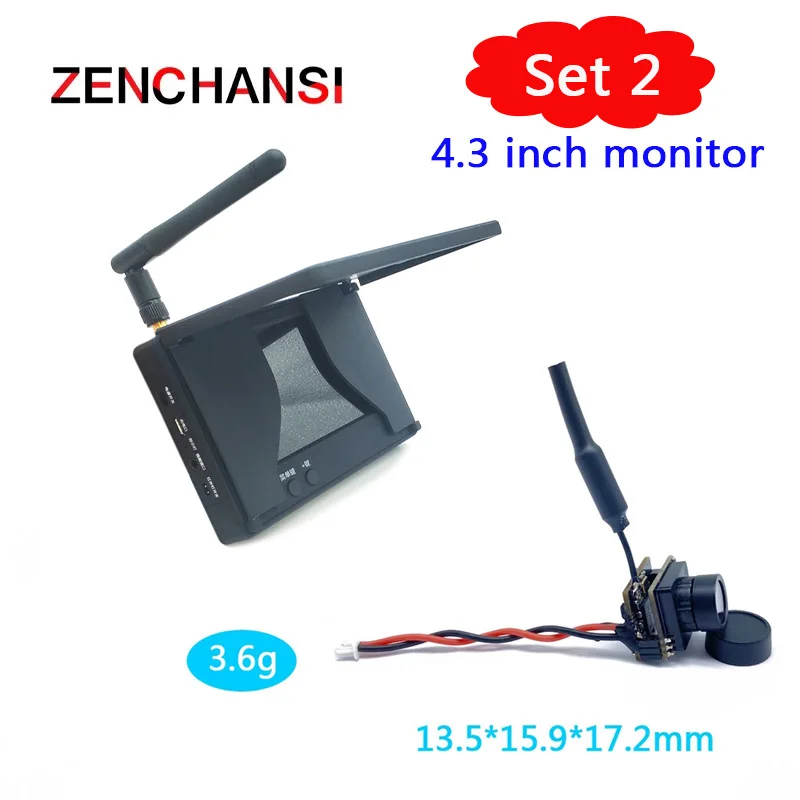

5.8g 48CH 4.3 Inch wireless receiver monitor 480*272 built in 500mah battery can work 2 hours For FPV Drone Quadcopter

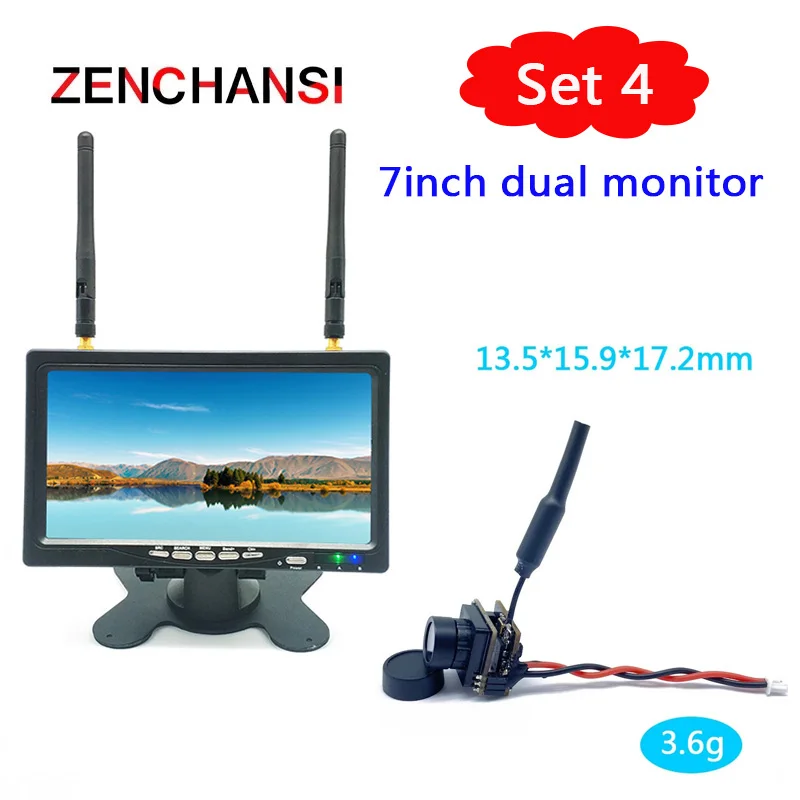

5.8G 48CH 7 inch TN IPS 1024*600 TFT LCD Screen fpv monitor support DC7-16V battery

Screen size: 7 inches
Screen type: TFT LCD screen / long life, LED backlight
Resolution: 1024 * 600
Brightness: 500 cd/m2
Viewing angle:TN IPS
Size: 173 mm x 113.7 mm x 23 mm
Working voltage: DC 7 ~ 16 v
Working time: According to your battery
Standby current: <5μA
Power consumption: max 500 mA @12V
Working temperature: -10℃~ + 65℃
Antenna：RP-SMA（inner hold）

Features：

Built-in dual receiver module
Have AV output, AV output is screen display connected to RF module
Will not affect 2.4 ghz R/C radios
AV receiver with multiple inputs
Small，light weight，durable
48 channels
Automatic signal search, simple operation
Working status display: Please always pay attention to the working status of the equipment.
You can contact the JST battery by yourself，we don't support

Note: It cannot receive two different channels at the same time

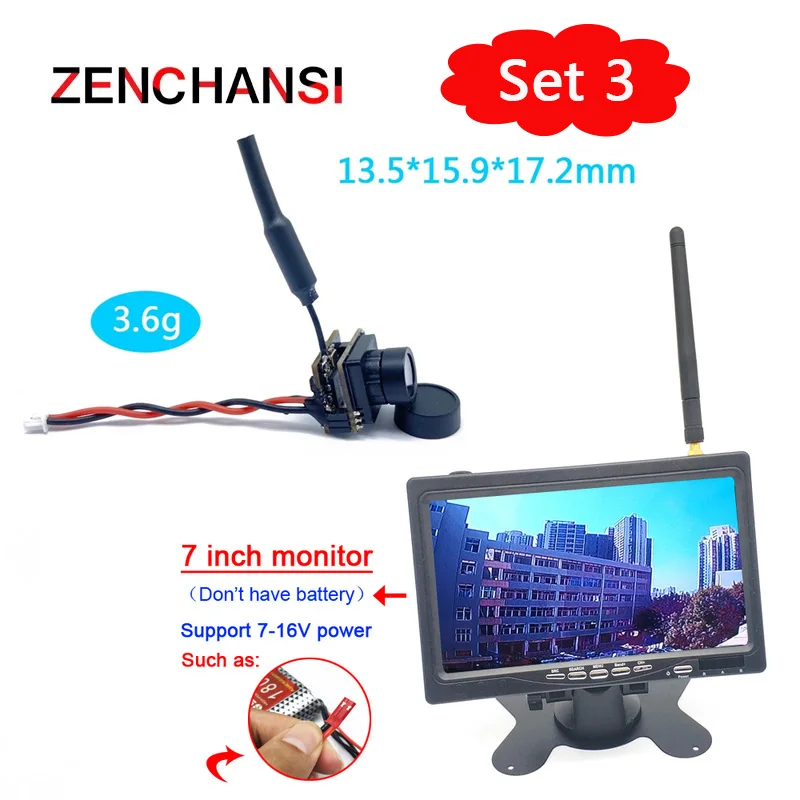

5.8G FPV 7 Inch TFT LCD Screen IPS FPV Monitor for fpv drone

Screen size: 7 inches
Screen type: TFT LCD screen / long life, LED backlight
Resolution: 1024 * 600
Brightness: 600 cd/m2
Viewing angle: IPS HD
Size: 173 mm x 113.7 mm x 23 mm
Working voltage: DC 7 ~ 16 v
Working time: 2 hours
Standby current: <5μA
Power consumption: max 500 mA @12V
Working temperature: -10℃~ + 65℃
Antenna：RP-SMA（inner hold）

Features：

Built-in dual receiver module
Have AV output, AV output is screen display connected to RF module
Will not affect 2.4 ghz R/C radios
AV receiver with multiple inputs
Small，light weight，durable
48 channels
Built-in 1800 mah / 7.4 v battery, with charger
Automatic signal search, simple operation
Working status display: Please always pay attention to the working status of the equipment.
OSD display of battery working status: RSSI signal; indicator; channel indication

Charging indicator: The red light is on when charging, the red light is off when fully charged, and the red light flashes to indicate an abnormal situation.

Note: It cannot receive two different channels at the same time

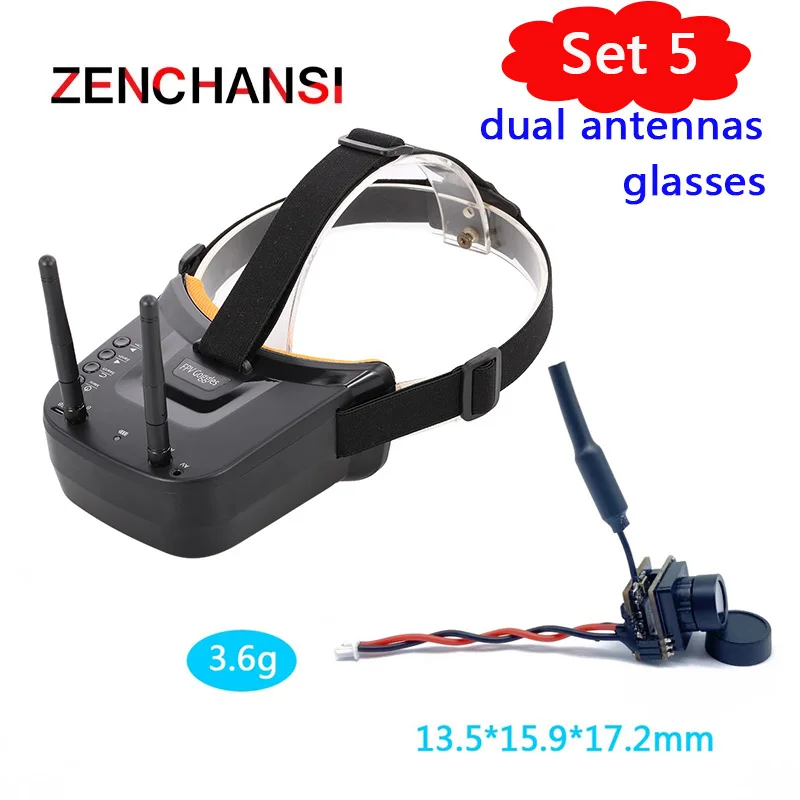

This is FPV goggles with high quality. It's built with a 5.8G 40CH FPV receiver with high brightness backlight LED, and dual antennas for better signal. With a 480 * 320 resolution, you can easily record remarkable FPV flight.

Features:
Attractive appearance, small size and light weight, easy to carry it.
Low power consumption, working current 300~330mAh.
Double antenna make the signal more stable. RaceBand 40 channel, Auto-Searching.
3 inch screen with 480 * 320 resolution, providing sharpimage and virtual experience.
Built-in 3.7V 1200mAh high-capacity polymer battery, 40CH auto-searching and real-time video return 5.8G FPV receiver.
English and Chinese languages optional, meet the need of everyone.
Support AV signal output (connect external DVR).
Universal USB charging interface.
Support one key search frequency point, it will be more faster.

Specifications:
Product name: Mini FPV Goggles
Transmission: 5.8G 40CH
Screen size: 3 inch
Resolution: 480 * 320
Display ratio: 16 : 9
View angle: 6 o'clock
Brightness: 350cd/m⊃2; with high brightness backlight LED
Video delay: Video time-delay less than 20ms
Lens: 4X fresnel lens, 92% transparent rate no distort of light
Interface: Antenna: 2 * RP-SMA male
USB: To charge the battery
AV jack: External video signals input or internals AV signal output
Language: English and Chinese
Power supply: Power adapter: DC 5V/1A (USB interface)
Battery: 3.7V/1200mAh, each full charge receive around 2.5 hours working time
Power consumption: The deceive operating current of 300~330mAh at 3.7V~4.2V
Build-in battery maximum charge current of 500mAh
Frequency: 5658-5945 MHz
Receive sensitivity: 95dbm
Dimension: About 13.5 * 12.5 * 6cm / 5.31 * 4.92 * 2.36in
Weight: 183g (without antenna)

There might be deviation due to manual measurement.

Package information:
Package size: About 18 * 16.5 * 9cm / 7.08 * 6.49 * 3.54in
Package weight: 371g
Gift box package

Package list:
1 * FPV Goggles (battery built-in)
2 * Antenna
1 * Manual

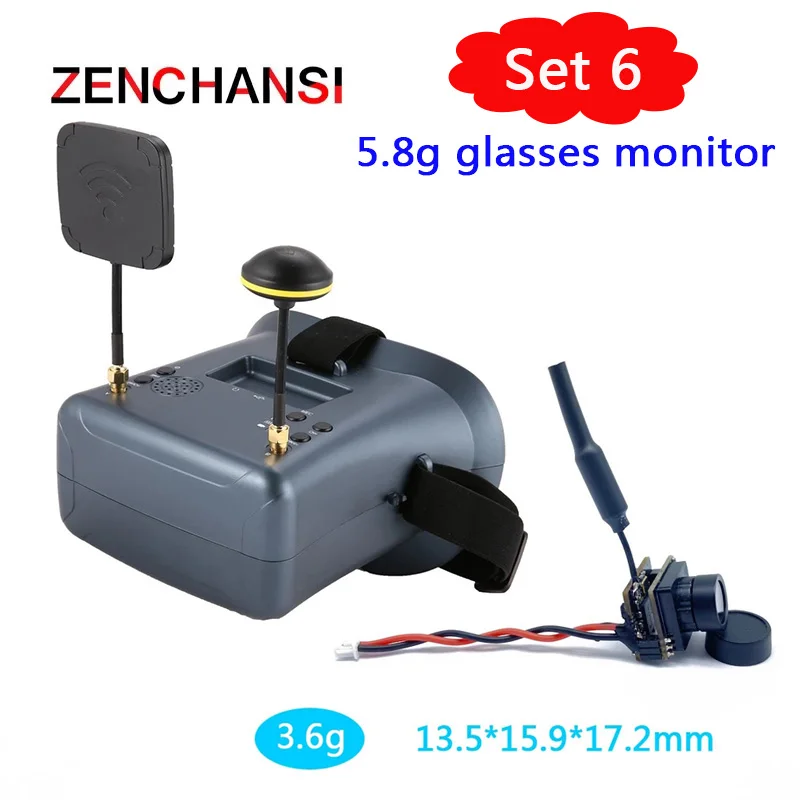

Features:
1.High brightness 4.3 inches LCD specially tuned for FPV racing or model airplane
2.Built-in super sensitivity 5.8 GHz 40ch receiver, especially with racing band.
3.Come with the advanced automatic search function and show you the work frequency in Screen
4.Lightweight, Built-in 3.7V / 2000mA battery, each full charge revive about 2 hours of work time
5.Ergonomic design adapt to your faces

Description:
1.This FPV Goggles comes with 4.3 inch 480 * 272px HD high-brightness LCD
2.Built-in 40CH 5.8G diversity receiver that compatible with most FPV 5.8G transmitters on the market.
3. 92% transparent lens adopted, without distortion, without defocusing on the screen adage


Specification:
Body Dimension: CNT Size. 145*156* 112mm
Weight: 291g
With 2hr 2000mAh battery, G.W. 608g
Belt: three-Ways adjustable belt

Screen
screen size:4.3 inch
Screen resolution: 480* 272(No blur after enlarge by the lens)
Screen brightness; 300cd/m2 with special high brightness backlightLEDforoutdoorFPVView Angle: 12 O'CLOCK

Lens
2.8x boost of the video to acquire intense feel-in-there video92% transparent rate no distort oflight

JACK
1. Input CVBS
2. Headphone sound output
3. TF Card(C10) Max32G
4. USB DC5V IN, the device operating current of 550mA@5V,built-in battery maximum charge currentof 750mA@5V;
if the device is working when charging, please pay attention to selecting the rated currgreater than 2A/5V charging equipment.

Battery:
Built-in3.7V/2000mAh high-capacity polymer battery, when the battery is charging, the devicetheredlwlllight when charging is
completed, here are bright greenLED.
Band and Channel selection
