Xprinter Thermal Label Printer Barcode Receipt Bar Code Print 20mm-80mm Sticker Printer BT WIFI LAN USB 2 in 1 Termica Impresora

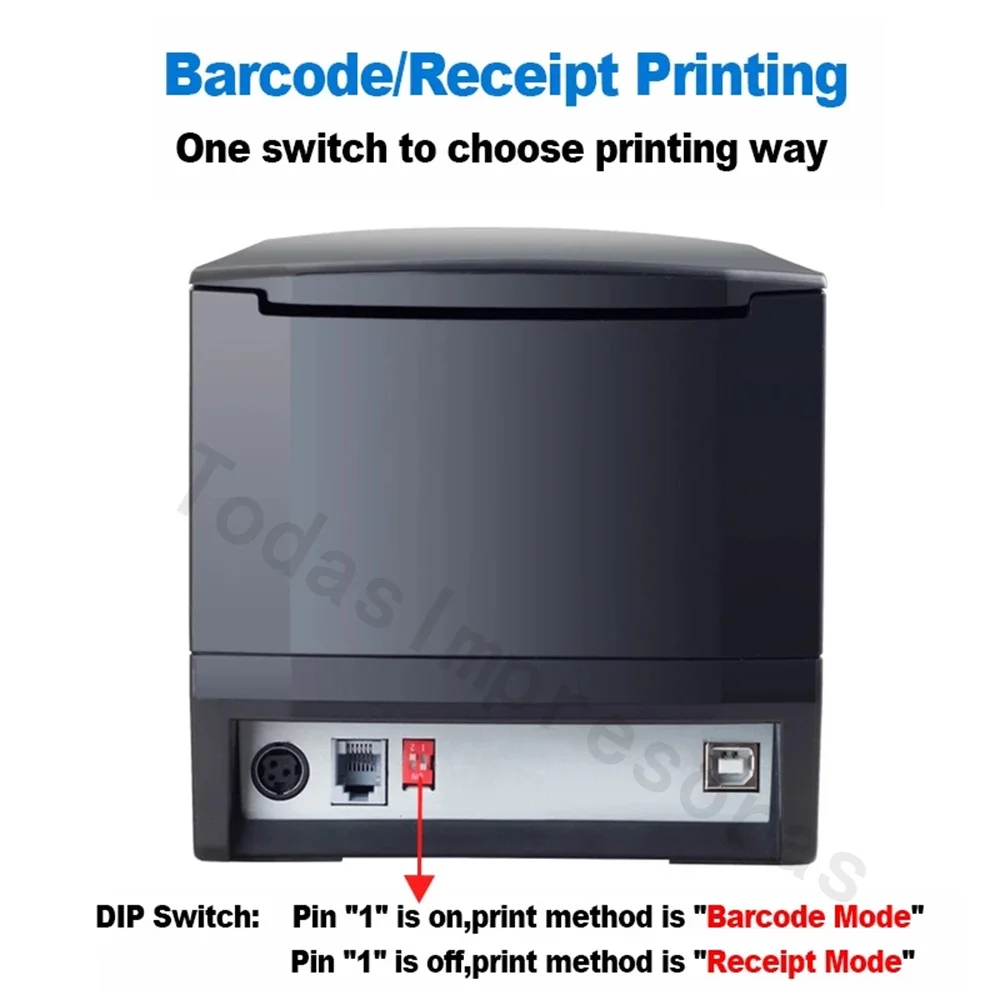

note: these printer both support print label and receipt . print width on 20-80mm.

How to use it ?

If you want to connect with your phone,please choose the bluetooth version.then download a name XPrinter app on your phone.last open the APP to find the bluetooth set ,you can find our printer. for more user's guide, you can refer to the official website:

//www.xprintertech.com/pos-printer-user-manual

if you dont know how to use it,you can tell us free time,we are glad to teach you use it.

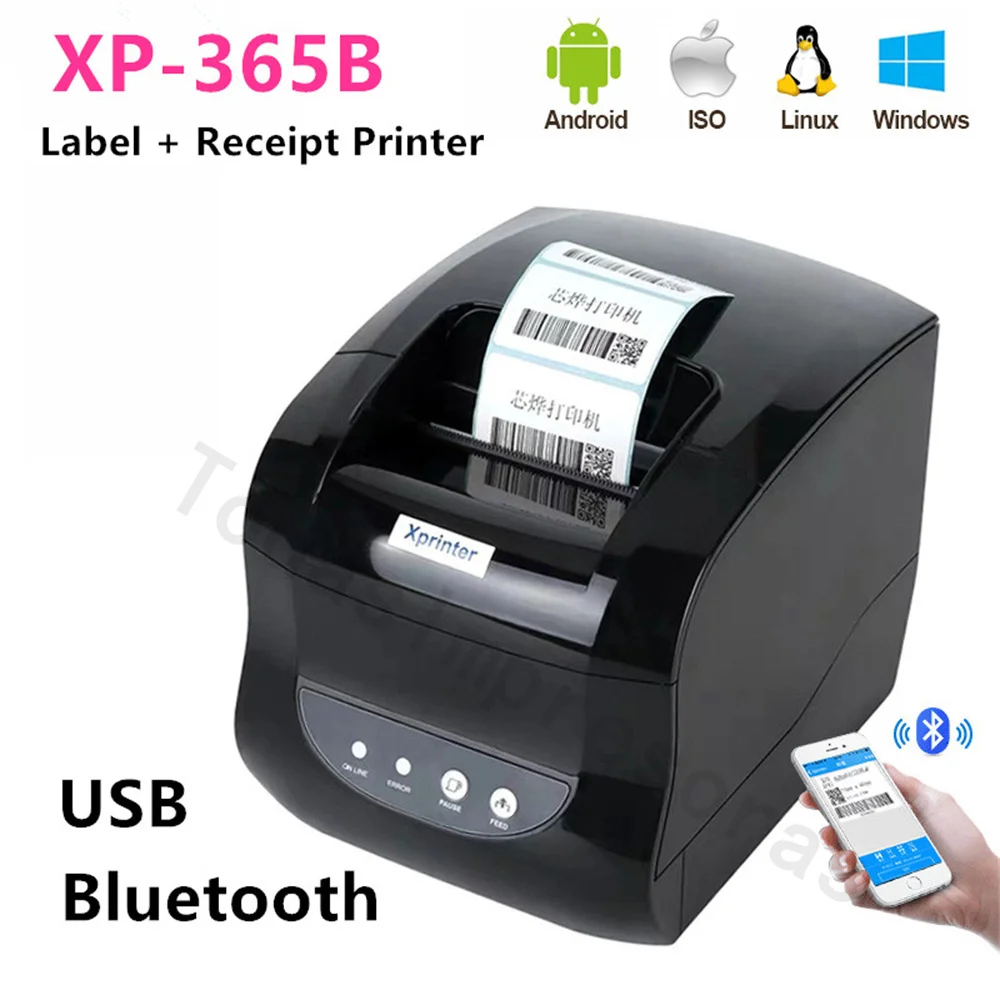

365B Specification

Type:365B

Printing method:Direct Thermal

Resolution:203 DPI

Printing width:76 mm

Printing speed:127mm/s

Print head position sensor:Micro switch

Media type:Thermal Paper / Thermal

Bar code:CODE128/128M/EAN128/CODE39/39C/39S/CODE93/EAN13/EAN13+2/EAN13+5/ EAN8/EAN8+2/EAN8+5/25/25C/CODABAR/POSTNET/UPC-A/ UPCA+2/UPCA+5/ UPC-E/UPCE+2/UPC-E+5/CPOST/MSI/MSIC/PLESSEY/ ITF14/EAN14QRCODE PDF417 / QRCODE / Data

Matrix Paper diameter:82mm(Max)

Paper off type:Tear off

Internal font:Commonly used in single-byte fonts; FONT 0 to FONT 8, K, TST24.BF2,TSS24.BF2

Enlargement & rotation:1 to10 times enlargement in both directions; 0°, 90°, 180°, 270° rotation

Gross weight:0.94 kg

Dimension:212 x 140 x 144mm (D*W*H)

Work:5～45℃, 20－80%RH

Storage:-40~55℃, ≤93%RH(40℃)

Drivers:Win XP/Win Vista/Win 7/Win 8/Win 8.1/ Win10

Input:DC 24V/2.5A

Paper exists detection: Photoeletric sensorInterface USB/USB+Bluetooth

Memory:RAM: 4M; FLASH: 4M

Image:Monochromatic PCX, BMP image files can be load to FLASH

Emulation:ESC/POS/TSC

Specification

Printing XP-370B

Printing method: Direct thermal

Resolution: 8 dots/mm(203DPI)

Print width: 76mm

Printing speed: Max:152mm/s Min:50.8mm/s

Memory: DRAM: 4M　 FLASH: 4M

Print head temperature sensor: Thermal sensitive resistance

Paper exists detection: Photosensor

Interface: USB

Linear Bar Codes: CODE128、EAN128、ITF、CODE39、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPC-E、UPCE+2、UPC-E+5、CPOST、MSI、MSIC、PLESSEY、ITF14、EAN142-Dimensional：PDF417 / QR CODE / DATA MATRIX

Internal font: FONT 0 to FONT 8

Enlargement & rotation:: (0deg,90deg, 270deg, 360deg) 1 to 10 times enlargement in both direction; 0deg、90deg、270deg、 360deg rotation

Image: Monochromatic PCX, BMP image files can be load to FLASH, DRAM

Paper type: Paper roll, sticker, adhesive sticker, etc

Paper width: 16mm～82mmRoll external diameter: Max 100mmRoll inner diameter: Min 25mm

Paper off type: Tear off or Peel off

Power supply input: 24VDC, 2.5A

320B/320Bluetooth Specification

Type:320 b

printing method：Direct line thermal

Resolution：203 DPI

Print width： 76mm

printing speed ：127mm/s

Communication Interface ：Bluetooth/USB

Print head position detection： Micro SwitchPaper presence detection： Photoelectric Sensors

Bar code：CODE128、128M、EAN128、CODE39、39C、39S、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、25、25C、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPC-E、UPCE+2、UPC-E+5、CPOST、MSI、MSIC、PLESSEY、ITF14、EAN14 character set：Common single-byte fonts: FONT 0 to FONT 8Character enlargement/rotation Horizontal and vertical can be magnified 1-10 times, rotating printing (0 degrees, 90 degrees, 180 degrees, 270 degrees)

Graphics ：Monochrome PCX, BMP and other image files can be downloaded to FLASH, DRAM

Paper type； Thermal roll paper, self-adhesive paper, etc.

Media width 20mm～80mmOuter diameter of paper roll ：Up to 90mmInner diameter of paper roll： 25mm～38mm

Paper out method ：Tear off

Power Adapter： Input: AC 100-240V, 50～60Hz

power supply ：Output: DC 24V/2.5A

weight 0.94kg

physical dimension： 212(D) x 140(W) x 144(H)mm
