Qr /1D/2D/Code Scanner V3.0 Barcode Scan Recognition Module With 0.96 Inch IIC I2C Serial GND LCD LED Display Promotion | Инструменты

Qr /1D/2D/Code Scanner V3.0 Barcode Scan Recognition Module With 0.96 Inch IIC I2C Serial GND LCD LED Display Promotion | Инструменты

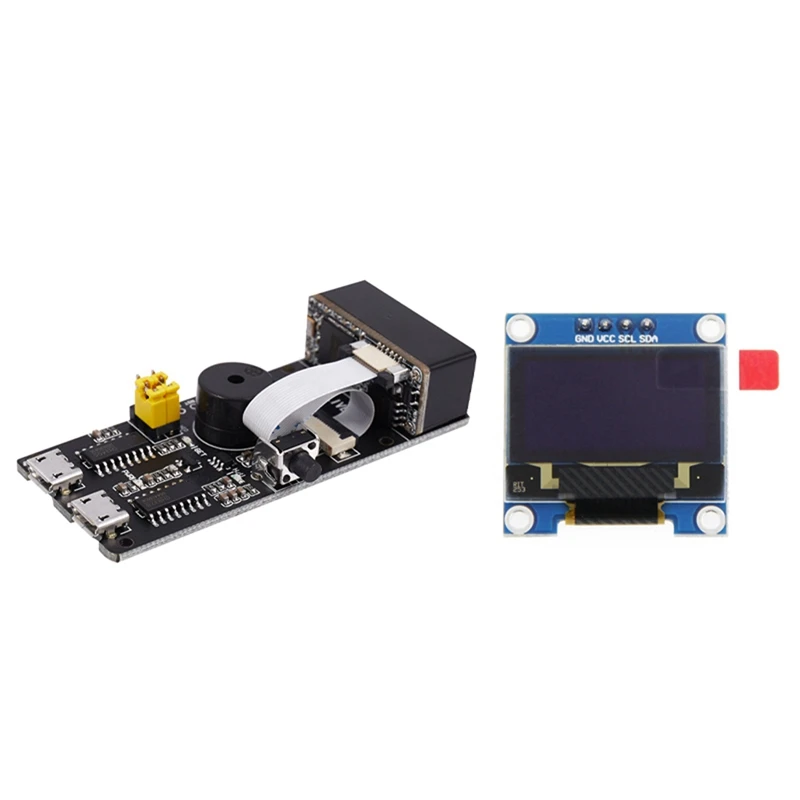

2 Pcs Electronic Accessories: 1 x 0.96 inch OLED LCD LED Display Module & 1 x modules

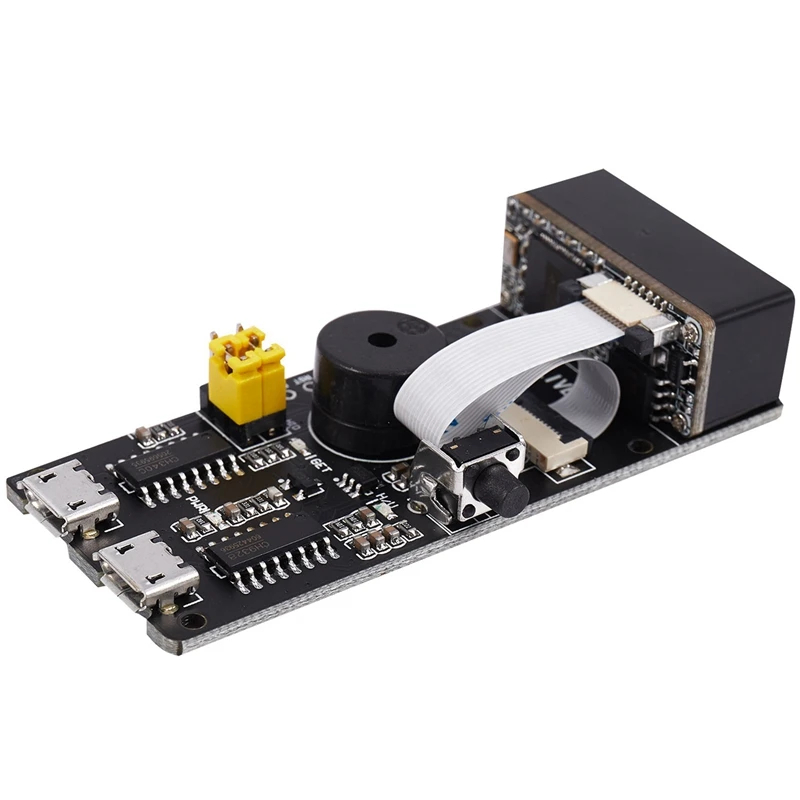

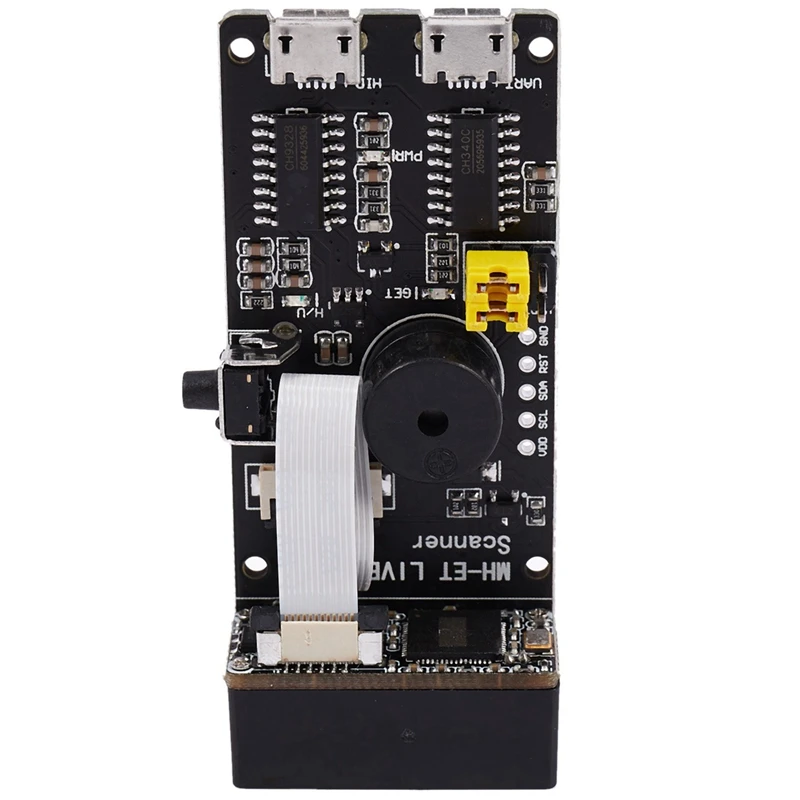

Easy to operate, no need to understand complex image recognition algorithms.Support for reading of common one-dimensional codes and two-dimensional codes such as Barcode and QR.Onboard Micro- USB and UART serial port for access to a computer or embedded device
Onboard auxiliary light source for reading in a completely dark environment.Support for Setting module parameters by scanning the Setup code (see the specification for details).High resolution: 128x64 (have the same resolution as 12864, high PPI)
Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor).Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)
Wide voltage supply (3V-5V), 3.3V and 5V level logic compatible, no level shifter IC.IIC interface and only requires 2 IOs to light up easily

Compatibility: All Compatible
Camera Equipped: Yes
modules Size:65 x 28 x 13.5mm
The range of working temperature is industrial (-20°C-70°C)
Military-grade process standards, long-term work steadily
Provide rich multi-platform routines and the technology support of underlying driver

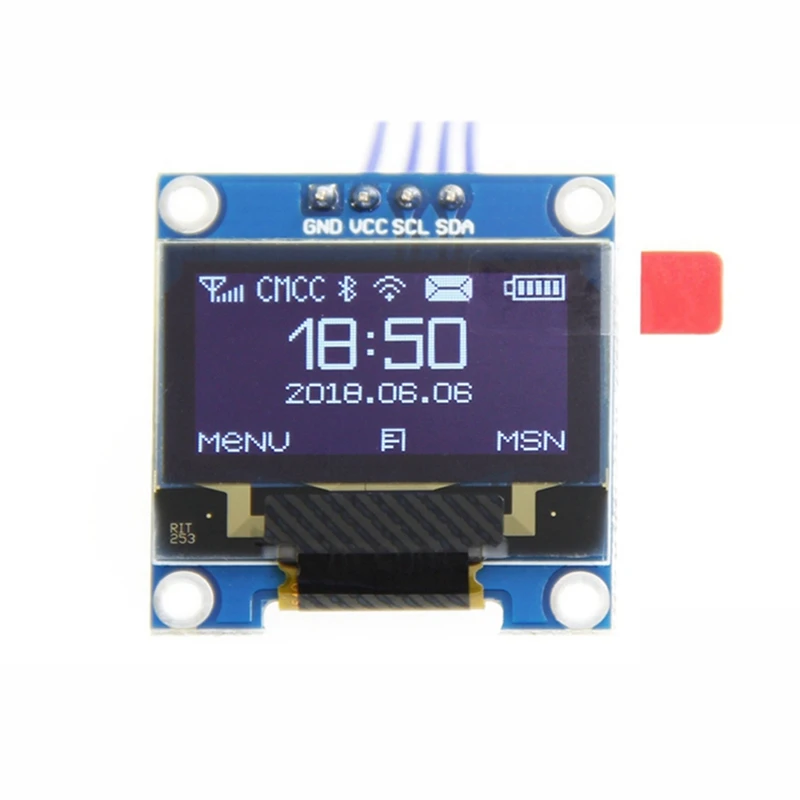

name: color ,category
size: 0.96(inch)
type: OLED
OLED driver chip: SSD1306
Module interface: IIC,①-GND,②-VCC,③-SCL,④-SDA

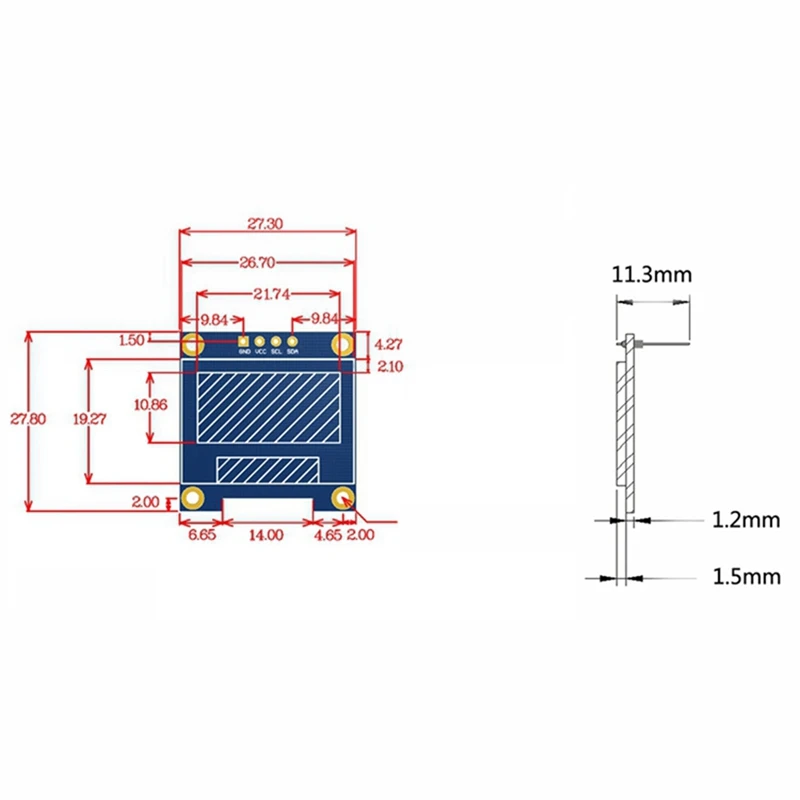

Effective display area: 21.744x10.864(mm)
Module size 27.3x27.8(mm)
storage temperature: -30℃-80℃
Working voltage: 3.3V / 5V
power dissipation : Max:25mA,Min: 1.5mA
product weight : 15(g)
Interface definition
PIN : label : Pin description
1 : GND:OLED GND
2 : VCC :OLED VCC input(3.3V-5V)
3 : SCL :OLED clock signal of IIC bus
4 : SDA :OLED data signal of IIC bus
display color : white
colour:as shown
Material:Metal +pc + plastic

Package Contents:
1 x 0.96 inch OLED LCD LED Display Module
1 x modules

Only the above package content, other products are not included.
