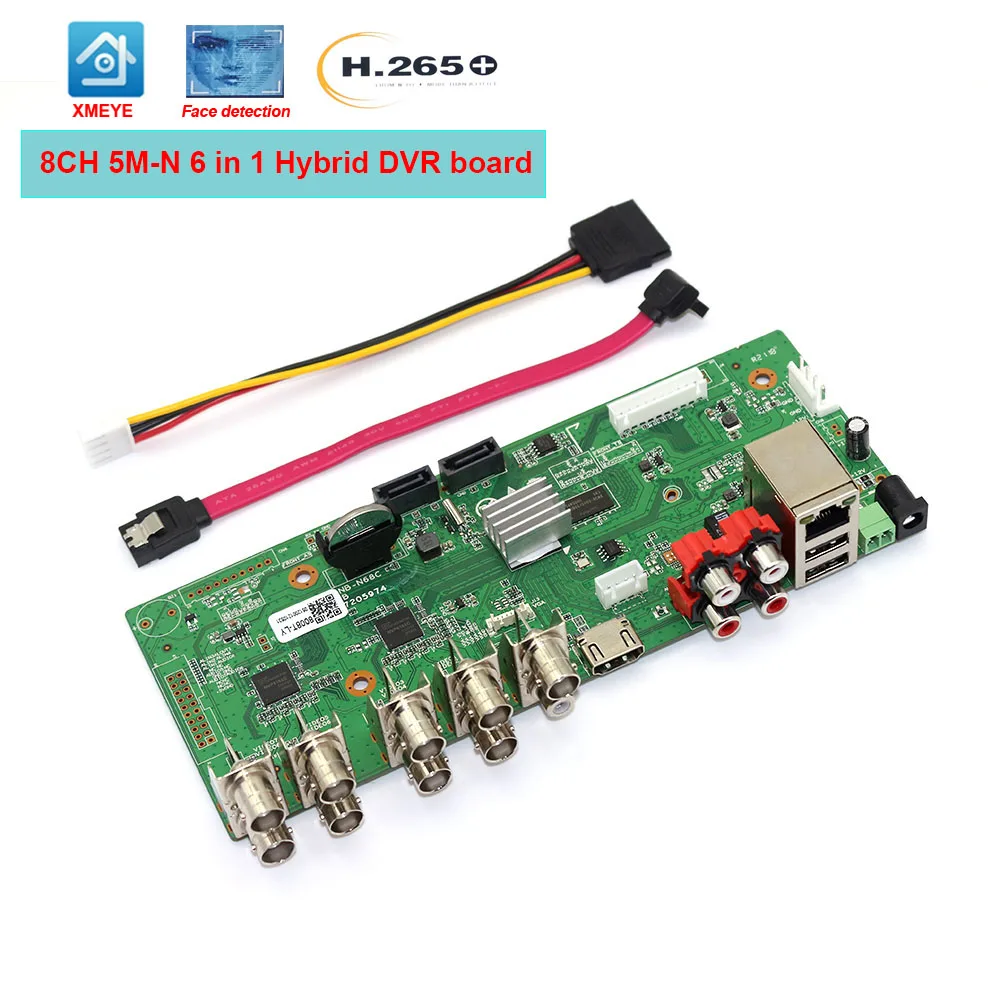

H.265 8CH Face Detect AHD DVR NVR Board 8 CHannel 5M-N Surveillance 6 IN 1 TVI CVI Hybrid Security CCTV HDMI Video P2P Onvif |

Please note:

1.please use at least 12V2A power adapter connect this board,power adapter is very important,make sure your power adapter is in good quality.

if you connect with 3T or 4T HDD,please better connect with DC12V3A or 12V5A power adapter.

2.the board display resolution is default 1920*1080P.If you use a monitor to connect this device, please make sure it can withstand 1920*1080P resolution input.

or the monitor will show black screen after it display first time the Boot logo(will show "out of range" or "input not supported")

3.You need to ensure that your monitor resolution can support my device resolution output or support adaptive mode, or you can try to not adapt to the monitor,

directly connect to the network, and then use CMS or APP: xmeye to search for the device and use it. You can also tell us the resolution of your monitor,

and we will adjust the resolution output for you.

4.The device built-in battery, which is used to save and update the time. When there is no power, the time can be saved, but even without this battery,

as long as the network is connected, the time will still be updated.for some country,built in battery maybe can not send,So if it returned back due to battery,

I hope you can agree send without battery,thank you.

5.This is a motherboard accessory. Please be careful during operation and take anti-static measures to avoid damage to the circuit. For each product,

we will test and shoot a video before shipping, confirm that there is no problem before shipping. We are not liable for damages deemed to be caused by improper operation.

Channel type

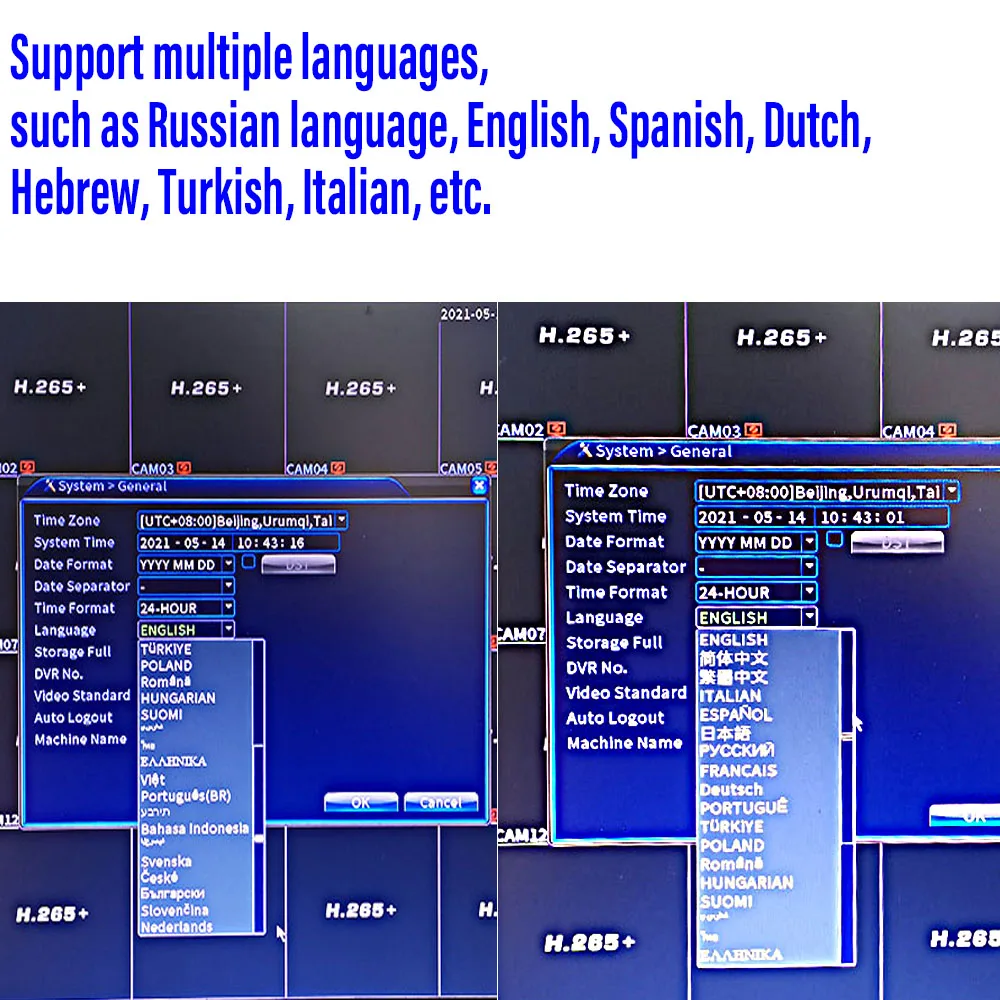

Language

Main display

8CH




H.265+

Display resolution

Features:

• Support H.265+ coding technology, ultra-low bit rate, fully compatible with H.264 matching;
• Support HDMI high-definition output display;
• Support ONVIF protocol to connect to third-party equipment (network mode);
• Support multiple cloud technologies, realize network penetration, front-end and back-end docking, push alarm information to mobile phones and other functions;
• Supporting Web, CMS, central platform management software MYEYE, and providing SDK development;
• Support various types of mobile phone monitoring (Iphone, Android);
• Remote access, with its own domain name service function (ARSP), remote monitoring is enabled with one key;
• Standard coaxial control, easy to realize back-end control and front-end;
• Support XVI/AHD/TVI/CVI/CVBS/IP signal six-in-one access;
• Support intelligent analysis: human figure detection, face detection and other functions

Technical Parameters:

System Main processor: Industrial-grade embedded chip NT98321
Interface Screen display: 1/4/8/9 screen (take the coaxial input mode as an example, others depend on the channel mode)
Image codec: H.265+
Monitoring quality: VGA (up to 1080P); HDMI (up to 2K); CVBS
Preview capability: 8*5M-N@12fps(6 in 1)/ 8*4M-N@15fps(6 in 1)/8*1080P@15fps (XVI front end), default 5M-N
Encoding capability 8*5M-N@12fps(6 in 1)/ 8*4M-N@15fps(6 in 1)/8*1080P@15fps (XVI front end), default 5M-N
Decoding capability 2*5M-N@12fps(6 in 1)/ 2*4M-N@15fps(6 in 1)/2*1080P@15fps (XVI front end), default 5M-N

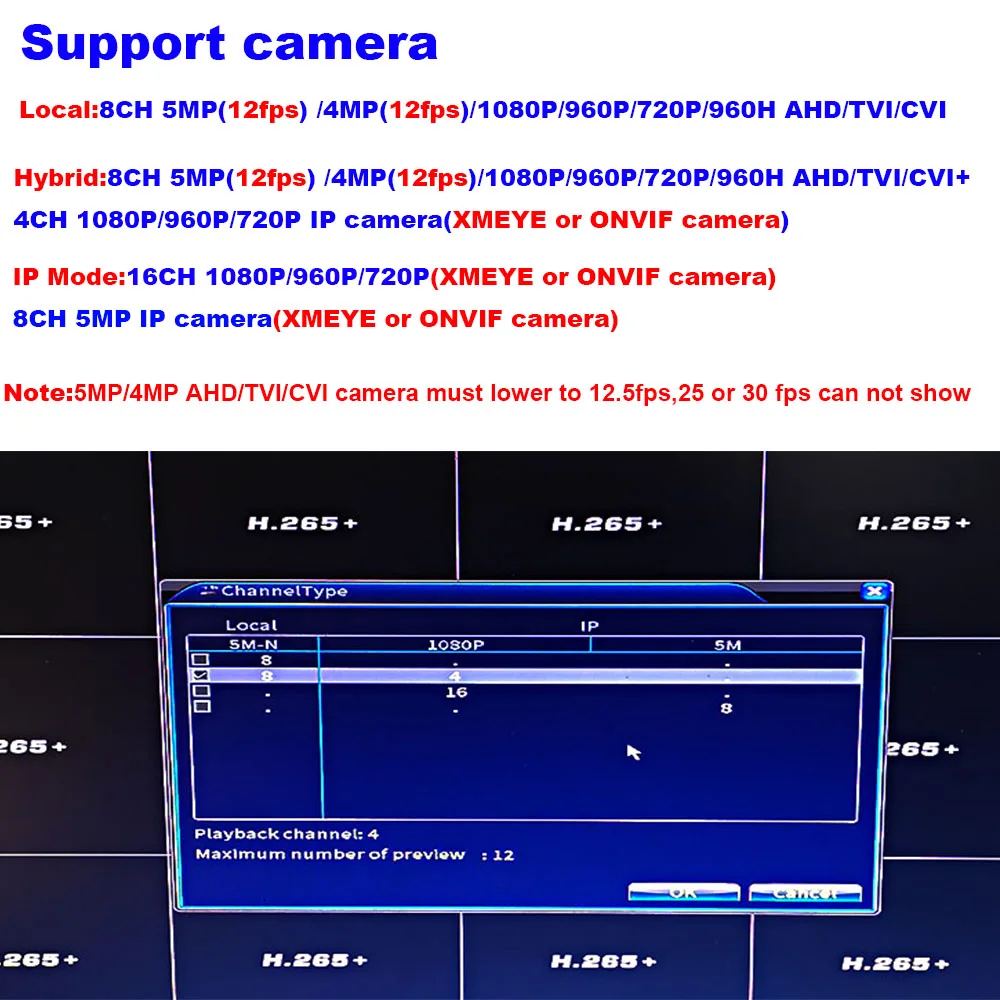

Channel type:
Local: 8*5M-N
Hybrid mode: 8*5M-N (coaxial) + 4*1080P (network)
IP mode : 16*1080P; 8*5M

Motion detection:192 (16*12) detection areas can be set per screen; multi-level sensitivity can be set (limited to local channels)
Audio compression: G.711A
Recording mode: manual>alarm>motion detection>timing
Local playback: 4 channels (under coaxial input mode)
Video query: Time point search, calendar search, event search, channel search
Video preservation: Local hard disk, network
Backup method: network backup, USB mobile hard disk, USB burning, SATA burning
Video input: 8 BNC
Video output: 1 HDMI, CVBS
Network interface: RJ45 10M/100M adaptive Ethernet port
USB interface: 2 USB interfaces
Hard disk interface: 1 SATA interfaces (each supports up to 14T)
Wireless interface 3G, WIFI (expanded via USB)
Power 12V/2A

How to see it by smartphone and by CMS

please use computer and enterwww.xmeye.netand then use serial number to enter(serial can find in this DVR and remember do not tell your serial number to anybody)

How to see it by smartphone and by smartphone

• Download Xmeye APP--open it--choose log on locally--add device--input seriac number to login

• If you have any questions on how to use it,please contact us.
