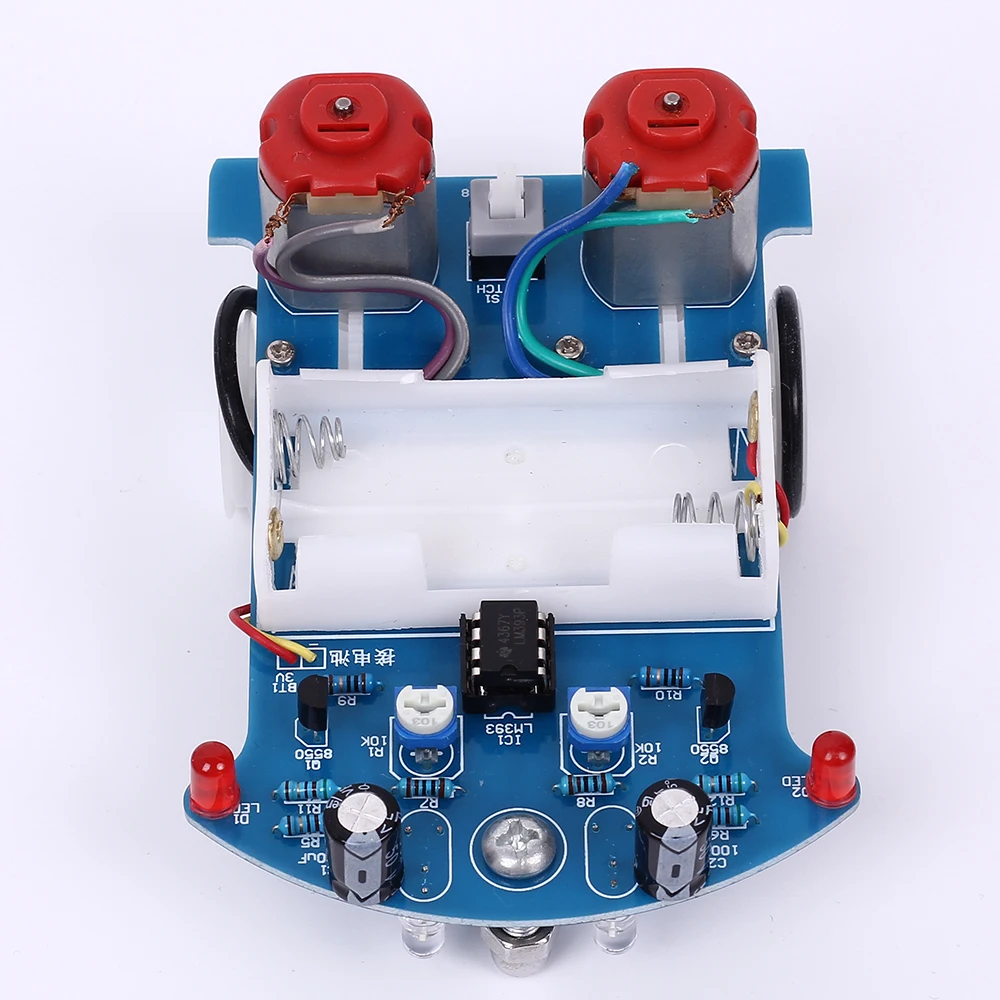

Smart Robot Car Kits Intelligent Tracking Line Car Photosensitive Robot DIY Kit Patrol Automobile Parts DIY Electronic Toy


Description:

- There is a 16 mm wide black runway in the white field.

- Our tracking car can drive along the black line runway automatically.

- No matter how the runway is bent, the car can be driven automatically.

- We all know that the reflectivity is different when the light source to the white objects and black objects.

- Here we use red light source.

- The light is reflected through the ground to the photoresistor.

- By detecting the resistance of the photosensitive resistor can determine whether the car is driving in the white area.

- If the detection is black runway, then the car to change the direction of driving and motor will slow down or even stop and Red LED OFF on PCB front side.

- Drive the car in the opposite direction so that the car is always running along the runway.



Features:

1>. Model: D2-5

2>. Name: D2-5 Intelligent Tracking Car DIY Kit

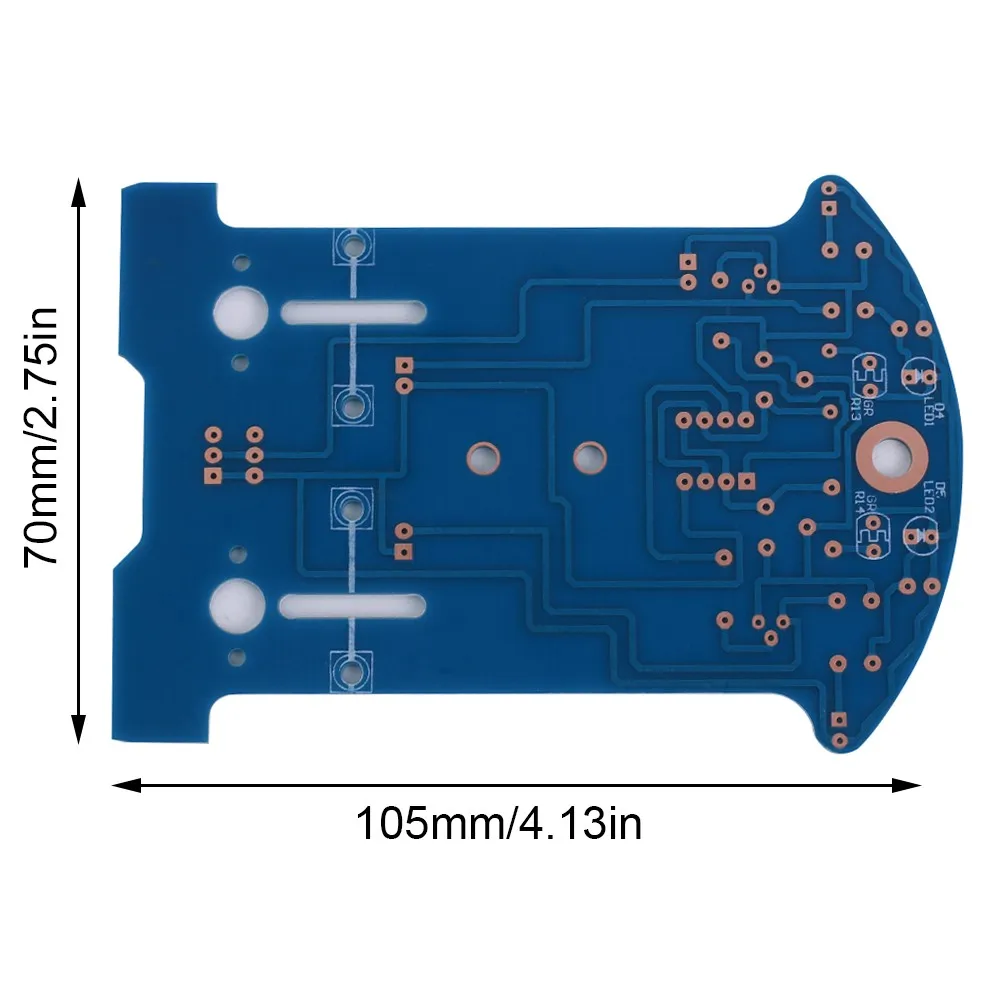

3>. PCB Size:104*72*1.6mm

4>.Installation dimension:104*72*55mm

5>. Work Voltage:3V



Schematic:

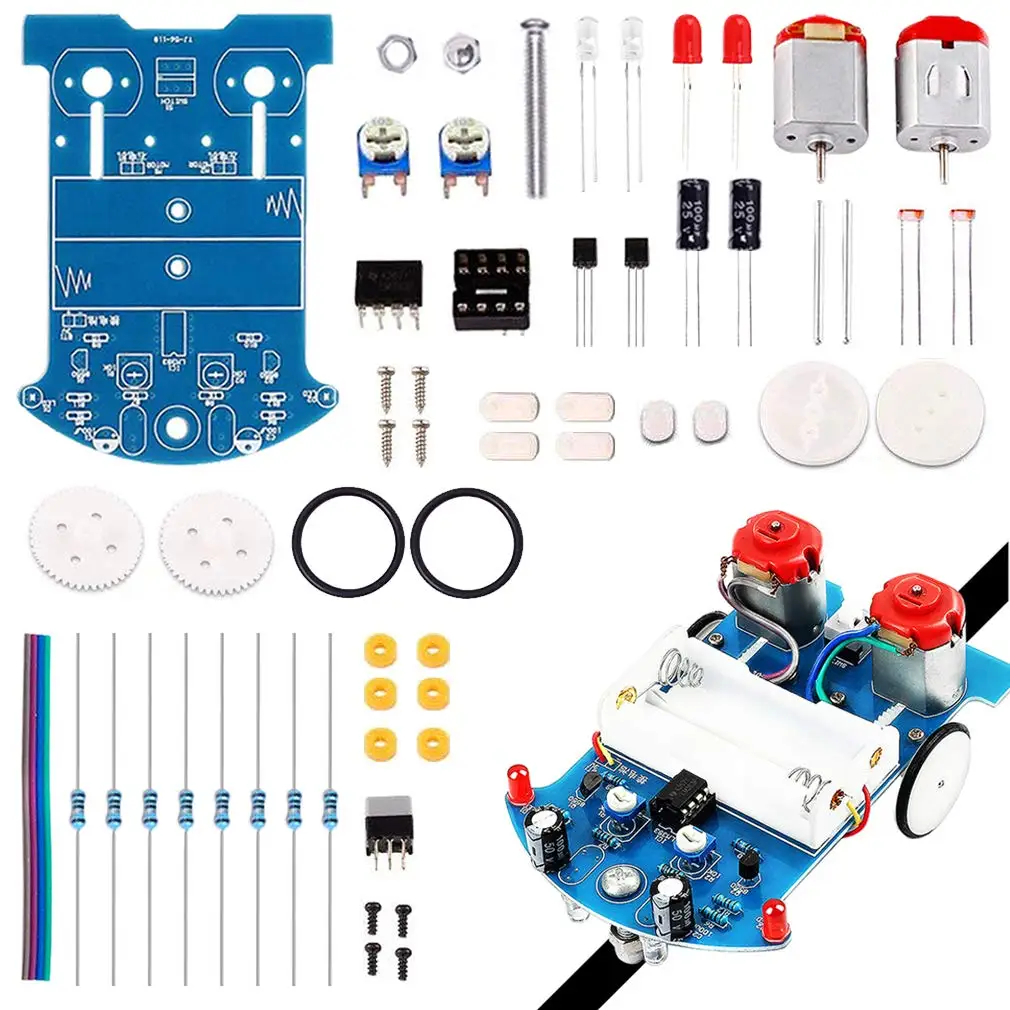

Components List:

1. LM393 IC1 DIP-8 1

2. IC Socket IC1 DIP-8 1

3. Electrolytic Capacitor C1,C2 100uF 2

4. Potentiometer R1,R2 103 10K 2

5. Metal Film Resistance R5,R6,R11,R12 51ohm 4

6. Metal Film Resistance R7,R8 1K 2

7. Metal Film Resistance R9,R10 10ohm 2

8. Photoresistor R13,R14 CDS5 2

9. Red LED D1,D2 5mm 2 Red Shell,Red Light

10. White LED D4,D5 5mm 2 White Shell,Red Light

11. S8550 Q1,Q1 TO-92 2

12. Self-Locking switch S1 6*6mm 1

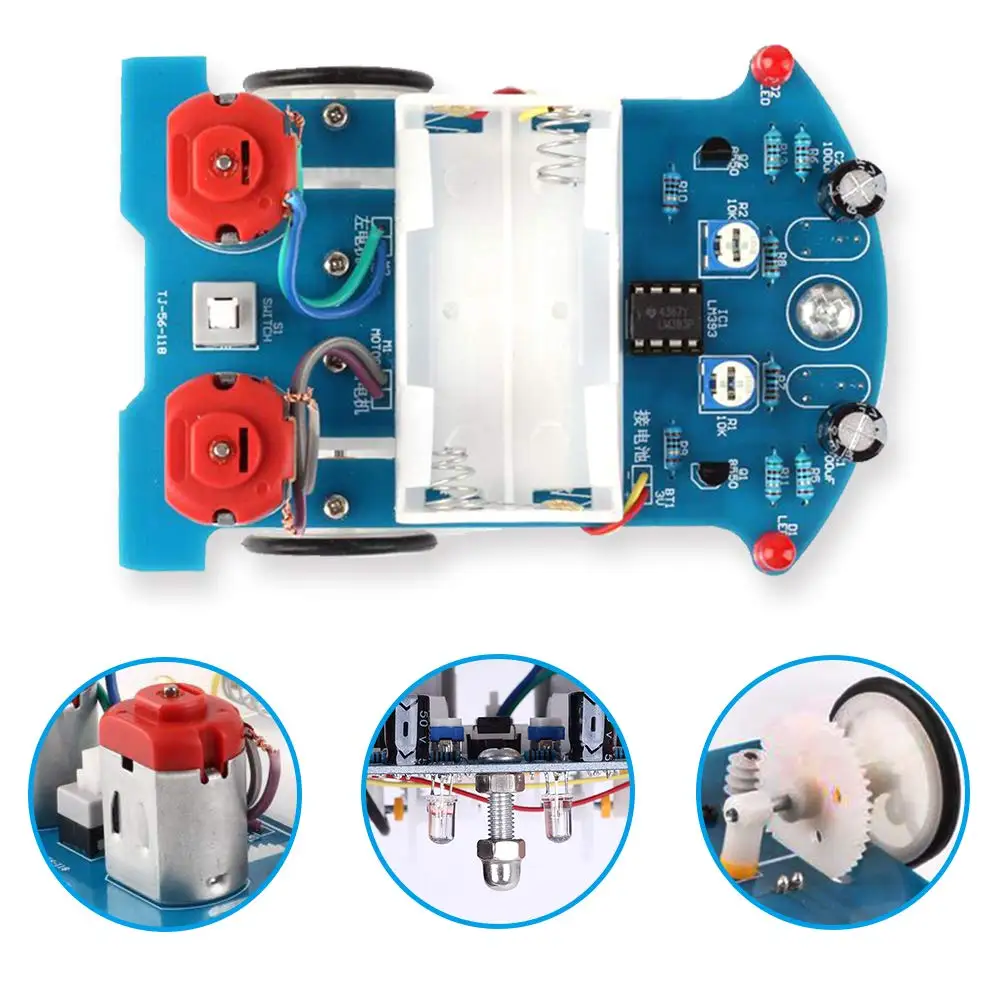

Mechanical Part

13. DC Motor M1,M2 JD3-100 2

14. Wheel 24mm 2

15. Tires 24mm 2

16. Axle D2*30mm 2

17. Gasket D2.0mm 6 Non-essential

18. Three-way sleeve D2.5mm 4

19. Gear D22mm 2

20. Worm D5mm 2

21. Screw D2.2*8mm 4

22. Motor Screw(Black) D1.7*4mm 4

23. Gaster Screw M5*20mm 1

24. Gaster Nut M5 1

25. Gaster Screw Cap M5 1

Other Component

26. Cable 6mm 4

27. Battery Case AA*2 1 With adhesive

28. PCB D2-5 1 104*72*1.6mm
