DSO212 DS212 Mini LCD Digital Portable Storage Oscilloscope Handheld Bandwidth 1MHz Sampling Rate MCX Combined Probe | Инструменты
8 250,09 - 8 937,52 руб.
Новое поступление
DS0120M Oscilloscope 320x240 High Definition 2.4" TFT Color Screen Digital 120MHz Bandwidth 500MSa/s Sampling Rate | Инструменты
5 609,33 - 6 435,70 руб.
KKmoon DS0120M Digital Oscilloscope 320x240 High Definition 2.4 Inch TFT Color Screen 120MHz Bandwidth 500MSa/s | Инструменты
5 992,55 - 6 355,79 руб.
kkm828 High Definition Digital Oscilloscope Multimeter 2 in 1 and 2.4in Color Screen 1MHz Bandwidth 2.5Msps Sampling Rate | Инструменты
7 452,78 руб.
KKmoon kkm828 High Definition Intelligent Graphical Digital Oscilloscope Multimeter 2 in 1 with 2.4 Inches Color Screen 1MHz | Инструменты
5 084,45 - 5 629,31 руб.
Осциллограф высокой четкости ЖК-дисплей двухканальный генератор входных
15 671,99 руб.
kkm828 Digital Oscilloscope Multimeter 2 in 1 Intelligent High Definition Graphical with 2.4 Inches Color Screen | Инструменты
5 385,94 - 6 686,34 руб.
Цифровой осциллограф kkm828 2 в 1 цветной экран 5 дюйма полоса пропускания МГц |
5 566,65 - 5 929,89 руб.
Характеристики

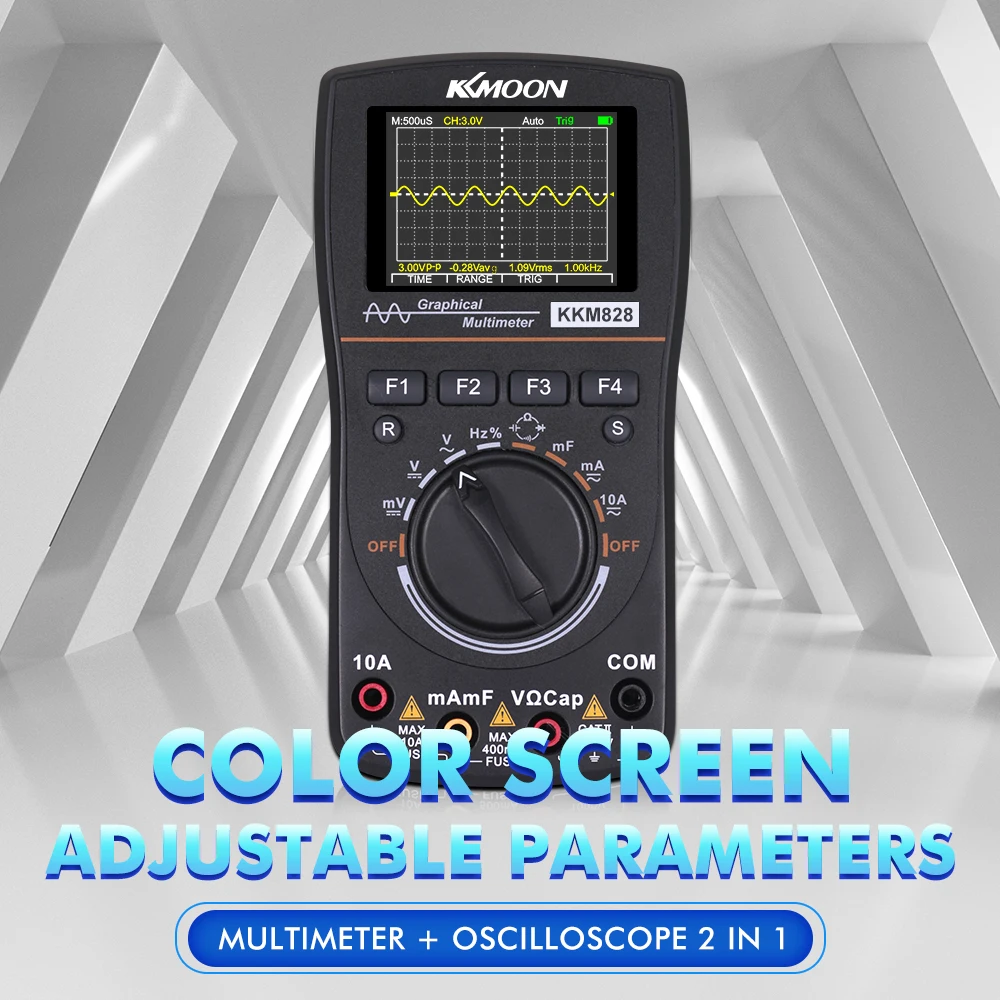

kkm828 High Definition Digital Oscilloscope Multimeter 2 in 1 and 2.4in Color Screen 1MHz Bandwidth 2.5Msps Sampling Rate | Инструменты
История изменения цены
*Текущая стоимость 8 171,99 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Aug-15-2025 | 10377.74 руб. | 10585.87 руб. | 10481 руб. |
| Jul-15-2025 | 8416.81 руб. | 8584.30 руб. | 8500 руб. |
| Jun-15-2025 | 10214.91 руб. | 10418.99 руб. | 10316 руб. |
| May-15-2025 | 10132.35 руб. | 10335.97 руб. | 10233.5 руб. |
| Apr-15-2025 | 8089.31 руб. | 8251.87 руб. | 8170 руб. |
| Mar-15-2025 | 9969.54 руб. | 10168.9 руб. | 10068.5 руб. |
| Feb-15-2025 | 9887.72 руб. | 10085.81 руб. | 9986 руб. |
| Jan-15-2025 | 9805.66 руб. | 10001.43 руб. | 9903 руб. |
Описание товара
Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.
Features:
Oscilloscope multimeter 2 in 1, improve your work efficiency.
One-button oscilloscope: no need oscilloscope probe, measuring waveform directly. Fast and accurate measurement, clear waveform display.
240*320 high definition color screen: the color display is clearer, and the secondary display at the bottom provides more function menus.
Multimeter measurement functions: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode test, continuity test.
Storage: mass storage, 100 data/10 waveforms.
Triple safety: double insurance tube, 500mA/250V, 10A/250V. Input voltage is greater than 24V, beep warning once. Input over range, beep warning.
Same screen display: historical records and real-time data are displayed on the same screen for easy comparison and analysis of data.
Buttons and dial: silicone button, sensitive pressing function dial, accurate gear.
Back bracket: the back bracket is tilted at 60° for easy viewing.
Specifications:
Material: ABS
Color: black
Display: 320*240 LCM
Display area: about 2.4 inches
Backlit: white
Input resistance: 10MΩ
Battery: 3 * AA battery (not included)
Power consumption: about 80mA
Use time: low light about 5 hours
Storage: 100 data/10 waveforms
Use environment: 0~40℃, <75%RH
Storage environment: -10~60℃, <90%RH
Bandwidth: ACV/1MHz ACA/5KHz
Max. real-time sampling rate: 2.5Msps
Multimeter measurement: automatic range + manual range
Oscilloscope function secondary display: VP-P, average value, effective value, frequency, time base, amplitude
Measurement mode: normal, automatic
Item size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in
Item weight: 195g / 6.9ounce
Package size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in
Package weight: 370g / 13.1ounce
Multimeter specification:
DC voltage:
Range: 400mV/4V/40V/400V/1000V
Uncertainty: 0.75% rdg+10dgt
AC voltage:
Range: 400mV/4V/40V/400V/750V
Uncertainty: 1.0% rdg+10dgt
DC current:
Range: 40mA/400mA/4A/10A
Uncertainty: 1.2% rdg+10dgt
AC current:
Range: 40mA/400mA/4A/10A
Uncertainty: 1.5% rdg+10dgt
Resistance:
Range: 400.0Ω~40.00MΩ
Uncertainty: 1.0% rdg+5dgt
Capacitance:
Range: 0.1nF~100, 10.00mF
Uncertainty: 2.0% rdg+10dgt
Frequency:
Range: 5Hz~10MHz
Uncertainty: 1.0% rdg+5dgt
Duty cycle:
Range: 0.1%~99.9%
Uncertainty: 1.0% rdg+5dgt
Diode test: voltage is about 5V, test current is about 1.5mA
Continuity test: judgment resistance about:<50Ω beep
Fuse specifications: 500mA/250V, 10A/250V
Packing List:
1 * Graphical Multimeter
1 * Pair of Test Pens
1 * Protective Bag
1 * User Manual
