3.2kw water cooled spindle kit 4 pcs ceramic ball bearings & 4.0KW QL inverter 100mm Bracket 75W Water pump | Инструменты

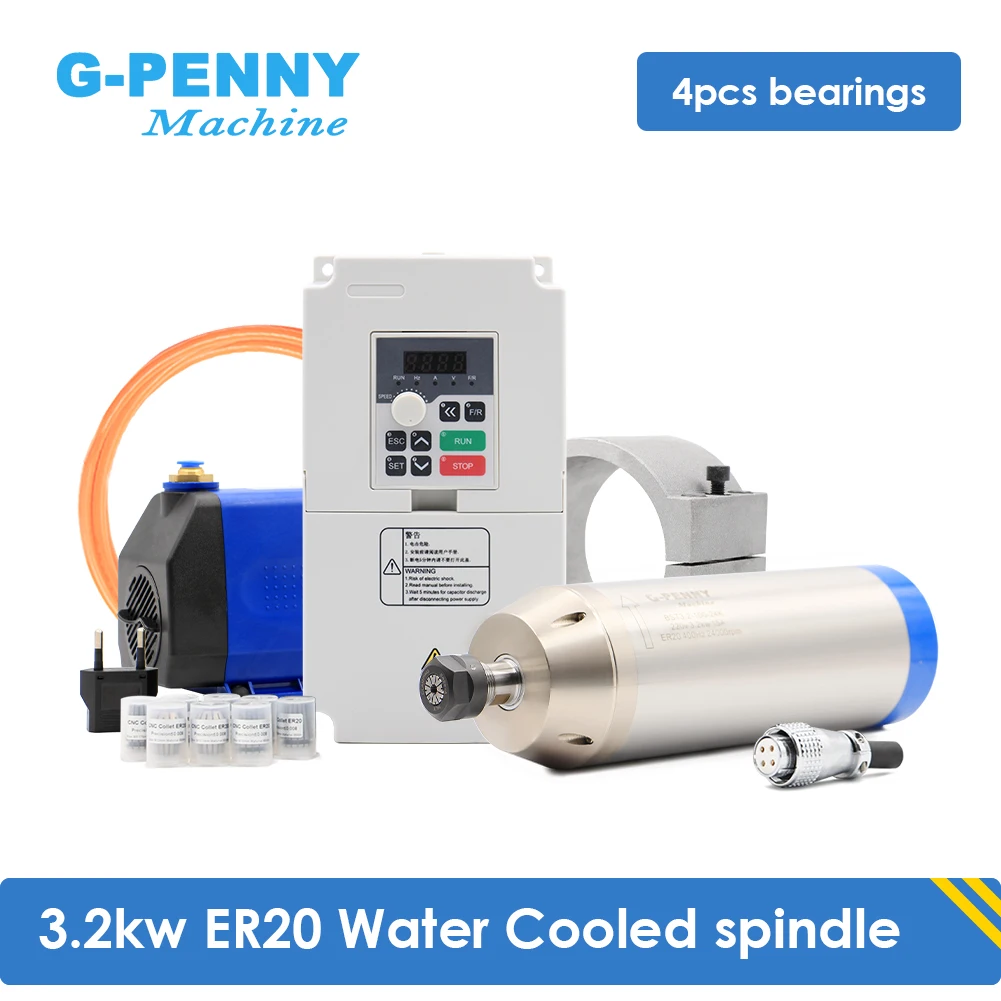

1 &220v 3.2kw ER20 4 bearings water cooled spindle

1 &220v 4.0kw QL inverter/VFD

1 &100mm spindle clamp/bracket

1 &75w water pump & 5m water pipes

1 kit ER20 high accuracy collet (≤0.008mm) --- 4,6,8,10,12,1/2,1/4,1/8 (As gift)

There are 4 labyrinth seal in the front section of the spindle，Prevents lubricant leakage from bearings and intrusion of harmful impurities (dust, moisture, corrosive gases) and bearing seals under high-speed conditions.

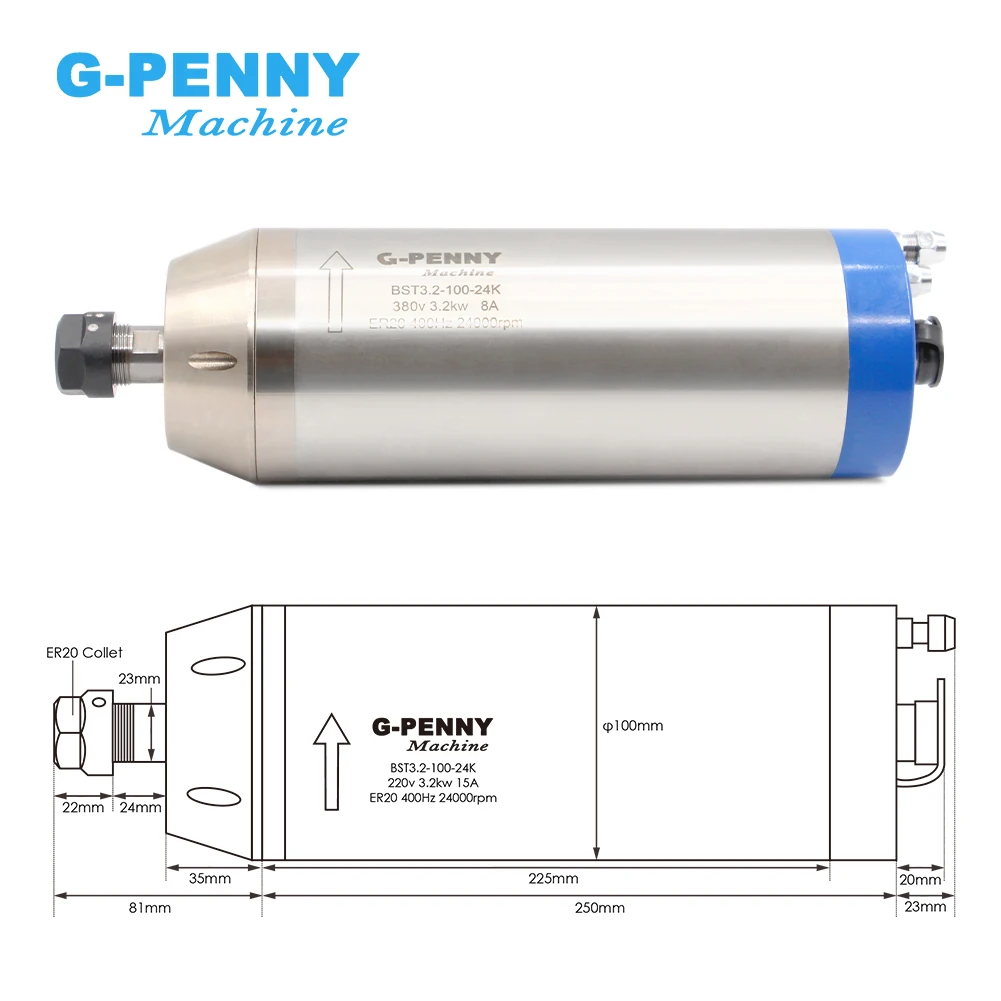

• Size:100x250mm(Middle body diameter:100mm;Length:250mm)

• Speed Ways:Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.

• Cooling:Water cooling

• Power Interface:Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.

• Power:3.0kw

• Voltage:220v

• Current:15A

• Frequency:0-400Hz

• Speed:0-24000rpm

• Runout Off:Less than 0.01mm

• Diameter(mm):100

• Bearing Type:2 x 7005 P4 DT & 2 x 7003 P4 DT

• 4pcs fully sealed angular contact bearings

• Collet:ER20

• Clip Knifediameter:13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm(standard 6mm)

• Water Cooling ER20 collet chunk

• Grease Lubrication

• Main Application:Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.

• 4 P4 angular contact bearings ,2×7005C P4 DT&2×7003C P4 DT,increase spindle life.

• Longer length make the torque bigger,more powerful.

• Carefull assembly make the spindle more precisional.

• Runout off 0.01mm.Coaxial degree less than 0.0025mm

• Shipment within 4 days,promise the delivery time.

• We are thespindle manufacturer,we offer onlybest qualityandbest priceto you.

• There are 4 labyrinth seal in the front section of the spindle，Prevents lubricant leakage from bearings and intrusion of harmful impurities (dust, moisture, corrosive gases) and bearing seals under high-speed conditions.

1. Our Ceramic ball bearings spindle use4 pcs ceramic ball bearings.

2. Ceramic ball bearings areresistant to high temperatures and low heat, usually 3-5 degrees lower than steel ball bearings during using .

3. Ceramic ball bearings havelow friction, low noise and long service life.

4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.

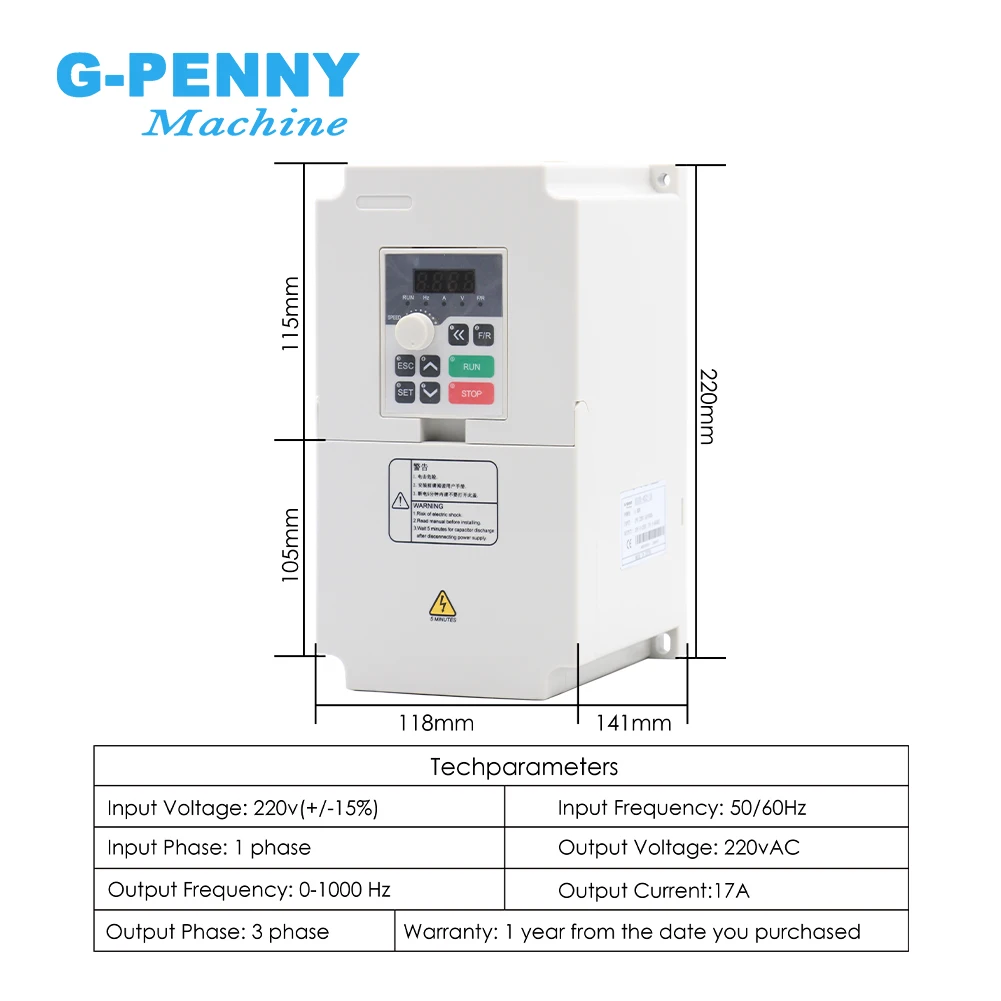

• Inverter Type: QL 220v 4.0kw

  • Input Voltage:220V(+/-15%)

  • Output Voltage:220vAC

  • Input Frequency:50-60 Hz

  • Output Frequency:0-1000 Hz

  • Input Phase:1 phase

  • Output Phase:3 phase

  • Warranty:1 year from the date you purchased

◆Two speed control modes: no PG vector control (SVC), V/F control

◆ No PG vector control (SVC): starting torque 0.5Hz up to 150%

◆ 8-stage simple PLC function, multi-speed control and PID control

◆ Support multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting

◆ I/O terminals can be freely programmed to combine multiple working modes according to user needs.

◆ With jump frequency control function, it can effectively suppress mechanical resonance and make the system more stable and reliable.

◆ With instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure

◆ With over torque and under torque detection

◆ Automatic voltage adjustment function to effectively solve the low frequency oscillation problem of high power motor

◆ Provide a variety of fault protection functions: over-current, over-voltage, under-voltage, over-heat, overload, lack of equal real-time monitoring and protection to ensure safe operation

DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.

Please contact us, we have manuals, videos and pictures to help you.

Diameter:100mm

Material:Cast Aluminium

Features

Compared with thealuminiumprofile fixture,the accuracy is much higher , and it is hard to deform.

Inner wall is very smooth,  outer walls is sandblasted, relatively fine uniform,  but not very smooth.

Cast aluminiumfixtureis much heavier thanaluminiumprofile fixture

Product Description

Cast aluminium fixture is high quality aluminium which is casting with a special manufacturing process ,compared with ordinary aluminium ,This product has toughness, strong shock resistance, high hardness and strong antioxidant activity.

Usage

Cast aluminium fixture is mainly used for fixation of ancillary products, thereby ensuring the verticality of balancing and ancillary products, ancillary products to improve running accuracy, reduce noise, reduce the accumulated error.

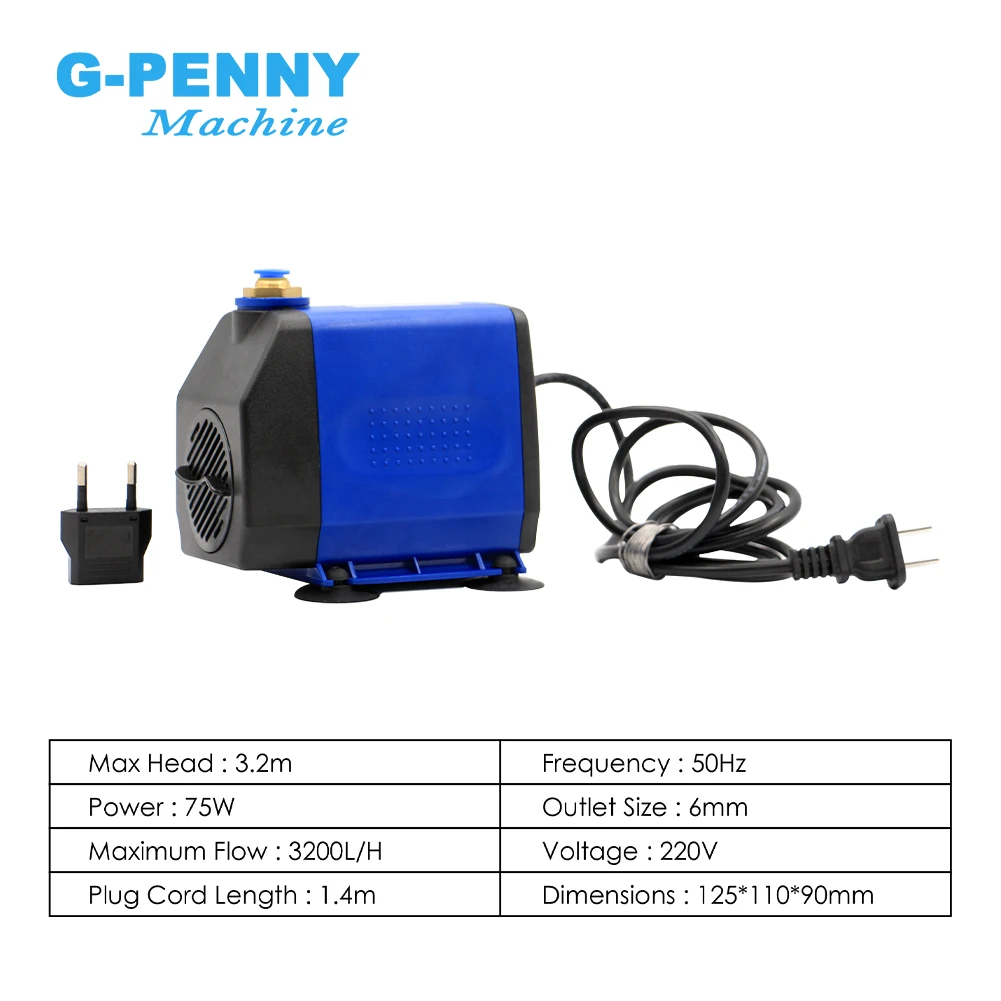

Max Head: 3.2 m;

Power: 75w;

Maximum flow:3200L / H

Plug Cord Length: 1.4m

Voltage: 220V;

Frequency: 50 HZ

Outlet size: 4 and 6 mm;

Dimensions: 125 * 105 * 90 mm

Advantage

High Lift / Large Flow Rate / Highly Durable / Excellent Insulation / Can cool the machine quickly / Good quality and long life / Large inventory / Big strong power

Features

The shell is made of high quality plastic, which is anti corrosive and high durable.
Pumps have excellent insulation thanks to the motor bearing completely sealed.
Pumps combione pumping, filtered,oxygen and fountains in one.

Note

Must be used in the water.
Must cut off the electricity once the product works improperly and must maintain it after lifting it from the water.

Type: ER20 High accuracy collet

Material:65Mn Steel

Quantity: 8 pcs(4mm,6mm,8mm,10mm,12mm,1/4(6.35mm),1/8(3.175mm),1/2(12.7mm))

Precision ≤ 0.008mm

Hardened & Precision ground

Widely used in boring, milling, drilling, CNC milling machine wire tapping,engraving spindle machines,machining centers and other processing.

• Spindle working environment temperature is usually -10 ~ 40 .

• Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.

• Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.

• Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.

• It should ensure that before use of water-cooled spindle, the cooling system is working properly. Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.

• Water cooled spindle MUST be used with water pump. Otherwise the spindle will soon broken.

• AC spindle motor MUST use with inverter. The power of inverter need equal or bigger than the spindle power. Before using,please set up the inverter parameters suitable for spindle. Otherwise the spindle and inverter will broken at once.

• When you use the spindle,the noise is not same as always,please STOP the spindle at once. You may need to replace the spindle bearings.

1. Cooling in different ways: water-cooled spindle motor is the use of the water cycle to cool the heat generated after the high-speed rotating spindle, spindle motor with fan-cooled approach to cooling.

2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.

3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.

4.If you need use for metal ,hard wood,granite,stone,you can choose metal spindle.Metal spindle much better than wood spindle.

• Spindle from the production - assembly - test, and finally the perfect packaging .

• We will 100% guarantee security to the hands of the guests.
