Характеристики
TI AM3352 Industrial Temperature Core module AM3358 BeagleboneBlack SBC embedded linux computer POS cash register IoTgateway | Компьютеры
История изменения цены
*Текущая стоимость 28 912,05 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-15-2025 | 34405.79 руб. | 36125.4 руб. | 35265 руб. |
| Aug-15-2025 | 34116.14 руб. | 35822.91 руб. | 34969 руб. |
| Jul-15-2025 | 28623.81 руб. | 30054.22 руб. | 29338.5 руб. |
| Jun-15-2025 | 33538.95 руб. | 35215.74 руб. | 34376.5 руб. |
| May-15-2025 | 29201.83 руб. | 30661.55 руб. | 29931 руб. |
| Apr-15-2025 | 32960.58 руб. | 34608.79 руб. | 33784 руб. |
| Mar-15-2025 | 32671.5 руб. | 34305.55 руб. | 33488 руб. |
| Feb-15-2025 | 32381.78 руб. | 34000.15 руб. | 33190.5 руб. |
| Jan-15-2025 | 32092.50 руб. | 33697.46 руб. | 32894.5 руб. |
Описание товара
TI’s Sitara AM335x processors offer optimized solutions that go beyond the core, delivering a broad range of ARM Cortex-A8 devices, a perfect solution for upgrading ARM9 or ARM11 devices. Sitara processors help innovators create a variety feature-rich, low-power application.CM335x support all TI’s Sitara AM335x processors: AM3352, AM3354, AM3356, AM3357, AM3358, AM3359. Fully software and pin compatible with different CM335x core modules.

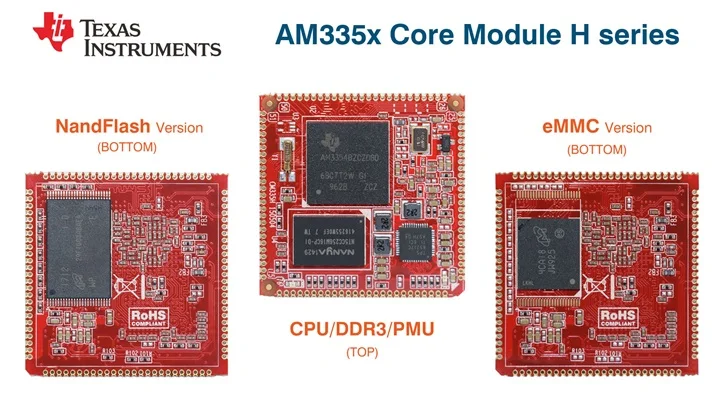

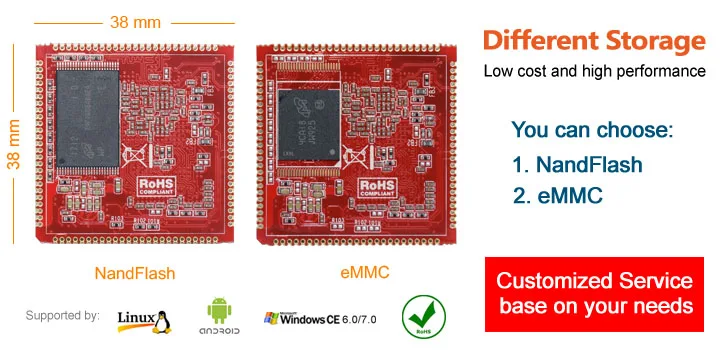

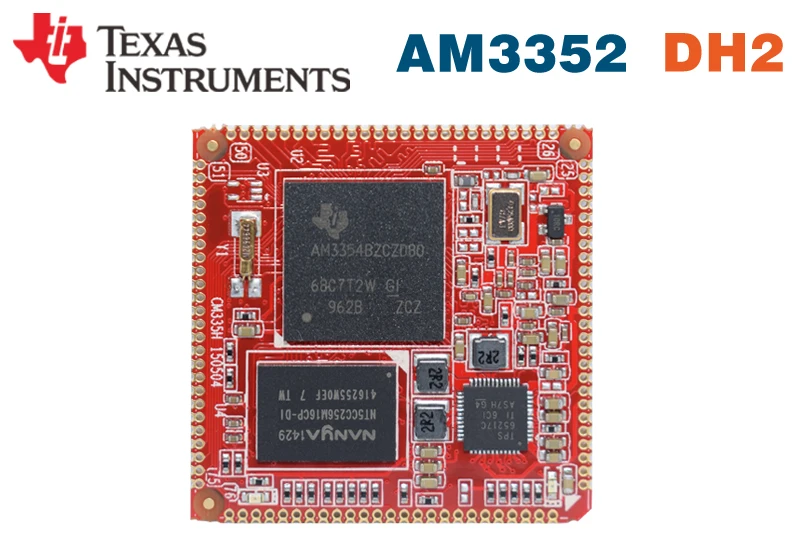

TI AM335x H Series Core Module
Description of part code
H Series | TI AM3352 | TI AM3352 | TI AM3352 | TI AM3352 |
Part number | CM3352 H1 | CM3352 H2 | CM3352 H3 | CM3352 DH2 |
Order Code | - | - | - | - |
CPU Name | TI AM3352 | TI AM3352 | TI AM3352 | TI AM3352 |
CPU Type | ARM Cortex™-A8 | ARM Cortex™-A8 | ARM Cortex™-A8 | ARM Cortex™-A8 |
CPU Cores | 1x | 1x | 1x | 1x |
CPU Clock | 800MHz | 800MHz | 800MHz | 800MHz |
RAM DDR3 | 256MB | 512MB | 256MB | 512MB |
Flash | 128MB Nand | 4GB eMMC | 256M Nand | 4GB eMMC |
PMU | TI TPS65217C | TI TPS65217C | TI TPS65217C | TI TPS65217C |
Connectivity | 6x UART, 2x USB, 2x CAN, 4x ADC, PWM,SPI, IIC, LCD, SD, Ethernet, up to 72x GPIOs | 6x UART, 2x USB, 2x CAN, 4x ADC, PWM,SPI, IIC, LCD, SD, Ethernet, up to 72x GPIOs | 6x UART, 2x USB, 2x CAN, 4x ADC, PWM,SPI, IIC, LCD, SD, Ethernet, up to 72x GPIOs | 6x UART, 2x USB, 2x CAN, 4x ADC, PWM,SPI, IIC, LCD, SD, Ethernet, up to 72x GPIOs |
Size(L*W) | 38 x 38 mm | 38 x 38 mm | 38 x 38 mm | 38 x 38 mm |
Temperature | 0° to 70° C | 0° to 70° C | 0° to 70° C | -40° to 85° C |
Module Interface | 100pins Stamp hole | 100pins Stamp hole | 100pins Stamp hole | 100pins Stamp hole |
Carrier board number | B1 | B1 | B1 | B1 |
MOQ | MOQ = 100 | MOQ=100 | MOQ=100 | MOQ=100 |
Minimum Availability | > 2025 | > 2025 | > 2025 | > 2025 |
Support Carrier Boards: B1
More Carrier Boards, Please contact us.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
ABOUT GOEMBED
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
GOEMBED team with experienced embedded engineers who have been engaged in ARM hardware and software design for years.
Our products include single board computers (SBC335x series) and CPU core modules (CM335x series) based on TI Sitara ARM Cortex-A8 processors. Supported by Linux / Android / Debian / Ubuntu / QT / Angstrom / WinCE 7.0 / 6.0 / uCOS. We can redesign carrier boards and SBC as your idea quickly.
GOEMBED focus on Embedded Board Solutions, providea complete new board for your specified requirement or even a turnkey solution to accelerate your new products to market.
We are your trust worthy partner on ARM embedded design services and solutions.
More Carrier Boards
Customized based on your needs!
ODM / OEM Services
Bring your new products to market quickly
If you need to know more and <CUSTOMIZE DESIGN >, pleasecontact us.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Related end equipment
Learn more applications please clickhttp://www.ti.com/lsds/ti/apps/appshomepage.page
TI Sitara ARM Cortex-A8 AM335xprocessors information:(Content from TI)
