Контроллер K-1000s (обновленный T-1000S) для программирования светодиодов WS2812B, WS2811, APA102, T1000S, WS2813, до 2048 пикселей, DC5-24V.

Контроллер K-1000s (обновленный T-1000S) для программирования светодиодов WS2812B WS2811 APA102 T1000S WS2813 до 2048 пикселей DC5-24V.

Description

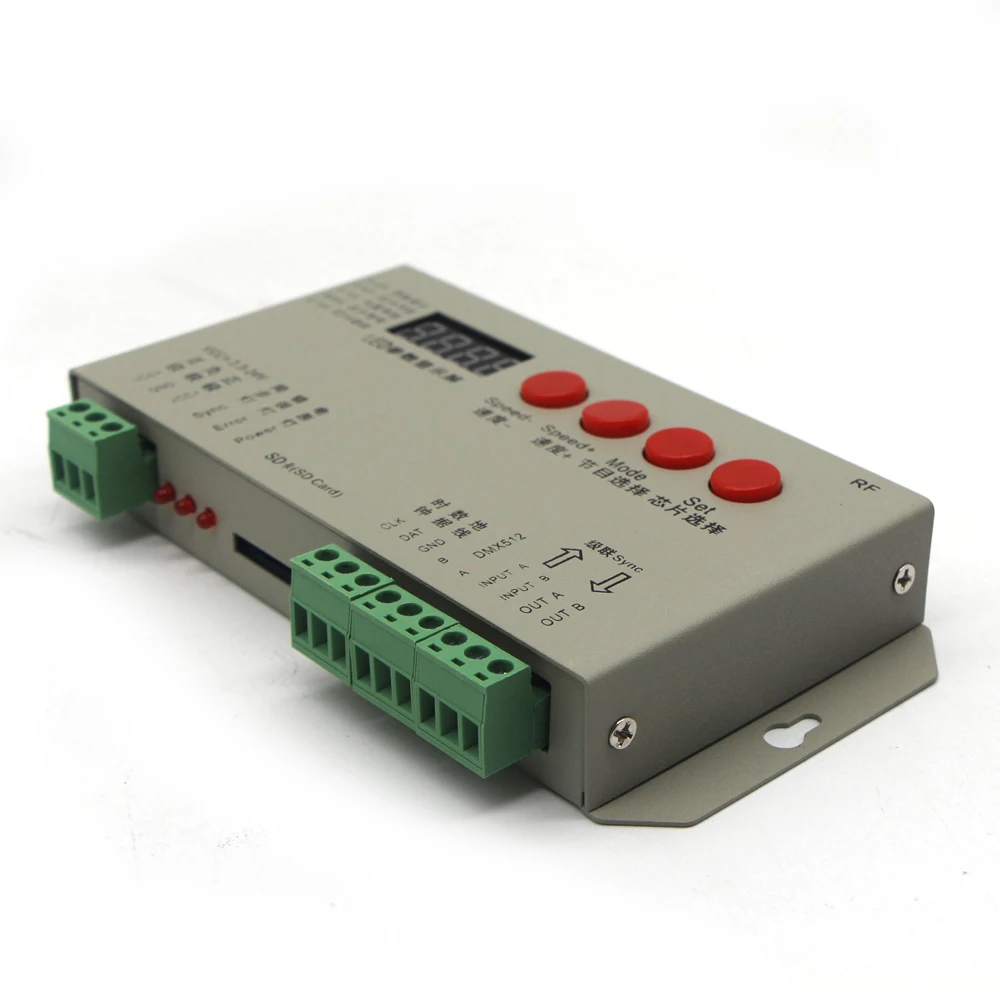

K-1000S

Parameter and feature

1.Product name: addressable led controller

2.Addressable program: Yes

3.Working Voltage: DC5V-24V

4.Power: 2W

5.Ports Number: 1PCS

6.Max Controller Pixels: 2048Pixels, 2048pixels/port

7.Working Temperature: -30℃~85℃

8.Product Size:158*79*25MM

9.SD Card Support: Yes

10.Net Weight: 0.24KG

11.LED display fcuntion

12.Support Multiple synchronization: Yes

13.Application: Most of led lights with IC Chips

14.Can control 32-65536 grayscale, Gamma software correcting processing

15.Support all kinds of light source of point, line and surface. Fits for regular and irregular shape of lights project.

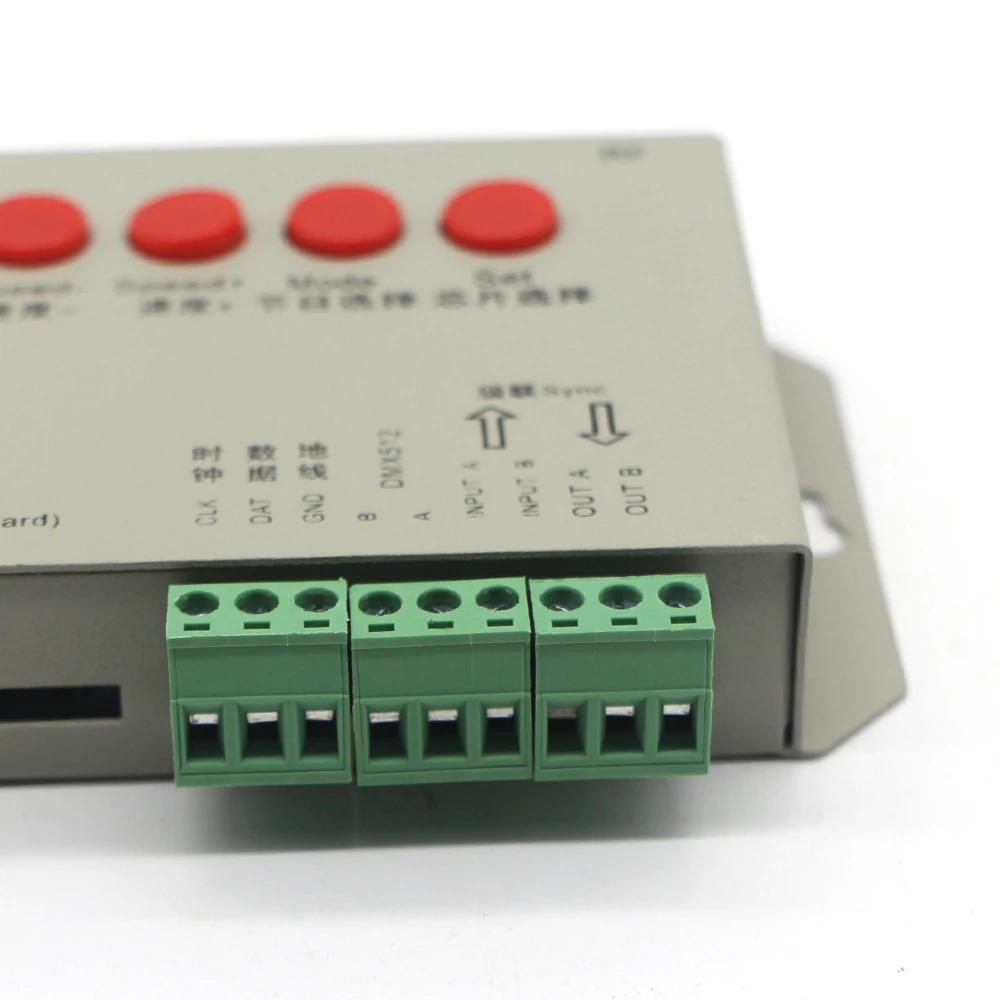

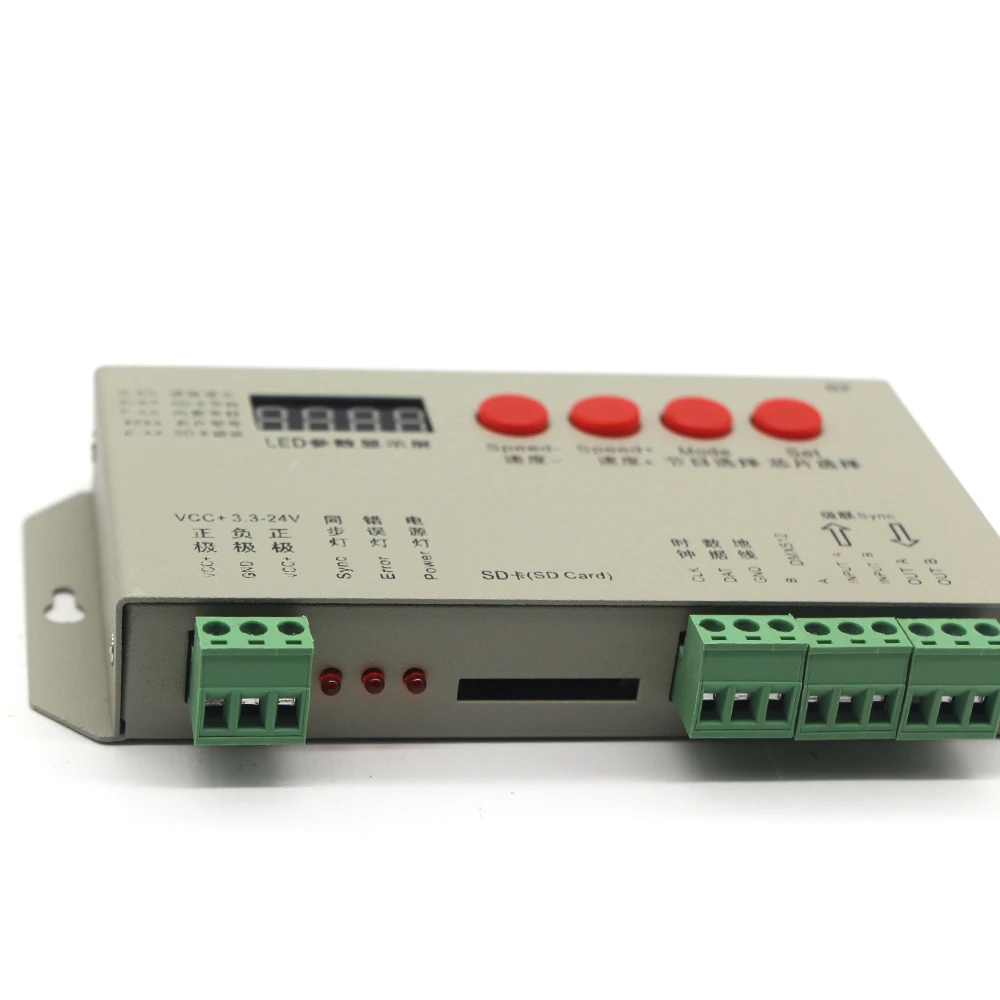

16.Light's
signal will be connected to DAT, clock wire will be connected to CLK,
negative wire will b single wire and double wire IC type lights, when
used for single wire IC types, there is no needing to connect to CLK
wire. 17.Support IC Types:

A.Single wire IC: UCS1912, TM1803, TM1804, TM1809, TM1812, UCS2903, UCS2909, UCS2912, 8205,8206,16703, WS2811 etc.

B.Double wire IC: MX5109, LPD6803, D705,P9803, MX8109, SM16726, P9813, LPD8806, WS2801

C.New IC: TM1914, 9883

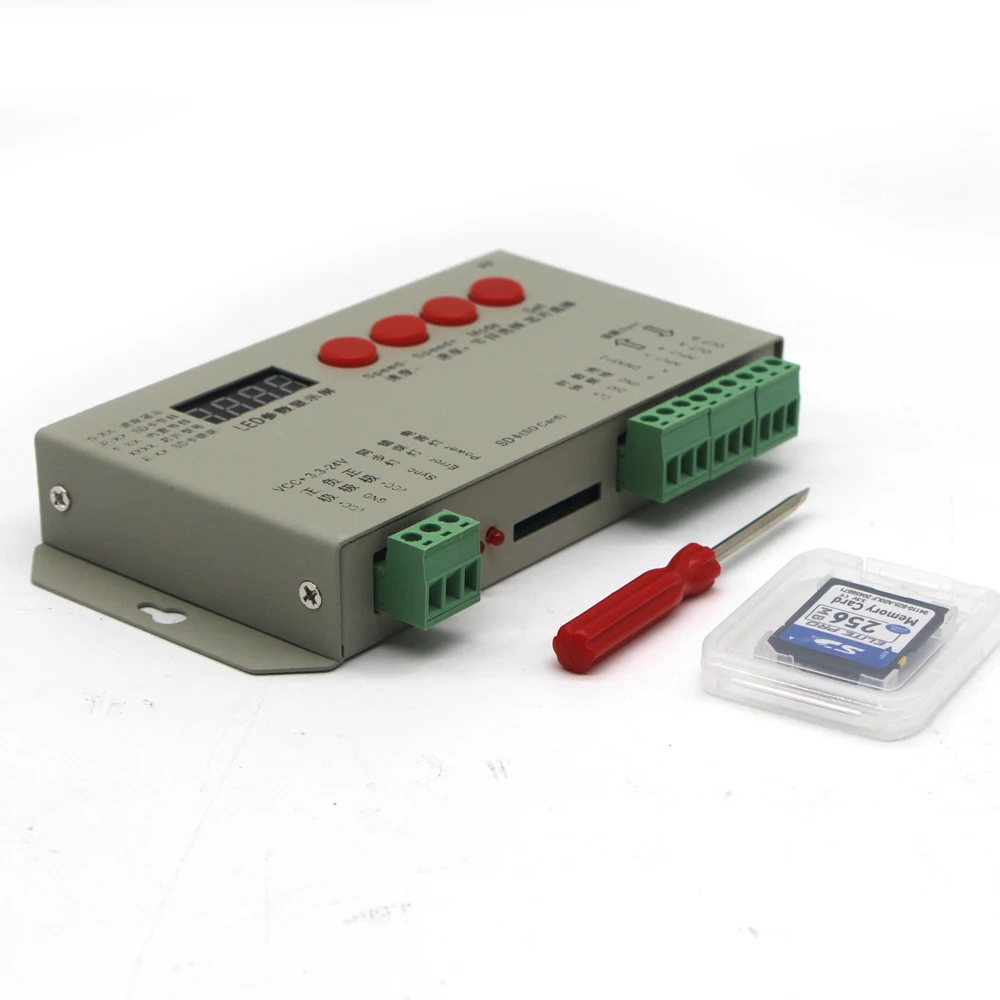

Specification of memory SD card1.Type: SD card(If control much led lights, high speed SD card will be recommended)

2.Memory: 256MB

3.Format: Support FAT and FAT32

4.Save Fat: *.led

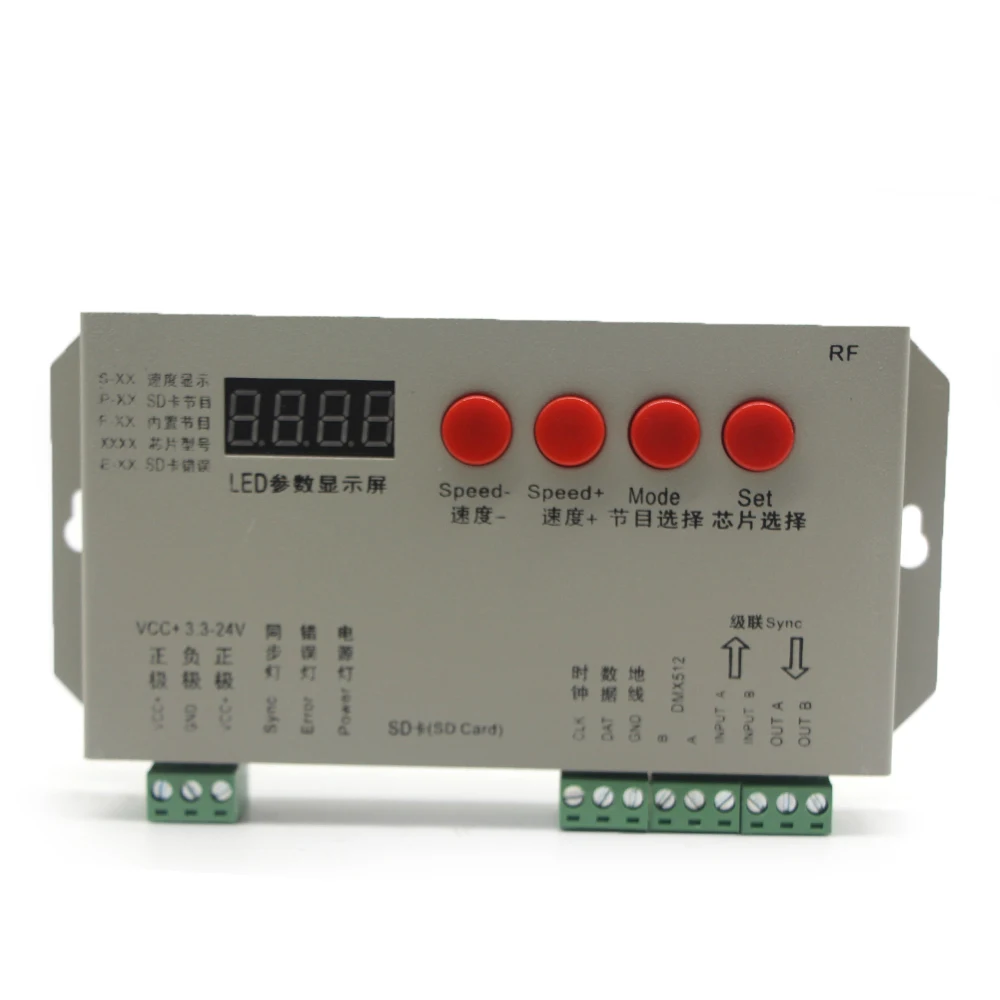

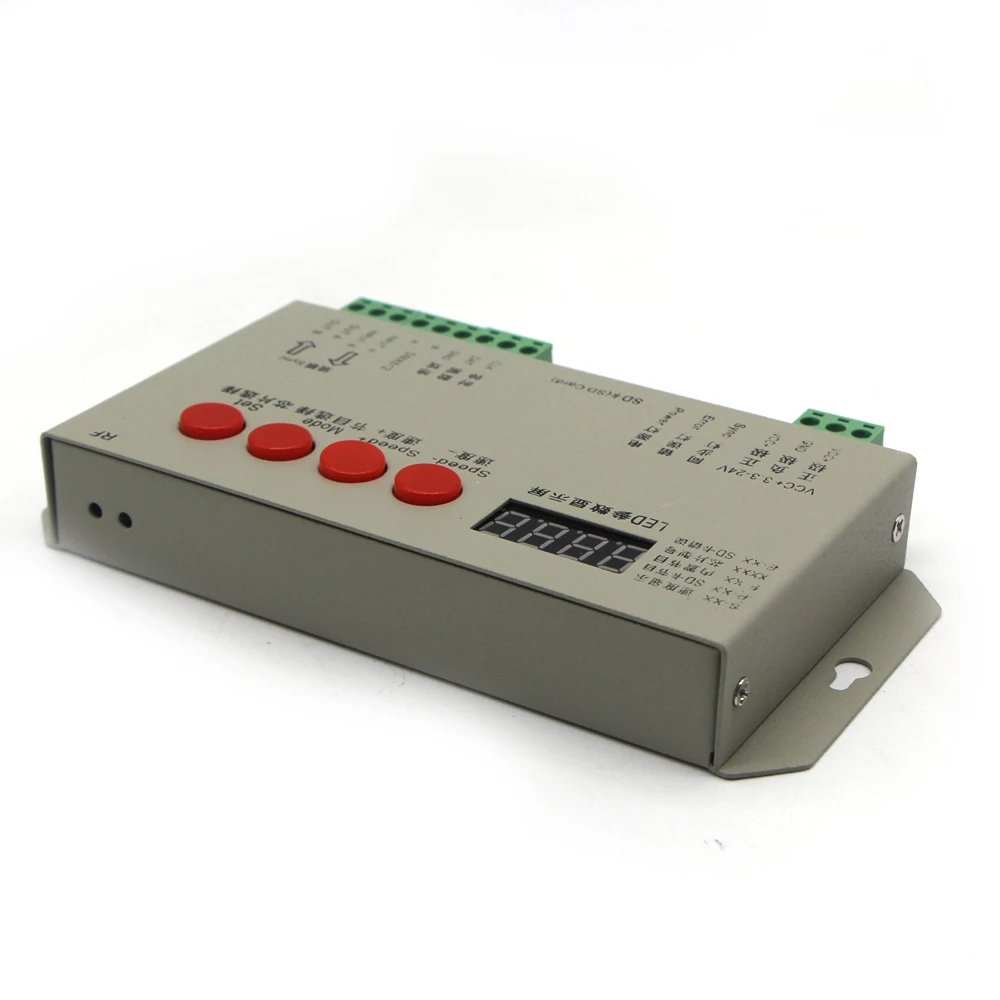

Operation of button

SPEED+: Accelerate the playing speed, max speed is S-19

SPEED-: Slow down the playing speed, min speed is S-01

MODE: Switch to programs

SET: Set IC types, choose current IC type and wait it automatic save after 8 seconds. Then restart the power.

Note: Don't power off after choosing IC type and program, until wait about 8 second, all the setting is saved automatically

T-1000S
Description:
Memory card:

type:SD card

Capacity:128MB-2GB

Store file:*.led

Physical parameters:

Working temperature :-30-85degree celsius

Working voltage:DC5V / DC7.5-24V

Working power:2W

Weight:0.3kg

Size:L165mm×W80mm×H30mm

Signal port:3pin connect port

T-1000S System features
1.32-65536 Gray,Support software Gamma correction.

2.Support point, line, surface, rules and special-shaped handle.

3.Single-port output,can support 2048 pixels.

4.Multiple controllers can be cascaded together and work synchronous,

play back content stored in the SD card.

5.Compatible with single line or double line chips.

NOTE:

When T1000S controller load less than 512 pixels the frame rate can reach 30fps.

When T-1000s control more than 512 pixels the frame rate will slow down automatically.

Support IC (one IC symbolize a pixel point )

Definition of buttons

Features:

1. 256 Gray,Gamma correction processing software.
2. Support the rules and special-shaped handle.
3. Controller, a port output, may bring 1024/2048 light.
4. Off-line control, play back content stored in the SD card
5. T-1000C store a maximum of 16 documents
Note: The model T-1000S with one port output, When it control 512  pixels the speed can reach 30fps, more than 512 pixels, the frame speed will be slow down automatically

Connection diagram:

Regulatory function button:

System architecture diagram:

Specific parameters:
Memory Card:
. Type: SD Card
. Capacity: 256 MB-2GB
. File Format: FAT file format
. Store files: *.led
Physical parameters:
. Weight:0.2kg
. Size:122mm*67mm*25mm
. Temperature :-40-85 Degree
. Volgate: DC5V / DC7.5-24V
. Power:3W

Note:
To copy files to SD card, you must first format to the SD card, pay attention to is that each copy must be formatted before.
SD card must be formatted as "FAT" format.

NOTE:For the TTL(SPI) signal, the controller signal ground must connect to

the LED lamp ground directly.
