Описание товара
XPON 1GE+CATV ONU
Overview
l1GE+CATV is designed as HGU (Home Gateway Unit) indifferentFTTH solutions; the carrier-class FTTH application provides data service access.
l1GE+CATV is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
l1GE+CATV adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
l1GE+CATV is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
l1GE+CATV is designed by Realtek chipset 9601D
Feature
lSupportsDual Mode (can accessGPON/EPONOLT).
lSupportsSFU and HGU of EPON CTC 3.0 standard
lSupportsGPON G.984/G.988 standards
lSupport CATV interface for Video Service and remote control by Major OLT
lSupport NAT, Firewall function.
lSupport Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
lSupport port mode of VLAN configuration
lSupport LAN IP and DHCP Server configuration
lSupportWEBManagement
lSupport Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
lSupport IPv4/IPv6dual stack
lSupport IGMPtransparent/snooping/proxy
lIn compliant with IEEE802.3ah standard
lCompatible with popular OLT (HW, ZTE, FiberHome...)
Specification
Technical Item | Details |
PONinterface | 1 GPON/EPON port(EPON PX20+ and GPON Class B+) Upstream:1310nm, Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
LAN interface | 10/100/1000Mbps auto adaptive Ethernet interfaces. 10/100/1000M Full/Half, RJ45 connector |
CATV Interface | RF, optical power : +2~-18dBm Optical reflection loss:≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level:≥82dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER:≥32dB(-14dBm optical input),＞35(-10dBm) |
LED | 6LED, For Status ofPOWER, LOS, PON, LAN, NORMAL, WARN |
Push-Button | 2, for Function of Power on/off, Reset |
Operating condition | Temperature :0℃～50℃ Humidity :10%～90%（non-condensing） |
Storing Condition | Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
Power supply | DC 12V/1A |
Power Consumption | <3W |
Net Weight | <0.2kg |

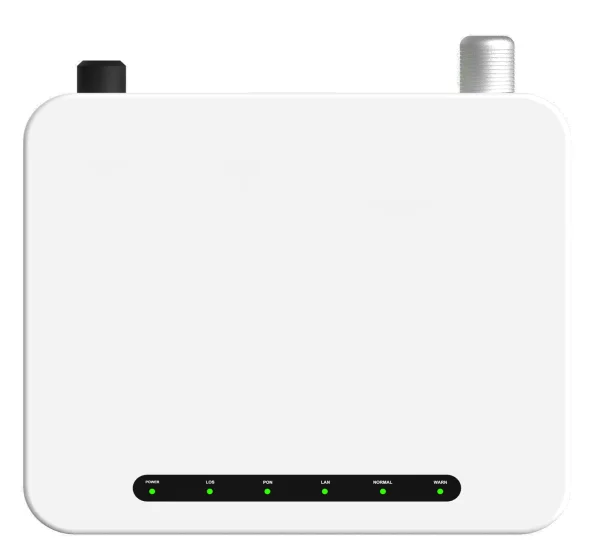

Panel lights and Introduction
Pilot | Status | Description |
POWER | On | The device is powered up. |
Off | The device is powered down. | |
LOS | Blink | The device doses not receive optical signals. |
Off | The device has received optical signal. | |
PON | On | The device has registered to the PON system. |
Blink | The device is registering the PON system. | |
Off | The device registration is incorrect. | |
LAN | On | Port is connected properly (LINK). |
Blink | Port is sending or/and receiving data (ACT). | |
Off | Port connection exception or not connected. | |
NORMAL | On | Input optical power is between -18dBm and 2dBm |
Off | Input optical power is higher than2dBm or lower than -18dBm | |
WARN | On | Input optical power is higher than 2dBm or lower than -18dBm |
Off | Input optical power is between -18dBm and 2dBm |
Application
lTypical Solution：FTTO(Office)、FTTB(Building)、FTTH(Home)
lTypical Service：Broadband Internet access, IPTV, VOD, CATVand VideoSurveillance.

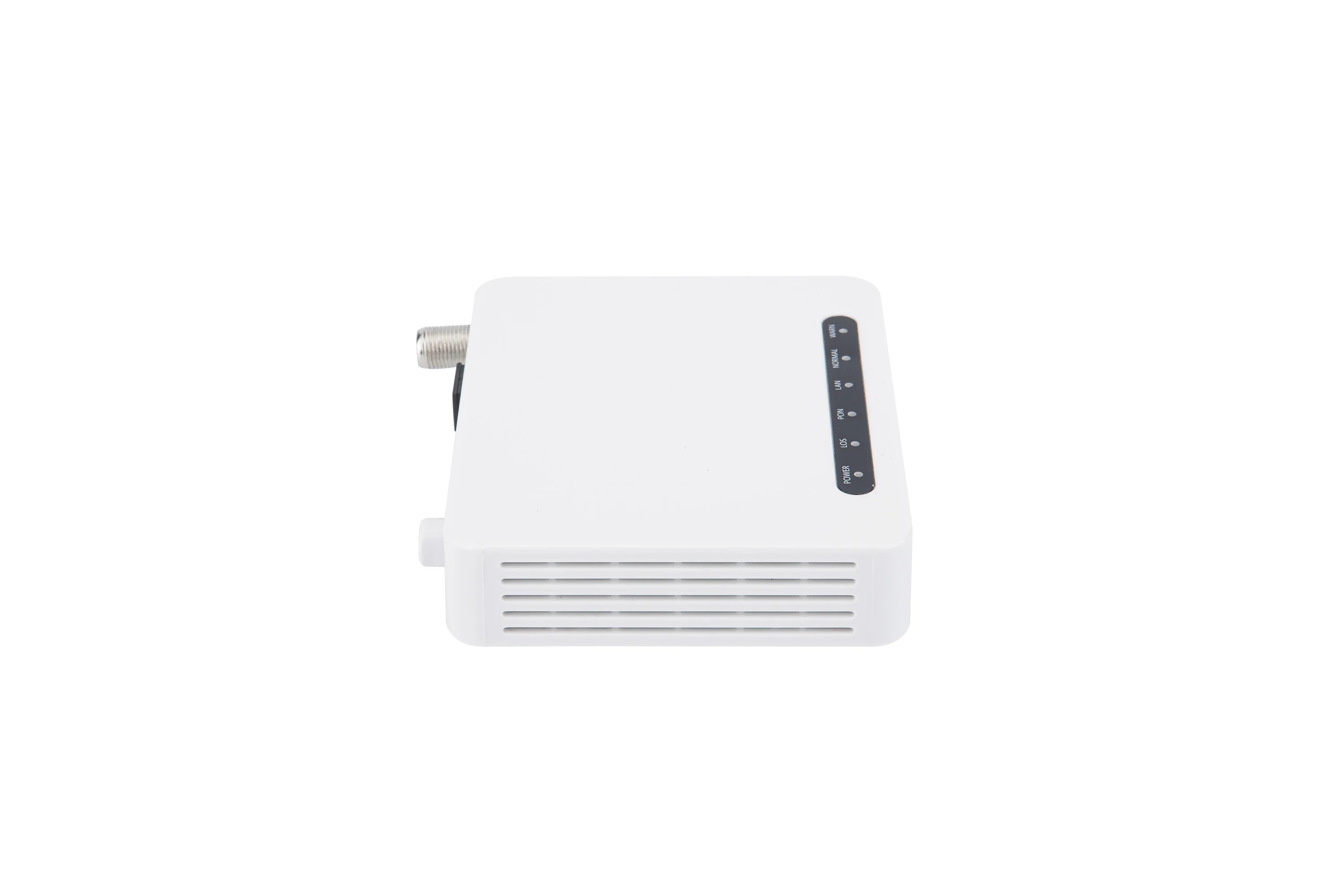

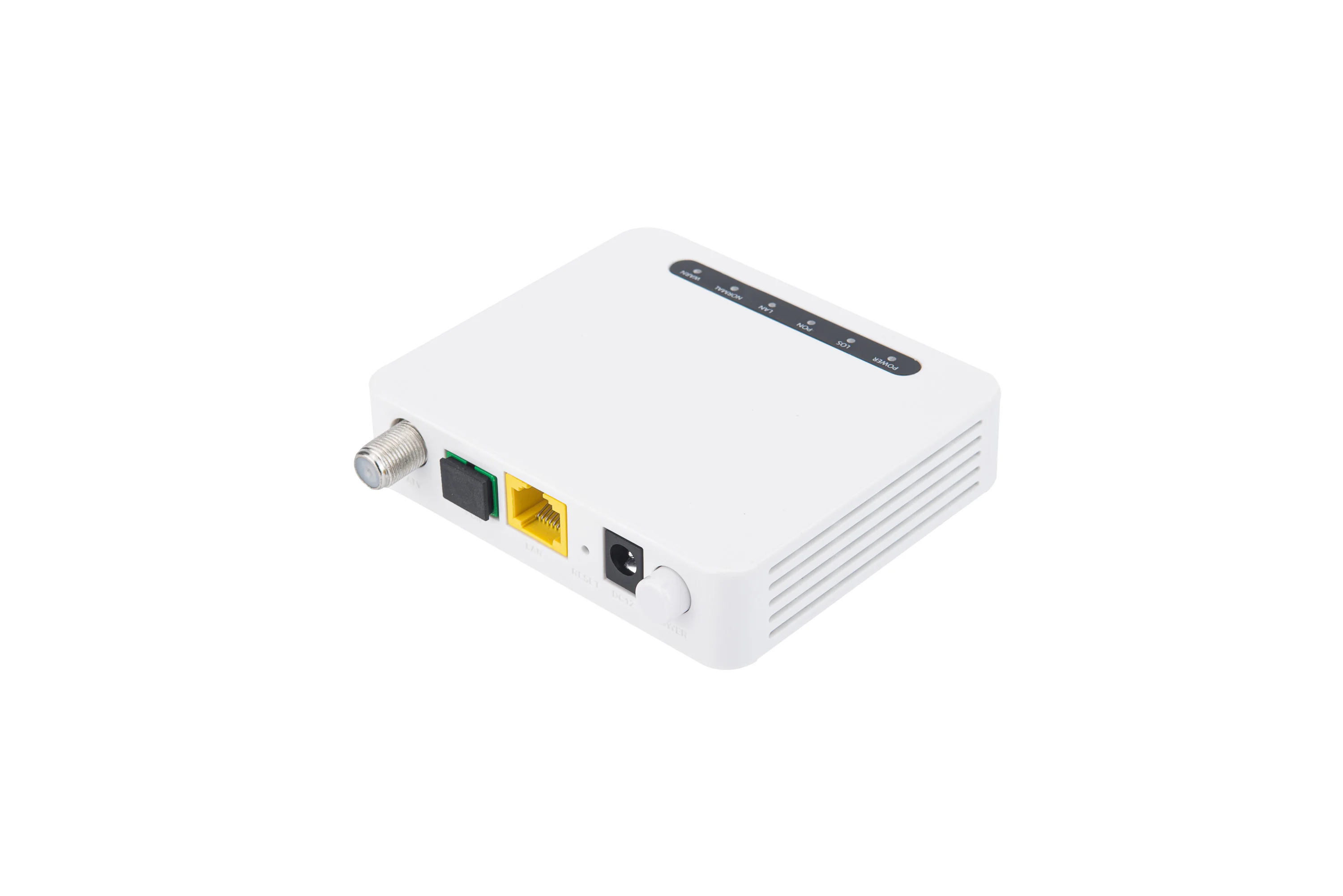

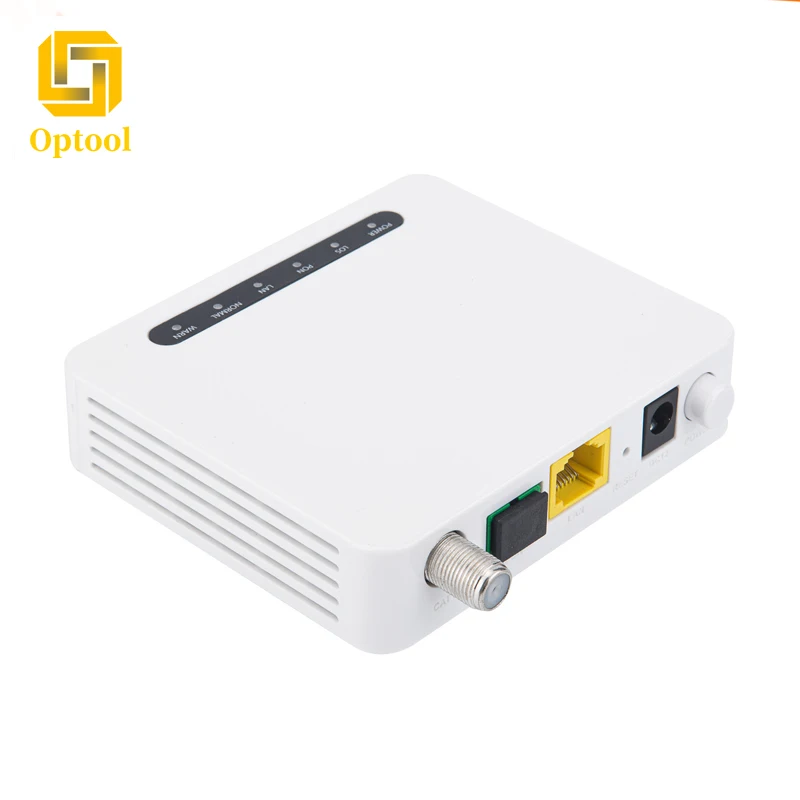

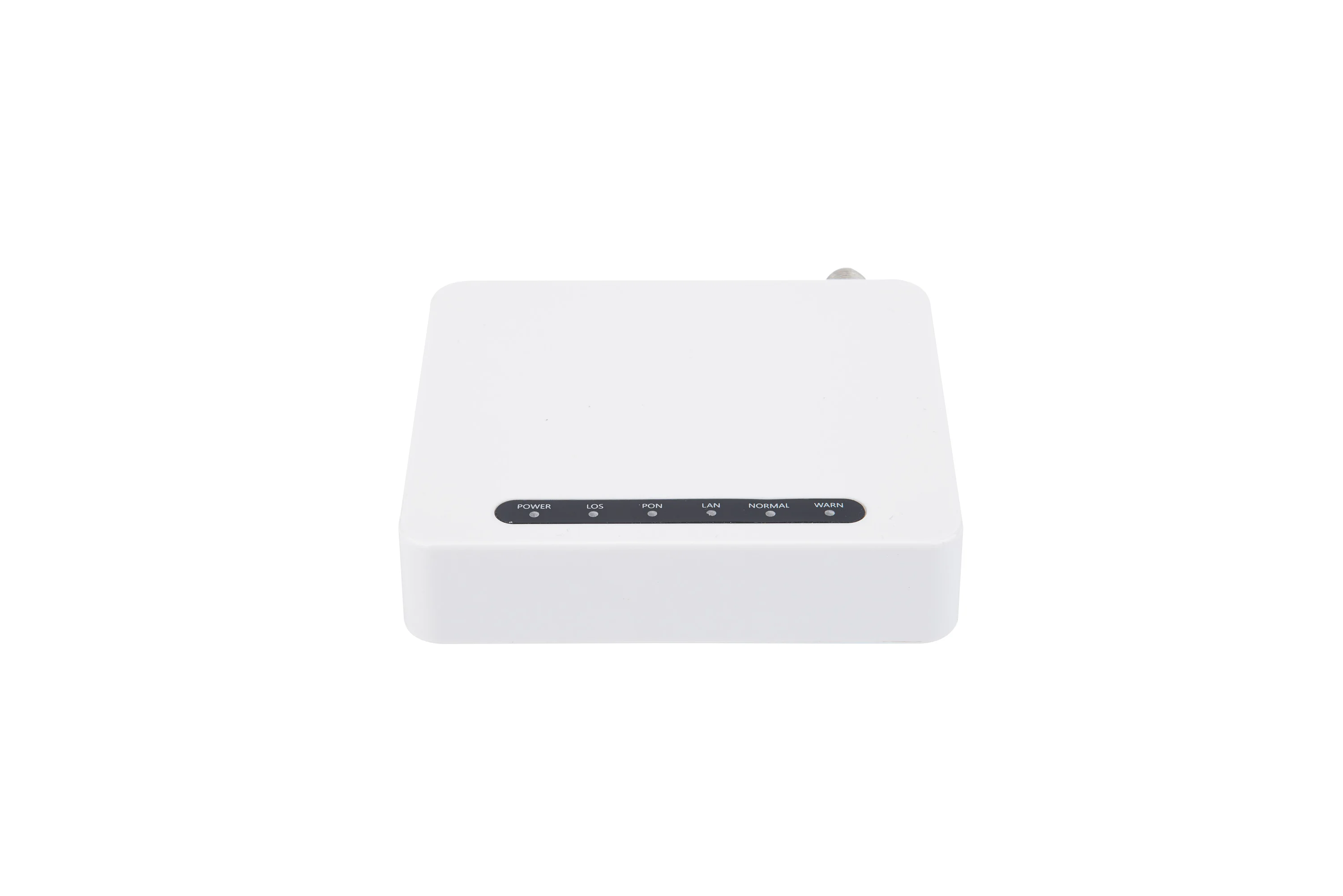

Appearance
Ordering information
Product Name | Product Model | Descriptions |
1GE+CATV XPON | CX0101R01 | 1*10/100/1000M Ethernet interface, 1 RF interface, 1 GPON interface, built-in FWDM, Input optical power -18dBm～+2dBm, support AGC function, Plastic casing, external power supply adapter |
1GE+CATV EPON | CE0101R01 | 1*10/100/1000M Ethernet interface, 1 RF interface, 1 EPON interface, built-in FWDM, Input optical power -18dBm～+2dBm, support AGC function, Plastic casing, external power supply adapter |
