China LYCNC Outlet Store
Магазина China LYCNC Outlet Store работает с 08.04.2017. его рейтинг составлет 91.29 баллов из 100. В избранное добавили 1989 покупателя. Средний рейтинг торваров продавца 4.7 в продаже представленно 849 наименований товаров, успешно доставлено 3912 заказов. 1734 покупателей оставили отзывы о продавце.
Характеристики
CNC 3 Axis 4axis System Offline Controller Step Servo Generation MACH3 Weihong XC609D for DIY Engraving Machine | Инструменты
История изменения цены
*Текущая стоимость 25 578,59 - 27 938,72 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-18-2025 | 30438.43 руб. | 31960.66 руб. | 31199 руб. |
| Aug-18-2025 | 30182.79 руб. | 31691.60 руб. | 30936.5 руб. |
| Jul-18-2025 | 25322.74 руб. | 26588.38 руб. | 25955 руб. |
| Jun-18-2025 | 29670.16 руб. | 31154.41 руб. | 30412 руб. |
| May-18-2025 | 25834.21 руб. | 27126.58 руб. | 26480 руб. |
| Apr-18-2025 | 29159.57 руб. | 30617.10 руб. | 29888 руб. |
| Mar-18-2025 | 28903.71 руб. | 30348.35 руб. | 29625.5 руб. |
| Feb-18-2025 | 28647.22 руб. | 30079.65 руб. | 29363 руб. |
| Jan-18-2025 | 28392.37 руб. | 29812.50 руб. | 29102 руб. |
Описание товара

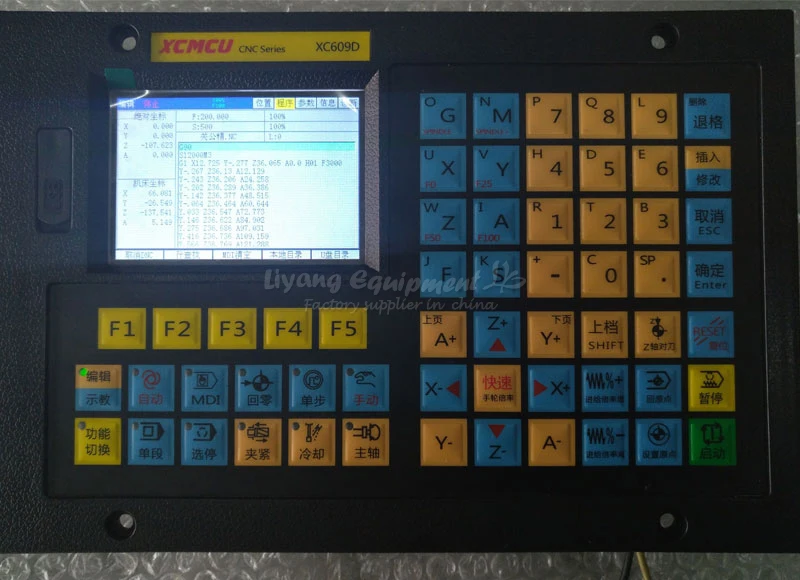

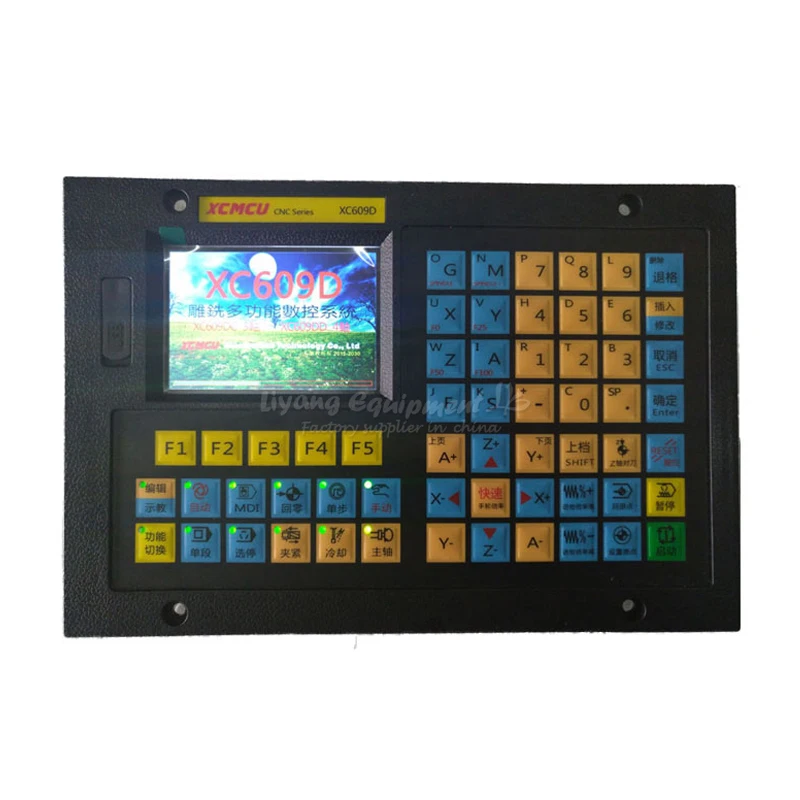

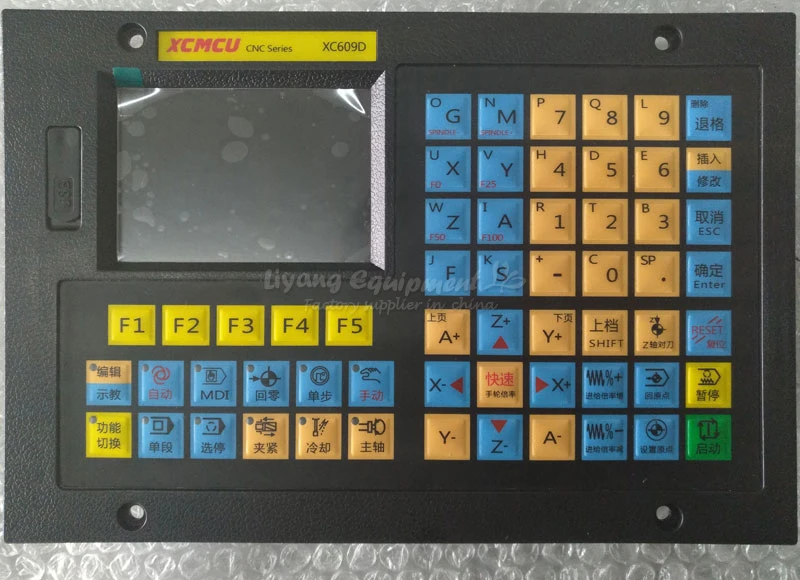

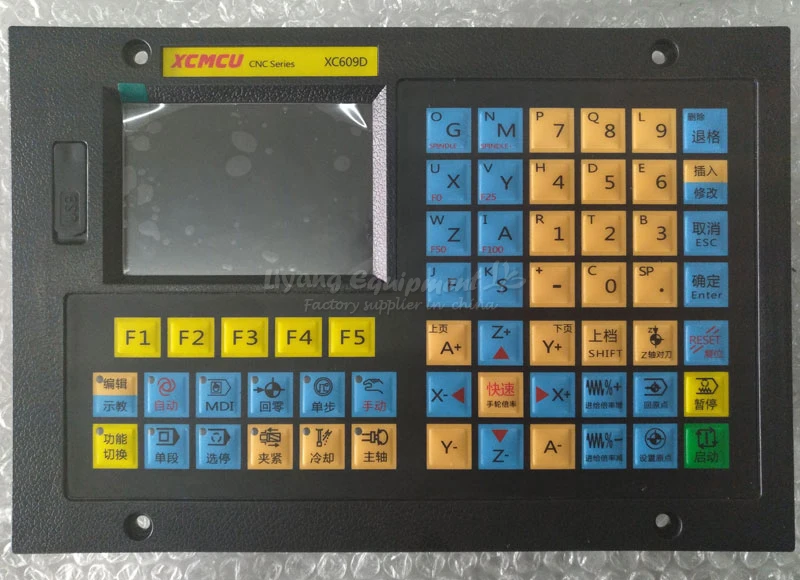

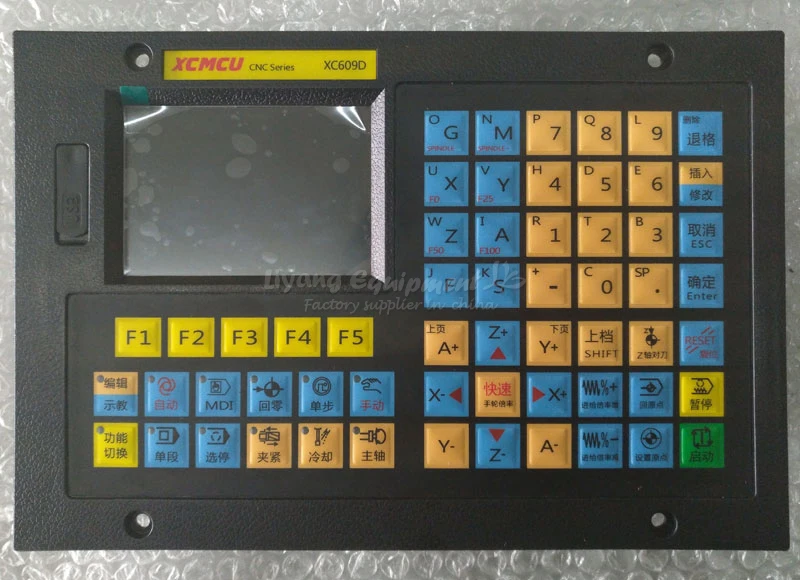

CNC 3 axis 4axis CNC system Offline controller Step servo generation MACH3 Weihong XC609D for DIY CNC Engraving machine
-
Brand: XCMCU
-
Model: XC609D
-
Voltage: 24V
-
Power mode: Direct current

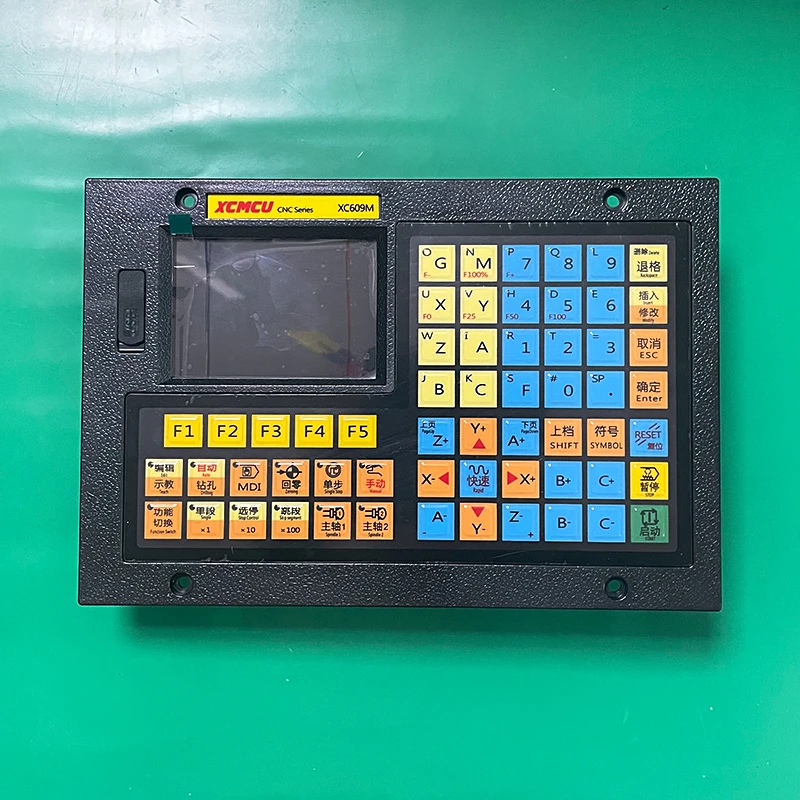

XC609M multi-purpose multi-purpose CNC system for my
company developed a new generation of CNC system. Support milling, boring,
attack, drilling and automatic feeding. Using 32-bit high-performance
microprocessors,the use of real-time
multi-task control technology and hardware interpolation technology, full
linkage, 0.001mm interpolation accuracy, speed 12 m / min.
Note:
The link
is a multi model product. If the details are incomplete or not in conformity
with the model you purchased, please use the manual in kind, thank you!
XC609DCis 3 axle
XC609DDis 4 axle
XC609D CNC system hardware and
software features:
★Based
on 32-bit microprocessor, full linkage, 0.001mm interpolation accuracy, speed
12 m / min.
★Using 3.5-inch color widescreen LCD, resolution 480X320, Windows
interface style. Equipped with five soft function keys,easy to learn. Provide parameter
classification, alarm log, system diagnostics and other rich display interface,
easy debugging and maintenance.
★Standard
G instruction,compatible with FANUC
system instructions.
★40
G instructions that support drilling cycles,tapping cycles.
★Support
teaching function.
★Support for
knife.
★Part
program full-screen editing, built-in 256M massive program space, can store N
parts program.
★With
USB interface, support U disk file read and write, data backup.
★Input
24 (expandable to 96) points, output 24 (expandable to 96) points (custom),
flexible and convenient.
★Chinese
/ English operation interface, complete help information, operation more
convenient.
★The
system uses forward-looking small line algorithm, processing smooth.
★Support
the rapid designation of the operation position operation,support multi-coordinate system (power-down
automatic preservation).
★Support to save power
off function (press the pause key to save automatically or power automatically
save).
★Support
multi-level operation authority,convenient
equipment management, with time-limited system lock function.
★Support UG,Mastercam,PowerMill,FeatureCAM,ArtCAM,JDPaint,Wentai and other third-party software G code files.
Technical specifications
| basic skills |
|
| Control |
3~4 axis(X,Y,Z,A) |
| Number of |
Full linkage |
| Analog |
1 |
| Spindle |
10%~150% |
| Small |
0.001mm |
| Large |
±99999999*Small command unit |
| Rapid feed |
12000mm/min |
| Fast feed |
F0, 25%, 50%, 100% |
| Cutting |
12000mm/min |
| Feed rate |
10%～150% |
| Electronic |
1～65535: 1～65535 |
| Automatic |
exist |
| location |
G00 (Can be linear interpolation positioning) |
| runin |
straight line(G01),arc(G02/G03/G12),Helix interpolation |
| Return to reference point |
Automatically return to the reference point(G28) |
| LCD |
3.5 inch TFboysT LCD screen with a resolution of 480 * |
| MDI Soft key |
5 |
| Single step feed |
x1,x10,x100 |
| communication interface |
U disk interface |
| External handwheel interface |
exist |
| I/O port |
24/24(open end to 96/96) |
| pause(s) |
exist |
| Quasi-stop state |
Exist |
| Quasi-stop |
Exist |
| Storage trip check |
exist |
| MDI revolve |
exist, Support multi-segment operation |
| restoration |
exist |
| Jump switch |
exist |
| Single run |
exist |
| Program protection switch |
exist |
| Self-diagnostic function |
exist |
| Emergency stop |
exist |
| power |
Single phaseAC220V+10%-15%,50Hz±1Hz.DC24V/1A |
| coordinate |
Machine coordinate system(G53),Workpiece coordinate system(G92,G54～G59),Local coordinate system(G52),Coordinate system plane specification |
| Automatic |
exist |
| Decimal point |
exist |
| Auxiliary function |
|
| Auxiliary function |
M2 bit, M code custom, manual / MDI / automatic mode |
| Spindle function |
|
| Spindle |
Analog spindle(0-10V) |
| Edit operation |
|
| editional function |
Parameter, diagnostic bitwise input, program editing, |
| memory capacity |
256M |
| Number of stored programs |
N |
| The display of the program name |
Chinese, English, numbers, combinations |
| Program line lookup |
exist |
| Skip optional blocks |
exist |
| sequence switch |
exist |
| display |
|
| display |
Chinese, English |
| Processing time, number of parts display |
exist |
| Spindle speed, M / S command |
exist |

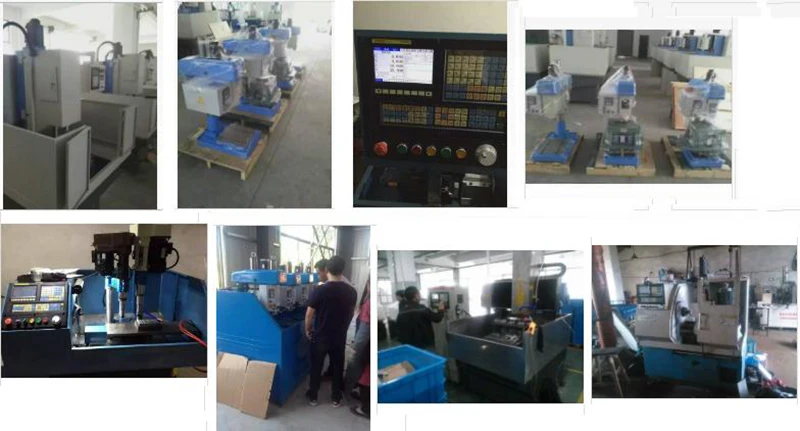

Application areas:
Used for processing
mold: embossing plate, sole mold, button mold, zipper mold, pattern text stamp
and bronzing mold, instrument mold, glass mold and so on.
For the advertising
industry: company cards, signs, building models, badges, badges, Mingban,
display panels, logo, signs, signs, process decoration, furniture decoration.
For the portrait,
landscape, calligraphy lettering, seal and other art class carving, Yin Wen,
Yang text outline, relief, three-dimensional three-dimensional sculpture.
For a variety of
small and medium-sized automation equipment,equipment and so on.
For welding robots,
coordinate feeding robot, spray manipulator and so on.
And many more
Specs :
Offline controller 3axis XC609DC
Offline controller 4axis XC609DD
