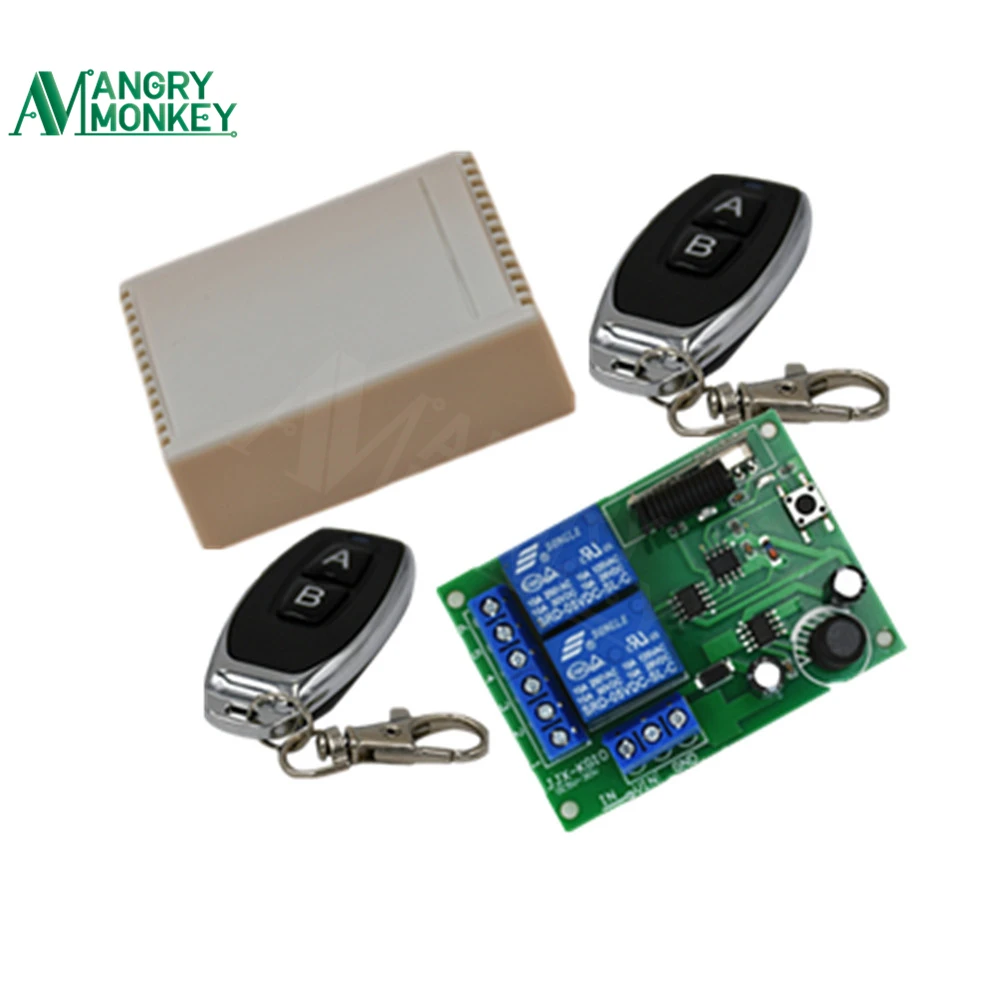

433 Mhz Wireless Remote Control Switch Module DC 12V 24V 2CH RF Relay Receiver and Transmitter for Garage Gate Door Controller |
История изменения цены
*Текущая стоимость 662,56 - 2 141,69 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-18-2025 | 788.52 руб. | 827.72 руб. | 807.5 руб. |
| Aug-18-2025 | 781.70 руб. | 820.72 руб. | 800.5 руб. |
| Jul-18-2025 | 655.16 руб. | 688.23 руб. | 671.5 руб. |
| Jun-18-2025 | 768.85 руб. | 806.38 руб. | 787 руб. |
| May-18-2025 | 669.41 руб. | 702.5 руб. | 685.5 руб. |
| Apr-18-2025 | 755.24 руб. | 793.35 руб. | 774 руб. |
| Mar-18-2025 | 748.69 руб. | 785.48 руб. | 766.5 руб. |
| Feb-18-2025 | 741.93 руб. | 778.74 руб. | 759.5 руб. |
| Jan-18-2025 | 735.95 руб. | 772.31 руб. | 753.5 руб. |
Описание товара
Technical Data:
About the DC Receiver Switch:
Input Power:DC 6V-30V
Standby Current:<5MA
RF Frequency:315Mhz or 433Mhz
RF working mode:superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: 20-50m ( open space)
Decoding mode: software decoding
Number of matching keys 40 keys
Support remote type: Learning code 1527code, Fixed code(Rolling code can be design)
Working mode:Momentary, Toggle, Latching
Wiring type:fixed termina

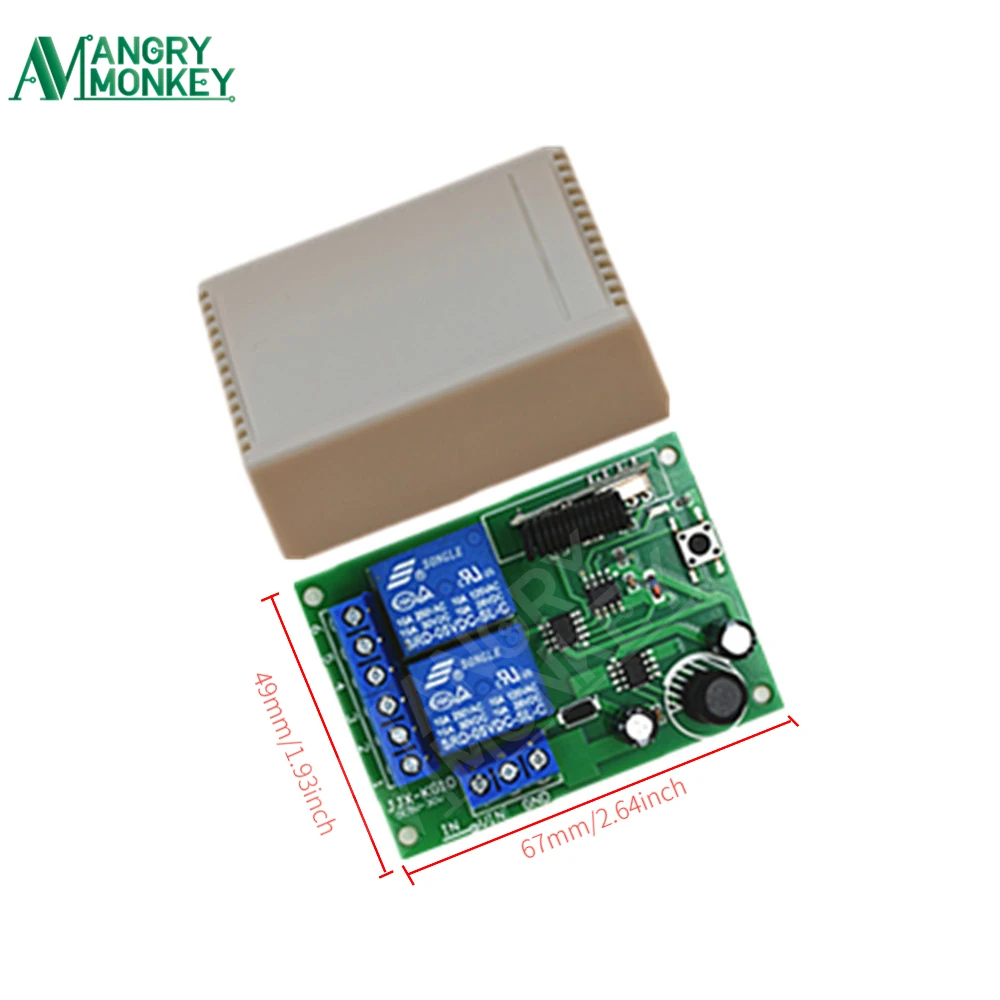

Dimension of PCB: 67*48*17mm.

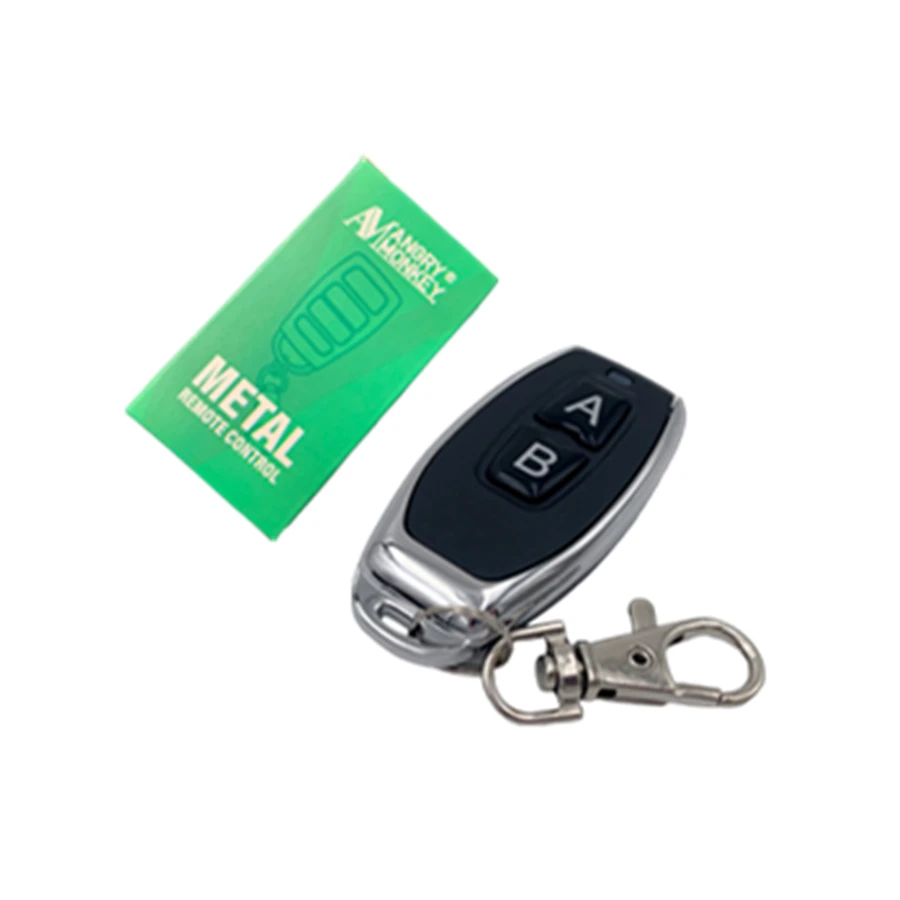

About the DC 6V 2CH Transmitter:
Operating frequency: 433.92MHz
Power by 3V Coin Cell Button Battery (Battery included ),
Material: PVC.
Button: 2 buttons

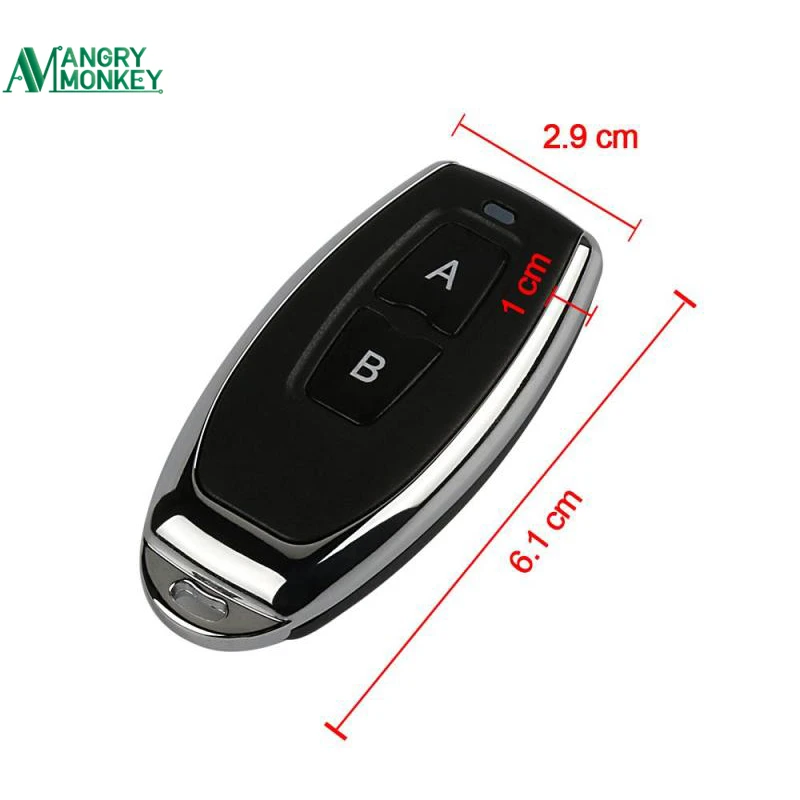

Size:59mm x 28mm x 8mm;
Operating voltage: 3V ;
Operating Current: 12mA
Transmitting power: 10mw
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 80meters
Order Package Include:(5 order model can be chosen)
Order Model 1:
1 Receive Only
Details:
Receiver Switch Module (KR2402-10): 1 Piece with Plastic Shell
Order Model 2:
1 Receive and 1 RC
Details:
Receiver Switch Module (KR2402-10): 1 Piece with Plastic Shell
Remote Control: 1 Piece with Battery
Order Model 3:
1Receive and 2 RC
Details:
Receiver Switch Module (KR2402-10): 1 Piece with Plastic Shell
Remote Control: 2 Pieces with Battery
Order Model 4:
1Receive and 3 RC
Details:
Receiver Switch Module (KR2402-10): 1 Piece with Plastic Shell
Remote Control: 3 Pieces with Battery
Order Model 5:
1Receive and 4 RC
Details:
Receiver Switch Module (KR2402-10): 1 Piece with Plastic Shell
Remote Control: 4 Pieces with Battery

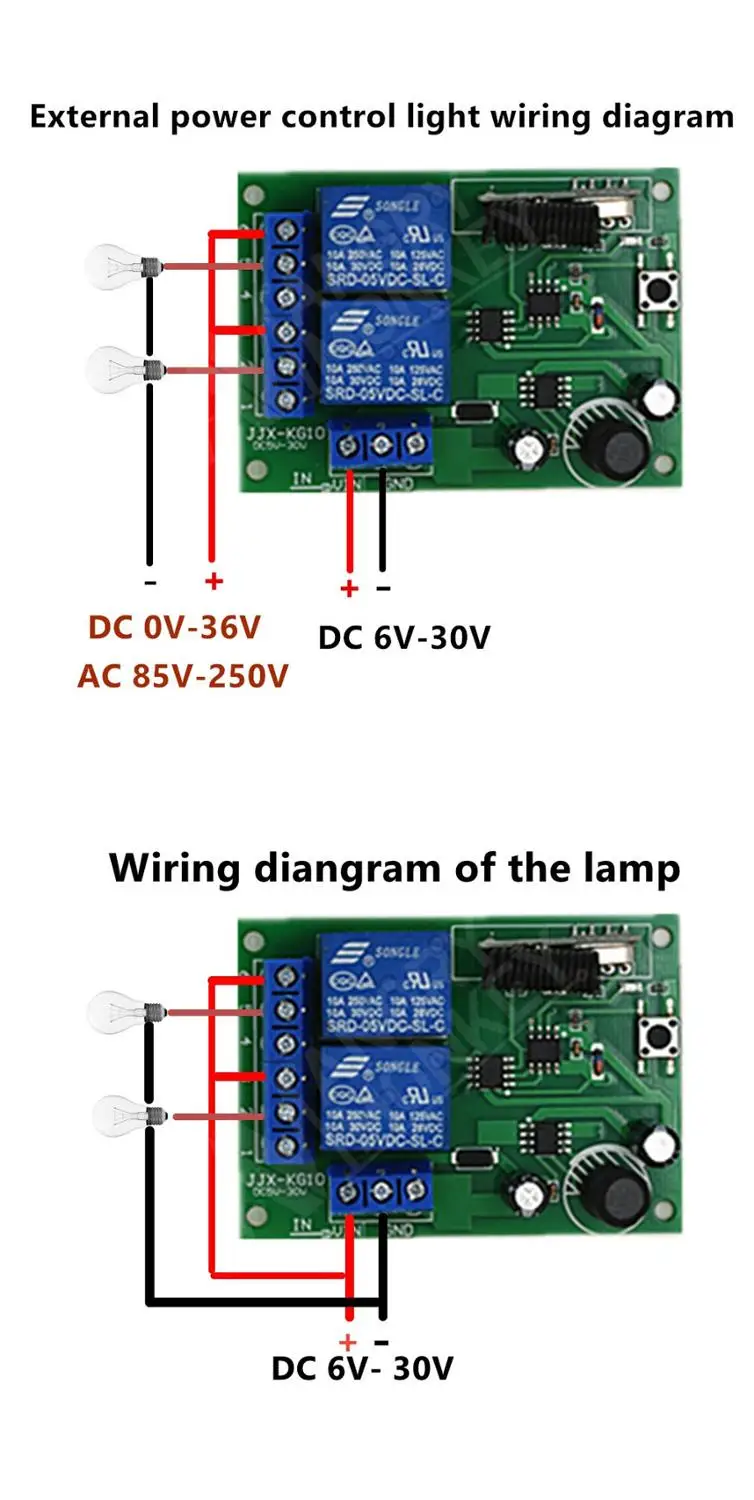

Wiring diagram
1, NC:Normally closed Output
2, COM:Common port
3, NO:Normally open Output
How to set the remote mode:

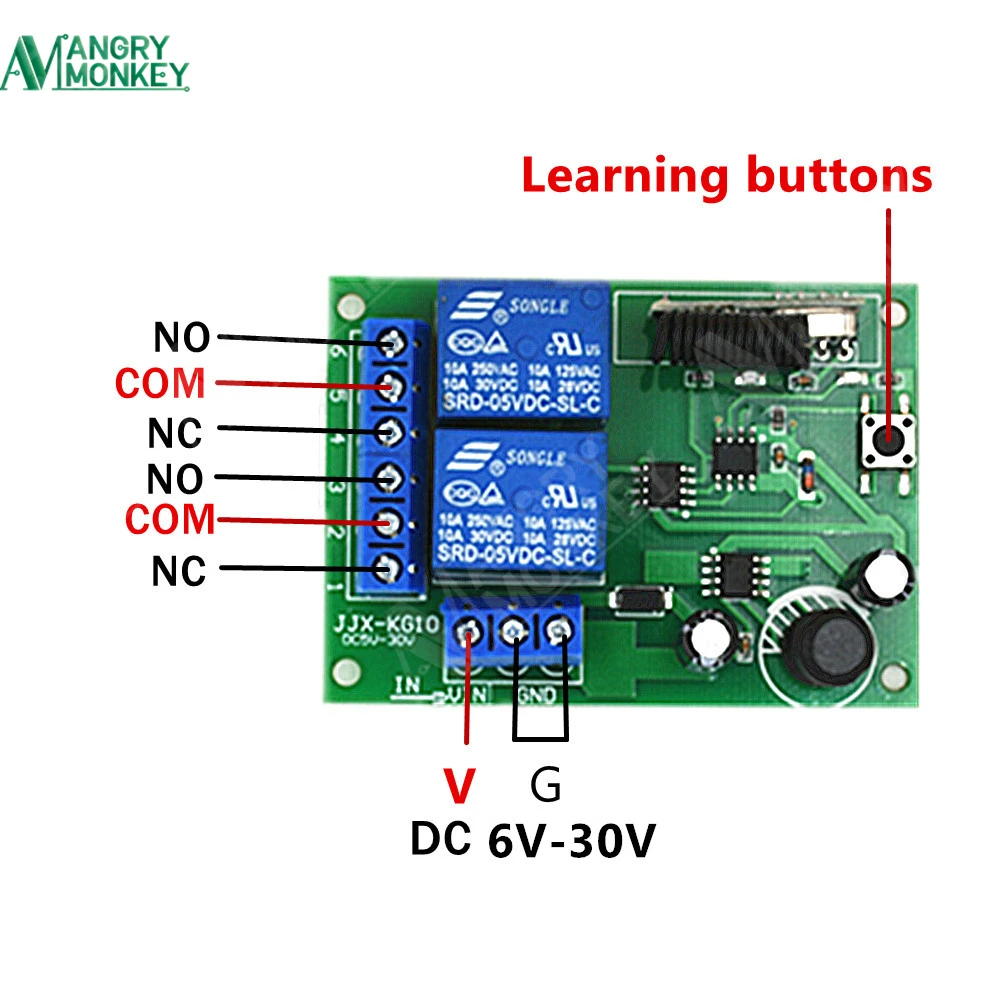

Please find the Learning Key of the Receiver Switch Module by checking below photo:
Note: When you receive the product, it maybe set in one remote mode randomly, that because each product got test when it can be arranged to shipment.So, if you want to select the remote mode you like, please Delete the existing data for the first step:
How toDelete the existing remote controls data?
Press the learning keyon the switch board8times, then wait for the LED indicator on the motherboard to flicker and delete the existing data successfully. (If the LED indicator on the motherboard does not flicker, check the power connection status and make it correct and try more times)
How to Set the Remote Mode: 1-Momentary/Jog Mode: STEP 1 Push and release the learning key on the Receiver Switch Module board KR2402-10 ONCE. Wait for a moment , the LED Indicator on the board will turn off , indicating you entered the learning state. STEP 2 Push and release ONE KEY(any key you like) on your Remote Control , the LED Indicator on the Receiver Switch Module board KR2402-10will flash on then off indicating the remote control's key was learned. STEP 3 Press and release the other Key on the Remote Control, watching the LED Indicator on the Receiver Switch Module board KR2402-10on and off again. Wait 3 seconds, the on-board LED will turn on again , indicating system is ready for use. 2-Toggle/Self-Lock: STEP 1 Push and release the learning key on the Receiver Switch Module board KR2402-10 Twice. Wait for a moment , the LED Indicator on the board will turn off , indicating you entered the learning state. STEP 2 Push and release ONE KEY(any key you like) on your Remote Control , the LED Indicator on the Receiver Switch Module board KR2402-10will flash on then off indicating the remote control's key was learned. STEP 3 Press and release the other Key on the Remote Control , watching the LED Indicator on the Receiver Switch Module board KR2402-10on and off again. Wait 3 seconds, the on-board LED will turn on again , indicating system is ready for use. **Notice** Two button transmitters can only be used as toggle or momentary. One mode per 2 button transmitter. If you use a remote controller with four keys (or multiple remote controllers with four keys), you can use remote mode 3. Remote Mode 3: Latched/Inter-LockPress one Key once->ON; Press another key once->OFF
Details:
Press one key once( take A key for example), the corresponding channel (like channel 1) turn to working/ON;
Press another key once(take B key for example), the same channel turn to stop/OFF. At the same time, another corresponding channel(like channel 2) turn to working / ON .
IMPORTANT INFORMATIONS For Buyers:
1. For the 5 stars Comments: Dear Customer, you are welcome to Angry Monkey!!If you feel very satisfied when you received your product, please give us 5 stars good comments. it can encourage us to provide better service to you. Please follow the guide to do so:
Matters need attention:
Safety considerations:
1. Please Make sure all wires are connected properly, before turn on the power supply, or it may cause damage to the product.
2. Be sure to place it where children can not touch it.
3. Make sure that the work environment is out of contact with water, wet and dusty. It should be placed in an environment suitable for electronic products. Regular inspection maintenance is necessary.
4. When it comes to the use of alternating current with high voltage and high current, the installation and debugging must pay attention to personal safety or seek professional electrician's help, otherwise it will cause significant personal injury.
