Описание товара

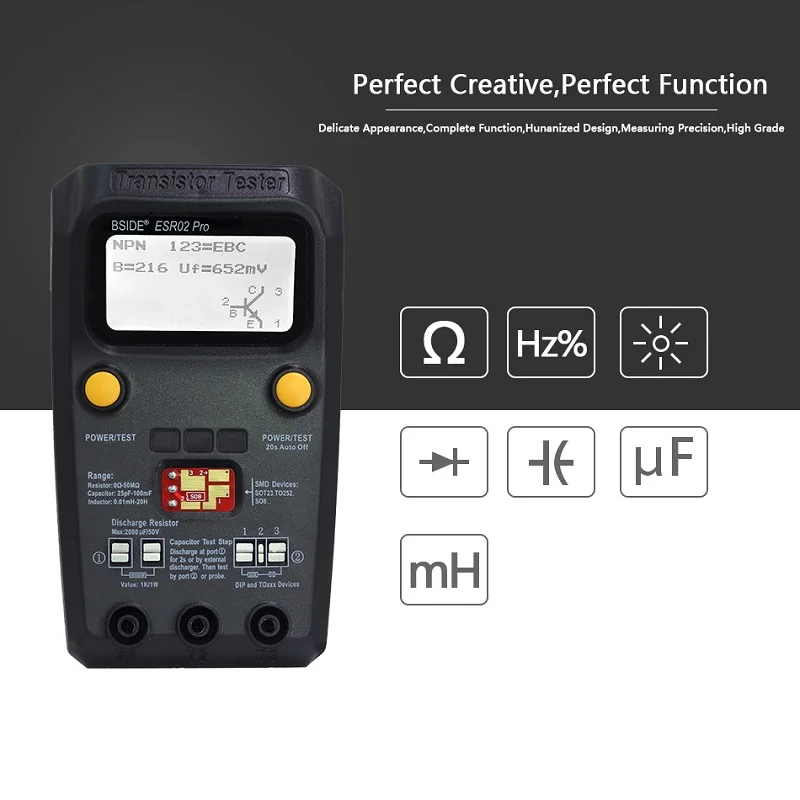

BSIDE ESR02PRO Digital transistor SMD Components tester Diode Triode Capacitance Inductance Multimeter ESR Meter.
Descriptions:
- This instrument is an instrument developed for electronics engineers, developers, electronic repair, production plants and enthusiasts.
- It is very easy to test plug-in and SMD devices, also can test different kinds of diodes, triodes, thyristors, MOSFET, enable to analysis the device type, the polarity of the pin, the output HFE, the valve voltage, the junction capacitance of the FET.
Parameters:
-
Resistance: 0Ω-50MΩ. Resolution: 0.01Ω.
-
Capacitance: 25pf-100mf. Resolution: 1pf.
-
Inductance: 0.01mH-20H. Resolution: 0.01mH.
-
Measuring capacitance ESR resolution: 0.01Ω
Things to note:
- Before testing the capacitor, be sure to discharge it, otherwise it may damage the internal circuit.

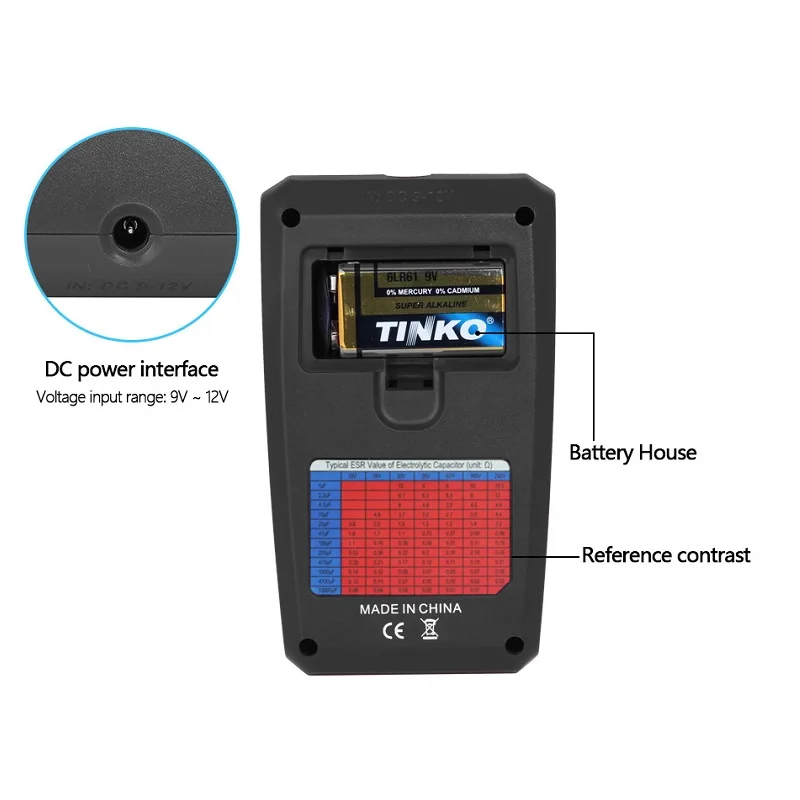

- If using DC supply, please choose DC 9V - 12V adapter (including 9V and 12V).
- Can be powered by a 9V 6LR61 battery, when the battery power is under 6V, please replace a new one.
How to use instructions:
- Push "POWER / TEST" to power on and start a test, multiple measurements can be repeated by this key, auto power off 20 seconds after measurement.

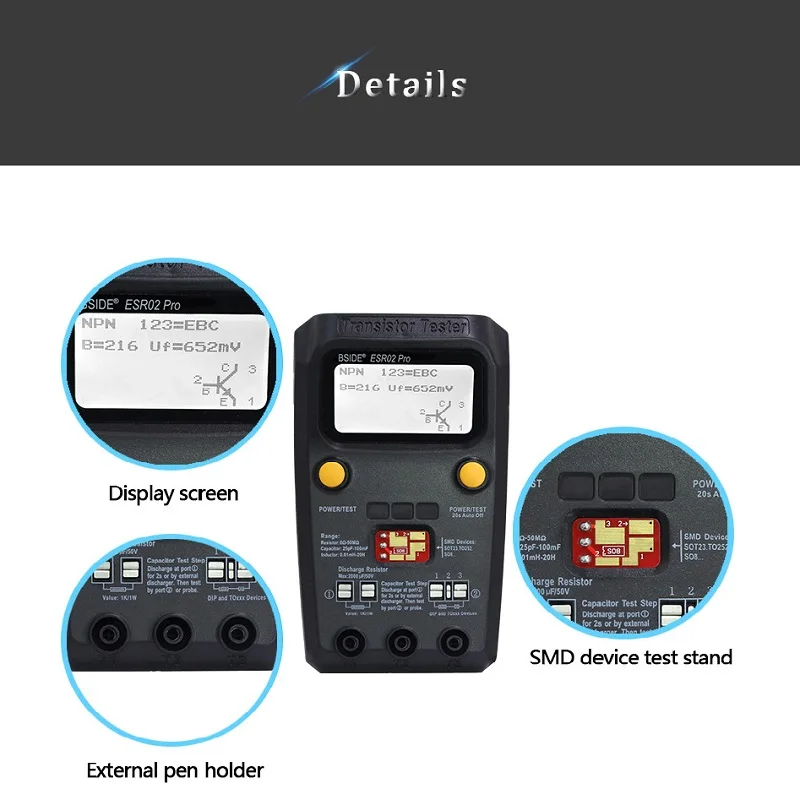

- Provide three kinds of socket, each socket pin 1, pin 2 and pin 3 are connected.
- There is a table "typical ESR value of electrolytic capacitor" at the back, it is for guiding only, these are typical value for standard grade electrolytic capacitor at room temperature.
Calibration:
- Short the test pin 1, 2, 3 together and push "POWER / TEST" button, then the screen prompts to enter calibration, push the button again within 2 seconds to confirm. Few seconds latter the screen prompts to release pin 1, 2, 3, release them and wait for calibration finis.
- 1 x ESR02 PRO Digital Transistor Tester
- 1 x English User Manual
- 1 x Gift (Optional)
- Package weight: 0.25 kg
- Package Size(L x W x H): 17.50 x 10.00 x 6.00 cm / 6.89 x 3.94 x 2.36 inches
The batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused.
Shopping needs to know:
1. The logistics method we usually choose is: (AliExpress Standard Shipping) or (China Post Registered Air Mail). You can also choose the logistics method you need. (Traceable)
2. We will bear all the shipping cost if the product is not as advertised. 3. We maintain high standards of excellence and strive for 100% customer satisfaction,Feedback is very important we request that you contact us immediately before you give us neutral or negative feedback,so that we can satisfactorily address your concerns. It is impossible to address issues if we do not know about them.
Descriptions:
This instrument is an instrument developed for electronics engineers, developers, electronic repair, production plants and enthusiasts.
It is very easy to test plug-in and SMD devices, also can test different kinds of diodes, triodes, thyristors, MOSFET, enable to analysis the device type, the polarity of the pin, the output HFE, the valve voltage, the junction capacitance of the FET.
Parameters:
-
Resistance: 0Ω-50MΩ. Resolution: 0.01Ω.
-
Capacitance: 25pf-100mf. Resolution: 1pf.
-
Inductance: 0.01mH-20H. Resolution: 0.01mH.
-
Measuring capacitance ESR resolution: 0.01Ω
Things to note:
Before testing the capacitor, be sure to discharge it, otherwise it may damage the internal circuit
If using DC supply, please choose DC 9V - 12V adapter (including 9V and 12V)
Can be powered by a 9V 6LR61 battery (not included), when the battery power is under 6V, please replace a new one
How to use instructions:
Push "POWER / TEST" to power on and start a test, multiple measurements can be repeated by this key, auto power off 20 seconds after measurement
Provide three kinds of socket, each socket pin 1, pin 2 and pin 3 are connected
There is a table "typical ESR value of electrolytic capacitor" at the back, it is for guiding only, these are typical value for standard grade electrolytic capacitor at room temperature
Calibration:
Short the test pin 1, 2, 3 together and push "POWER / TEST" button, then the screen prompts to enter calibration, push the button again within 2 seconds to confirm.
Few seconds latter the screen prompts to release pin 1, 2, 3, release them and wait for calibration finish
Package weight: 0.25 kg
Package Size(L x W x H): 17.50 x 10.00 x 6.00 cm / 6.89 x 3.94 x 2.36 inches Package Contents: 1 x ESR02 PRO Digital Transistor Tester 1 x English User Manual 1 x Gift Note:
The batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused.
