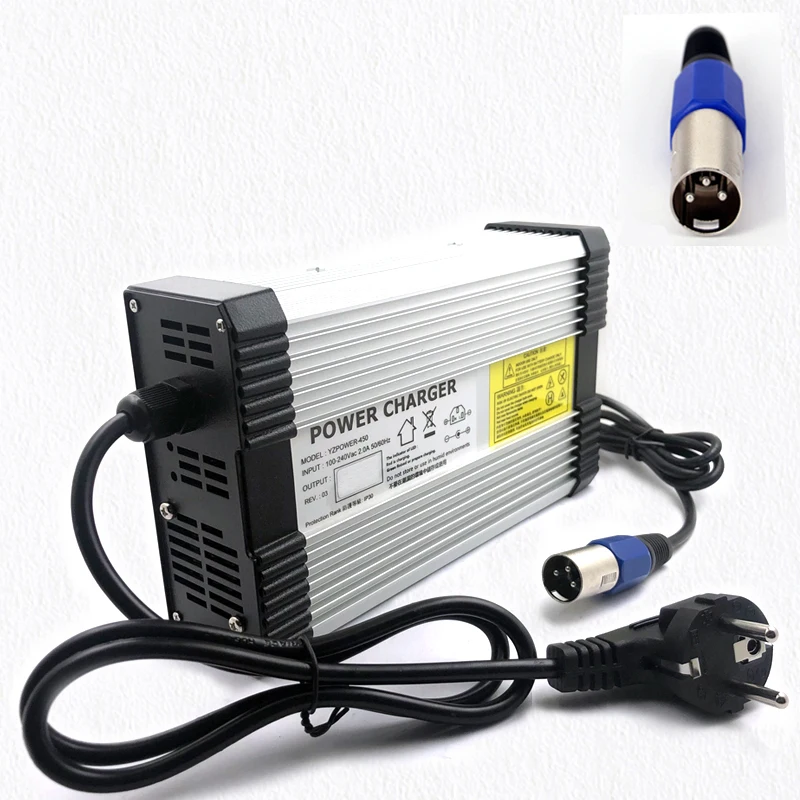

116V 3.5A 3A 2.5A Lead Acid Battery Charger

Please Leave Clear Words of The Input AC Plug And Output DC Plug,Like 'AC: Number 3, DC:G Number. Especial 'E' & 'F',Otherwise Your Order Can't Be Sent,Thank You!!! We can customize any parameters'charger according to your needs.

Parameters

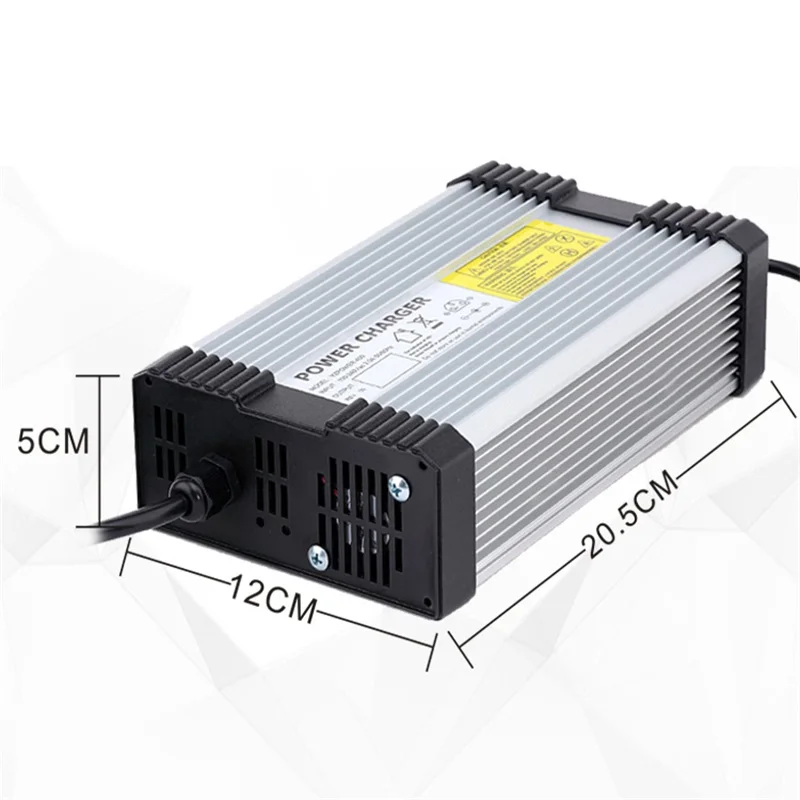

● Output parameters: 116V 3.5A 3A 2.5A ● Type of working battery: 8S 96V Lead Acid Battery ● Stable MTBF: >30000H ● Efficiency: >85% ● Small Size: 205*121*50mm ● Light Weight: 1.2Kg ● Material: Metal Aluminium Case ● After-sales service: 12 months Warranty ● Light, Small, Stable, High-Efficiency, Safe, etc.Precise limit of voltage & current, qualified fully charged and avoid over charge

Advantages

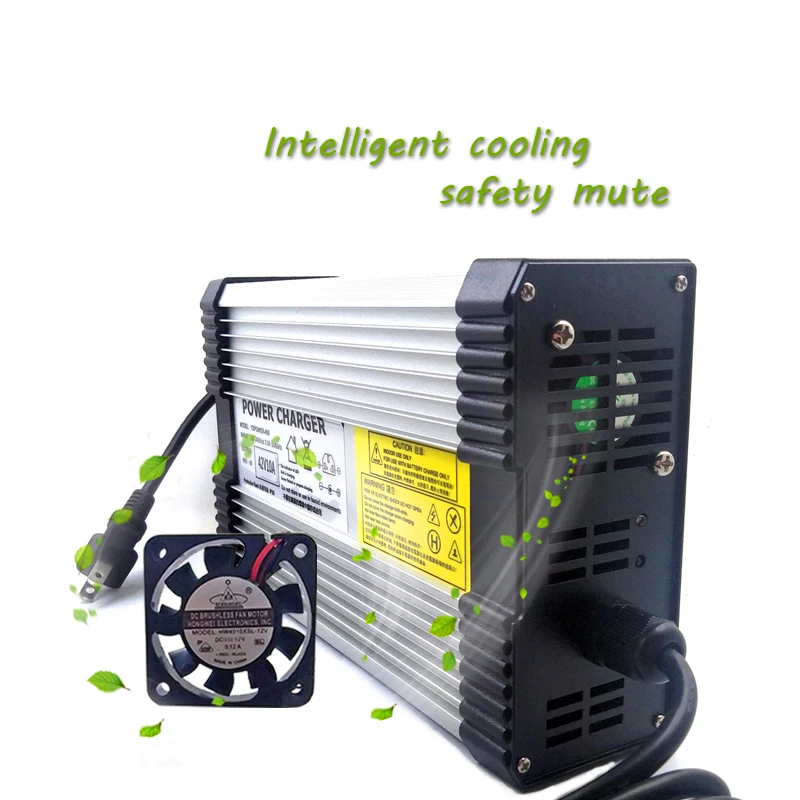

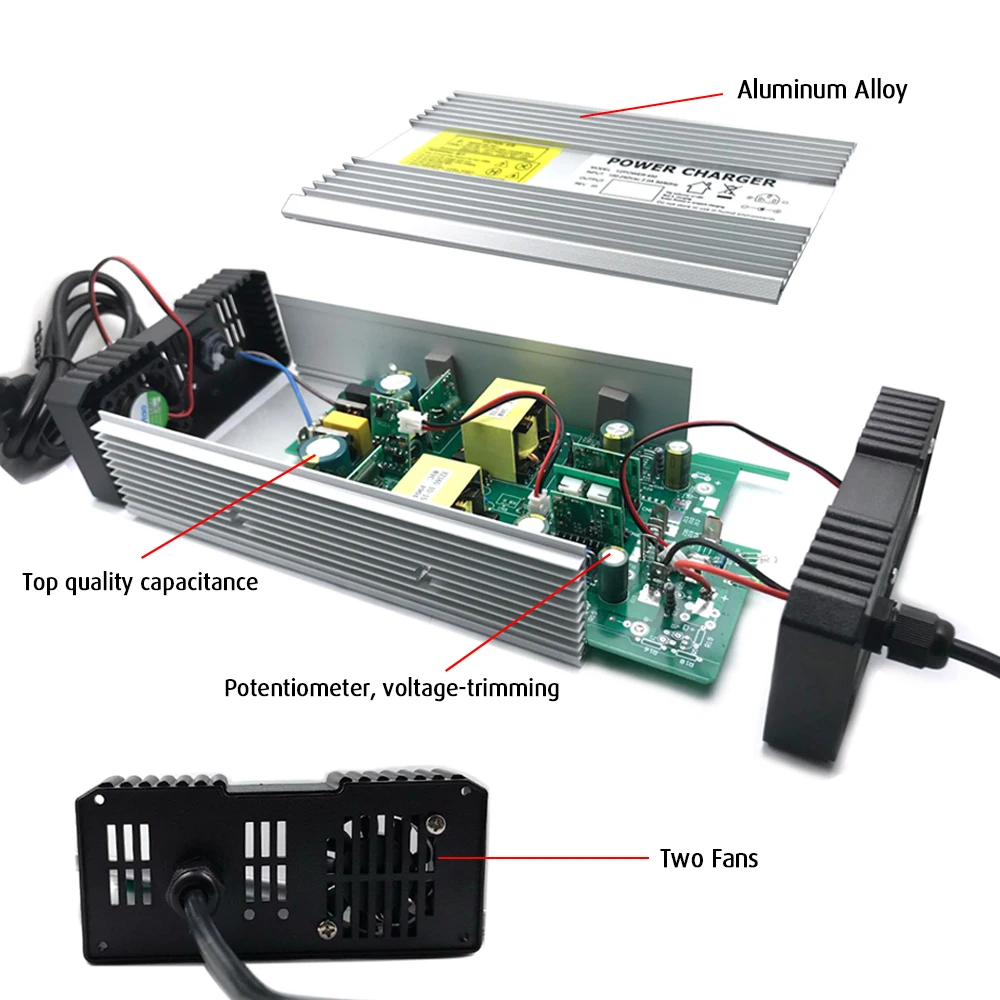

1.The aluminum alloy case has a heat-dissipating function, and two built-in fans form air convection, which can better cool the power device and prolong the service life. 2.The two sets of circuits are connected in parallel, one of which is damaged, and the product can continue to work, increasing the service life of the product. 3.It contains filters inside, so that the charger makes anti-jamming performance much strengthen. 4.There is a potentiometer,it can adjust the voltage within a certain range. 5.The product internal circuit contains fuse, the whole circuit overload protection effect

How to use

1. Should be checked before using the battery charger is consistent with the type of charger model is correct. If the model is not matched, charging may be abnormal and the battery may be seriously damaged. 2. Should be properly connected battery Do not reverse polarity! (Red + Black- or Brown- Blue + or Red + Blue -). 3. Then the AC plug in the AC outlet, then the charger starts to charge the battery, charging status LED color light displayed by the top of the charger. (The indicator of LED: red is charging, green is charge finished or prepare charging)If the green light is always on, check that the charging cable is firmly connected to the battery. 4.Full of voltage, first unplug the charger's power plug, then unplug the battery plug.

FIG Charging Curve

Certifications

Our service

Pre-Sales Service Tell us about your battery type, features, Professional sales manager for you Offer, transport, delivery period and other issues. Let our professional engineers recommend the right charger for you. After-Sales Service Products provide twelve-month warranty. <8 hours response to customer complaints. < 24 hours to propose a solution. Professional engineers, unlimited number of technical advice.
