Характеристики
200w 300w solar panel kit complete for home outdoor camping charger 12v with system regulator | Электроника
История изменения цены
*Текущая стоимость 16 249,24 - 25 896,71 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Aug-18-2025 | 20636.68 руб. | 21049.5 руб. | 20842.5 руб. |
| Jul-18-2025 | 16736.75 руб. | 17071.14 руб. | 16903.5 руб. |
| Jun-18-2025 | 20311.59 руб. | 20717.0 руб. | 20514 руб. |
| May-18-2025 | 20149.1 руб. | 20552.37 руб. | 20350.5 руб. |
| Apr-18-2025 | 16087.13 руб. | 16409.35 руб. | 16248 руб. |
| Mar-18-2025 | 19824.72 руб. | 20220.86 руб. | 20022 руб. |
| Feb-18-2025 | 19661.28 руб. | 20054.60 руб. | 19857.5 руб. |
| Jan-18-2025 | 19499.9 руб. | 19889.98 руб. | 19694 руб. |
Описание товара
Shipping information
For Europe Client: Ship from Spain, Czech Republic or Belgium Warehouse, 3-10 days arrival via DHL or UPS, DPD.
For Russia: Ship from Moscow Warehouse, Fast arrival via Russia Post.
More Oversea Warehouse will open later.
For Spain Island and France Island, there may be extra remote freight cost, islands in Spain starting with 35,38 cannot be shipped through overseas warehouses. The goods will be shipped from China, and remote surcharges and tariffs may be charged. So if there were remote cost, then we will contact with buyer.
Complete flexible solar panel kit 200w 300w and 12v solar panel module 300w for home/roof/motor/boat.
Specification
Maximum power 100W
Open circuit voltage 19.2V
Short circuit current 6.68A
Maximum power voltage 16V
Maximum power current 6.25A
Operating temperature 45±2℃
Temperature range -20℃～+80℃
Number of cells 32pcs
Net weight 1.9KG
Size 1050*530*2.5mm
Standard Test Conditions : Irradiance 1000w/m2,Temperature 25℃,AM=1.5
Features
High efficiency: conversion rate 19.6-21%.
Flexible: suitable for surface mounting.
Light weight and easy to install & maintain.
Wide range of adaptation: Charging cars, boats, roofs, outdoors, mountains, grasslands, etc.

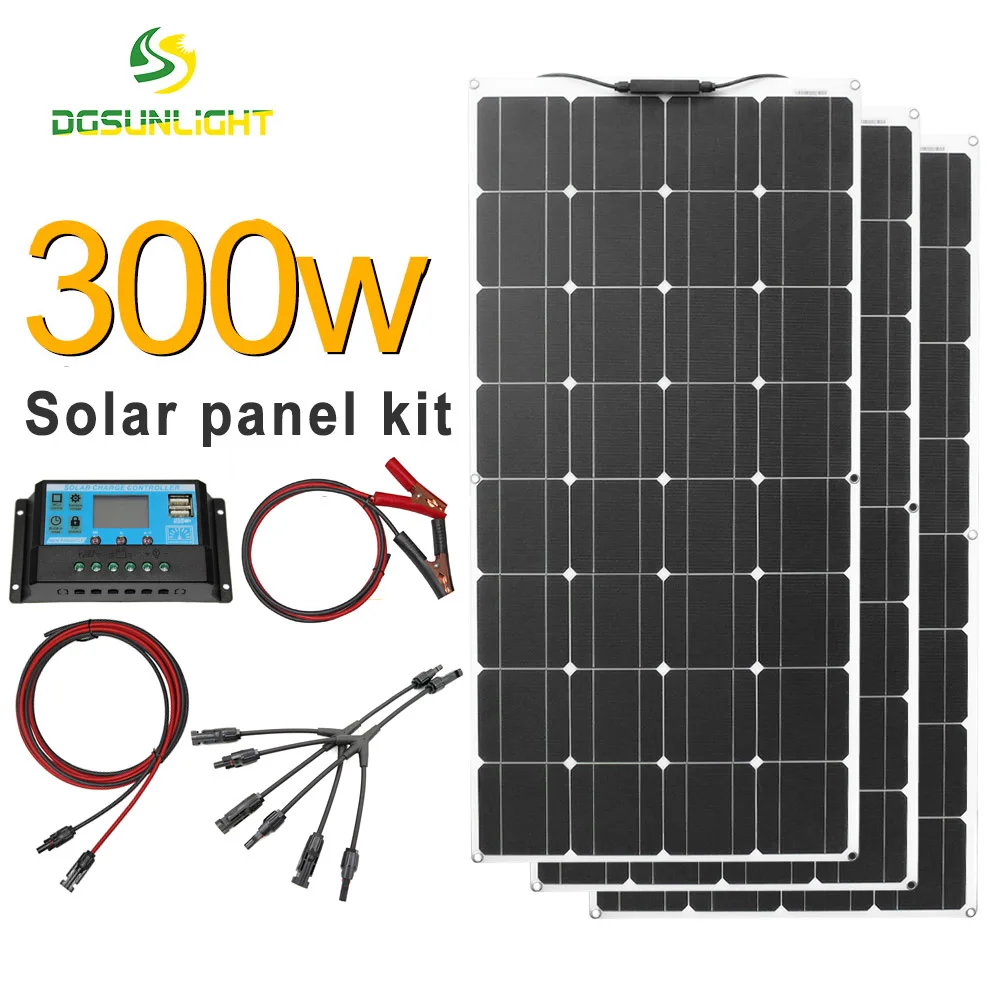

Packing list
(our product has 3 options, each option contains different products):
300w solar panel:
300w solar panel=3pcs solar panel（solar panel only）
200w solar panel kit:
2* 100w 12v flexible solar panel
1* 12v 20A solar controller
1* 2 in 1 PV adapter

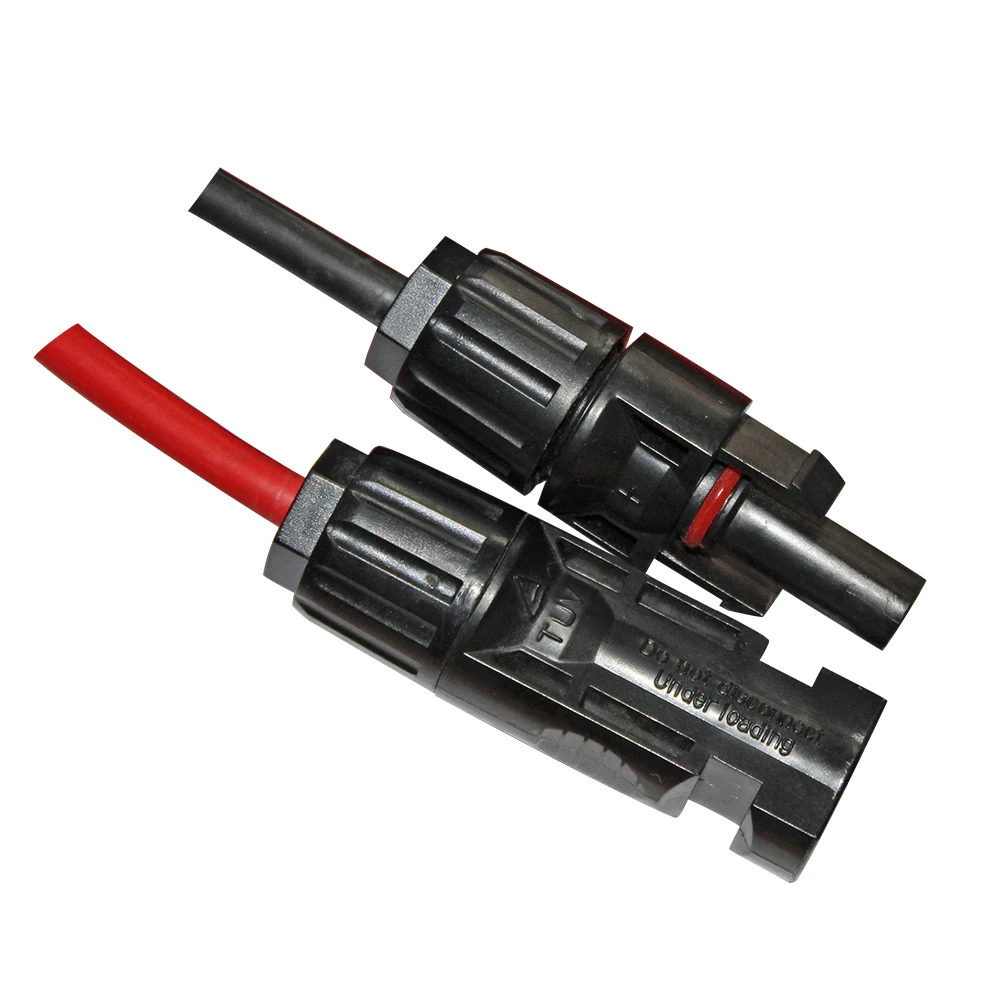

1* Cable with waterproof PV connector
1* Cable with battery clip
1* Multilingual instruction manual
300w solar panel kit:
3* 100w 12v flexible solar panel
1* 12v 20A solar controller
1* 3 in 1 PV adapter
1* Cable with waterproof PV connector
1* Cable with battery clip
1* Multilingual instruction manual
NOTE
The regulator is only suitable for lead acid batteries: OPEN, AMG, GEL, it is not suited for nickel metal hydride, lithium ions or other batteries.
Technical parameter | |||
Model | Kw1210 | Kw1220 | Kw1230 |
batt voltage | 12V/24V AUTO | ||
Charge current | 10A | 20A | 30A |
Discharge current | 10A | 10A | 10A |
Max solar input | 12V battery, the highest 23v; 24V battery when the highest 46v | ||
Equalization | B1 sealed | B2 gel | B3 flood |
14.4V | 14.2V | 14.6V | |
Float charge | 13.7V (defual adjustable) | ||
Discharge stop | 10.7V (defual adjustable) | ||
Discharge reconnect | 12.6V (defual adjustable) | ||
Charge reconnect | 13V | ||
Voltage of open light | Solar panel 8V(Light lights delay) | ||
Voltage of close light | Solar panel 8V(Light off delay) | ||
USB output | 2 way USB output, 5V/2.5A(MAX) | ||
Self-consume | ＜10mA | ||
Operating temperature | -35℃～+60℃ | ||
Size/Weight | 133.5*70*35mm/165g | ||
System Connection:
1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
Safety Instructions:
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
PS
Please strictly follow the instructions for installation and use. We are not responsible for product damage caused by the buyer's use that is not in accordance with the instructions for use.
About the parcel send from China
Sometimes the customs will charge the clearance fees. If you reject the item because of customs clearance, you will have to pay for the shipping cost of the returned item.
When the goods arrive at the destination country, please contact the local logistics service provider for customs clearance and delivery.
