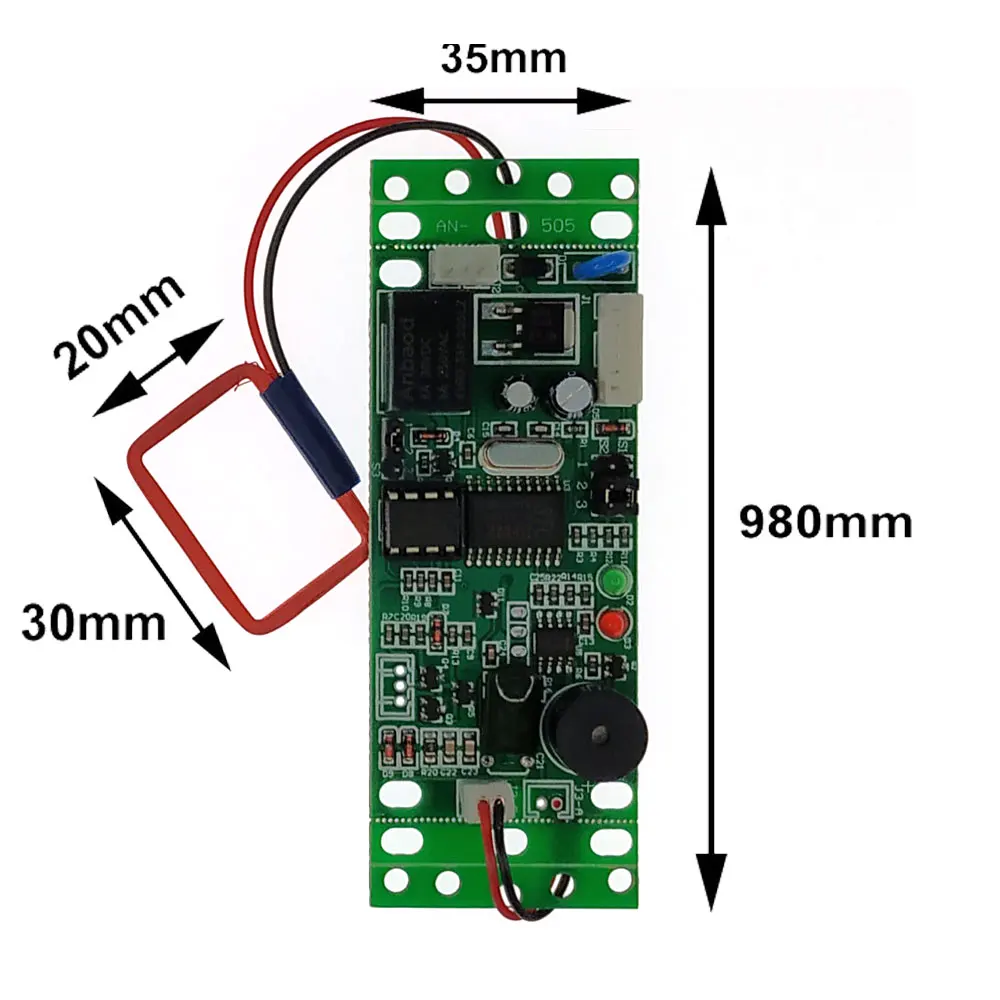

Specifications:

.Working Frequency:125KHz

.Power Supply: DC 9~24V

.Current: 60mA~80mA

.Rated Power: ≤ 1W

.Read Range: 5~10cm

.Card Capacity: 2000

.Temperature: <60 degree

.Humidity: 10% ~ 95% R.H

.Size: 100*37*12mm

.Outdoor Button: 1

.Sensor Input: 1

.Electric Lock Output: 1

.With manage card to add or delete users card

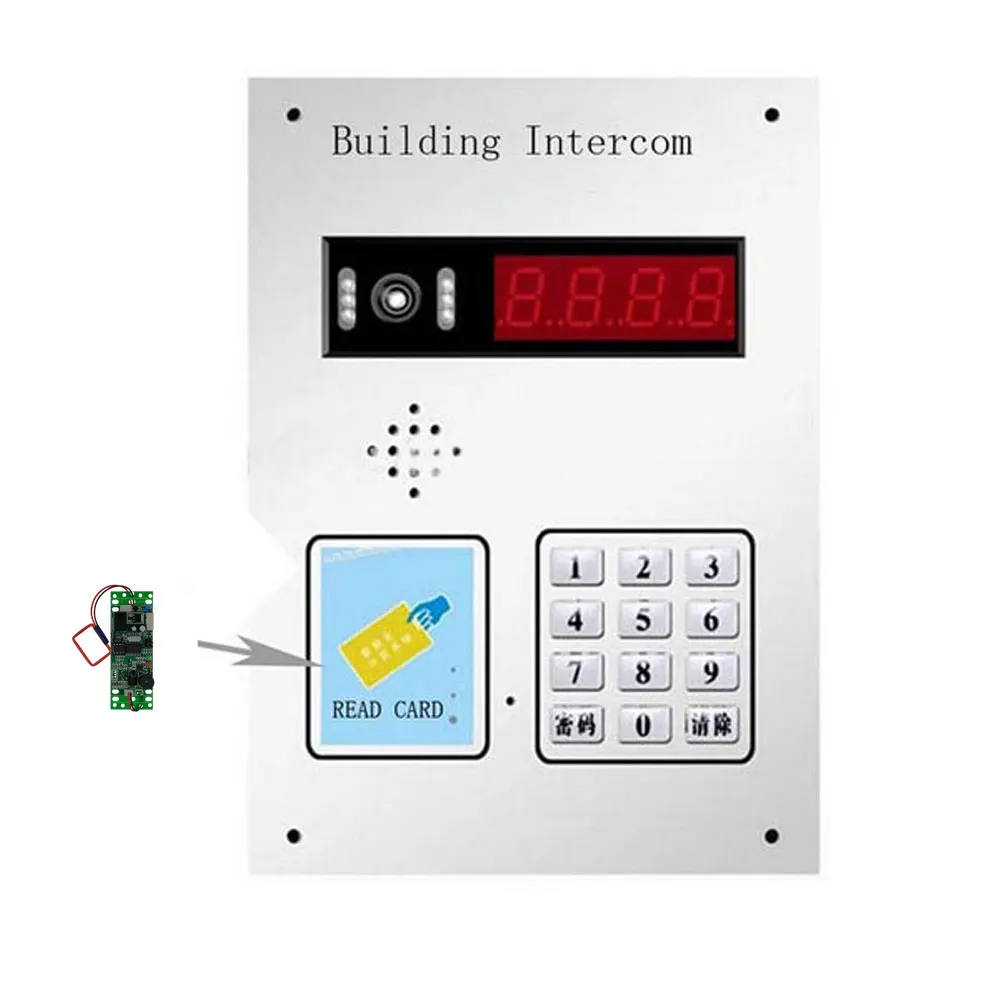

.Application Field: building intercom,Lift

****************************************************************************************************************************

Add card:

1.swipe the add card, enter add mode ,

2.then swipe the user card one by one,

3.swipe the add card again, quit 'add mode' , add user card succefully.

Delete card:

1.Dele the add card, enter delete mode ,

2.then swipe the user card one by one,

3.swipe the delete card again, quit 'delete mode' , add delete card succefully.

****************************************************************************************************************************

this access control kit congiture Two master card, one add user card,another dele user card,you can use these super cards to add new users or dele old users. so this access control system is very easy to manage!

****************************************************************************************************************************

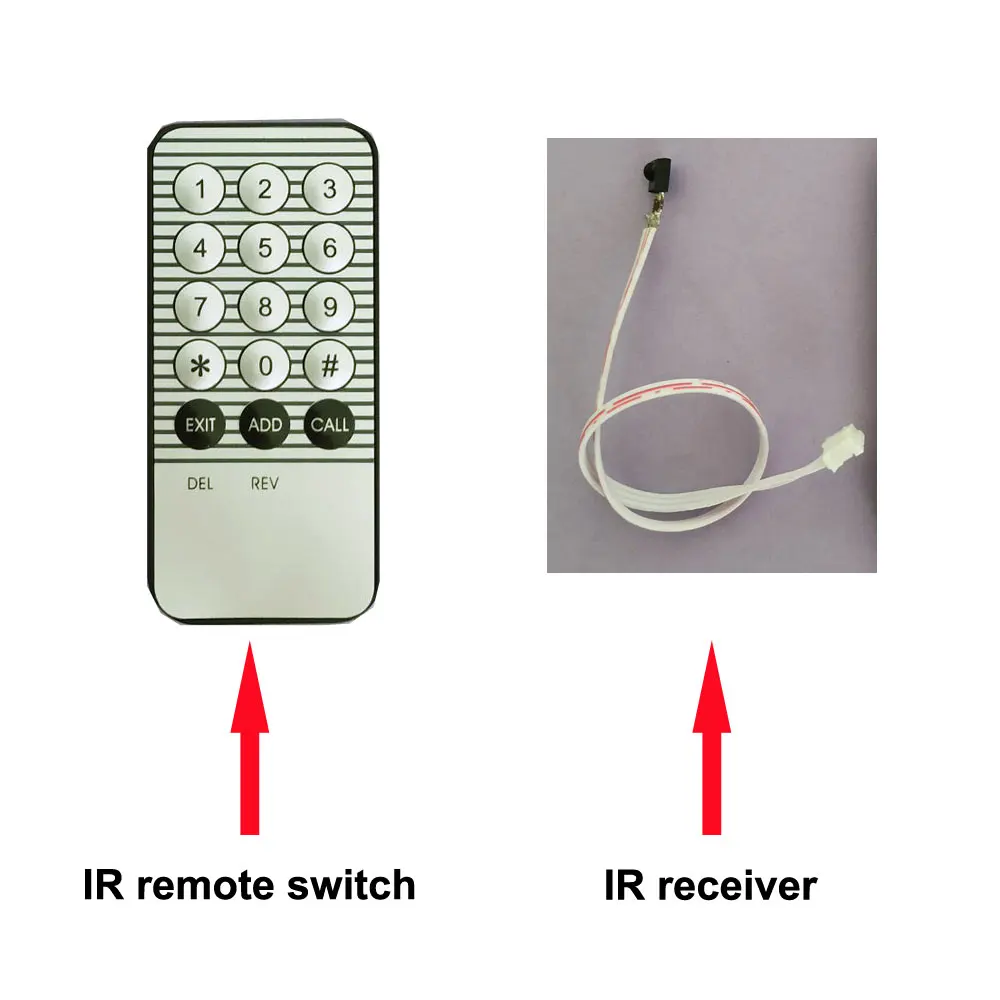

IR Remote control operation instructions (optional)

Enter program: press “1234” then press “CALL”.

 Continuously add cars: press “1”+“CALL”, green LED will blink, then read cards continuously.

 Continuously clear cards, press “3” +“CALL”, red LED will blink, then read cards continuously.

 Add Card with number: press “0”+XXXXXXXXXX (10bit card chip number)+“CALL”.( while press “0”,the green LED will light on, then press 10bit card chip number)

 Clear card with number: press “2”+XXXXXXXXXX (10bit card chip number)+“CALL”,(while press “2”,the red LED will light on, press 10 bit card chip number.)

 Clear all cards: press “4” +“CALL”, after several second, will hear “B” sound, clear finished.

 Door normal open start: press “5” +“CALL”

 Door normal close start: press “6” +“CALL”

 Open door once time: press “7” +“CALL”

 Change password: press “8” +XXXX (4bit password)+“CALL”.

 EXIT program: press “EIXT”, or do not any operating, it will be auto-exit after 10s.

****************************************************************************************************************************

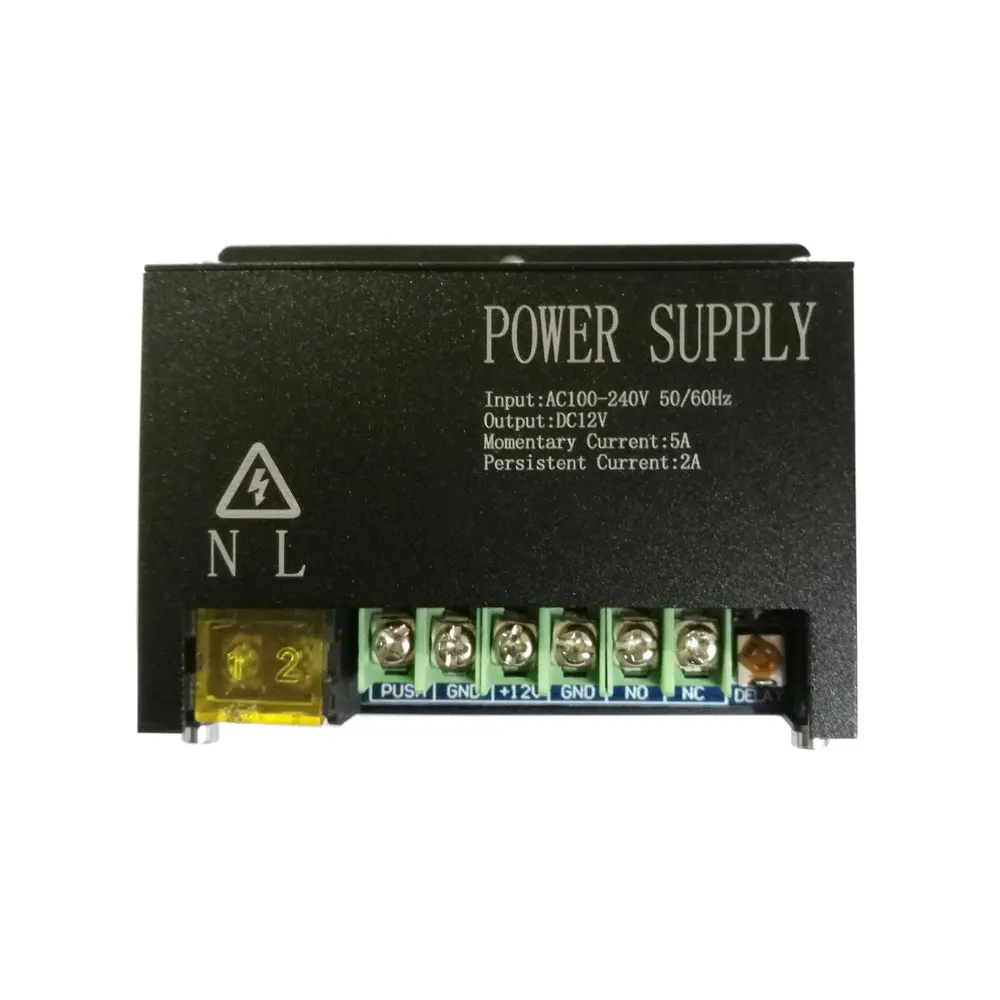

1pcs access power supply (optional)

If there is not access power supply ,you can add an accesss power supply to connect lock.

***********************************************************************************************************************

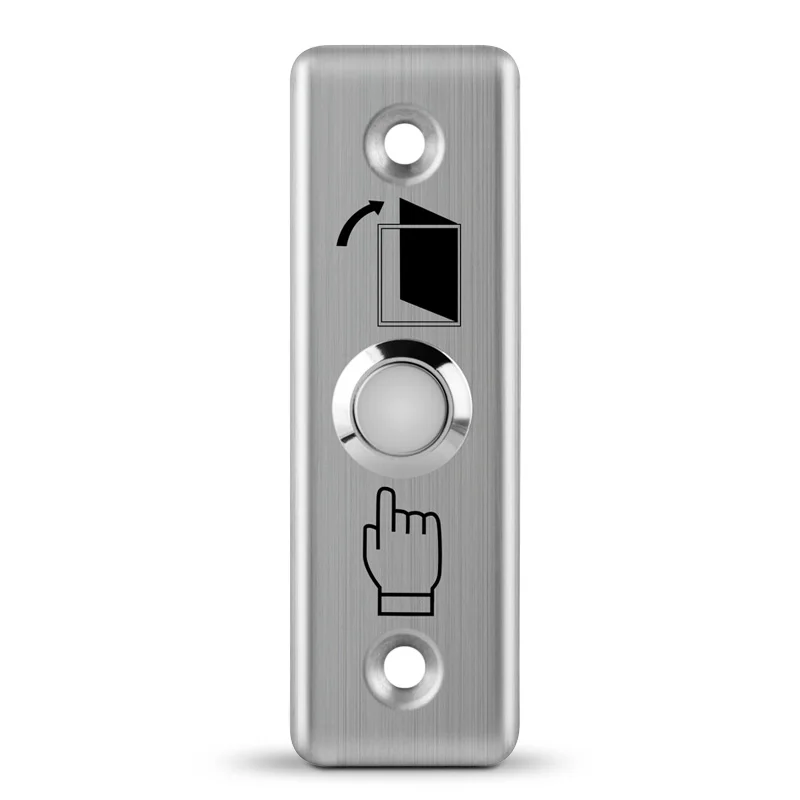

Stainless Steel Door Exit Push Release Button Switch for Access Control

Features:
Silver stainless steel shell, safe and durable.
Looks simple, comfortable and beautiful.
Undergoing 100,000 times continuous clicking test, very durable.
Good to touch, easy to operate and use.
Activates electric strike, magnetic lock or other elctric lock via access control.
Works with most electronics access control , door phones with access control.
Flush mounting.

Specifications:
Current: 3A, 36V DC
Contact output: NC\COM
Applied temperature: -10~+55 Degree14-131F)
Applied humidity: 0~95% (relative humidity)
Material: Stainless steel
Item size: 9 * 2.5cm (L*D)
Item weight: 31g
Package size: 10 * 9 * 4cm
Package weight: 59g

Package including:
1 * Door Switch Button
2 * Screws

***********************************************************************************************************************

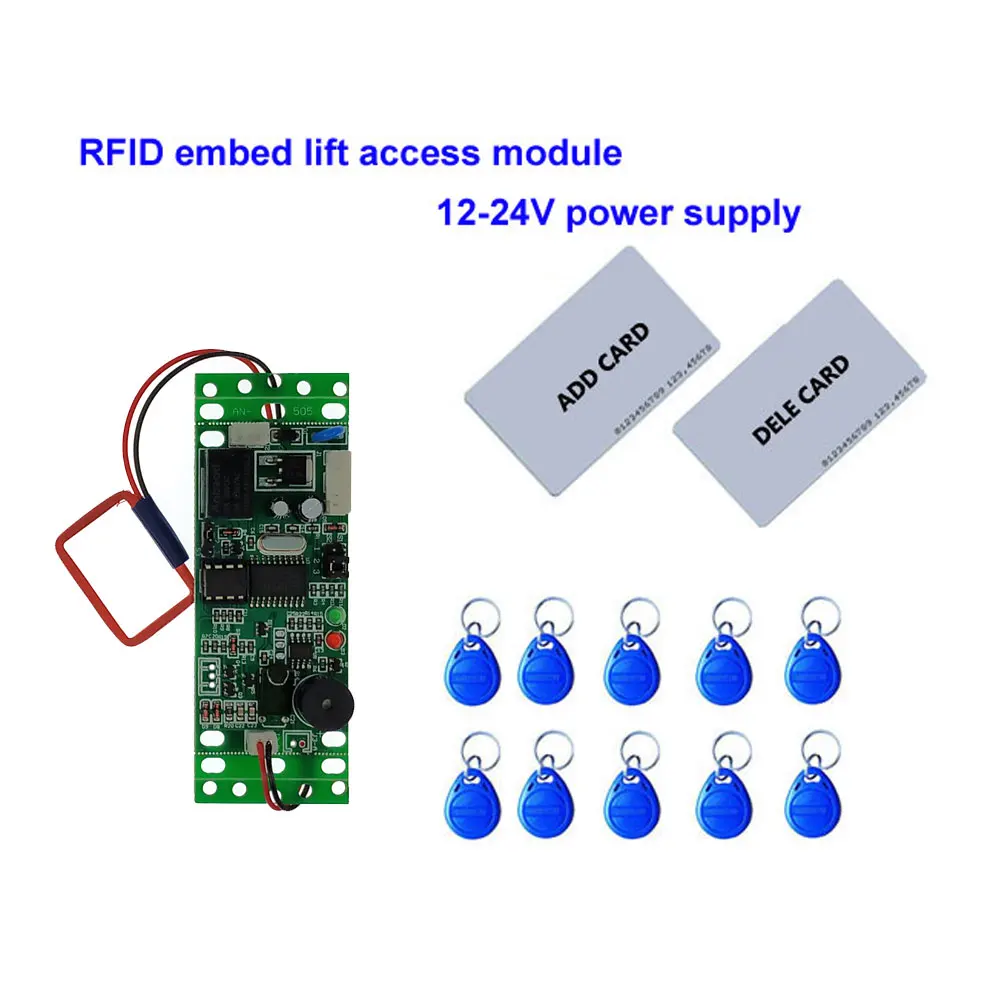

1pcs Package Included:

.1x Access Controller

.2x Master Cards

.1x Cable

.1x Handbook

.10x em key fob

.1 x IR remote control (option)
