Описание товара

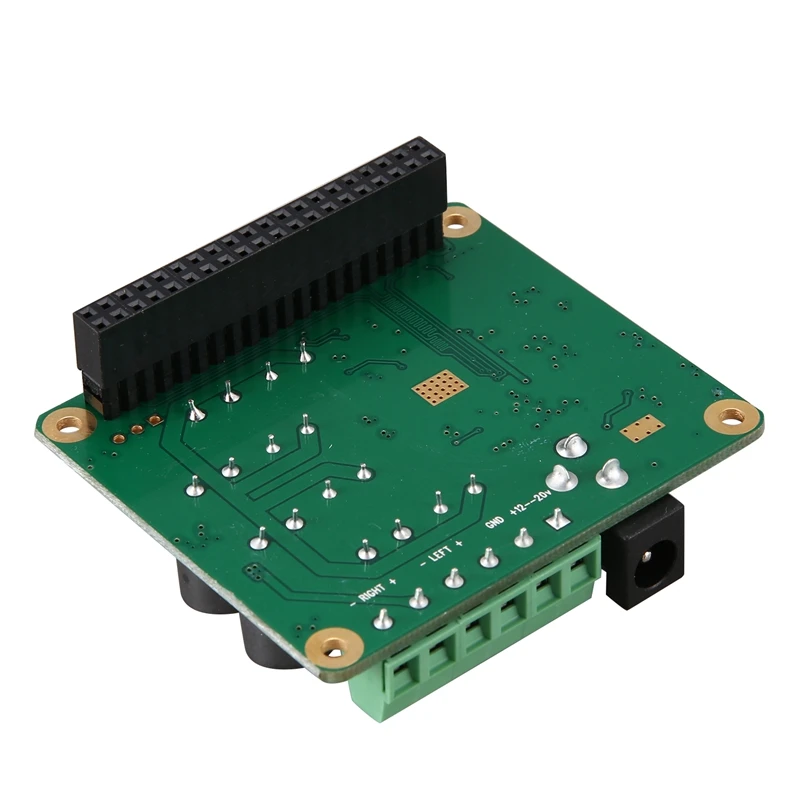

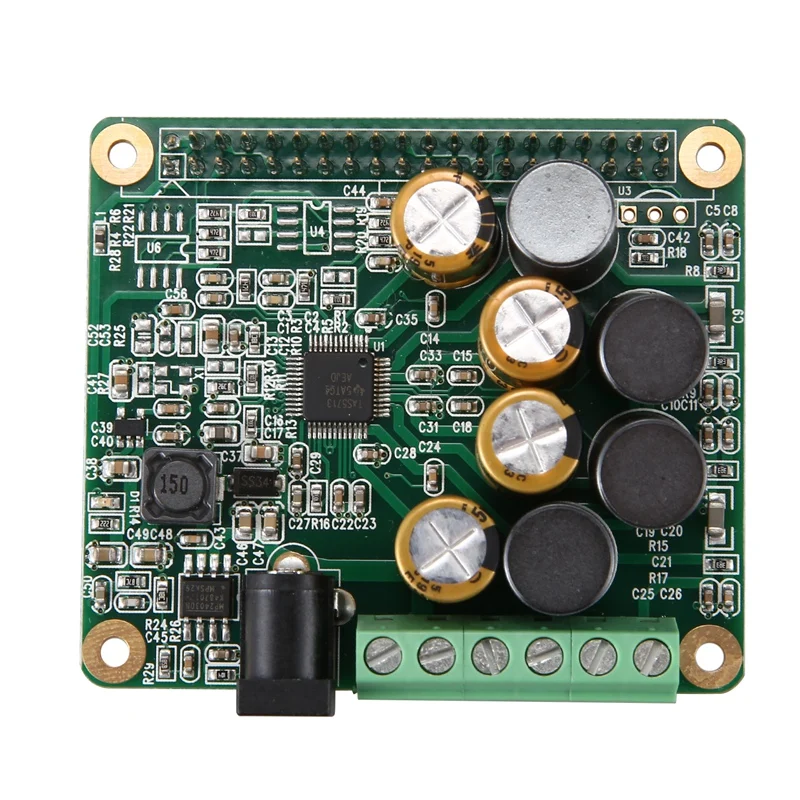

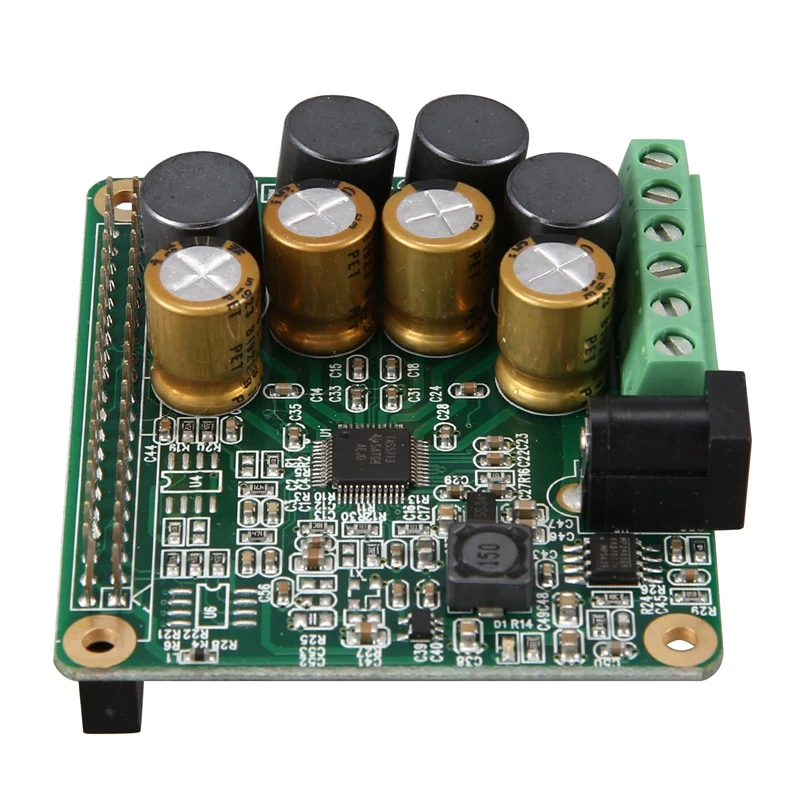

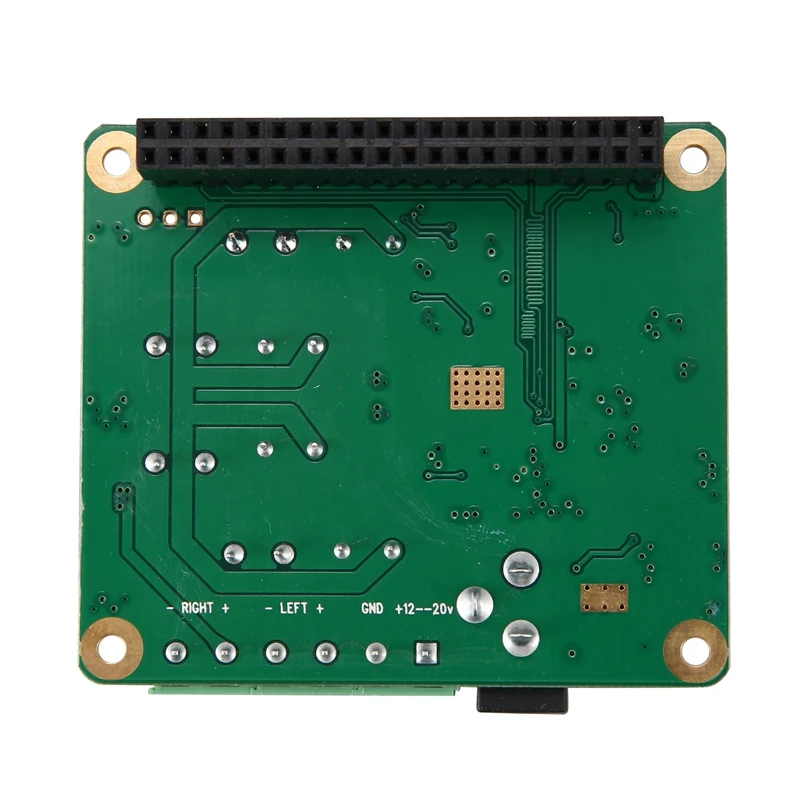

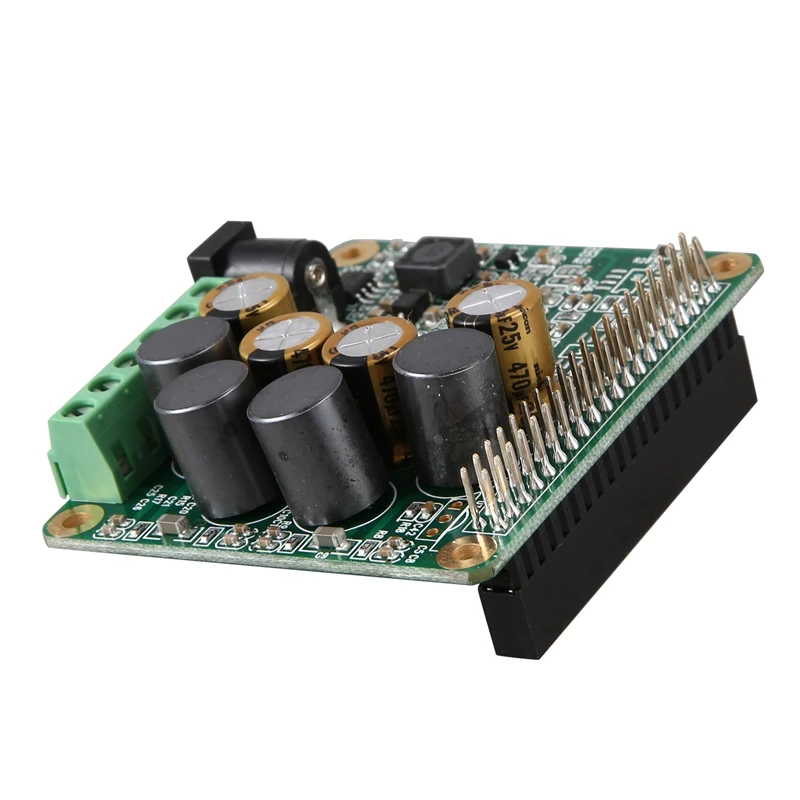

Amplifier o Module Class-D Power Sound Card Expansion Board for Raspberry Pi 4 3 B +
1.RPI-HIFI-AMP module is a high-performance CLASS-D o power amplifier for Raspberry Pi.
2. Plug this module directly to your Raspberry Pi, you only need to connect the speaker to let you get a stereo o playback system. This module is very suitable for small area indoor o playback system.
Up to 25W stereo dual-channel power output.
Capable of driving speakers with 4 ohms or higher impedance.
Up to 90% efficiency power output eliminates the need for additional fan heat sinks.
Support o files with 44.1KHz and 48kHz sampling rate.
The module directly contains the DAC decoding part without adding a DAC decoder or sound card.
The all-digital o processing channel enables the system to enable users to get a better experience.
Connect directly to the Raspberry Pi 40pin header without an external cable.
12-20V external power supply is provided to the power amplifier and the Raspberry Pi, no need to power the Raspberry Pi separately.
Size RPI HAT compatible.
Reserve the ID EEPROM location.
Compatible with Raspberry Pi 3B + / 3B / 2B / B +
[Hardware connection]
Connect the 40-pin header of the RPI-HIFI-AMP module directly to the 40-pin header of the Raspberry Pi. When installing the module, pay attention to the first pin of the Raspberry Pi and RPI-HIFI-AMP module.
[Software Installation]
The RPI-HIFI-AMP module is compatible with many Raspberry pi music playback systems, such as:
OSMC / Max2Play / Runeo / Volumio / Moode / PiCorePlayer / PiMusicBox / OpenELEC etc.
Users can choose what suits them.
colour:Photo Color
Material:ABS
size:8*6*3cm

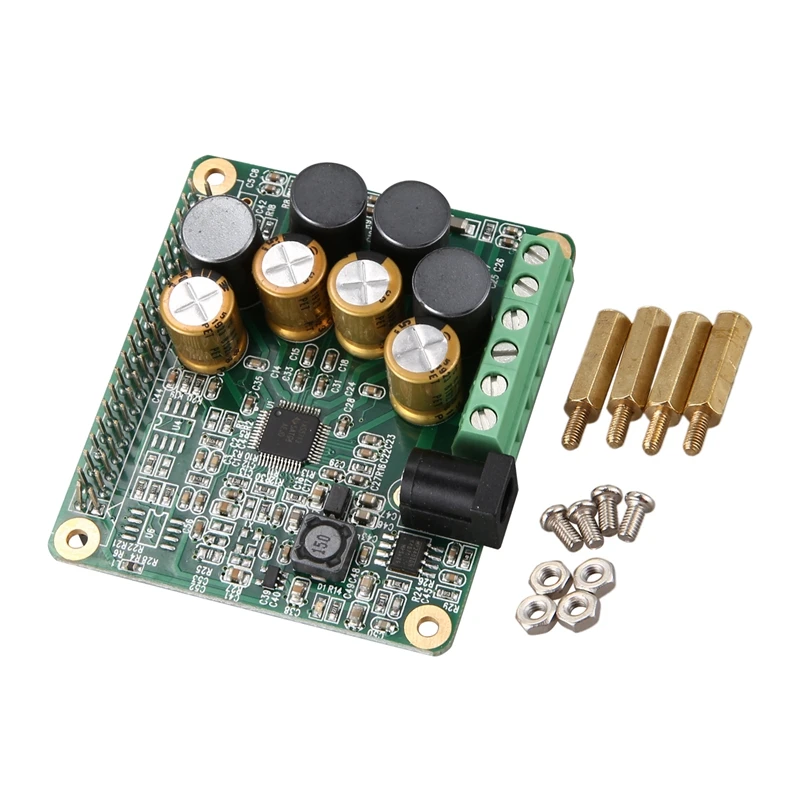

Package Contents:
1 x expansion board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
