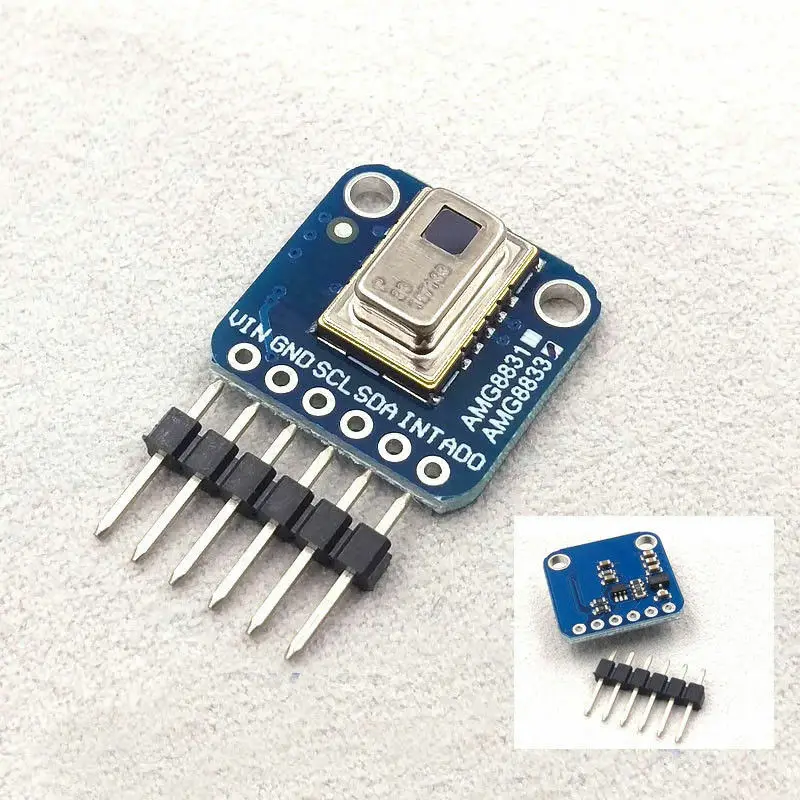

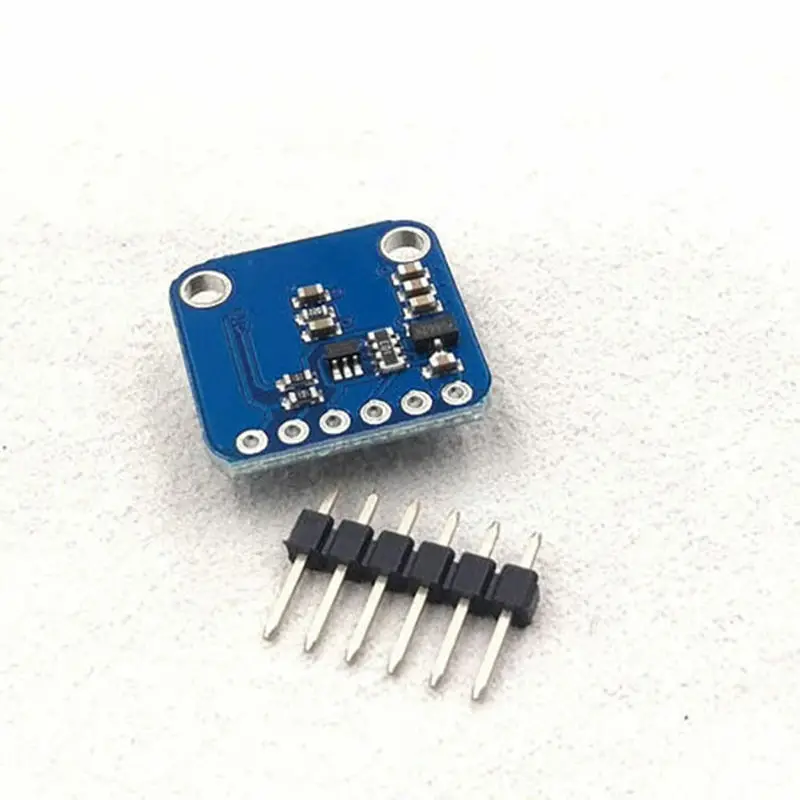

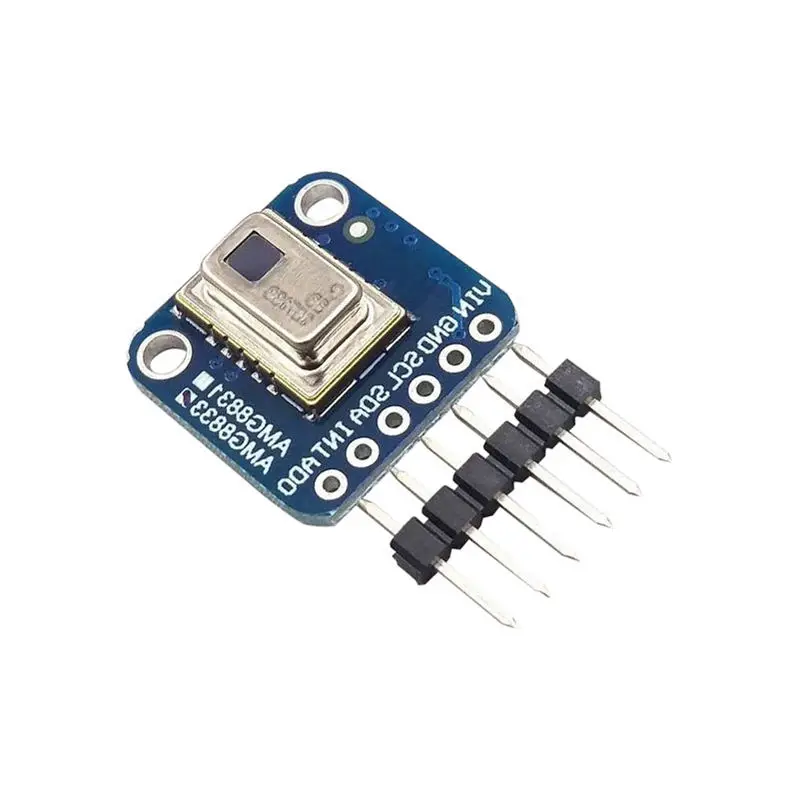

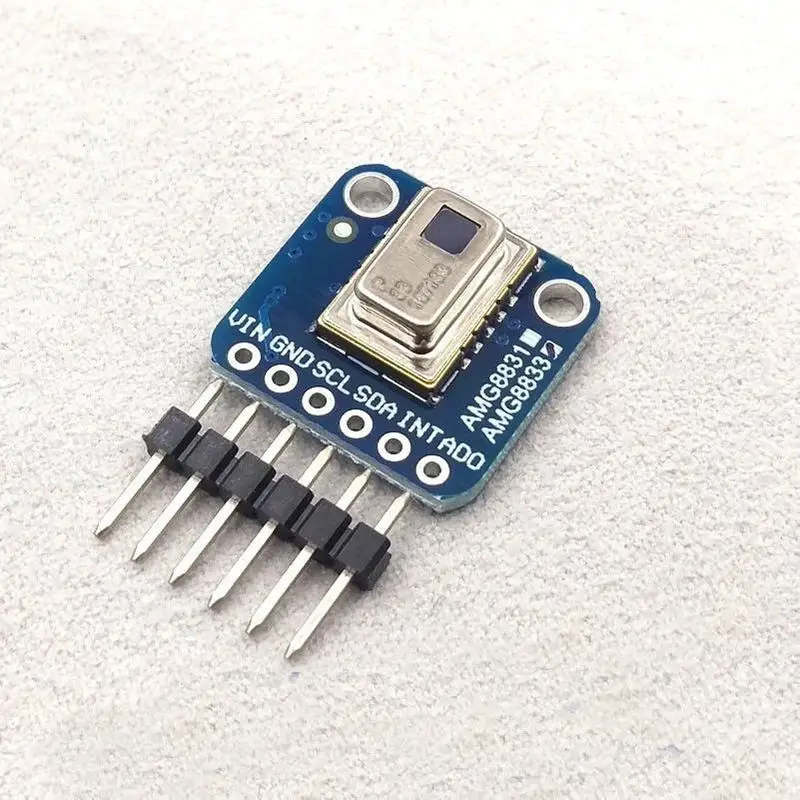

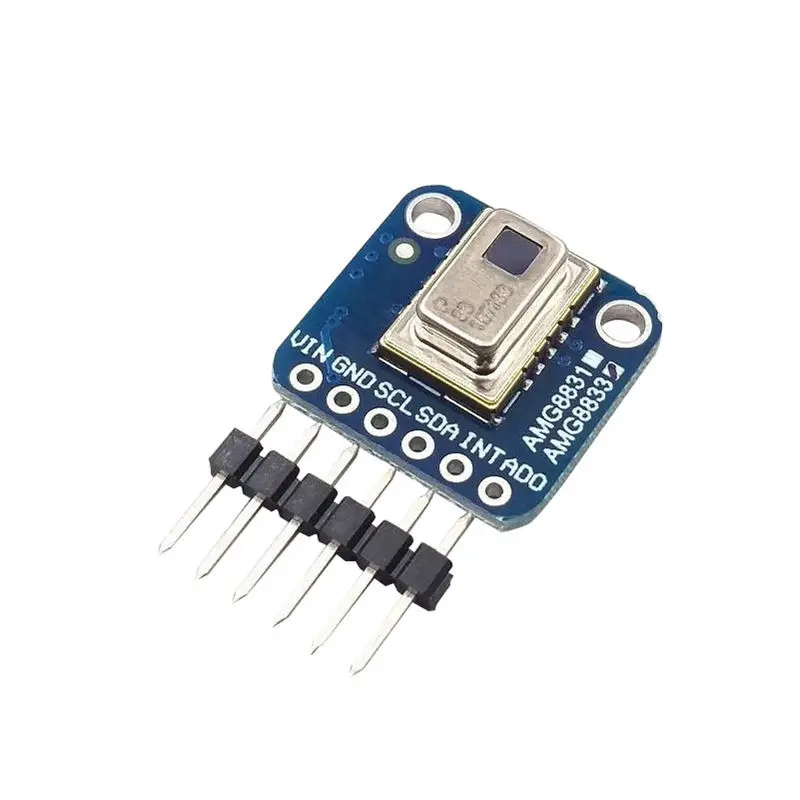

Add heat-vision to your project and with an Adafruit AMG8833 Grid-EYE Breakout!This sensor from Panasonic is an 8x8 array of IR thermal sensors.When connected to your microcontroller(or raspberry Pi)it will return an array of 64 individual infrared temperature readings over I2C.It's like those fancy thermal cameras,but compact and simple enough for easy integration.
This part will measure temperatures ranging from 0 Celsius to 80 Celsius(32 Fahrenheit to 176 Fahrenheit)with an accuracy of +/-2.5 Celsius(4.5 Fahrenheit).It can detect a human from a distance of up to 7 meters(23)feet.
With a maximum frame rate of 10Hz,It's perfect for creating your own human detector or mini thermal camera.We have code for using this breakout compatible(the sensor communicates over I2C)or on a Raspberry Pi with Python.
The sensor only supports I2C,and has a configurable interrupt pin that can fire when any individual pixel goes above or below a threshold that you set.
color:blue
Material:metal +pc
Size:20*10*10mm
Package Contents:
1* AMG8833 IR Thermal Ier Array Temperature Sensor Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
